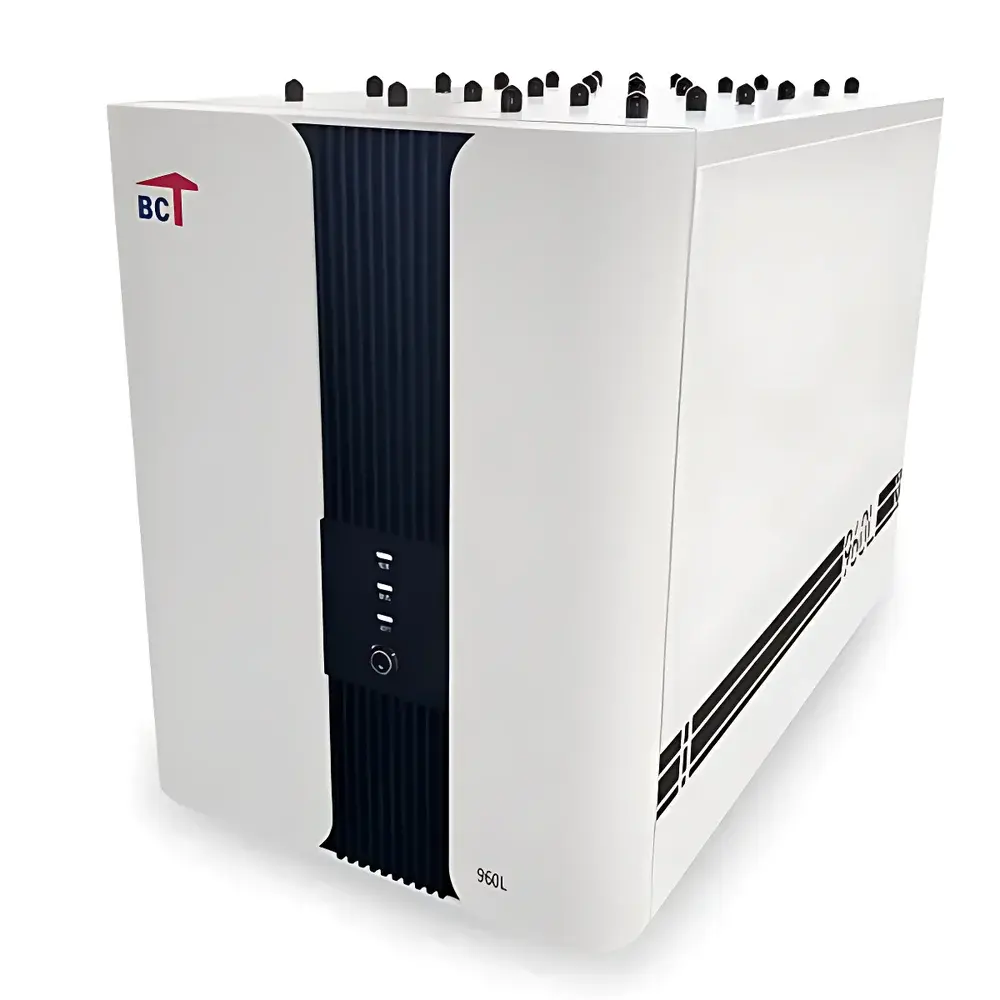

BCT BCT-960L Automated Atmospheric Pre-concentrator for VOC Analysis

Overview

The BCT BCT-960L Automated Atmospheric Pre-concentrator is a dedicated sample introduction system engineered for high-throughput, reproducible analysis of volatile organic compounds (VOCs), particularly aromatic hydrocarbons (e.g., benzene, toluene, ethylbenzene, xylenes—BTEX), in fixed-source emission gas streams. It operates on the principle of cryogenic pre-concentration coupled with automated thermal desorption and quantitative loop injection into gas chromatography (GC) or GC–mass spectrometry (GC–MS) systems. Designed specifically for compliance monitoring under environmental regulatory frameworks—including China’s HJ 734–2014 and HJ 1012–2018—the BCT-960L integrates precise pressure-driven sample transfer, programmable dilution, and internal standard spiking to ensure trace-level accuracy and method robustness across heterogeneous sample matrices.

Key Features

• Multi-format sample compatibility: Accepts direct interfacing with glass syringes, Tedlar® sampling bags, crimp-top sample vials (equipped with quick-connect fittings), and SUMMA®-treated stainless-steel canisters—eliminating manual handling and reducing contamination risk.
• Quantitative loop injection architecture: Utilizes a fixed-volume, inert-coated sampling loop (standard 1–10 mL range, configurable per application) for volumetrically precise, carrier-gas-assisted transfer—ensuring <±2% relative standard deviation (RSD) for repeated injections under controlled conditions.
• Integrated pneumatic dilution module: Enables on-line, pressure-regulated sample dilution at user-selectable ratios (3× to 5×) using ultra-high-purity zero air or nitrogen—critical for avoiding detector saturation during high-concentration stack gas analysis.
• Automated internal standard addition: Delivers precise, programmable spiking of deuterated surrogates (e.g., benzene-d₆, toluene-d₈) prior to pre-concentration, supporting quantitative correction for breakthrough, adsorption loss, and instrument drift.
• Thermal management system: Maintains sample pathway temperature stability within ±0.5 °C across the entire flow path (from inlet valve to cold trap), minimizing condensation, fractionation, or analyte degradation during transfer.
• Self-cleaning protocol suite: Includes both system-level bake-out (up to 300 °C) and sample-specific pre-injection purge cycles with heated carrier gas—reducing carryover to <0.1% for BTEX compounds after high-level standards.

Sample Compatibility & Compliance

The BCT-960L is validated for use with EPA Method TO-14A, TO-15, and ASTM D6420–22 for ambient and source emission testing. Its hardware design adheres to ISO/IEC 17025:2017 requirements for calibration traceability and measurement uncertainty estimation. All wetted surfaces employ electropolished stainless steel and SilcoNert®-coated components to minimize reactive surface interactions. The system supports audit-ready operation under GLP and industrial QA/QC protocols, with full support for electronic logbooks, user access control, and event-driven data stamping aligned with FDA 21 CFR Part 11 principles (when integrated with compliant LIMS or GC software platforms).

Software & Data Management

Controlled via BCT’s proprietary Windows-based Instrument Manager Software (v3.2+), the BCT-960L provides intuitive method setup, real-time status monitoring, and automated sequence execution. Software features include customizable run templates, automatic calibration curve generation (linear and quadratic), QC flagging (e.g., pressure deviation >5%, peak area RSD >10%), and export-compatible data formats (CSV, XML, and AIA .cdf for GC integration). Audit trails record all parameter changes, user logins, and instrument events with timestamp and operator ID—enabling full traceability for regulatory submissions and internal validation reports.

Applications

• Regulatory stack testing for petrochemical, pharmaceutical, and coating manufacturing facilities
• Method validation and routine QC for accredited environmental laboratories performing HJ 734–2014-compliant BTEX analysis
• Dynamic dilution studies to assess linearity and detection limits across concentration ranges (0.1–100 ppbv)
• Multi-point calibration verification using certified gas standards and permeation tubes
• Field-deployable lab backup for emergency response VOC screening where rapid turnaround and minimal manual intervention are required

FAQ

Does the BCT-960L support unattended overnight operation?
Yes—fully programmable sequences with auto-shutdown, leak-check routines, and end-of-run diagnostics enable 24-hour batch processing without operator presence.
Can the system be integrated with third-party GC or GC–MS platforms?
Yes—standard 1/8″ VCR and 1/4″ Swagelok fittings, plus TTL and RS-232/USB communication interfaces, ensure seamless synchronization with Agilent, Thermo Fisher, Shimadzu, and PerkinElmer instruments.
Is cryogenic cooling included as standard equipment?
No—the BCT-960L is designed for integration with external liquid nitrogen or closed-cycle refrigeration units (e.g., LN2 dewars or mechanical cryo-coolers); cooling specifications and trap geometry comply with TO-15 cold trap requirements.
What maintenance intervals are recommended for optimal performance?
Valve actuation and trap cleaning every 200 runs; full system bake-out and seal inspection every 6 months; annual calibration verification using certified span gases and dynamic dilution checks.
Does the software support multi-user permissions and electronic signatures?
Yes—role-based access control (Administrator, Analyst, Reviewer) and digital signature workflows are embedded in Instrument Manager Software v3.2+, satisfying GLP documentation requirements.
