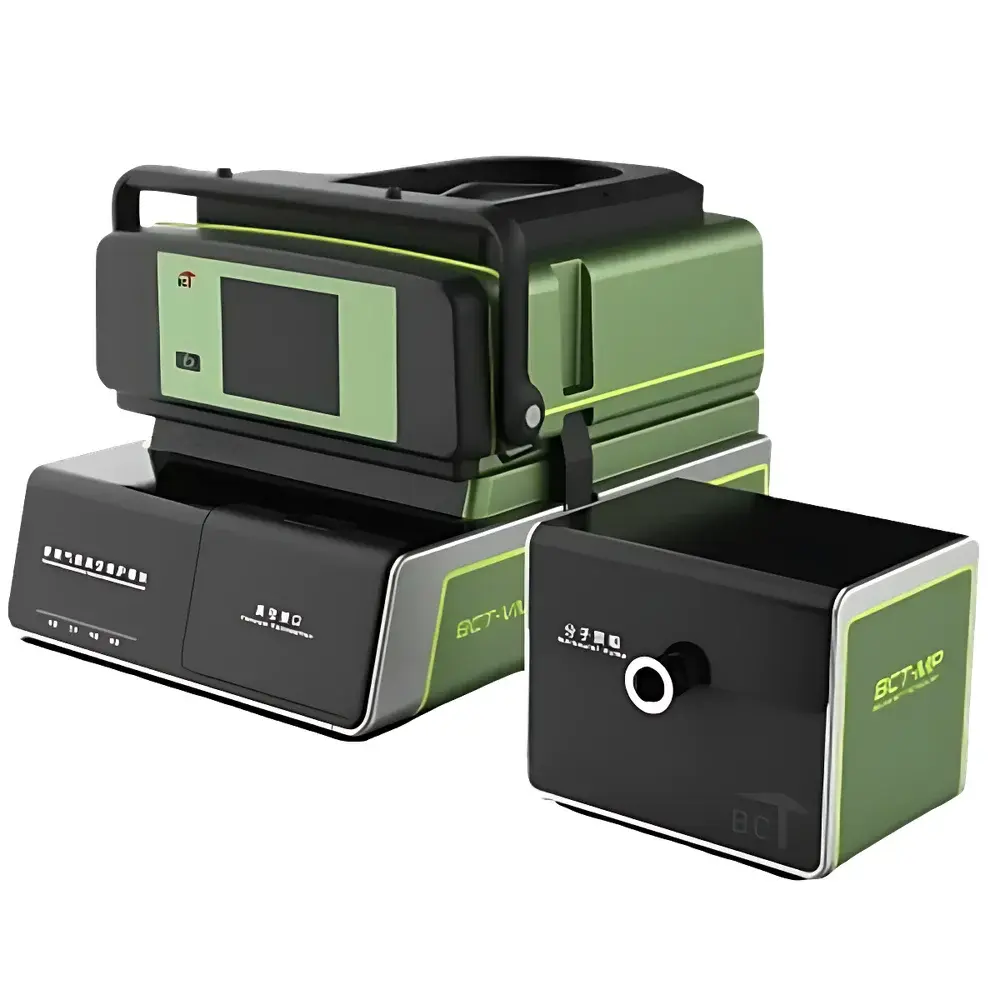

BCT BCT-CMM Mobile Monitoring Module for Portable GC-MS Systems

Overview

The BCT BCT-CMM Mobile Monitoring Module is an engineered add-on solution designed to extend the operational capability of existing portable gas chromatography–mass spectrometry (GC-MS) systems into dynamic, vehicle-based volatile organic compounds (VOCs) mapping and real-time source attribution. Unlike integrated mobile GC-MS platforms requiring full system redesign, the BCT-CMM operates as a functionally autonomous yet physically non-invasive module—requiring zero hardware modification to the host portable GC-MS instrument. It leverages the host system’s core analytical engine while introducing synchronized geospatial acquisition, high-frequency sampling control, and edge-processed chromatogram annotation. The module implements continuous, low-flow sampling through a calibrated inert gas interface, coupled with time-synchronized mass spectral acquisition triggered by positional metadata. This architecture supports trace-level VOC detection (ppt–ppb range) across moving platforms at speeds up to 60 km/h, maintaining retention time stability and spectral fidelity under vibration and thermal transients.

Key Features

• Non-invasive integration: No electrical, mechanical, or firmware alterations required to the host portable GC-MS unit—preserves original calibration status and manufacturer warranty.
• Vibration-resilient vacuum architecture: Utilizes a non-mechanical pumping system (e.g., compact turbomolecular or dual-stage ion pump), eliminating moving parts susceptible to shock or orientation-dependent performance drift.
• Real-time georeferencing: Supports simultaneous GPS and BeiDou satellite positioning with ≤2 m CEP (Circular Error Probable) accuracy; timestamps embedded directly into raw spectral files (e.g., .RAW or .D format) per NIST-compliant metadata schema.
• 5G-enabled telemetry: Onboard LTE/5G modem enables live streaming of TIC (Total Ion Chromatogram) overlays, extracted ion chromatograms (EICs), and compound-specific heatmaps to centralized environmental dashboards.
• Modular deployment logic: Enables rapid reconfiguration between three operational modes—stationary online monitoring, emergency response (point-source screening), and mobile transect mapping—via software-defined workflow selection.
• Regulatory-aligned data handling: Software enforces audit-trail logging per FDA 21 CFR Part 11 requirements, including user action timestamps, method versioning, and electronic signature support for field analysts.

Sample Compatibility & Compliance

The BCT-CMM is validated for use with EPA TO-14A, TO-15, and ASTM D6348-compliant sampling protocols when interfaced with compatible portable GC-MS platforms. It accommodates canister, sorbent tube, and direct ambient air sampling configurations. All internal wetted surfaces are electropolished stainless steel or fused silica-lined, minimizing adsorption artifacts for reactive VOCs (e.g., formaldehyde, acrolein, and unsaturated hydrocarbons). The module complies with IEC 61326-1 (EMC for laboratory equipment) and meets IP54 ingress protection rating for field-deployable operation. Data output formats conform to ASTM E1947 (Standard Guide for Data Exchange in Environmental Analysis) and support direct ingestion into EPA’s AERMOD, CALPUFF, and VSPER modeling environments.

Software & Data Management

The BCT-CMM operates with BCT MobileTrace™ — a purpose-built desktop and tablet application supporting Windows 10/11 and Android 12+. The software provides synchronized visualization of spatial trajectory (KML/KMZ export), retention time-aligned mass spectra, and compound identification via NIST MS Search 2.4g library with customizable match thresholds (minimum reverse fit ≥700). Raw data files include embedded GDAL-compatible geotags and are stored in open-format HDF5 containers for third-party interoperability. Automated QA/QC reporting includes internal standard recovery tracking, system suitability pass/fail flags, and drift-corrected retention index validation against certified reference standards (e.g., Alkane C6–C30 series). All processed datasets are exportable in CSV, NetCDF, and EPA-compatible .SDF formats.

Applications

• Urban and industrial boundary layer VOC mapping: High-resolution transects across fence-line monitoring zones, landfill perimeters, and refinery buffer areas.
• Emergency chemical release characterization: Rapid plume delineation during hazmat incidents using real-time EIC overlays on GIS base layers.
• Regulatory compliance verification: Supporting Tier 2 Risk Management Program (RMP) and Clean Air Act §112(r) reporting with auditable, timestamped source attribution evidence.
• Research-grade atmospheric chemistry studies: Co-located measurements with meteorological sensors (wind speed/direction, temperature, RH) for emission flux estimation via inverse dispersion modeling.
• Pre-compliance screening for LDAR programs: Identifying potential fugitive emission hotspots prior to formal Method 21 surveys.

FAQ

Does the BCT-CMM require recalibration of my existing portable GC-MS?
No. The module introduces no changes to the host instrument’s carrier gas flow path, detector voltage, or oven temperature profile. Calibration certificates remain valid per ISO/IEC 17025:2017 Clause 7.7.2.
Can the BCT-CMM operate independently without a vehicle-mounted power supply?
Yes. It draws power exclusively from the host GC-MS system’s internal battery or external DC input (12–24 V), eliminating need for auxiliary inverters or vehicle alternator tapping.
Is raw spectral data stored locally on the module during 5G outages?
Yes. Internal industrial-grade SSD (64 GB minimum) caches all untransmitted data with automatic resumption upon network restoration, preserving temporal continuity.
Which portable GC-MS models are verified for compatibility?
Currently validated with BCT’s own MobiSpec™ series and select third-party platforms meeting IEEE 11073-10201 (medical device interoperability) analog I/O pinout specifications. Full compatibility matrix available under NDA.
How is data integrity ensured during high-speed motion?
Positional jitter is compensated using Kalman-filtered GNSS fusion; chromatographic timing is locked to the host GC’s internal quartz oscillator (±0.005% stability), decoupling acquisition from platform motion artifacts.
