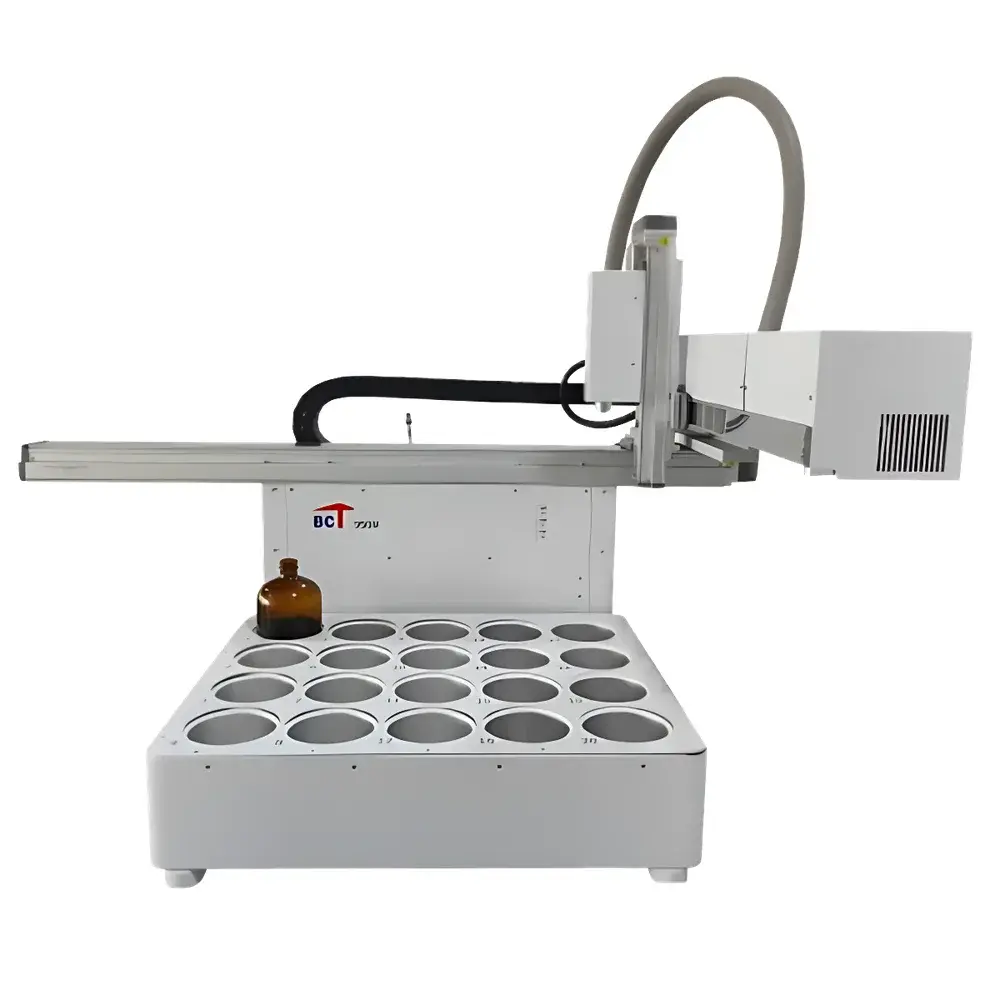

BCT BCT950M Multifunctional Automated Sampler for Environmental Source Emission Analysis
| Brand | BCT |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | BCT950M |
| Instrument Type | Multifunctional Autosampler |
| Maximum Sample Capacity | 5–1000 mL (standard configuration) |
| Sampling Mechanism | Canister-based automated sampling |
| Sample Loop Volume Range | 0.1 µL – 30 mL |
| Transfer Line Length | < 0.5 m |
| Transfer Line Max Temperature | > 200 °C |
| Sample Path Surface Treatment | Deactivated fused-silica throughout |
| Focusing Trap | Integrated independent cryo-focusing trap for secondary focusing of loop- or trap-desorbed analytes |
Overview
The BCT BCT950M Multifunctional Automated Sampler is a high-integrity, canister-driven autosampling system engineered for trace-level volatile and semi-volatile organic compound (VOC/SVOC) analysis in environmental emission source testing, ambient air monitoring, food safety screening, and emergency response applications. It operates on a robotic arm–based sampling architecture that physically isolates each sample container—such as SUMMA® canisters, Tedlar® bags, vacuum sampling flasks, or large-volume headspace vials—prior to introduction into the analytical stream. This isolation minimizes carryover and surface adsorption by eliminating prolonged contact between samples and the autosampler’s mechanical components. The system employs a short-path (< 0.5 m), electrically heated (up to 200 °C), fully deactivated fused-silica transfer line, ensuring minimal analyte loss across the C2–C20 volatility range. Unlike conventional liquid-phase autosamplers, the BCT950M is purpose-built for gas-phase and vapor-phase sampling workflows, supporting both direct injection and pre-concentration–coupled analysis via integration with thermal desorption units or cold trap concentrators.
Key Features
- Robotic arm–actuated canister handling system with programmable positioning accuracy and repeatable motion control
- Fully isolated sample introduction: no physical contact between sample vessel and autosampler prior to valve actuation
- Short-path, high-temperature sample transfer line (< 0.5 m length; operating range up to 200 °C) to suppress condensation and adsorption
- Entire sample path constructed from fused-silica tubing with inert deactivation coating, certified for VOC/SVOC stability
- Flexible volume delivery: supports discrete loop injections (0.1 µL–30 mL) via manual loop selection or automated switching
- Dedicated cryogenic focusing trap enabling secondary focusing of loop-eluted or trap-desorbed analytes—critical for large-volume quantitative loop injections
- Modular interface design compatible with major GC and GC–MS platforms, including standard 1/8″ and 1/4″ Swagelok® connections
Sample Compatibility & Compliance
The BCT950M accommodates standardized environmental sampling containers per EPA Method TO-14A, TO-15, and ASTM D6196, including electropolished stainless-steel SUMMA® canisters (6 L, 1 L, 0.5 L), flexible polymer sampling bags (e.g., Tedlar®, FlexFoil®), evacuated glass flasks, and headspace vials. Its operation aligns with ISO 16000-6 (indoor air), ISO 16017-1 (VOC in air), and EN 14662 (ambient air VOC monitoring). All wetted surfaces meet USP Class VI and FDA 21 CFR Part 11 requirements for data integrity when paired with compliant chromatography data systems (CDS). System validation protocols support GLP and GMP audit readiness, including documented calibration verification, carryover assessment (≤ 0.1% for benzene at 1 ppb), and temperature uniformity mapping across the heating zone.
Software & Data Management
Controlled via BCT’s proprietary Windows-based Autosampler Control Suite (ASC-SW v3.2), the BCT950M provides full method scripting, sequence scheduling, real-time status monitoring, and electronic logbook functionality. The software supports audit-trail-enabled operation per FDA 21 CFR Part 11, with user role–based access control, digital signature capture, and immutable event logging. Sequence files include metadata tagging for sample origin, collection time, container type, and analytical method reference. Export formats include CSV, XML, and direct CDS integration via OpenLab CDS, Chromeleon, and MassHunter APIs. All calibration parameters, maintenance records, and error logs are timestamped and stored locally with optional network backup.
Applications
- Regulatory compliance monitoring of industrial stack emissions (EPA Method 18, 25A, TO-15)
- Urban and industrial ambient air quality networks requiring unattended multi-day sampling
- Food packaging migration studies involving VOC off-gassing (ISO 1186)
- Emergency chemical release characterization—rapid deployment with bag/canister sampling
- Method development for low-concentration SVOC analysis using large-volume loop injection + cryo-focusing
- Calibration gas generation and dynamic dilution for GC detector linearity verification
FAQ
What container types does the BCT950M support?
SUMMA® canisters (0.5–6 L), Tedlar® and FlexFoil® sampling bags, evacuated glass flasks, and headspace vials.
Can the system be integrated with thermal desorption concentrators?
Yes—via standard pneumatic and electrical interfaces; supports direct coupling with commercial TD units for pre-concentration prior to GC injection.
Is the transfer line temperature independently controllable?
Yes—the entire transfer path features zone-specific PID-controlled heating, with setpoint resolution of ±0.1 °C and stability of ±1 °C over 24 h.
How is carryover validated during routine operation?
Carryover is assessed using blank canisters following high-concentration standard injections; results are automatically logged and flagged if exceeding user-defined thresholds (default: ≤ 0.1%).
Does the system support remote diagnostics and firmware updates?
Yes—via secure HTTPS web interface and optional VPN-configurable Ethernet port; firmware updates require signed package verification.
