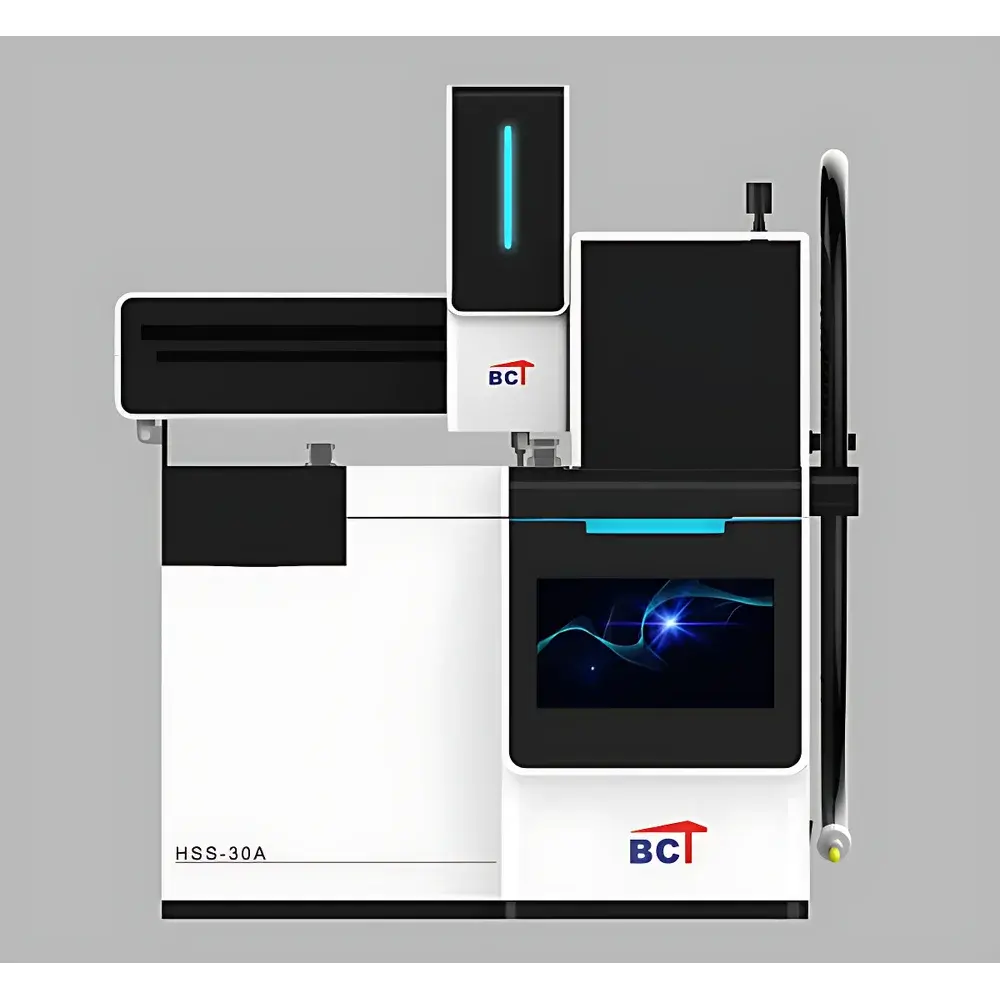

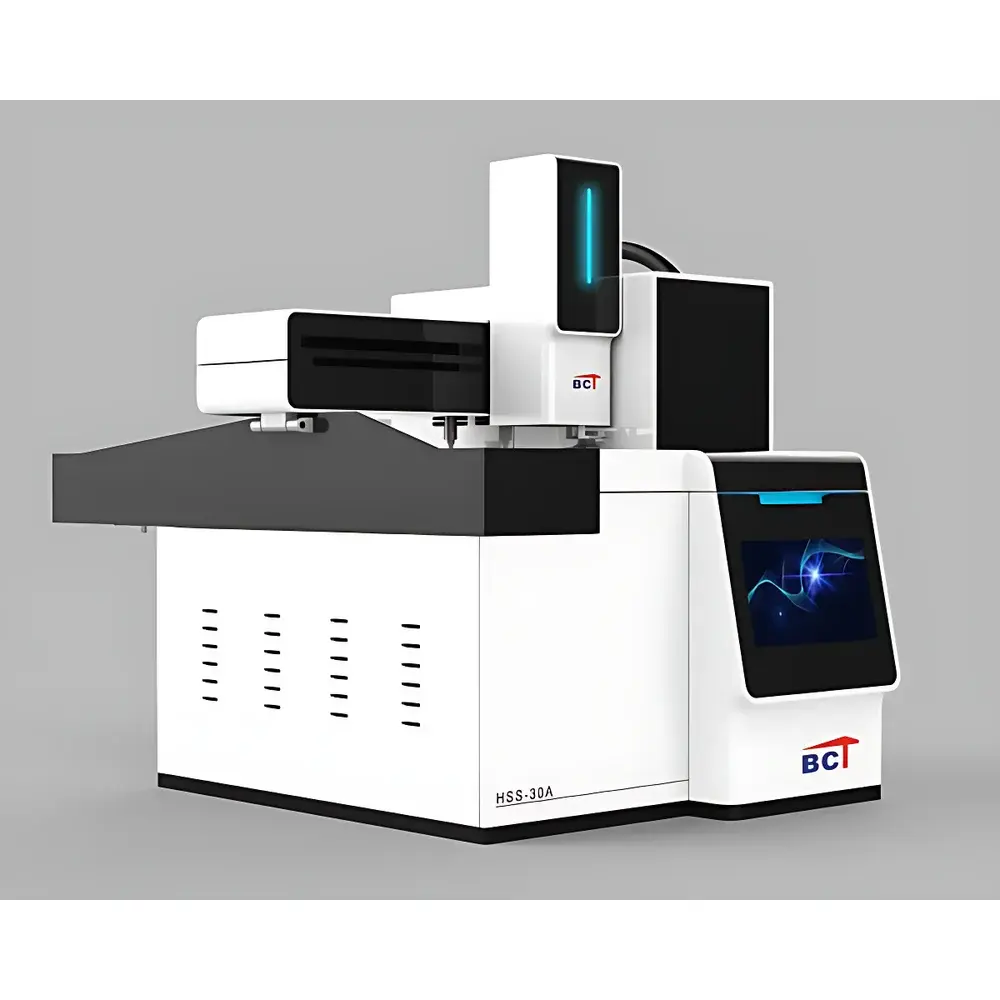

BCT HSS-30A Automated Static Headspace Sampler
| Brand | BCT |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Instrument Type | Static Headspace Sampler |
| Automation Level | Fully Automatic |
| Vial Heating Range | 5–220 °C |
| Valve & Loop Temperature Control Range | 5–220 °C |
| Sample Loop Volumes | 0.5 mL, 1 mL, 3 mL |
| Temperature Control Accuracy | ±0.1 °C |
| Sample Capacity | 46 positions |
| Vial Sizes Supported | 10 mL and 20 mL |
Overview
The BCT HSS-30A Automated Static Headspace Sampler is a precision-engineered sample introduction system designed for robust, reproducible analysis of volatile and semi-volatile organic compounds (VOCs and SVOCs) in solid, liquid, or viscous matrices. Operating on the principle of static headspace equilibrium, the instrument heats sealed sample vials under controlled temperature and time conditions to establish phase equilibrium between the sample matrix and its vapor phase. A precisely metered volume of equilibrated headspace gas is then transferred via a high-stability “valve-and-loop” injection mechanism directly into a gas chromatograph (GC), without interrupting carrier gas flow or compromising baseline integrity. This methodology ensures minimal carryover, high transfer efficiency, and compatibility with regulatory-compliant workflows across pharmaceutical, environmental, food safety, and contract testing laboratories.
Key Features
- Fully automated operation with 46-position sample carousel and independent 6-zone heating block—enabling true overlapping heating cycles for enhanced throughput
- Full inert flow path constructed from silanized stainless steel and nickel-plated components; all wetted surfaces are passivated to prevent adsorption, catalytic degradation, or memory effects
- Integrated auto-leak detection and programmable cleaning sequence: steam purge followed by nitrogen blow-down, eliminating cross-contamination between runs
- Dual-mode agitation: selectable gentle or rapid orbital shaking during equilibration to optimize mass transfer for heterogeneous or high-viscosity samples
- 7-inch high-resolution color touchscreen interface with intuitive navigation, real-time status monitoring, and built-in diagnostic mode for manual valve actuation and system verification
- PID-controlled temperature regulation across all thermal zones (vial oven, transfer line, valve, loop), achieving ±0.1 °C stability over full operating range (5–220 °C)
- Configurable sample loop volumes (0.5 mL, 1 mL, 3 mL); loops available in electropolished stainless steel or chemically deactivated nickel/silanized variants per application requirements
- Barcode reader integration supports automated sample ID recognition, method assignment, and audit-ready metadata capture
Sample Compatibility & Compliance
The HSS-30A accommodates standard 10 mL and 20 mL crimp-top or screw-cap headspace vials, including those with PTFE/silicone septa. Its inert architecture and precise thermal management support compliant analysis per ICH Q2(R2), USP <467>, EPA Methods 502.2, 524.4, 8260D, and ISO 17930. The system supports 21 CFR Part 11–ready software configurations when paired with validated GC data systems, providing electronic signatures, user access control, and immutable audit trails—including timestamps for vial loading, method execution, parameter changes, and result export.
Software & Data Management
Instrument control and method development are performed through an embedded Linux-based platform featuring 10 programmable method storage slots with full parameter recall (equilibration time, oven ramp rate, agitation profile, loop fill/flush timing, GC trigger logic). All run logs—including vial barcode, actual measured temperatures, pressure readings, and cycle completion status—are timestamped and exportable in CSV format. When integrated with LIMS or chromatography data systems (CDS), the HSS-30A transmits structured metadata via RS-232 or Ethernet, enabling seamless traceability from sample receipt to final report generation. Optional firmware upgrades support GLP/GMP-aligned electronic record retention policies.
Applications
- Residual solvent analysis in pharmaceutical active ingredients and finished dosage forms (per ICH Q3C guidelines)
- VOC profiling in drinking water, wastewater, soil extracts, and air canister samples
- Flavor and fragrance compound quantification in beverages, dairy products, and packaged foods
- Off-gas screening of polymers, adhesives, and packaging materials
- Forensic toxicology screening for ethanol, acetone, and other volatile biomarkers in biological fluids
- Quality control of raw materials and intermediates in fine chemical manufacturing
FAQ
What sample vial formats are supported by the HSS-30A?
Standard 10 mL and 20 mL headspace vials with crimp-seal or screw-cap closures; compatible with common septa types including PTFE/silicone and butyl rubber.
Does the system support method validation for regulated environments?
Yes—the thermal stability, loop precision, carryover performance, and timing repeatability meet typical qualification criteria for IQ/OQ/PQ protocols; documentation templates and test procedures are provided upon request.
Can the HSS-30A be integrated with third-party GC systems?
Yes—via standard TTL trigger signals and configurable GC start delay; compatible with Agilent, Thermo Fisher, Shimadzu, and PerkinElmer GC platforms.
Is remote monitoring or network connectivity available?
Ethernet port enables TCP/IP communication for remote status polling and basic command execution; full remote control requires integration with vendor-supplied CDS or custom middleware.
How is carryover minimized between sequential analyses?
Through combined use of inert flow path materials, programmable steam/nitrogen cleaning cycles, dual-stage loop purging, and real-time leak detection prior to each injection event.
