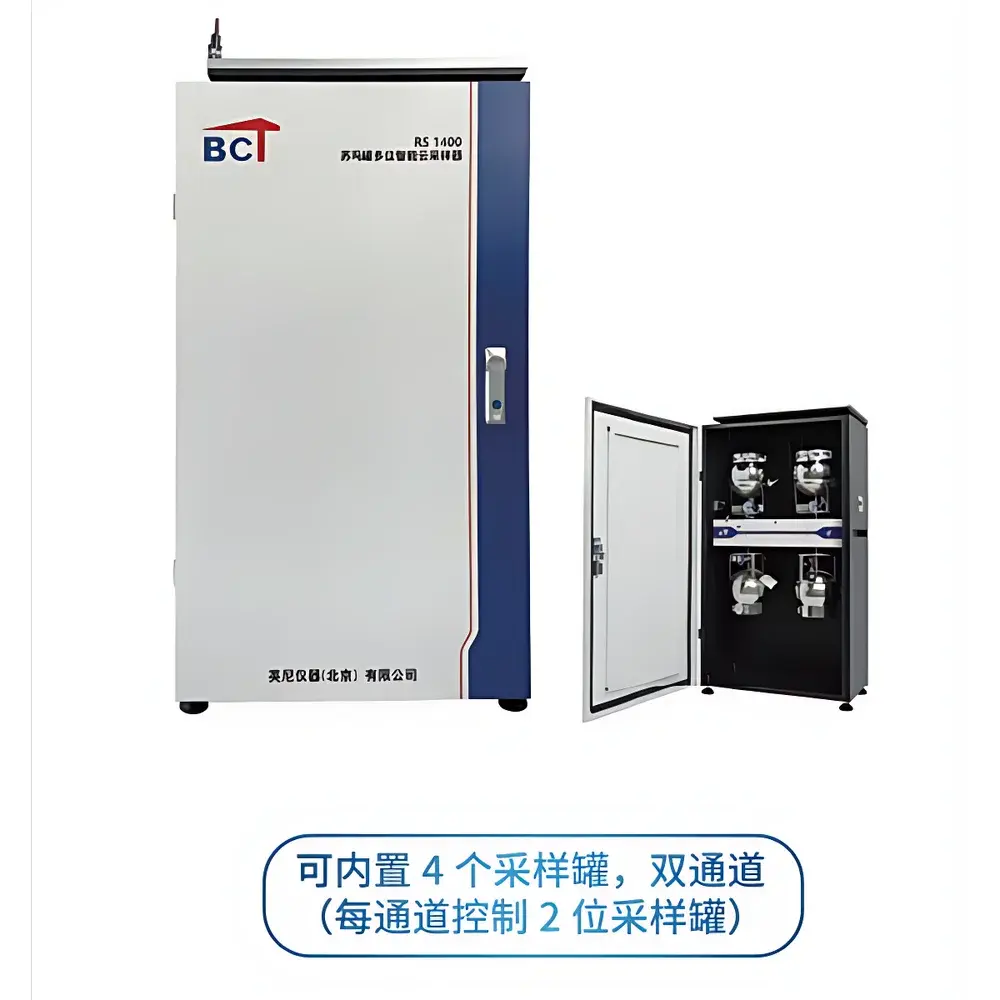

BCT RS 1400 SUMMA Canister Multi-Position Intelligent Cloud-Based Air Sampler
| Brand | BCT |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | BCT RS 1400 |
| Pricing | Upon Request |
Overview
The BCT RS 1400 SUMMA Canister Multi-Position Intelligent Cloud-Based Air Sampler is an engineered solution for automated, trace-level volatile organic compound (VOC) and inorganic gas sampling in ambient, source, and occupational environments. Designed around standardized SUMMA electropolished stainless-steel canister methodology (per EPA Method TO-14A, TO-15, and ASTM D6196), the system implements pressure-controlled, flow-regulated sampling to preserve sample integrity during collection, transport, and subsequent thermal desorption–gas chromatography/mass spectrometry (TD-GC/MS) analysis. Its distributed architecture decouples sampling hardware from power and infrastructure constraints—enabling deployment at remote or off-grid locations without reliance on fixed station infrastructure. The system operates under ISO/IEC 17025-aligned quality management principles and supports GLP-compliant field data generation through full digital audit trails.
Key Features
- Four independent, programmable sampling channels with individual mass flow controllers (MFCs) and pressure transducers for simultaneous or staggered multi-point acquisition
- Cloud-integrated remote control terminal enabling real-time monitoring, parameter adjustment, and event-triggered sampling via secure HTTPS API or mobile application interface
- Intelligent sampling logic supporting multiple operational modes: scheduled time-based collection, external trigger input (e.g., from meteorological sensors or alarm systems), centralized command from networked control hubs, and manual override via local touchscreen
- Dual-power architecture combining monocrystalline solar panel (rated ≥30 W) with high-capacity lithium iron phosphate (LiFePO₄) battery pack (≥24 Ah), delivering >14 days of continuous operation under typical ambient conditions (cloud cover ≤70%, average irradiance ≥300 W/m²)
- Full-sample traceability: each SUMMA canister is assigned a unique digital ID; all metadata—including start/stop timestamps, ambient temperature/pressure, flow rate history, valve actuation logs, and GPS-tagged location—is encrypted and synchronized to cloud storage
- Parallel sampling capability with synchronized timing across channels to support method validation, precision testing, and duplicate analysis per EPA 40 CFR Part 60 Appendix A requirements
Sample Compatibility & Compliance
The RS 1400 is validated for use with standard 6-L and 1-L electro-polished SUMMA canisters (SilcoNert® or Sulfinert®-treated), as well as inert-coated Tedlar® bags for preliminary screening applications. All wetted materials meet USP Class VI biocompatibility standards and exhibit negligible VOC background (<0.5 pptv benzene equivalent). System firmware complies with NIST-traceable calibration protocols and supports instrument qualification documentation packages aligned with ISO 17025 clause 6.4.2 (Equipment Verification). Data handling conforms to FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed in regulated environmental monitoring programs.
Software & Data Management
The embedded Linux-based controller runs BCT AirLink™ v3.2 firmware, featuring role-based user access, configurable alert thresholds (SMS/email push notifications), and automatic backup to AWS S3-compatible object storage. Raw telemetry and sample metadata are structured in JSON-LD format for interoperability with LIMS platforms (e.g., LabWare, STARLIMS) and environmental data management systems (EDMS). Audit logs record every configuration change, sampling initiation, and hardware fault with cryptographic timestamping. Optional integration with EPA’s AirData portal and China’s National Environmental Monitoring Platform (NEMP) is available via certified middleware modules.
Applications
- Ambient air quality monitoring networks requiring unattended, long-term VOC speciation at urban, rural, and background sites
- Industrial fence-line and fenceline monitoring per EPA OTM-33 and EU Industrial Emissions Directive (IED) Annex I reporting obligations
- Emergency response and incident investigation—rapid deployment for post-accident air toxics assessment (e.g., benzene, formaldehyde, hydrogen sulfide)
- Indoor air quality (IAQ) studies in schools, hospitals, and commercial buildings using passive or active SUMMA sampling strategies
- Method development and interlaboratory comparison studies where parallel sampling and metrological traceability are essential
- Early-warning systems integrated with meteorological stations or chemical sensor arrays for dynamic pollution episode detection
FAQ
Does the RS 1400 support calibration verification during field operation?
Yes—integrated zero-air and span-gas injection ports allow on-site calibration checks using certified gas standards prior to and after sampling campaigns.
Can the system be integrated into an existing SCADA or EMS platform?
Yes—Modbus TCP and MQTT 3.1.1 interfaces are provided for bidirectional communication with industrial control systems.
What is the maximum allowable ambient operating temperature range?
The enclosure meets IP65 rating and is rated for continuous operation between −20 °C and +55 °C.
Is firmware update capability available over-the-air (OTA)?
Yes—signed firmware updates can be deployed remotely via TLS-secured connection with rollback and integrity verification.
How is data security ensured during cloud transmission and storage?
All data in transit uses TLS 1.3 encryption; at rest, AES-256 encryption is applied with customer-managed keys optional via KMS integration.
