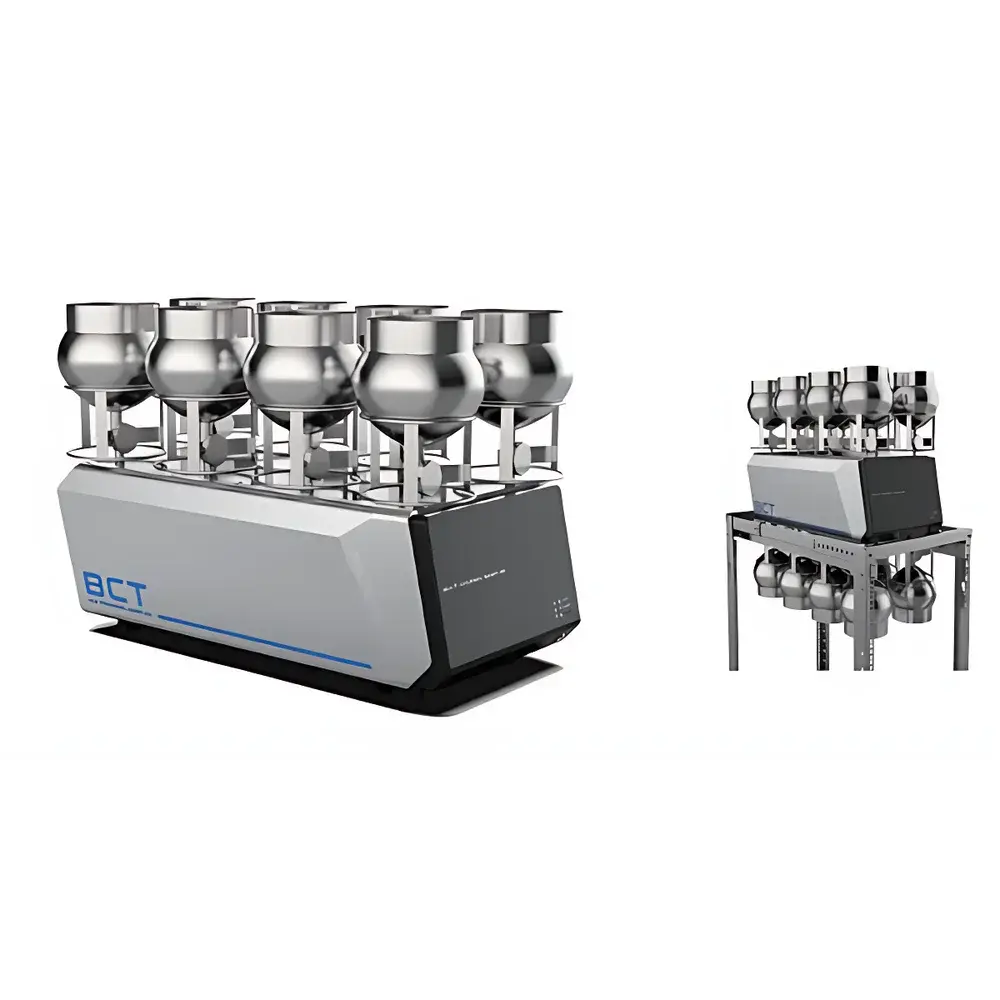

BCT RS 1900 Pro Multi-Channel Canister Sampling System

Overview

The BCT RS 1900 Pro Multi-Channel Canister Sampling System is an engineered solution for automated, high-fidelity atmospheric volatile organic compound (VOC) and inorganic gas sampling into electropolished stainless-steel or fused-silica-coated canisters. Designed specifically for ambient air monitoring, source emission testing, and laboratory pre-concentration workflows, the system operates on a pressure-driven flow principle—eliminating reliance on mass flow controllers (MFCs) and solenoid valves that introduce adsorption artifacts, catalytic surface reactions, or low-flow measurement uncertainty below 20% of full scale. Instead, it employs a calibrated positive-displacement pump with integrated real-time flow verification via an onboard thermal mass flow calibrator traceable to NIST standards. This architecture ensures metrological integrity across the entire operational range (5–1000 mL/min), minimizes sample degradation during transfer, and supports compliance with EPA Method TO-14A, TO-15, and ASTM D5466 for canister-based air analysis.

Key Features

• True MFC-free design: Removes flow-dependent bias and valve-induced contamination, enabling inert, quantitative transfer of reactive species (e.g., H₂S, NH₃, carbonyls, and terpenes).
• Dual 8-channel architecture (8 active + 8 standby): Enables alternating sampling sequences with automatic valve indexing, minimizing downtime and supporting unattended 7-day deployments.
• Fused-silica inert coating throughout entire sample path: From inlet fitting to canister port, including all internal tubing, manifolds, and flow paths—validated per ASTM E2777 for surface reactivity suppression.
• Full-path heated configuration (up to 110 °C): Prevents water condensation and analyte wall loss; temperature uniformity maintained within ±2 °C across all channels.
• Vertically oriented valve manifold: Eliminates liquid water pooling at actuation points, reducing corrosion risk and ensuring long-term sealing reliability under humid conditions.
• Front-access modular valve assembly: Tool-free replacement of individual pneumatic valves without system disassembly or recalibration.
• Integrated flow calibration module: Allows user-performed field verification and adjustment without external equipment; supports audit-ready calibration logs with timestamp, operator ID, and deviation metrics.
• Remote operation via Ethernet/Wi-Fi: Real-time status monitoring, sequence programming, alarm notification (e.g., vacuum loss, temperature excursion, canister saturation), and firmware updates through web-based interface or dedicated mobile application.

Sample Compatibility & Compliance

The RS 1900 Pro accommodates standard 6-L, 3-L, and 1-L SUMMA®-style canisters with stainless-steel or SilcoNert®-treated interiors. It supports both evacuated and pressurized canister configurations and is compatible with common canister conditioning protocols (e.g., humidified nitrogen bake-out per EPA TO-15 Appendix B). All wetted materials comply with USP Class VI and ISO 10993-5 biocompatibility requirements. The system meets electromagnetic compatibility (EMC) standards per IEC 61326-1 and safety requirements under IEC 61010-1. Its data handling architecture supports ALCOA+ principles and includes configurable audit trails, electronic signatures, and exportable CSV/CSV-GZ logs aligned with FDA 21 CFR Part 11 readiness for regulated environmental laboratories.

Software & Data Management

The embedded Linux-based controller runs BCT AirTrack™ v3.2 firmware, offering a responsive HTML5 web interface accessible from any modern browser. Sampling sequences are defined using a visual timeline editor with conditional triggers (time-based, pressure threshold, external TTL input, or remote API call). All operational parameters—including actual flow rate, canister pressure, line temperature, valve position, and vacuum decay—are logged at 1-second resolution and stored locally on encrypted microSD. Data exports include metadata-enriched .csv files compliant with LIMS ingestion schemas (e.g., Thermo Fisher SampleManager, LabWare LIMS). Optional integration with BCT CloudSync enables secure TLS 1.3–encrypted synchronization to centralized data repositories with role-based access control.

Applications

• Ambient air quality monitoring networks (e.g., EPA Photochemical Assessment Monitoring Stations – PAMS)
• Industrial fence-line and community air screening studies
• Method validation and interlaboratory comparison exercises
• Calibration gas generation and dynamic dilution systems
• Indoor air quality investigations in commercial and residential buildings
• Mobile monitoring platforms (vehicle- or drone-mounted configurations with optional vibration-dampened mounting kit)

FAQ

Does the RS 1900 Pro require annual MFC recalibration?

No—its MFC-free architecture eliminates the need for periodic MFC certification. Flow calibration is performed on-demand using the built-in thermal calibrator, with records retained for audit purposes.
Can the system be integrated into an existing SCADA or building management system?

Yes—it provides Modbus TCP and RESTful API endpoints for seamless integration with third-party control infrastructure.
What maintenance intervals are recommended for the pump and valves?

The diaphragm pump is rated for >15,000 hours MTBF; valves undergo automated self-diagnostic cycles every 24 hours. Preventive maintenance is advised every 12 months or after 5000 sample cycles, whichever occurs first.
Is the heated sample path validated for sub-ppbv-level sulfur compound recovery?

Yes—recovery studies conducted per EPA TO-15 Annex C demonstrate ≥94% recovery for H₂S, COS, and CS₂ at 50 pptv spiked levels across all eight channels.
