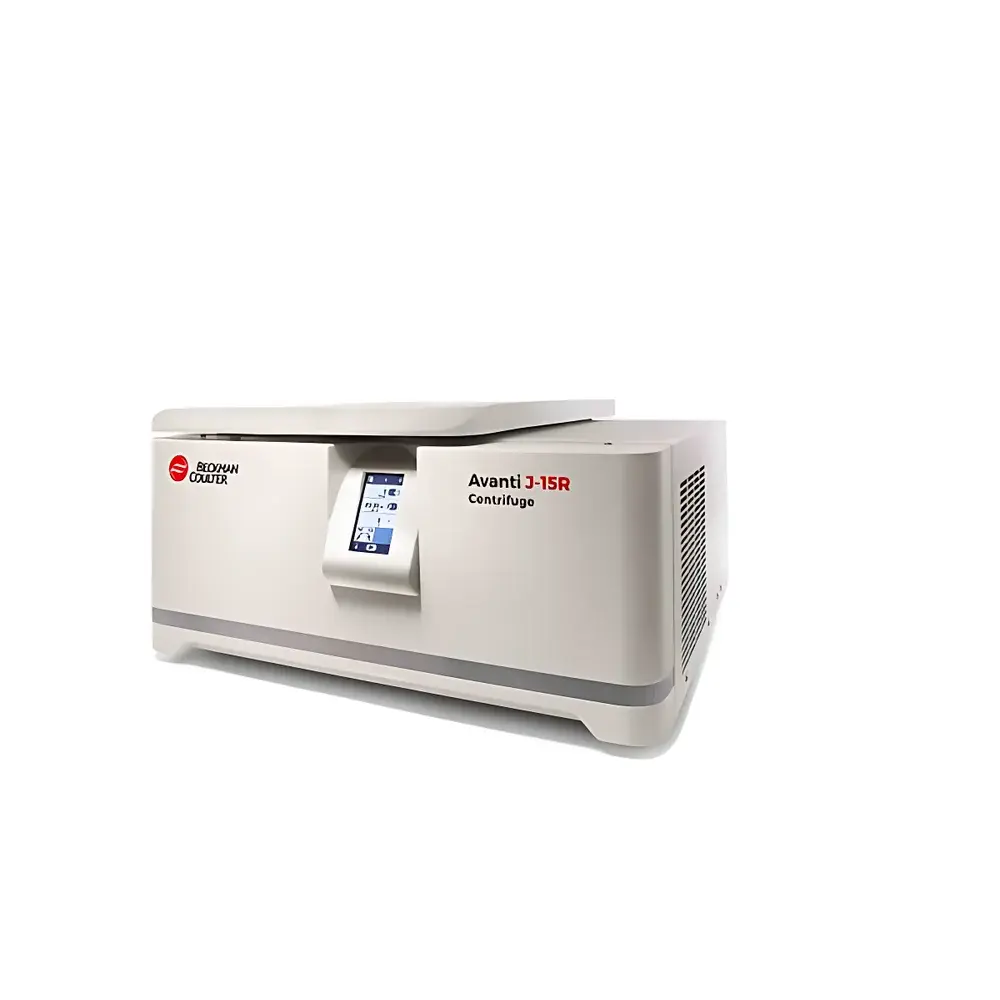

Beckman Coulter Avanti J-15R High-Speed Refrigerated Centrifuge

Overview

The Beckman Coulter Avanti J-15R is a high-performance benchtop refrigerated centrifuge engineered for reproducible, high-throughput separation of biological samples under precisely controlled thermal and mechanical conditions. Operating on the principle of sedimentation force generation via rapid rotational motion, the Avanti J-15R delivers up to 11,420 × g at its maximum speed of 10,200 rpm—enabling efficient pelleting of mammalian cells, bacteria, subcellular organelles, and macromolecular complexes. Its integrated refrigeration system maintains chamber temperature between –10°C and +40°C with ±2°C uniformity after rotor balance, critical for preserving labile biomolecules such as RNA, enzymes, and membrane proteins during prolonged runs. Designed for routine use in core facilities, QC laboratories, and academic research settings, the Avanti J-15R combines robust mechanical architecture with intelligent control logic to minimize sample shear, thermal drift, and operational variability.

Key Features

• Intelligent acceleration/deceleration profiling with 10 acceleration and 11 deceleration options—including maximum-torque modes—to reduce vortexing, resuspension, and pellet disruption during spin transitions.
• Real-time multi-axis imbalance detection using MEMS-based accelerometers, significantly lowering false-positive imbalance alerts and enabling confident unattended operation.
• High-contrast, flat-design touchscreen interface supporting one-touch recall of the six most recently executed protocols and storage of up to 99 user-defined methods.
• Continuous speed control across 200–10,200 rpm (±25 rpm resolution), with dual display modes: rpm (in 10-rpm increments) or RCF (in 10 × g increments).
• Horizontally oriented rotor configuration optimized for high-volume processing, accommodating up to four 750 mL bottles per run—ideal for large-scale cell harvests and bioprocessing workflows.
• Comprehensive thermal management system with pre-cool functionality, active airflow regulation, and post-run cooling hold to stabilize sensitive samples prior to rotor removal.

Sample Compatibility & Compliance

The Avanti J-15R supports a broad range of sample formats—including conical tubes (15–50 mL), centrifuge bottles (up to 750 mL), and microplates—when used with compatible Beckman Coulter rotors (e.g., JLA-16.250, JA-25.50). It meets international safety and performance standards including IEC 61010-1 (electrical safety), ISO 13485 (quality management for medical devices), and complies with GLP/GMP-relevant operational traceability requirements when paired with validated software configurations. While not FDA 21 CFR Part 11–certified out-of-the-box, audit trails, electronic signatures, and protocol locking may be implemented through Beckman Coulter’s optional LabArchives integration or third-party LIMS interfaces compliant with ALCOA+ data integrity principles.

Software & Data Management

The embedded operating system provides full parameter logging—including actual rotor speed, chamber temperature, elapsed time, RCF achieved, and imbalance status—for every run. All protocols are timestamped and associated with operator ID (if network-authenticated). Exportable CSV logs support retrospective analysis and regulatory documentation. The interface supports firmware updates via USB and integrates seamlessly with Beckman Coulter’s Centriware™ ecosystem for centralized fleet monitoring, remote diagnostics, and predictive maintenance scheduling. For laboratories requiring enhanced data governance, optional connectivity modules enable secure TLS-encrypted transmission to enterprise data repositories aligned with ISO/IEC 27001 information security frameworks.

Applications

• Cell culture harvesting and bacterial pellet preparation for downstream lysis and nucleic acid extraction.
• Cleared lysate clarification prior to chromatographic purification or ultracentrifugation steps.
• Blood fractionation workflows—including platelet-rich plasma (PRP), buffy coat isolation, and serum separation—under temperature-stabilized conditions.
• Protein concentration and desalting via tangential flow or spin-column-compatible centrifugation.
• Viral vector pelleting and transduction enhancement in gene therapy process development.
• Quality control testing of biologics, vaccines, and diagnostic reagents where batch-to-batch consistency is mandated by USP , EP 2.6.13, or ISO 13485 Annex A.

FAQ

What is the minimum and maximum operating temperature range?
The chamber temperature is adjustable from –10°C to +40°C in 1°C increments, with thermal stability maintained at ±2°C after rotor balance.
Can the Avanti J-15R be operated without refrigeration?
Yes—the refrigeration system can be disabled while retaining all centrifugation functions; however, ambient temperature must remain within the instrument’s specified non-operational storage limits (10–32°C).
Is rotor identification automatic?
Rotor recognition is manual via selection in the protocol setup menu; auto-ID requires optional RFID-enabled rotors and firmware version 3.2 or higher.
Does the Avanti J-15R support continuous operation mode?
Yes—run time can be set to “continuous,” allowing indefinite spinning until manually stopped or interrupted by safety events such as door opening or excessive imbalance.
Are validation documents available for IQ/OQ/PQ protocols?
Beckman Coulter provides standard IQ/OQ templates and test scripts; site-specific PQ execution requires qualified personnel and calibrated metrology equipment per ISO/IEC 17025 guidelines.
