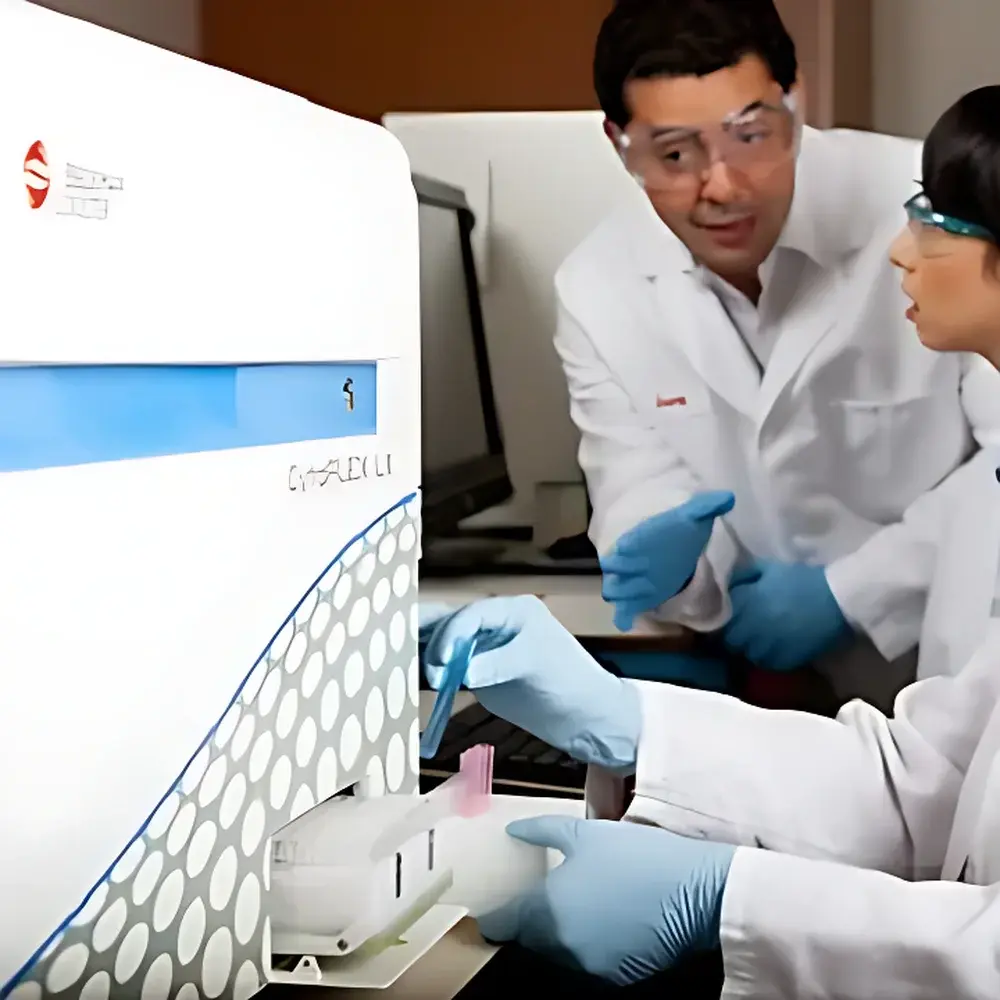

Beckman Coulter CytoFLEX S Flow Cytometer

Overview

The Beckman Coulter CytoFLEX S Flow Cytometer is a high-performance, benchtop analytical flow cytometer engineered for precision multiparametric cell analysis in academic, pharmaceutical, and translational research laboratories. Built upon the proven CytoFLEX optical architecture, the S-series extends detection capability through up to four spatially separated solid-state lasers — 375 nm, 405 nm, 488 nm, and 561 nm — enabling optimal excitation of conventional fluorochromes as well as challenging probes including red fluorescent proteins (RFPs), violet-excitable dyes (e.g., Hoechst 33342, DAPI), and bright ultraviolet (BUV) conjugates. Its core measurement principle relies on hydrodynamic focusing combined with orthogonal light scattering (forward and side scatter) and wavelength-resolved fluorescence detection via high-efficiency avalanche photodiodes (APDs). The integrated wave division multiplexing (WDM) detection module minimizes optical path loss and maximizes signal-to-noise ratio, delivering sensitivity and resolution comparable to floor-standing instruments four times its physical footprint. Factory-calibrated optics eliminate user-dependent alignment, while automated daily QC routines—including laser delay calibration—ensure long-term stability and reproducibility across experiments.

Key Features

• Four-laser platform (375 nm, 405 nm, 488 nm, 561 nm) with spatial beam separation to minimize spectral overlap and autofluorescence interference
• Up to 13-color fluorescence detection with full-channel coefficient of variation (rCV) < 3%, validated using SPHERO™ Rainbow Calibration Particles
• Violet Side Scatter (VSSC) capability enables reliable detection of sub-200 nm particles, supporting extracellular vesicle and small microvesicle analysis
• Dynamic range exceeding 7 decades, facilitating simultaneous detection of dim and bright populations without voltage adjustment
• Ultra-low sample consumption: minimum 10 µL per acquisition with flow rate programmability from 10 to 240 µL/min
• Compact footprint (40.6 × 40.5 × 33 cm) and lightweight design (<22 kg) allow installation inside biosafety cabinets or standard lab benches
• Real-time automatic compensation with persistent matrix storage across voltage changes, compatible with ISO/IEC 17025-aligned instrument qualification workflows

Sample Compatibility & Compliance

The CytoFLEX S supports diverse biological samples including whole blood, PBMCs, dissociated tissues, cultured cells, and microbial suspensions. Its low-volume aspiration system accommodates tubes (12 × 75 mm), 5 mL polystyrene tubes, and standard 96-well plates (flat-, U-, and V-bottom formats). Optional plate-based autosampler enables unattended processing of up to 96 samples in ≤32 minutes with programmable wash and mixing cycles. The system complies with IEC 61010-1 safety standards and meets electromagnetic compatibility (EMC) requirements per EN 61326-1. While not FDA-cleared for diagnostic use, its data integrity features—including audit-trail-enabled CytExpert software—support GLP and GMP-aligned research environments where traceability and electronic record retention are required per 21 CFR Part 11 guidelines.

Software & Data Management

CytExpert software provides an integrated acquisition, visualization, and analysis environment designed specifically for flow cytometry workflows. Key capabilities include: auto-thresholding for rapid population identification; dynamic axis scaling via interactive sliders to explore high-dynamic-range datasets; virtual plate layout editor with per-well protocol assignment; and compensation library management that retains spillover values across gain/voltage adjustments. All acquisitions generate FCS 3.1-compliant files with embedded metadata (instrument settings, date/time, operator ID). Raw data and analysis templates are exportable in CSV, PDF, and image formats. Software validation documentation is available upon request to support laboratory instrument qualification (IQ/OQ/PQ) protocols.

Applications

• Immunophenotyping of rare hematopoietic subsets (e.g., stem/progenitor cells via Hoechst 33342 side population assay)
• Cell cycle and DNA content analysis using DAPI or Hoechst with 375 nm excitation
• Multi-parametric intracellular signaling studies (phospho-flow) requiring high-sensitivity PE and APC detection
• Red fluorescent protein (RFP, mCherry, tdTomato) quantification enabled by optimized 561 nm laser excitation
• Extracellular vesicle characterization via VSSC and CD63/CD81 immunostaining
• High-throughput screening of CRISPR-modified cell lines using BUV-conjugated antibodies

FAQ

Does the CytoFLEX S require daily optical alignment?
No. The optical train is factory-aligned and sealed; routine operation requires only automated daily QC checks, including laser delay verification.
Can compensation matrices be transferred between different voltage settings?
Yes. CytExpert stores spillover coefficients in a central compensation library and recalculates matrices automatically when PMT voltages change.
Is the 375 nm laser suitable for live-cell DNA staining?
Yes. The 375 nm laser efficiently excites Hoechst 33342 and DAPI with minimal phototoxicity, supporting side population assays and cell cycle analysis in viable cells.
What regulatory documentation is available for audit readiness?
Beckman Coulter provides software validation packages, instrument qualification templates, and 21 CFR Part 11 compliance statements upon request.
How does the CytoFLEX S compare to larger flow cytometers in terms of sensitivity?
Independent testing using SPHERO™ Rainbow beads demonstrates baseline resolution equivalent to high-end clinical analyzers, with FITC sensitivity ≤30 MESF and PE sensitivity ≤10 MESF at 15-parameter acquisition.
