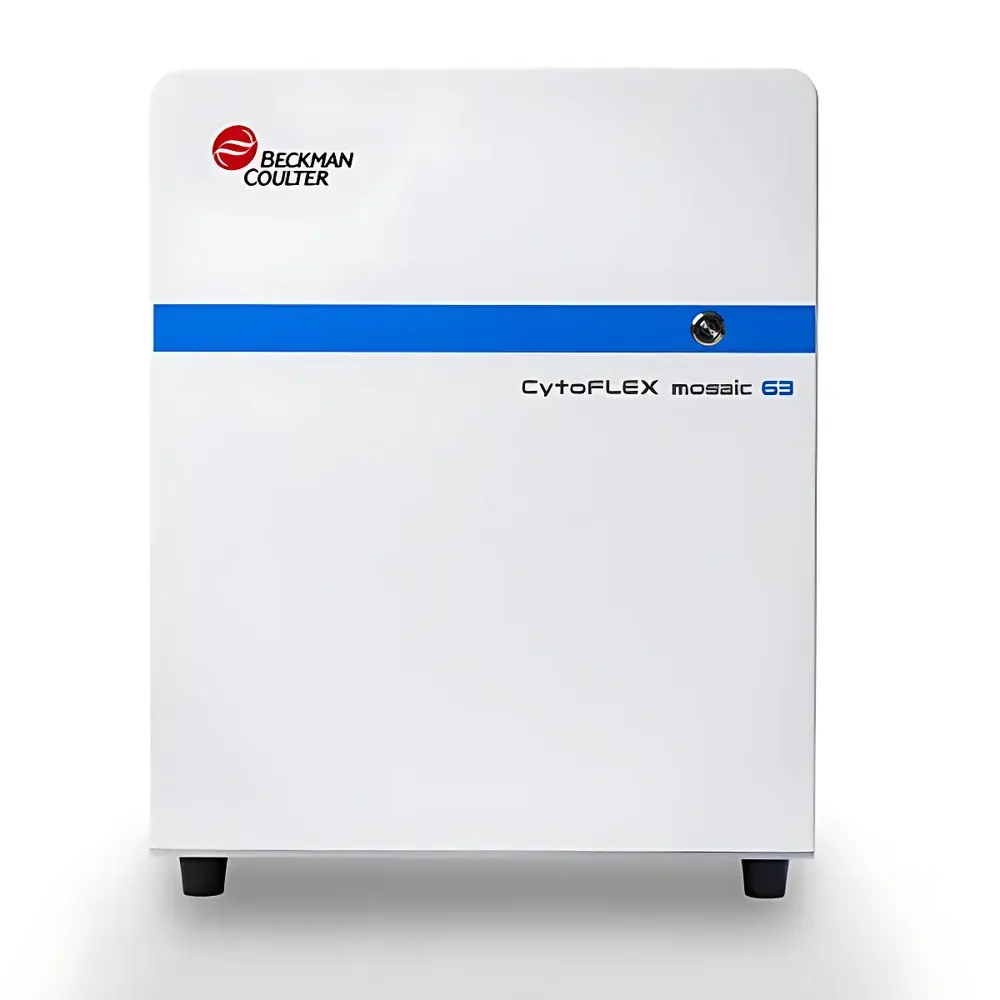

Beckman Coulter CytoFLEX mosaic Spectral Flow Cytometer

Overview

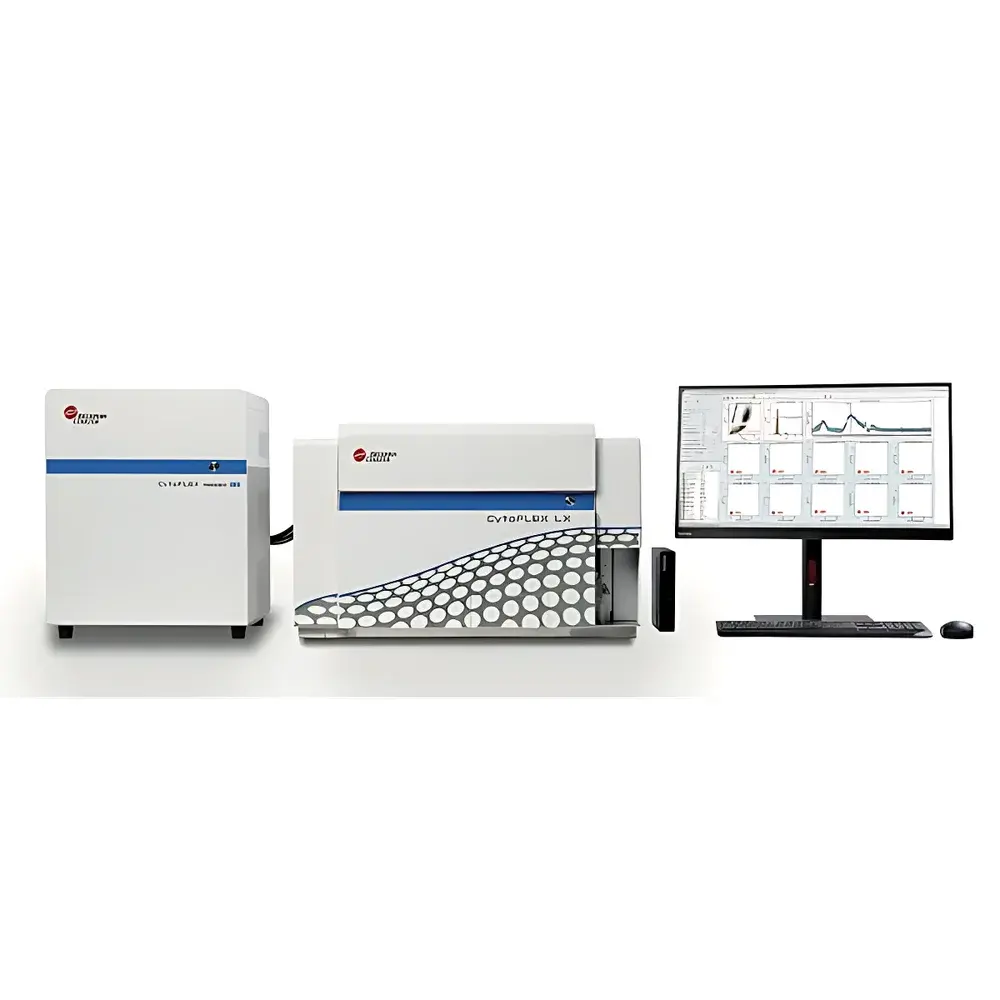

The Beckman Coulter CytoFLEX mosaic is a dual-mode spectral flow cytometer engineered for high-parameter immunophenotyping and complex cell population resolution in academic and translational research laboratories. Unlike conventional filter-based systems, the CytoFLEX mosaic employs full-spectrum detection—capturing the complete emission profile of each fluorochrome across its entire bandwidth using high-throughput back-thinned CCD or sCMOS detectors. This spectral acquisition architecture eliminates the need for physical optical filters and enables post-acquisition reanalysis of unassigned fluorescence signals. The instrument integrates two parallel detection architectures within a single optical bench: one optimized for rapid, intuitive conventional flow analysis (filter-based mode), and another configured for deep spectral unmixing (spectral mode). Switching between modes requires no hardware reconfiguration—only software selection—enabling seamless transition in under two minutes. Its design adheres to ISO 13766-1:2022 (flow cytometer performance verification) and supports alignment with GLP-compliant workflows through audit-trail-enabled software operations.

Key Features

• Dual-architecture optical platform supporting both conventional and spectral flow cytometry on a single instrument
• 4–6 stabilized solid-state lasers (including violet 405 nm, blue 488 nm, yellow-green 561 nm, red 638 nm, and far-red 685 nm options) with individually adjustable power output
• 63–88-channel spectral detection capability enabled by high-resolution dispersion optics and low-noise detectors
• Improved Poisson-based unmixing algorithm delivering reduced spread in spectral signature separation versus traditional least-squares minimization (LSM), enhancing resolution of spectrally overlapping fluorochromes
• Integrated LSM algorithm support for cross-validation and method transfer compatibility with legacy spectral datasets
• 10 dedicated autofluorescence reference channels—acquired without staining—to model and subtract cellular background, improving detection sensitivity for low-abundance markers (e.g., CD127, CXCR5)
• Real-time automated compensation and spectral unmixing with embedded quality control alerts that flag channel-specific anomalies during acquisition
• Automated sample introduction system with programmable flow rates (10–240 µL/min) and pressure-controlled syringe pump delivery ensuring reproducible volumetric sampling

Sample Compatibility & Compliance

The CytoFLEX mosaic accepts standard 5-mL polystyrene tubes, 96-well plates (flat-bottom or V-bottom), and 1.5-mL microcentrifuge tubes via optional plate-handling modules. It accommodates suspension cells (primary human PBMCs, murine splenocytes), fixed/permeabilized samples, and bead-based calibration standards including Rainbow Calibration Particles (Spherotech) and UltraRainbow beads. All fluidic pathways are constructed from biocompatible, non-binding polymers compliant with USP Class VI and ISO 10993-5. Instrument firmware and CytExpert v3.5+ software meet FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with role-based access control, audit trails, and secure user authentication. Routine performance verification follows ASTM E2810-21 (standard practice for flow cytometer calibration verification).

Software & Data Management

CytExpert software provides an integrated environment for instrument control, acquisition, real-time visualization, and offline spectral unmixing. Its interface preserves workflow continuity for users migrating from prior CytoFLEX platforms while introducing new tools for spectral library management, batch processing of multi-sample experiments, and interactive t-SNE/Umap projection embedding. Raw spectral data files (.cif) are stored in HDF5 format, ensuring long-term readability and interoperability with third-party analysis ecosystems. One-click export to Cytobank enables cloud-based dimensionality reduction, clustering (PhenoGraph, FlowSOM), and collaborative annotation. All unmixing parameters—including reference spectra, spillover matrices, and autofluorescence models—are versioned and embedded in the FCS 3.1-compatible file header, satisfying traceability requirements for publication and regulatory submissions.

Applications

The CytoFLEX mosaic supports advanced applications requiring high-dimensional phenotyping and functional profiling: deep immune monitoring in oncology and autoimmunity (e.g., >40-color T-cell exhaustion panels), rare event detection in hematopoietic stem cell characterization, spectral barcoding for pooled CRISPR screening readouts, and simultaneous detection of intracellular cytokines and surface activation markers in stimulated T-cell assays. Its sensitivity and resolution enable identification of novel subpopulations previously obscured by spectral overlap—such as transitional B-cell subsets expressing low-level IgD and CD38—or detection of dim epitopes like PD-1 on antigen-experienced CD8+ T cells in tumor-infiltrating lymphocyte isolates. The platform is routinely deployed in core facilities serving NIH-funded projects, EU Horizon grant consortia, and pharmaceutical early-development immunology groups.

FAQ

Can the CytoFLEX mosaic operate without spectral unmixing capabilities?
Yes—it supports conventional filter-based acquisition and analysis natively, allowing labs to maintain existing panel designs and gating strategies while gradually adopting spectral approaches.
Is spectral library generation supported on-instrument?
Yes, CytExpert includes built-in tools for creating custom spectral libraries from single-stained controls, with automatic outlier rejection and batch normalization across multiple runs.
Does the system support time-resolved measurements or kinetic assays?
While not designed for millisecond-scale kinetics, the 30,000-event/sec acquisition rate supports longitudinal sampling across serial timepoints in stimulated cell assays when coupled with automated plate handling.
How is detector stability maintained across long acquisitions?
The system incorporates active thermal regulation of all detectors and real-time dark-current correction, validated per ISO 21501-4 for photodetector drift tolerance over 2-hour continuous operation.
Are service contracts and remote diagnostics available globally?
Beckman Coulter Field Service Engineers provide tiered support plans including predictive maintenance, remote firmware updates, and on-site calibration verification aligned with ISO/IEC 17025 accredited procedures.
