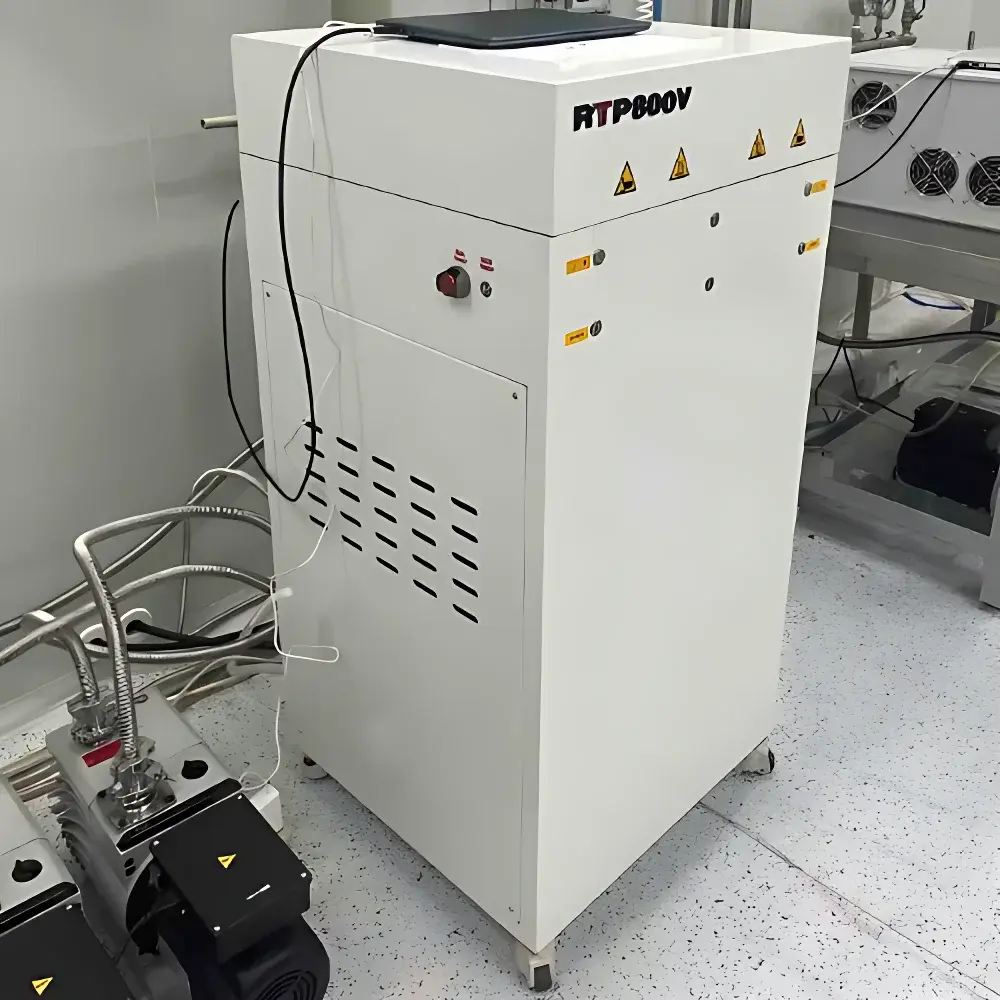

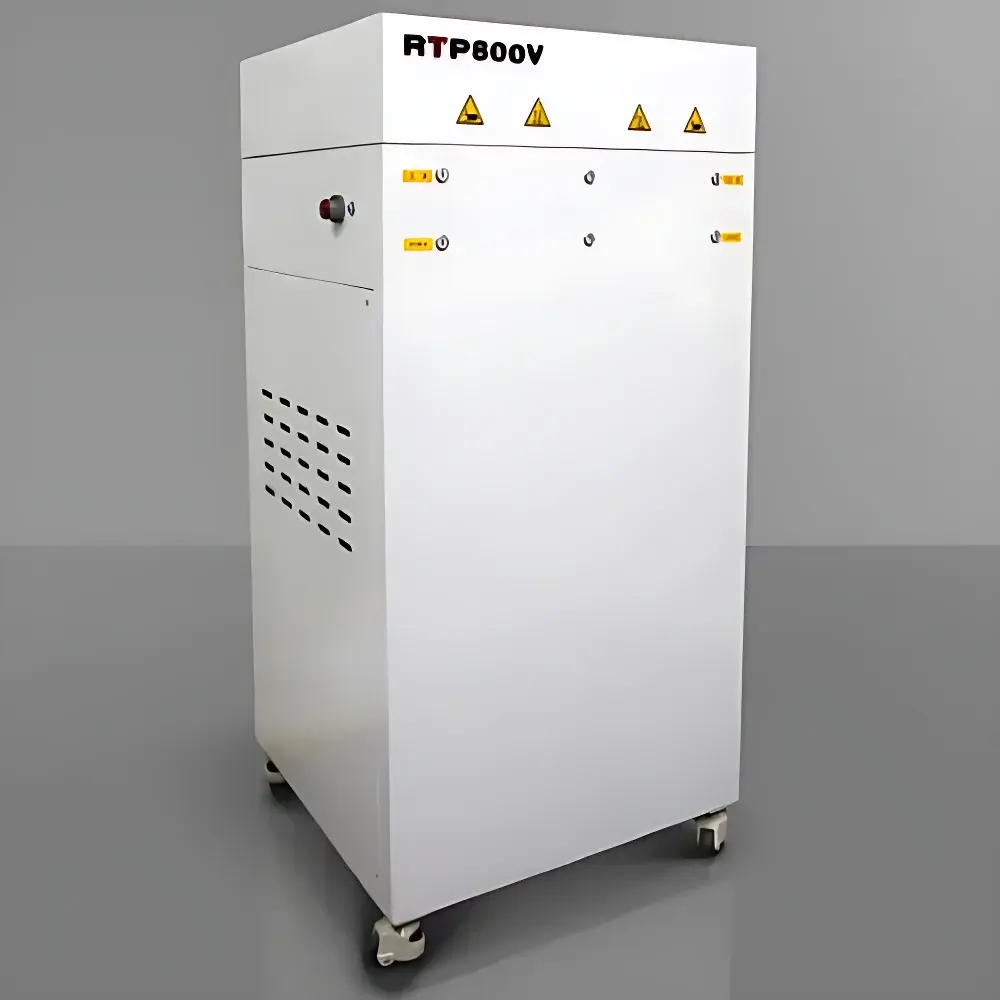

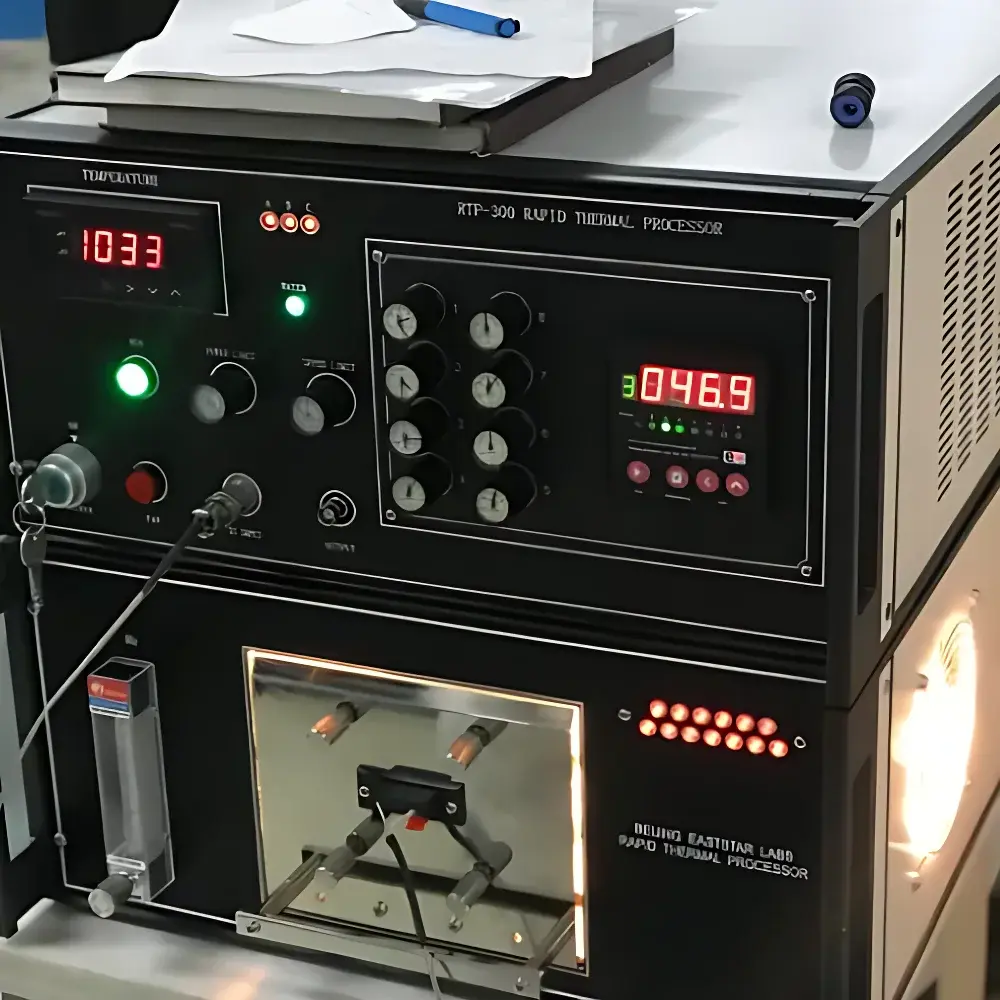

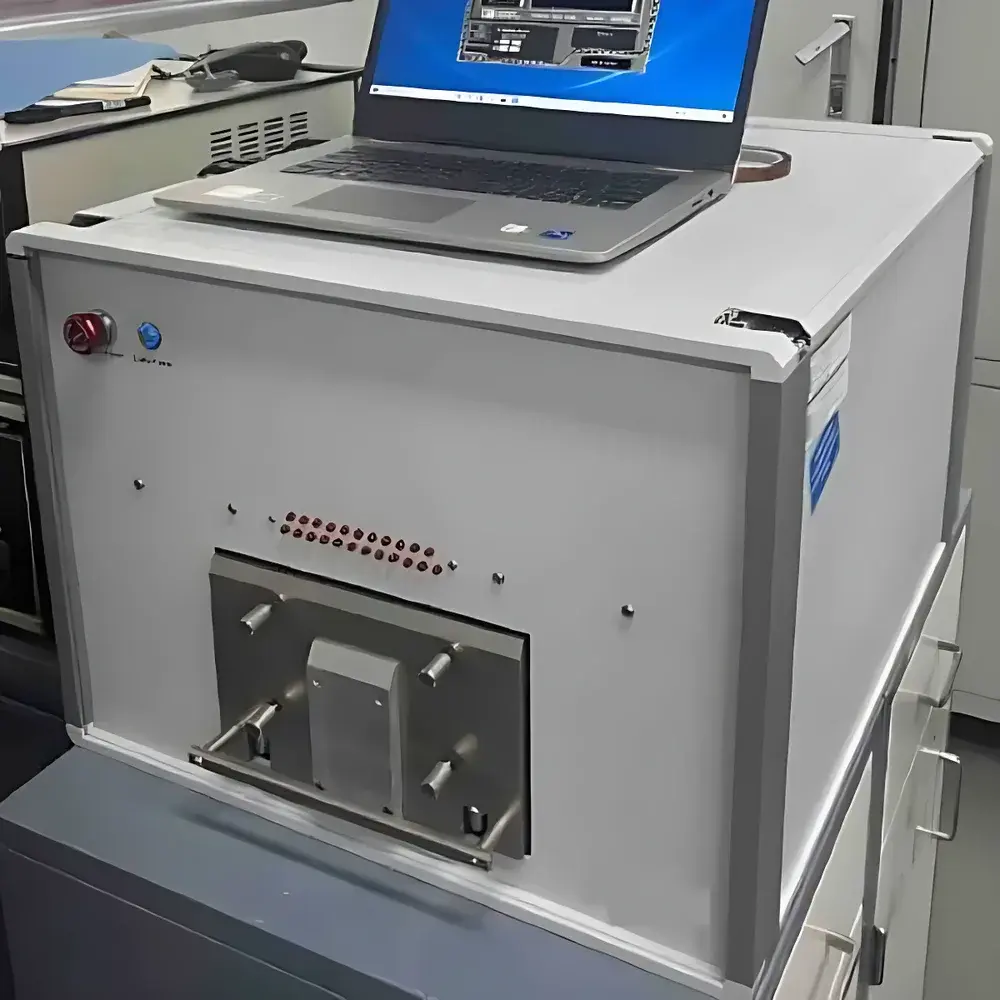

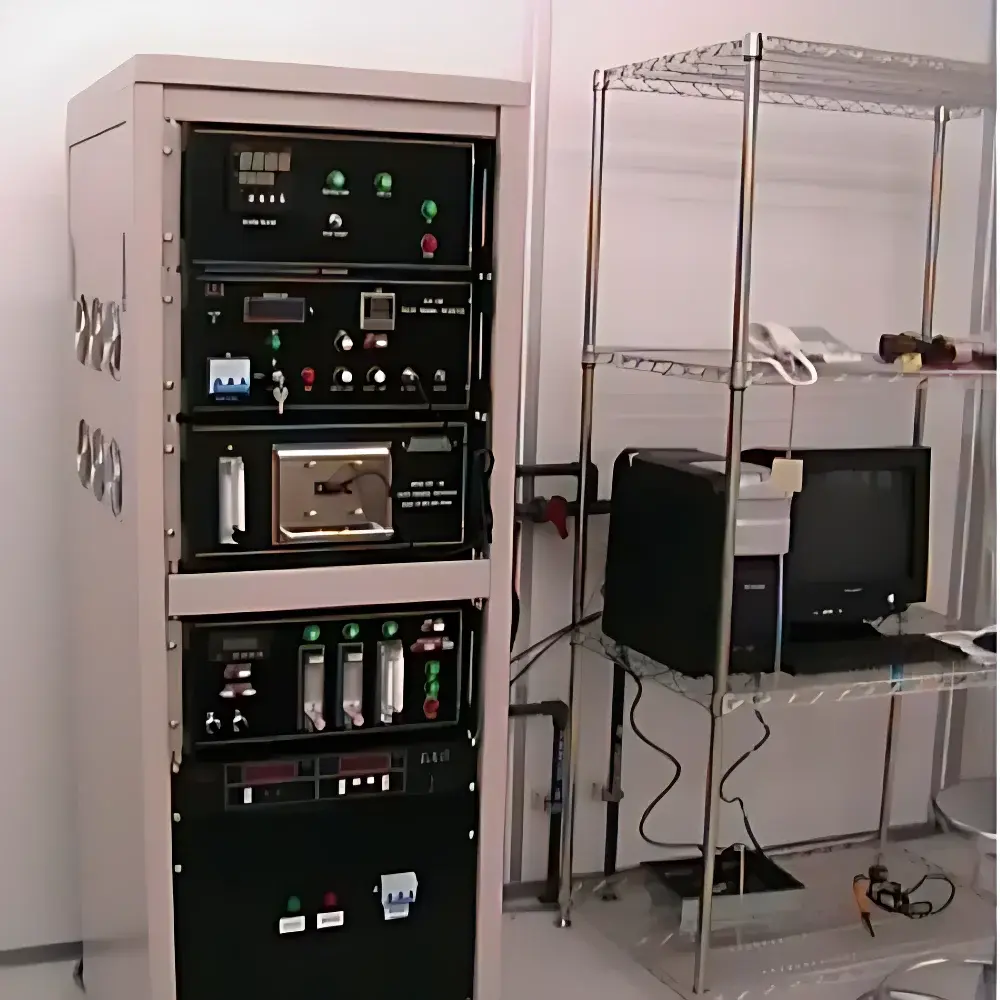

BEIJING EAST STAR LABS RTP800V Vertical High-Vacuum Rapid Thermal Processing Furnace

Overview

The BEIJING EAST STAR LABS RTP800V is a vertically oriented, high-vacuum rapid thermal processing (RTP) furnace engineered specifically for semiconductor process development, R&D annealing, and advanced materials activation. It operates on the principle of radiant heating using high-intensity tungsten-halogen or quartz-iodine lamp arrays, enabling precise, localized thermal energy delivery to 200 mm (8-inch) silicon, SiC, GaN, or compound semiconductor wafers under controlled vacuum or inert/reducing atmospheres. Unlike conventional tube furnaces, the RTP800V achieves sub-second thermal response times and eliminates thermal mass lag—critical for spike annealing, silicide formation, dopant activation, and oxide densification where time-at-temperature must be tightly constrained (e.g., <10 s at >1000 °C). Its vertical chamber geometry minimizes particle shedding, improves wafer handling repeatability, and supports integration into cleanroom-compatible load-lock configurations.

Key Features

• Real-time, wafer-proximate temperature monitoring: Integrated pyrometry with spectral filtering and emissivity compensation ensures measurement accuracy within ±1.5 °C across 150–1300 °C—no reliance on thermocouple-based surrogate readings that mask overshoot or spatial drift.
• Adaptive multi-zone thermal regulation: Four independently controlled lamp zones enable active uniformity tuning (±0.5 % across 200 mm diameter) via intuitive touchscreen or remote APP interface—essential for stress-sensitive substrates and heteroepitaxial layers.
• High-efficiency optical thermal exchange architecture: Optimized reflector geometry and lamp spectral output (peaked at 900–1100 nm) maximize photon absorption in Si and III–V materials while reducing total power draw by up to 70 % versus legacy RTP platforms. This enables stable 30+ minute holds at 1200 °C without auxiliary chiller overload.
• Vacuum-integrated process environment: Standard base pressure ≤5×10⁻⁵ Pa; optional turbomolecular pumping achieves ≤1×10⁻⁷ Pa. Fully compatible with H₂, NH₃, forming gas (N₂/H₂), and Ar/N₂ mixtures—validated per SEMI F47 safety guidelines for reactive gas operation.
• Robust industrial-grade mechanical design: Stainless-steel vacuum chamber with water-cooled flanges and double-O-ring sealing; lamp housing with forced-air + liquid-assisted cooling extends source lifetime beyond 2,000 operational hours (per IEC 61000-4-30 lamp aging protocol).

Sample Compatibility & Compliance

The RTP800V accommodates standard 200 mm (8-inch) wafers—including bare Si, SOI, SiC, GaAs, and patterned device wafers—with optional quartz or graphite susceptors for enhanced thermal coupling. It meets fundamental requirements of ASTM F1597 (Standard Practice for Semiconductor Wafer Annealing), ISO 14644-1 Class 5 cleanroom compatibility (when installed with HEPA-filtered purge), and supports traceable calibration per ISO/IEC 17025 when paired with accredited blackbody reference sources. For regulated environments, optional software modules provide 21 CFR Part 11-compliant electronic signatures, audit trails, and user-role access control—enabling use in GMP pilot lines and qualification labs serving foundry customers.

Software & Data Management

Control firmware runs on a deterministic real-time OS with <10 ms loop latency. The embedded HMI supports recipe-driven ramp-soak-cool profiles, live thermal map visualization (via optional IR camera integration), and CSV-exportable time-temperature-atmosphere-log datasets. Remote operation is enabled via Ethernet (Modbus TCP, OPC UA) or Wi-Fi (WPA3-secured). All system events—including vacuum interlocks, lamp current deviation, and overtemperature cutoffs—are timestamped and stored with SHA-256 integrity hashing. Data retention complies with internal QA policies (minimum 10-year archival) and aligns with EU GDPR and U.S. NIST SP 800-53 logging standards.

Applications

• Dopant activation post-implant (e.g., B, P, As in Si; Al in GaN)
• Metal silicide formation (NiSi, CoSi₂, TiSi₂) with sub-5 nm interface control
• High-k dielectric annealing (HfO₂, Al₂O₃) to reduce fixed charge and interface trap density
• Graphene and 2D material defect healing and strain relaxation
• Low-temperature oxide densification for MEMS and packaging applications
• Research-scale crystallization of amorphous IGZO and metal oxides

FAQ

What vacuum level does the RTP800V achieve with standard pumping configuration?
Standard configuration includes a dual-stage rotary vane pump and cold trap, achieving ≤5×10⁻⁵ Pa. Optional turbomolecular pump upgrades support ≤1×10⁻⁷ Pa for ultra-high-purity processes.
Is hydrogen annealing supported, and what safety certifications apply?
Yes—integrated gas panel includes leak-tight stainless-steel MFCs, flame arrestors, and H₂-specific pressure relief valves. System design conforms to SEMI S2-0215 and NFPA 55 for Class I, Division 1 hazardous locations.
Can the system be integrated into an automated cluster tool environment?
Yes—equipped with SECS/GEM (SEMI E30/E37) and PVSS-compatible digital I/O; full hardware handshake signals available for front-end loader coordination.
What is the expected mean time between failures (MTBF) for critical subsystems?
Lamp assembly MTBF >15,000 hours; vacuum valve actuator MTBF >100,000 cycles; controller electronics rated for continuous operation at 40 °C ambient per IEC 60068-2-14.
Are spare parts and technical support available outside China?
Global spares logistics network covers North America, EU, and APAC regions; 24-month warranty includes remote diagnostics and firmware updates; on-site service available under extended support contracts.
