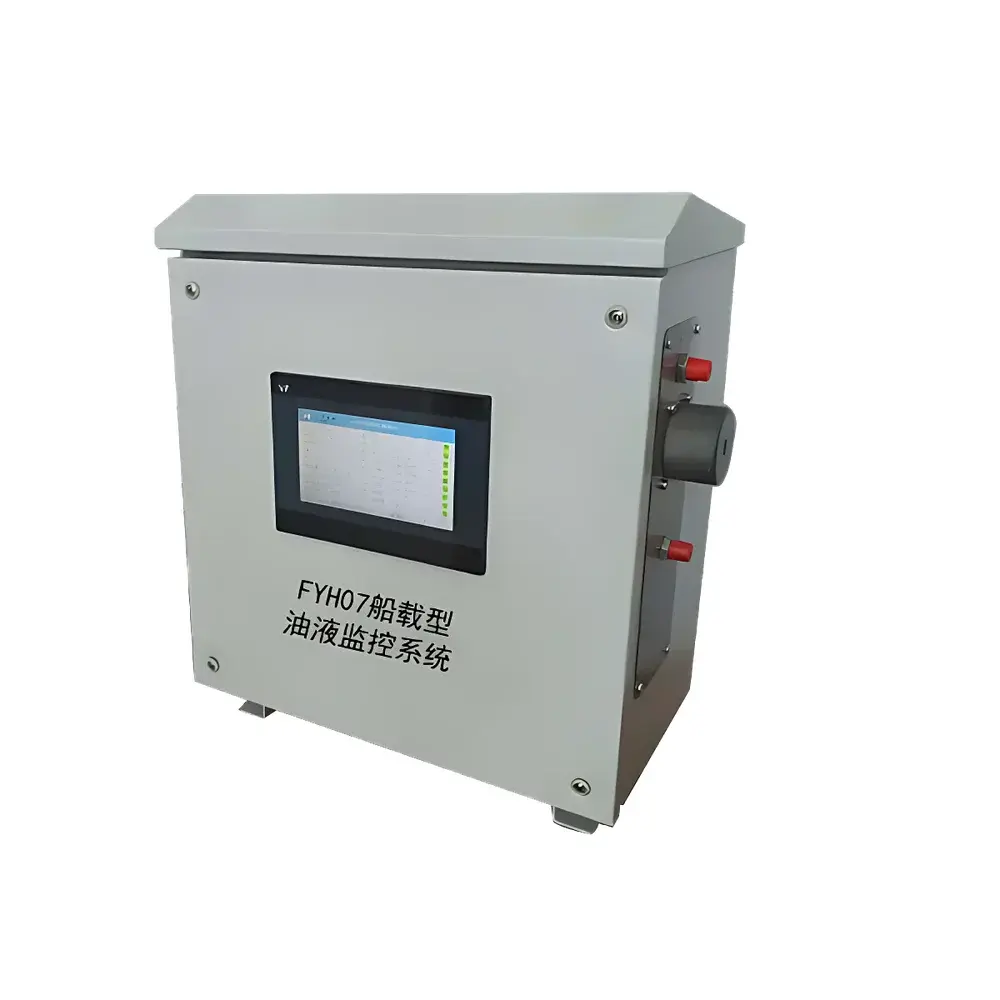

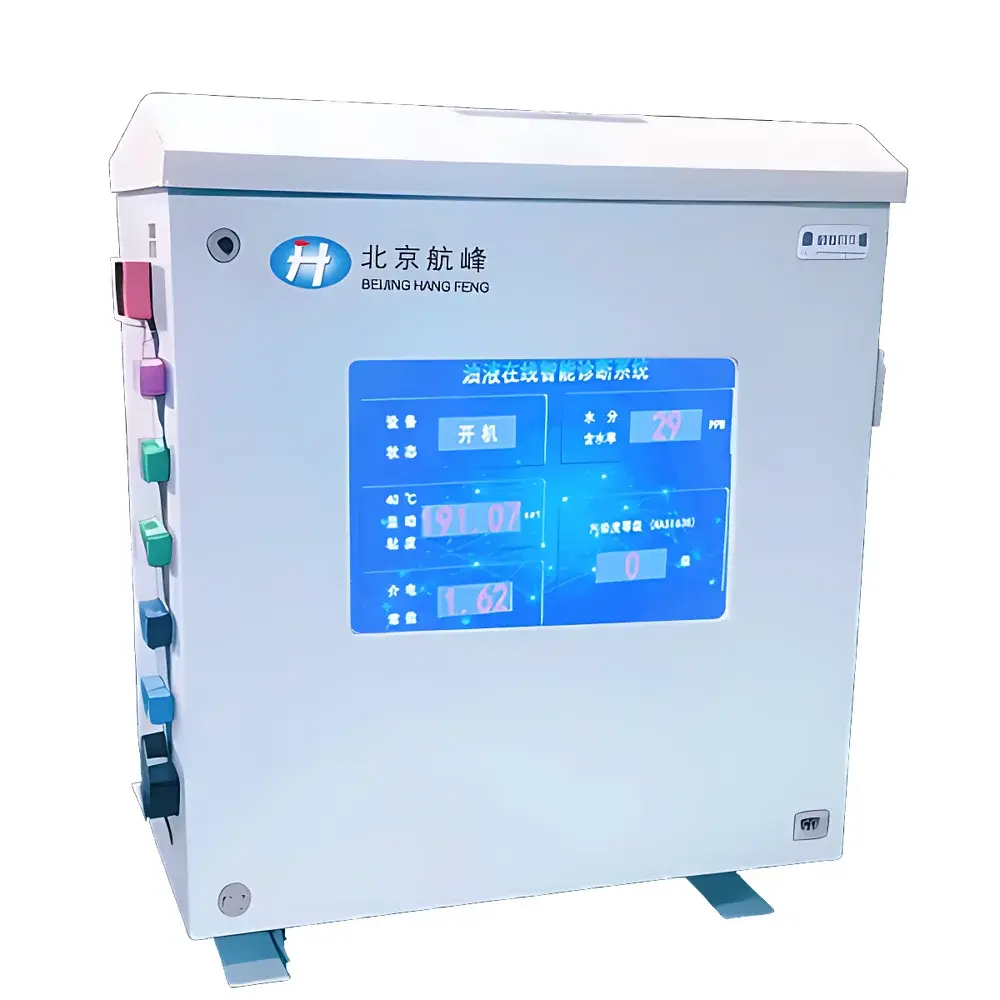

Beijing Hangfeng FYH Series Intelligent Online Oil Condition Monitoring System
| Brand | Beijing Hangfeng |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | FYH |
| Pricing | Available Upon Request |
Overview
The Beijing Hangfeng FYH Series Intelligent Online Oil Condition Monitoring System is an integrated, real-time lubricant health assessment platform engineered for continuous in-situ monitoring of critical oil parameters within industrial rotating machinery lubrication circuits. Operating on a multi-sensor fusion architecture, the system employs physical and electrochemical measurement principles—including viscometry (capillary or rotational), dielectric spectroscopy (for water content), ferrography-based magnetic particle detection, light obscuration (for particle count and size distribution), densimetry (via oscillating U-tube or Coriolis principle), and potentiometric titration (for acid number)—to deliver comprehensive oil condition intelligence without requiring offline sample extraction. Designed for integration into hydraulic systems, gearboxes, turbine lube oil circuits, and compressor sumps, the FYH system enables predictive maintenance by correlating degradation trends—such as oxidation-induced viscosity drift, water ingress, metallic wear debris accumulation, and particulate contamination—with equipment operational profiles (e.g., load, temperature, runtime). Its deployment supports ISO 4406:2017, ASTM D6786 (acid number), ASTM D7622 (water in oil via dielectric constant), and ISO 4020 (particle counting) compliance frameworks.
Key Features
- Modular Sensor Integration: Standardized plug-in modules for viscosity, moisture (trace and bulk), ferrous/non-ferrous particle detection, particle count (ISO 4406 classification), density, temperature, and acid number—configurable per application requirements.
- Dual-Path Data Storage: Synchronized local SD card logging and encrypted cloud upload via TLS 1.2; all configuration metadata, calibration history, and time-stamped sensor outputs are retained with SHA-256 integrity verification.
- EMC-Robust Design: Meets IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards; operates reliably in proximity to VFDs, PLC cabinets, and high-current motor control centers without signal corruption.
- Remote Operational Management: Over-the-air (OTA) firmware updates, zero-touch calibration coefficient injection, dynamic parameter reconfiguration, and diagnostic trace logging—all accessible via secure SSH or HTTPS API endpoints.
- Hardware-Level Safety Architecture: Stainless-steel enclosure (IP66 rated); built-in inlet strainer (25 µm mesh), degassing chamber with residence-time optimization, pressure relief valve (set at 1.2 MPa), and continuous leak detection via differential flow monitoring.
- Algorithm-Enhanced Metrology: On-device digital signal processing includes adaptive noise filtering, thermal drift compensation, and cross-parameter correlation correction—achieving repeatability ≤ ±2% of full scale across viscosity and water content channels.
Sample Compatibility & Compliance
The FYH system is validated for use with mineral-based, synthetic hydrocarbon (PAO), and polyalkylene glycol (PAG) lubricants across viscosity grades ISO VG 10 to ISO VG 680. It accommodates operating pressures up to 1.0 MPa and fluid temperatures from −20 °C to +100 °C. All sensor modules comply with ATEX/IECEx Zone 2 (gas) and IP66 environmental ratings. The system supports audit-ready data governance under FDA 21 CFR Part 11 (electronic records/signatures) when deployed with optional audit trail logging and role-based access control. Calibration certificates traceable to NIM (National Institute of Metrology, China) are provided per module.
Software & Data Management
The FYH Cloud Platform provides browser-based dashboards with customizable KPIs—including Remaining Useful Life (RUL) estimation via Weibull-based degradation modeling, alarm escalation workflows (email/SMS/webhook), and comparative fleet analytics. Raw sensor data is exported in CSV/Parquet format with embedded metadata (timestamp, sensor ID, calibration epoch, ambient conditions). RESTful APIs enable integration with CMMS (e.g., IBM Maximo, SAP PM) and SCADA systems. Local edge computing supports offline operation for ≥72 hours with automatic sync upon network recovery. Data retention policies align with ISO/IEC 27001 information security controls.
Applications
- Power generation: Turbine lube oil health monitoring in coal, gas, and hydroelectric plants
- Wind energy: Gearbox oil surveillance in offshore and onshore nacelles
- Marine propulsion: Main engine and reduction gear lubricant integrity assurance
- Rail transportation: Traction motor bearing oil condition tracking
- Heavy manufacturing: CNC machine tool hydraulic system contamination control
- Mining & construction: Hydraulic excavator and haul truck transmission oil diagnostics
FAQ
What communication protocols does the FYH system support?
Modbus RTU (RS-485), Modbus TCP/IP, and MQTT v3.1.1 over Ethernet or LTE Cat-M1; optional OPC UA server available upon request.
Can the system operate without cloud connectivity?
Yes—local data logging, alarm triggering, and basic trend visualization remain fully functional offline; cloud synchronization resumes automatically when connectivity is restored.
Is third-party calibration validation supported?
Yes—NIST-traceable reference oils and certified water-in-oil standards (e.g., Conostan®) may be used for field verification; calibration reports include uncertainty budgets per GUM (JCGM 100:2008).
How often does the system require maintenance?
Filter elements require replacement every 6 months under continuous operation; sensor modules are rated for ≥24 months service life before recalibration is recommended.
Does the system meet cybersecurity standards for industrial networks?
It implements TLS 1.2 encryption, certificate-based authentication, disabled default credentials, and regular CVE patching cycles aligned with IEC 62443-3-3 SL2 requirements.
