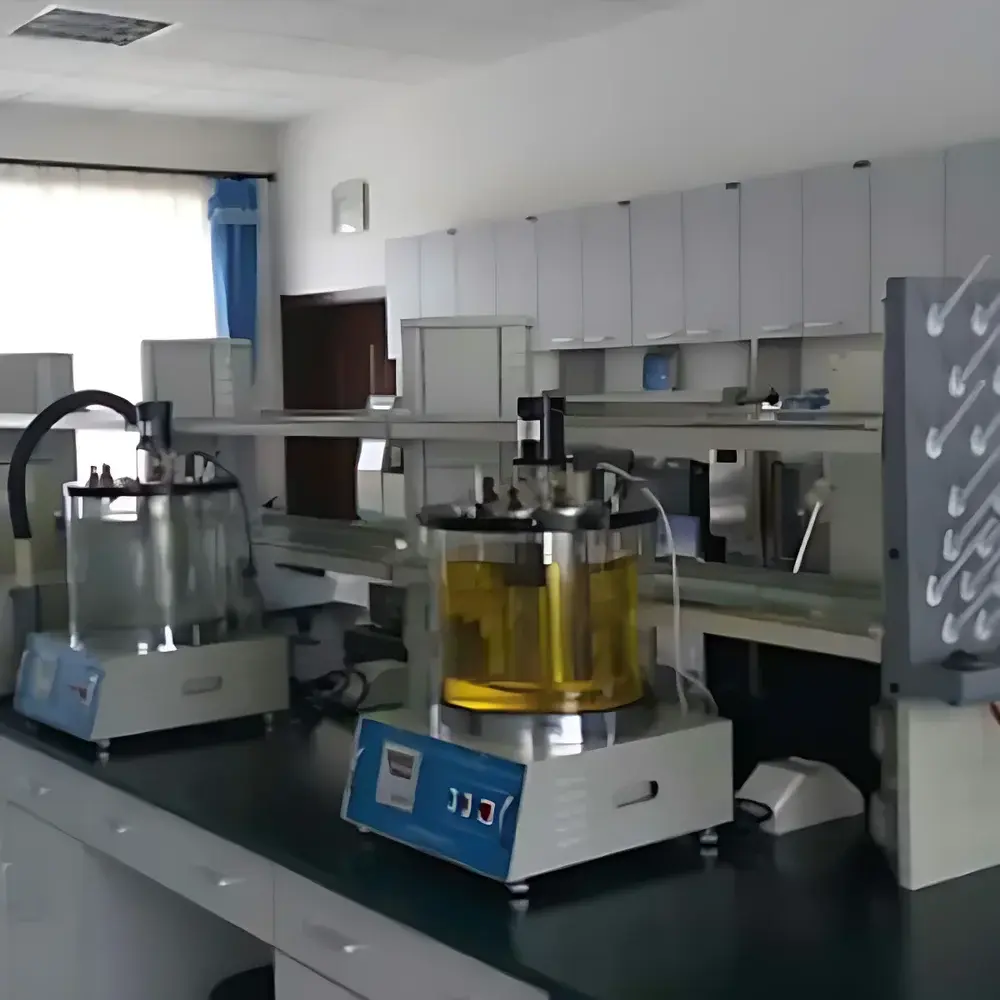

Beijing Hangfeng KC Laboratory Testing Services for Lubricant and Hydraulic Fluid Contamination Analysis

Overview

Beijing Hangfeng KC Laboratory Testing Services constitute a CMA-certified (China Metrology Accreditation) third-party analytical service platform operated by Beijing Hangke Measurement & Lubrication Technology Co., Ltd., a wholly owned subsidiary of Beijing Hangfeng Kewei Equipment Technology Co., Ltd. Established in 2012, the laboratory is designated as a national key laboratory supporting aerospace and defense industrial sectors. Its core technical focus centers on fluid contamination control—specifically lubricating oils, hydraulic fluids, turbine oils, transformer oils, and aviation fuels—through standardized physicochemical, spectroscopic, and particle-based analytical methodologies. The laboratory adheres to internationally recognized measurement principles including ISO 4406 (fluid cleanliness coding), ISO 11171 (calibration of liquid-borne particle counters), ASTM D6786 (automated particle counting), ASTM D5185 (elemental analysis by ICP-AES), and ASTM D2440 (infrared spectroscopy for oxidation and nitration). All test reports are legally valid for regulatory compliance, quality audits, and condition-based maintenance decision-making under China’s industrial safety and equipment reliability frameworks.

Key Features

• CMA accreditation (Certificate No.: 24012020140300), issued by Beijing Municipal Market Supervision Administration, authorizing issuance of legally binding test reports with evidentiary value
• Comprehensive contamination diagnostics: automated liquid particle counting per ISO 11171 traceable calibration protocols
• Multi-modal elemental analysis: simultaneous detection of wear metals (Fe, Cu, Al, Cr, Pb, etc.) and contaminants via atomic emission spectroscopy (AES) and Fourier-transform infrared (FTIR) spectroscopy
• Ferrographic analysis capability for morphology-based wear debris identification and failure mode assessment
• Full-spectrum physicochemical testing: kinematic viscosity (ASTM D445), water content (ASTM D6304), flash point (ASTM D93), acid number (ASTM D974), base number (ASTM D2896), and oxidation stability (ASTM D2272)
• Dedicated calibration and repair services for particle counters—including flow rate verification, sensor response validation, and threshold calibration against NIST-traceable reference standards

Sample Compatibility & Compliance

The laboratory accepts samples from diverse operational environments, including aircraft engine oils, gas turbine lubricants, hydraulic systems in heavy machinery, power transformer insulating oils, marine diesel fuels, and industrial gear oils. Sample submission options include on-site collection (by client personnel), courier delivery (with temperature-controlled packaging where required), and scheduled batch logistics for enterprise clients. All procedures comply with ISO/IEC 17025:2017 general requirements for competence of testing and calibration laboratories. Reporting formats meet GLP-aligned documentation standards, including full audit trails, analyst signatures, instrument calibration records, and uncertainty statements where applicable. Data integrity conforms to Chinese regulatory expectations for traceability and non-repudiation in industrial maintenance contexts.

Software & Data Management

Test data are managed through a secure, role-based LIMS (Laboratory Information Management System) compliant with internal QA protocols. Reports are delivered digitally (PDF with digital signature) and optionally in Excel format for integration into enterprise CMMS or predictive maintenance platforms. Historical trend analysis—such as particle count evolution, wear metal accumulation rates, and oxidation index progression—is available upon request to support root-cause analysis and remaining useful life estimation. For regulated industries, metadata retention aligns with 21 CFR Part 11–compatible archiving practices, ensuring long-term accessibility and version control of all analytical records.

Applications

• Aerospace OEMs and MRO facilities requiring oil-in-service monitoring to validate lubricant life extension and verify compliance with OEM service bulletins
• Power generation utilities performing routine transformer oil diagnostics to prevent dielectric failure and schedule proactive reconditioning
• Railway operators conducting fleet-wide lubricant health assessments to optimize oil drain intervals and reduce unscheduled downtime
• Heavy equipment manufacturers implementing field-deployable oil analysis programs for warranty validation and component reliability benchmarking
• Industrial plants integrating lab-based results with online sensors to calibrate real-time monitoring thresholds and refine alarm logic

FAQ

What standards govern your particle counting methodology?

All particle counts follow ISO 11171 calibration protocols using certified reference materials; reporting complies with ISO 4406:2017 cleanliness codes.

Can you support international clients with English-language reports and ASTM-compliant testing?

Yes—reports are issued in bilingual (Chinese/English) format; all test methods referenced are harmonized with ASTM, ISO, and IP standards.

Do you offer on-site training for lubrication engineers?

Yes—customized technical workshops cover lubricant selection, contamination control strategies, interpretation of spectral/ferrographic data, and development of site-specific oil analysis programs.

How long does standard turnaround take for a full oil analysis panel?

Typical TAT is 5–7 business days from sample receipt; expedited analysis (3-day TAT) is available for priority cases.

Is your CMA certification recognized outside China?

While CMA is nationally mandated in China, our methodological alignment with ISO/ASTM standards ensures global technical acceptability; we also support ILAC-MRA mutual recognition pathways for cross-border acceptance.
