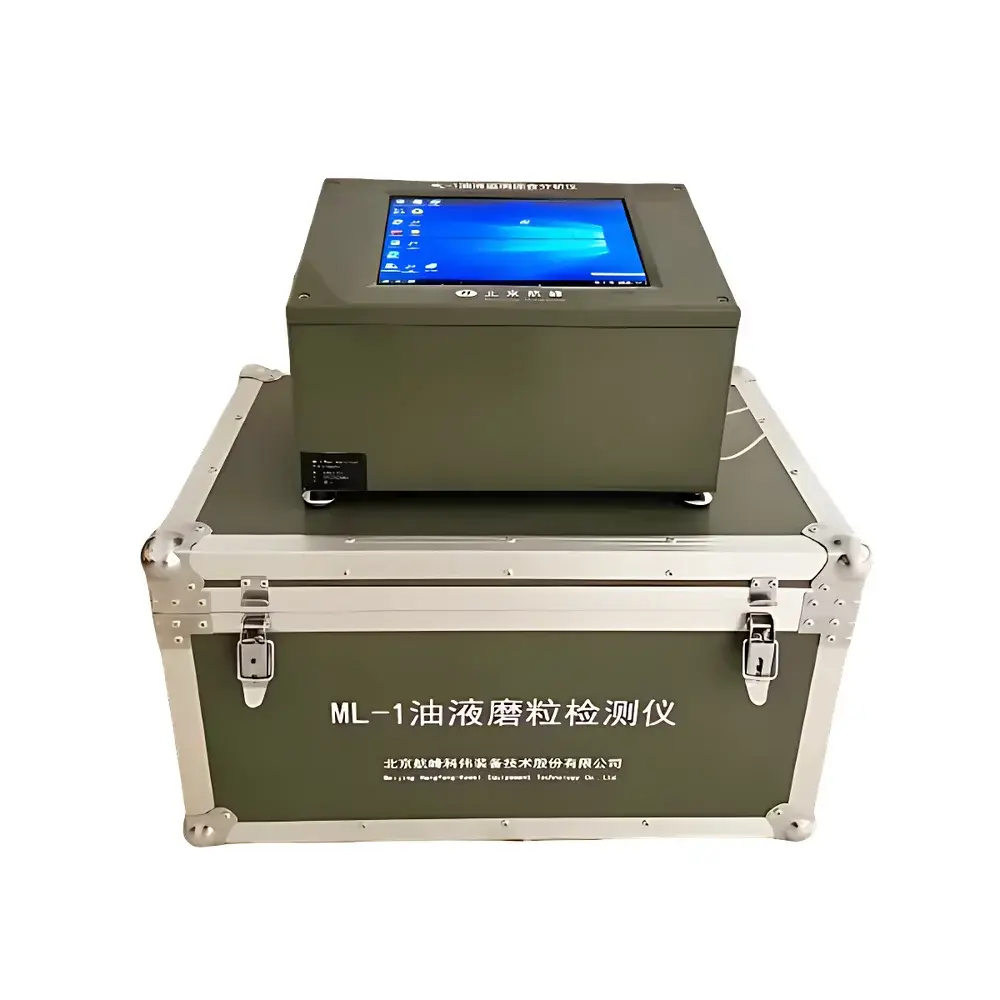

Beijing Hangfeng ML-1 Oil Wear Particle Analyzer

Overview

The Beijing Hangfeng ML-1 Oil Wear Particle Analyzer is a fully integrated, benchtop optical particle analysis system engineered for condition-based monitoring of lubricating oils in critical rotating machinery—including gas turbines, diesel engines, hydraulic systems, and gearboxes. It operates on the principle of real-time, dual-illumination microscopic imaging: oil samples are dynamically pumped through a precision flow cell positioned at the focal plane of a telecentric optical path. Simultaneous transmitted and reflected light illumination enables high-contrast capture of both transparent and opaque particulates—including ferrous and non-ferrous metallic debris, oxides, fibers, and sludge agglomerates. Coupled with a high-frame-rate, high-resolution area-scan CMOS sensor, the system acquires sequential micrographs at controlled flow velocity, enabling morphological classification (e.g., fatigue, cutting, sliding, laminar) and quantitative sizing (5–150 µm) without filtration or dilution. Unlike offline ferrography or gravimetric methods, the ML-1 delivers traceable, repeatable, and statistically robust particle counts and shape descriptors—directly supporting ISO 4406, NAS 1638, and GJB-420B contamination coding protocols.

Key Features

• Integrated dual-mode optical imaging platform with telecentric lens and synchronized transmitted/reflected LED illumination for enhanced edge definition and material contrast
• High-speed area-scan CMOS camera (≥12 MP resolution, ≥60 fps at full frame) optimized for low-noise, motion-artifact-free image acquisition under laminar flow conditions
• Self-contained fluidic module with precision peristaltic pump and calibrated flow cell—no external vacuum sources, syringes, or auxiliary compressors required
• Embedded industrial PC with preloaded analytical software featuring automated particle segmentation, Feret diameter measurement, aspect ratio calculation, and morphology-based classification algorithms
• Modular compliance engine supporting user-selectable reporting standards: ISO 4406 (code-based), NAS 1638 (particle count bands), and GJB-420B (Chinese military specification)
• Compact footprint (450 × 280 × 260 mm) and weight (<16.65 kg) enable deployment in field labs, maintenance bays, or mobile diagnostic units without structural reinforcement
• Standard industrial I/O interfaces (USB 3.0, GigE Vision, RS-232, digital I/O) for integration into SCADA, CMMS, or predictive maintenance platforms

Sample Compatibility & Compliance

The ML-1 is validated for use with mineral-based, synthetic, and semi-synthetic lubricants—including turbine oils, engine oils, hydraulic fluids, and water-glycol fire-resistant fluids. Its optical design accommodates viscosity ranges from ISO VG 10 to VG 680 without recalibration. All analytical outputs comply with internationally recognized contamination assessment frameworks: particle concentration data is mapped directly to ISO 4406:2017 code assignments; cumulative counts across three size thresholds (≥4 µm, ≥6 µm, ≥14 µm) satisfy NAS 1638 Class determination; and dual-channel detection (light scatter + reflectance intensity) meets the morphological discrimination requirements of GJB-420B. The system supports GLP-compliant audit trails: all raw images, metadata (timestamp, flow rate, temperature), and processing parameters are archived with SHA-256 checksums and immutable timestamps. Optional FDA 21 CFR Part 11 add-on provides electronic signature capability and role-based access control for regulated environments.

Software & Data Management

The embedded analysis suite runs on a real-time Linux OS and includes a GUI-driven workflow: sample registration → auto-calibration → image acquisition → AI-assisted particle recognition → standardized reporting. Particle detection employs adaptive thresholding and watershed segmentation, followed by feature extraction (equivalent circular diameter, convex hull area, solidity, elongation). Classification logic follows ASTM D7690-21 guidelines for wear debris morphology interpretation. Reports export in PDF (with embedded calibration certificates) and CSV (for statistical process control integration). Historical datasets synchronize via secure HTTPS to cloud-hosted dashboards, enabling fleet-level trend analysis, alarm thresholding, and RUL (Remaining Useful Life) modeling. Raw image archives support forensic reprocessing as analytical methods evolve—ensuring long-term data integrity and method traceability.

Applications

• Early-stage detection of gear tooth pitting, bearing spalling, and piston ring scuffing via fatigue debris quantification
• Differentiation between abrasive wear (cutting particles) and adhesive wear (sliding lamellae) to inform root-cause failure analysis
• Verification of filter efficiency and bypass valve operation through upstream/downstream particle profiling
• Baseline establishment and trending for oil change interval optimization per OEM specifications
• Supporting MIL-STD-3007 and SAE ARP5557 compliance in aerospace MRO operations
• On-site verification of oil reclamation efficacy during closed-loop regeneration processes

FAQ

Does the ML-1 require oil filtration prior to analysis?
No—analysis is performed on unfiltered, undiluted oil samples. The flow cell design prevents clogging and ensures representative sampling across the full 5–150 µm range.
Can the system distinguish ferrous from non-ferrous particles?
Yes—via differential reflectance response under dual-illumination geometry, combined with grayscale histogram analysis. Ferrous particles exhibit higher specular reflectance and distinct edge sharpness compared to oxides or silicates.
Is calibration traceable to NIST or equivalent national standards?
Yes—optical magnification is verified using NIST-traceable stage micrometers; flow rate calibration is certified against primary volumetric standards per ISO/IEC 17025-accredited procedures.
What maintenance is required for long-term operational stability?
Annual verification of illumination uniformity, camera gain linearity, and pump tubing wear—documented in the included maintenance logbook. No optical alignment or sensor recalibration is user-serviceable.
Can the ML-1 interface with enterprise asset management (EAM) systems?
Yes—via OPC UA or Modbus TCP protocol adapters; custom API endpoints support direct ingestion into IBM Maximo, SAP PM, or Infor EAM platforms.
