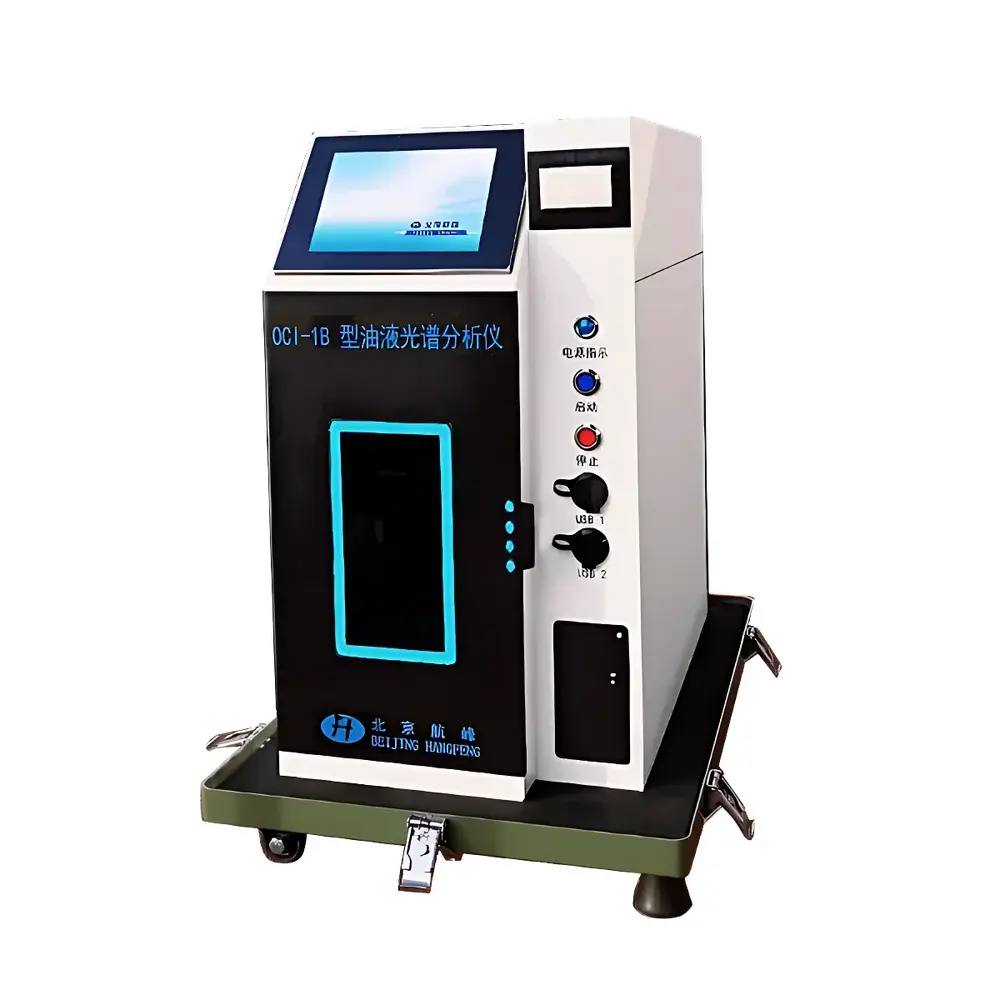

Beijing Hangfeng OCI-1B Portable Oil Spectrometer

Overview

The Beijing Hangfeng OCI-1B Portable Oil Spectrometer is an engineered solution for elemental quantification in used lubricating oils, hydraulic fluids, and transformer oils—designed specifically for condition-based maintenance programs in aviation, power generation, marine, and heavy industrial sectors. It implements Rotating Disc Electrode Atomic Emission Spectrometry (RDE-AES), a well-established technique standardized under ASTM D6595. In this method, a rotating tungsten disc electrode immersed in the oil sample is subjected to controlled arc discharge, volatilizing trace metallic species—including wear metals (Fe, Cr, Al, Cu, Pb, Sn, Ni), contaminants (Si, Na, B), and additive elements (Ca, Mg, Zn, P, Ba). The emitted light is dispersed via a Czerny–Turner optical bench and resolved across a broad spectral range (typically 190–800 nm) using a multi-channel linear CCD detector array. Unlike ICP-based systems, RDE-AES requires no acid digestion or dilution, enabling direct analysis of as-received oil with minimal sample preparation.

Key Features

• Full-spectrum acquisition enabled by multiple high-resolution linear CCD detectors, supporting flexible spectral line selection and multi-element calibration without hardware reconfiguration.
• Active thermal stabilization of the monochromator housing maintains optical alignment within ±0.1 °C, minimizing wavelength drift over extended operation—critical for day-long field deployments or unattended lab sessions.
• Modular excitation chamber with quick-release access facilitates rapid electrode replacement, routine cleaning, and contamination control—reducing downtime between samples and enhancing measurement reproducibility.
• Integrated industrial PC running real-time spectral processing firmware, coupled with a built-in thermal printer for immediate hardcopy reporting; eliminates dependency on external computing infrastructure.
• Self-contained electrode dressing mechanism automatically trues and cleans the rotating tungsten disc prior to each analysis, ensuring consistent spark geometry and signal stability across hundreds of cycles.
• Ruggedized aluminum chassis and shock-absorbing custom transit case meet MIL-STD-810G criteria for vibration, drop, and environmental exposure—validated for operation at ambient temperatures from 5 °C to 40 °C and relative humidity up to 80% non-condensing.

Sample Compatibility & Compliance

The OCI-1B accepts standard 10–20 mL volumes of unfiltered, undiluted mineral- and synthetic-based oils—including turbine, engine, gear, and hydraulic formulations. It is compatible with common OEM oil specifications (e.g., MIL-PRF-23699, SAE AS5780, ISO 8573-4) and supports ASTM D6595-compliant calibration protocols using NIST-traceable oil standards (e.g., Conostan® OEL series). Instrument validation includes linearity verification (r² ≥ 0.999), detection limit assessment (< 0.1 ppm for Fe, Cu, Cr), and precision testing (RSD < 3% at 5 ppm level across 10 replicate analyses). Full audit trail functionality—including user logins, method versioning, raw spectrum archiving, and timestamped result export—is implemented to support GLP and GMP-aligned workflows where required.

Software & Data Management

The embedded software platform provides intuitive workflow navigation—from electrode conditioning and background acquisition to multi-point calibration and quantitative reporting. Spectral libraries are configurable per fluid type and application domain (e.g., jet engine oil vs. wind turbine gear oil), with automatic interference correction applied for overlapping lines (e.g., Si II 251.61 nm and Fe I 251.84 nm). All spectra and processed results are stored locally in vendor-neutral HDF5 format, with optional encrypted USB export compliant with ISO/IEC 27001 data handling policies. Remote diagnostics and firmware updates may be performed via Ethernet or Wi-Fi, while offline operation remains fully functional without network connectivity.

Applications

• On-site wear debris monitoring for gas turbine engines during line maintenance checks.
• Routine oil health assessment in remote hydroelectric plants lacking laboratory infrastructure.
• Field validation of oil replenishment quality before commissioning new hydraulic systems.
• Root-cause analysis of abnormal wear patterns in mining equipment fleets using historical trend databases.
• Supporting ISO 4406 particle count correlation studies through concurrent elemental fingerprinting.

FAQ

Does the OCI-1B require argon purge or vacuum pumping for spectral measurement?

No. The optical path is sealed and purged with dry nitrogen during manufacturing; no consumable gas supply is needed during operation.
Can the instrument analyze water-contaminated oil samples?

Samples with free water > 0.1% v/v must be centrifuged or filtered prior to analysis to avoid arc instability and carbon deposition on the electrode.
Is method transfer possible between different OCI-1B units?

Yes—calibration files and spectral libraries are portable across instruments of the same firmware revision; inter-unit bias is typically < ±5% for major wear elements when using identical electrode batches and calibration standards.
What maintenance intervals are recommended for field use?

Electrode replacement every 200–300 analyses; optical window cleaning weekly under dusty conditions; full system verification with reference oil quarterly or after 500 analyses.
Does the software support LIMS integration?

Yes—via configurable CSV/XML export templates and optional OPC UA interface for direct connection to enterprise-level laboratory information management systems.
