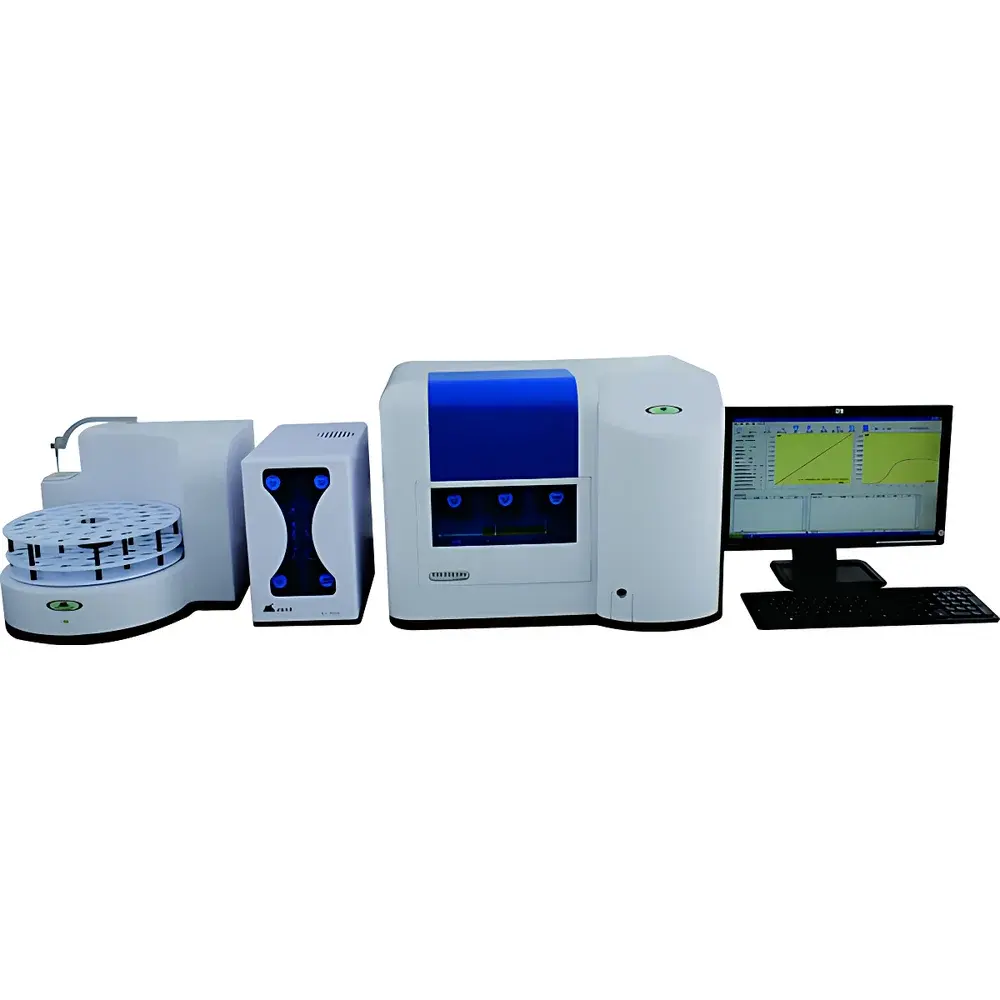

BEIYU GMA-376 Gas Phase Molecular Absorption Spectrometer

Overview

The BEIYU GMA-376 Gas Phase Molecular Absorption Spectrometer is a dedicated analytical instrument engineered for the quantitative determination of nitrogen- and sulfur-containing species in aqueous environmental samples using gas-phase molecular absorption spectroscopy (GPMAS). This technique relies on the controlled chemical conversion of target analytes—such as nitrite, nitrate, total nitrogen, ammonia nitrogen, Kjeldahl nitrogen, sulfide, mercury, and sulfite—into volatile, diatomic or polyatomic gaseous molecules (e.g., NO, NO₂, SO₂, Hg⁰), which are then swept into an optical cell and quantified via UV-Vis absorption at characteristic wavelengths. Unlike conventional liquid-phase spectrophotometry, GPMAS eliminates matrix interference from turbidity, color, suspended solids, and ionic background, enabling direct analysis of raw wastewater, landfill leachate, industrial effluents, and heavily contaminated natural waters without filtration, digestion, or masking reagents. The GMA-376 implements a fully integrated, sealed-flow reaction manifold with membrane-based gas–liquid separation, ensuring high transfer efficiency (>99.99%) and long-term operational stability.

Key Features

• Automated wavelength selection across 100–900 nm with ±0.2 nm accuracy and ±0.1 nm repeatability—calibrated against NIST-traceable standards;
• Four-lamp turret with intelligent preheating and auto-alignment; three lamps active during routine operation, one reserved for redundancy;
• Programmable slit width (0.1, 0.2, 0.4, or 1.0 nm) to optimize signal-to-noise ratio and spectral resolution per analyte;
• High-stability photomultiplier tube (PMT) detector—Hamamatsu original OEM unit—with low dark current and linear response over 5 orders of magnitude;
• Integrated online heating module: sample stream heated in-line during transport, eliminating external water baths and reducing total analysis time by 20–30 minutes for thermally driven reactions (e.g., nitrate reduction, total nitrogen digestion);
• 2.4 mm ID inert sampling tubing ensures representative aspiration of heterogeneous or viscous samples;
• Gas–liquid separation via fluoropolymer membrane—non-contact, maintenance-free, and chemically resistant to aggressive reagents (e.g., acidic KMnO₄, Na₂EDTA, Zn acetate);
• Full system automation: reagent/sample aspiration, reaction timing, gas transfer, absorbance measurement, and data logging—all synchronized under software control.

Sample Compatibility & Compliance

The GMA-376 supports direct analysis of unfiltered, colored, or odorous aqueous matrices—including municipal wastewater, agricultural runoff, electroplating effluents, and anaerobic digester supernatants—without pretreatment. It complies with multiple Chinese national standard methods promulgated by the Ministry of Ecology and Environment (MEE), including HJ/T 195–2005 (ammonia nitrogen), HJ/T 199–2005 (total nitrogen), HJ 484–2009 (cyanide), and HJ 667–2013 (sulfide). While not certified to ISO/IEC 17025 or EPA methods out-of-the-box, its optical architecture, PMT linearity, and traceable wavelength calibration support method validation for GLP-compliant laboratories. Data integrity features—including electronic audit trails, user access levels, and immutable result logs—align with principles of FDA 21 CFR Part 11 when deployed with validated software configurations.

Software & Data Management

The embedded Windows-compatible software provides full instrument control, method storage, real-time spectral visualization, and automated report generation. Predefined analytical protocols for all supported parameters are stored in a secure database; users select a method by name rather than configuring individual parameters manually. Each analysis generates a time-stamped absorbance spectrum alongside concentration results, both archived in encrypted binary format (.gma) with metadata (operator ID, timestamp, lamp usage, slit setting, temperature). Raw spectra and processed data can be exported to CSV or PDF for external review. To ensure data integrity, manual value entry is disabled—results derive exclusively from calibrated absorbance measurements. The software includes a re-analysis function that permits repeat measurement of stored sample aliquots without re-injection, supporting QC verification and outlier investigation.

Applications

• Environmental monitoring: routine quantification of NH₃-N, NO₂⁻, NO₃⁻, TN, and S²⁻ in surface water, groundwater, and wastewater treatment plants;
• Regulatory compliance testing: adherence to China’s GB 3838–2002 (Surface Water Environmental Quality Standards) and GB 8978–1996 (Comprehensive Wastewater Discharge Standard);
• Industrial process control: real-time tracking of nitrogen species in semiconductor rinse water, pharmaceutical fermentation broths, and food processing effluents;
• Research applications: kinetic studies of nitrogen transformation pathways, method development for emerging contaminants (e.g., hydroxylamine, hydrazine), and inter-laboratory comparison studies requiring high inter-day reproducibility;
• Teaching laboratories: demonstration of gas-phase reaction kinetics, molecular spectroscopy fundamentals, and automated analytical workflows.

FAQ

What analytes can the GMA-376 quantify?
The instrument is validated for nitrite, nitrate, total nitrogen, ammonia nitrogen, Kjeldahl nitrogen, sulfide, mercury, and sulfite in aqueous samples, following MEE-standardized chemical conversion protocols.

Does the system require daily recalibration?
No. Wavelength calibration is factory-performed using internal holmium oxide and didymium references; routine verification requires only annual NIST-traceable lamp checks. Photometric linearity is verified monthly using neutral density filters.

Can the GMA-376 interface with LIMS?
Yes—via configurable ASCII output (CSV/TSV) and optional OPC UA or Modbus TCP integration for laboratory information management systems compliant with ASTM E1482 or ISO/IEC 17025 requirements.

Is the membrane separator replaceable?
No. The fluoropolymer gas–liquid separation membrane is non-consumable and requires no scheduled replacement under normal operating conditions (typical service life >2 years at 10 samples/day).

What maintenance is required?
Routine tasks include weekly cleaning of the sample probe and waste lines, quarterly inspection of peristaltic pump tubing, and annual PMT gain verification—documented in the included maintenance log template.
