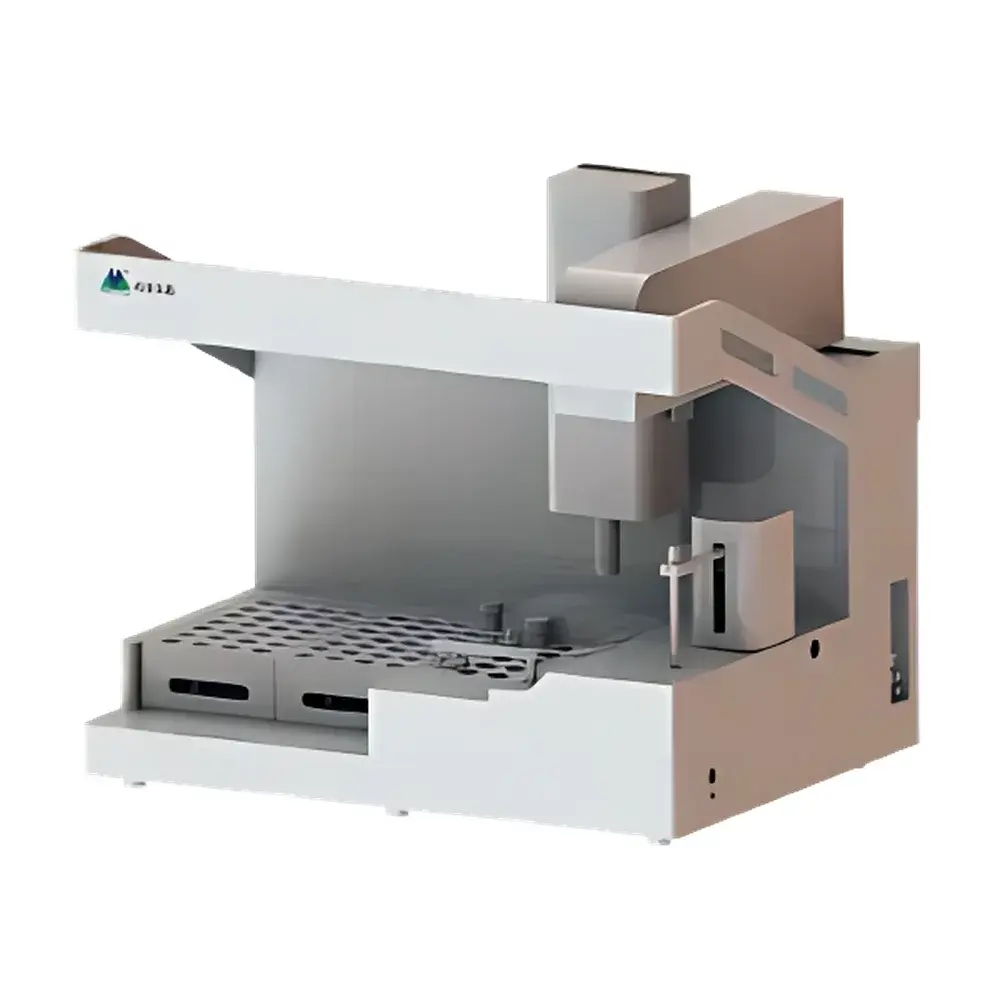

BEIYU TECHNOLOGIES ECT-300T Smart Soil pH Analyzer
| Brand | BEIYU TECHNOLOGIES |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | ECT-300T |
| Price | Upon Request |
| Sample Capacity | 56 positions |
| pH Measurement Range | 0–14 |
| Accuracy | ±0.01 pH |
| Liquid Dispensing Precision | 0.1% |
Overview
The BEIYU TECHNOLOGIES ECT-300T Smart Soil pH Analyzer is a fully automated benchtop system engineered for high-throughput, regulatory-compliant soil pH determination in environmental laboratories. It implements the potentiometric method—per ASTM D4972 and Chinese national standard HJ 962–2018—as specified for soil pH measurement using glass electrode-based electrochemical detection. Unlike manual or semi-automated pH meters, the ECT-300T integrates robotic sample handling, programmable liquid dispensing, controlled agitation and equilibration, and electrode maintenance cycles into a single workflow architecture. Its design directly addresses the procedural requirements of HJ 962–2018—including mandatory sealed vial rotation during extraction, standardized water-to-soil ratio preparation, defined settling time, and electrode calibration traceability—while also maintaining compatibility with supplementary standards such as LY/T 1239–1999 (forest soils) and NY/T 1121.2–2006 (agricultural soil testing protocols). The system operates on a closed-loop control principle, where each analytical step—from reagent addition to final pH reading—is logged with timestamped metadata to support audit-ready data integrity.
Key Features
- Integrated robotic arm with precision XYZ positioning for repeatable vial access across all 56 sample positions
- Automated reagent delivery system with peristaltic pumps calibrated to ≤0.1% volumetric accuracy for consistent extractant dosing (e.g., 1 M KCl or deionized water)
- Programmable orbital shaker with sealed cap engagement mechanism, ensuring compliance with HJ 962–2018’s requirement for capped, rotated equilibration
- Multi-stage electrode management: automatic immersion, measurement, rinsing with deionized water, drying via regulated airflow, and storage in protective sleeve
- BNC-standard electrode interface supporting interchangeable pH electrodes from major global suppliers (e.g., Mettler Toledo, Thermo Fisher, Hanna Instruments)
- Onboard auto-calibration routine using dual-point (4.01/7.00 or 7.00/10.01) NIST-traceable buffers with slope validation and drift monitoring
- Emergency sample slot enabling priority insertion without interrupting ongoing batch runs
Sample Compatibility & Compliance
The ECT-300T accommodates standard 50 mL polypropylene or glass extraction vials with screw-thread closures. It supports soil matrices ranging from sandy loam to clay-rich sediments, including contaminated site samples within typical moisture content ranges (10–30% w/w). All operational parameters—including shaking speed (150–250 rpm), rotation duration (15–30 min), settling time (30–60 min), and electrode immersion depth—are configurable to align with method-specific requirements. The system complies with ISO/IEC 17025:2017 documentation practices for testing laboratories and supports GLP-aligned workflows through electronic signature-capable user authentication and immutable run logs. Data export formats include CSV and XML, compatible with LIMS integration and 21 CFR Part 11–compliant archival systems when deployed with validated software configurations.
Software & Data Management
The ECT-300T is operated via BEIYU’s proprietary ECT Control Suite v3.2—a Windows-based application offering role-based access control, method template libraries, real-time instrument status dashboards, and automated report generation. Each measurement event records electrode ID, calibration history, temperature-compensated mV output, calculated pH, operator ID, and environmental conditions (ambient temperature/humidity). Audit trails capture all parameter modifications, calibration events, and user logins with tamper-proof timestamps. Raw data files are digitally signed and stored in encrypted local databases; optional cloud backup modules enable secure offsite replication aligned with ISO 27001 information security frameworks.
Applications
- Regulatory environmental monitoring programs under China’s Ministry of Ecology and Environment (MEE) mandates
- Soil health assessment in agricultural extension services and land-use planning agencies
- Baseline characterization and post-remediation verification at brownfield and industrial sites
- Acid sulfate soil evaluation in coastal and mining-affected regions
- Method validation and interlaboratory comparison studies requiring strict adherence to HJ 962–2018
- Research applications involving pH-dependent nutrient bioavailability, heavy metal speciation, and microbial activity profiling
FAQ
Does the ECT-300T support third-party pH electrodes?
Yes—it accepts any BNC-compatible combination pH electrode meeting IUPAC-recommended specifications for soil applications.
Can the system be integrated with existing LIMS platforms?
Yes—via configurable ODBC drivers and structured XML data exports compliant with ASTM E1467 and ISO 15143-1 standards.
Is the instrument validated for GLP or ISO/IEC 17025 use?
The hardware and firmware meet essential design criteria for accredited testing; full validation requires site-specific IQ/OQ/PQ protocols performed by qualified personnel.
What maintenance is required for long-term operational stability?
Daily electrode cleaning and weekly pump tubing inspection are recommended; annual performance verification using certified reference materials (CRM) is advised.
How is data integrity ensured during power interruption?
The system features non-volatile memory buffering and automatic resume-from-interrupt functionality for active batches, preserving all intermediate states and timestamps.
