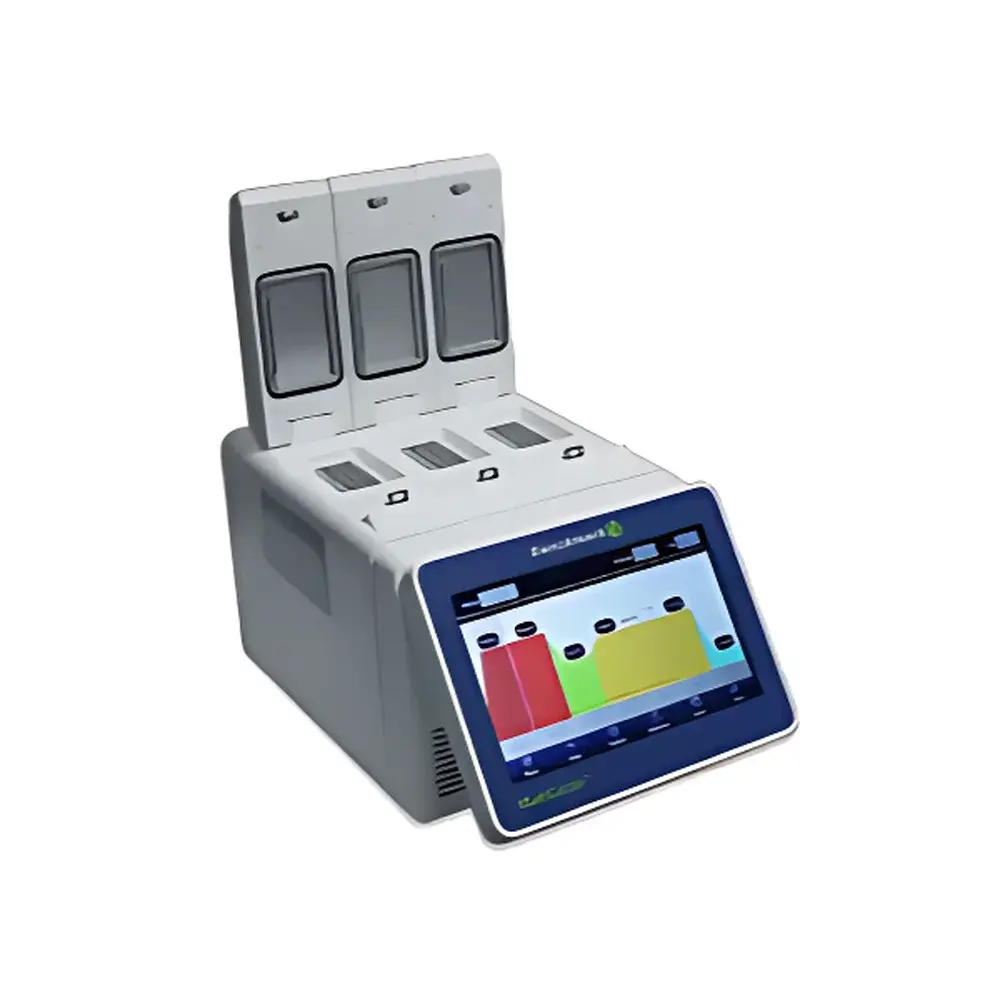

Benchmark MultiBlock Advanced Multi-Block Thermal Cycler

Overview

The Benchmark MultiBlock Advanced Multi-Block Thermal Cycler is an engineered solution for high-throughput and multi-protocol molecular biology laboratories requiring simultaneous, independent thermal cycling across multiple sample blocks. Unlike conventional single-block cyclers, the MultiBlock utilizes a modular architecture with two or three physically isolated aluminum heating blocks—each individually controlled via proprietary Peltier thermoelectric elements and real-time sample temperature modeling algorithms. This architecture enables true parallel processing of distinct PCR, qPCR, touchdown, or hot-start protocols without cross-contamination risk or thermal crosstalk. The system operates on a closed-loop control principle, where block temperature dynamics are continuously adjusted using simulated sample thermal mass feedback—not just block surface readings—ensuring reproducible ramp fidelity and endpoint accuracy across all wells. Designed for GLP-compliant environments, the MultiBlock meets core thermal performance benchmarks defined in ISO 13485 Annex A and supports traceable operation under FDA 21 CFR Part 11 when integrated with validated LIMS or ELN platforms.

Key Features

• Independent dual- or triple-block configuration enabling concurrent execution of dissimilar thermal profiles (e.g., standard PCR on Block A while performing gradient optimization on Block B)
• 10-inch full-color capacitive touchscreen with motorized tilt mechanism and stowable hinge—optimized for ergonomic access and bench-space efficiency
• Intelligent heated lid with programmable temperature range (30–112°C) and auto-shutdown below 35°C block temperature to prevent condensation and evaporation artifacts
• Gradient capability across all blocks: 8-zone linear gradient per block, with ±0.1°C inter-zone accuracy and user-defined gradient span (30–99.9°C)
• Fully adjustable ramp rates (0.1–5.0°C/sec) with slope symmetry control—critical for optimizing denaturation/annealing kinetics in AT-rich or GC-rich targets
• Password-protected user accounts with role-based access (Operator, Supervisor, Administrator) to safeguard method integrity in shared-core facilities
• On-device protocol wizard with guided setup for common applications—including colony PCR, RT-PCR prep, and library amplification—reducing operator training time

Sample Compatibility & Compliance

The MultiBlock accommodates standard 96-well PCR plates (full-skirted, semi-skirted, and unskirted), 0.2 mL tube strips, and individual 0.2 mL tubes without adapter requirements. All block surfaces feature precision-machined well geometry conforming to ANSI/SBS standards for microplate footprint consistency. Thermal uniformity (≤±0.2°C at 90°C) and accuracy (≤±0.2°C at 90°C) are verified per ASTM E2217-19 Annex A using NIST-traceable platinum resistance thermometers. The unit is CE-marked under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and complies with IEC 61010-1:2010 for laboratory equipment safety. Data storage logs—including run timestamps, user IDs, temperature profiles, and lid status—are structured to support audit readiness for ISO/IEC 17025 and CLIA-certified workflows.

Software & Data Management

All programming, monitoring, and archival functions are executed natively via the embedded Linux-based firmware—no external PC required. Protocols are stored in encrypted internal memory with timestamped version history and automatic backup to USB drives. USB 2.0 and optional Ethernet (LAN) connectivity enable secure protocol synchronization across MultiBlock units within a lab network. Export formats include CSV (thermal profile time-series), PDF (run summary reports), and XML (machine-readable method definitions). Audit trail functionality records every parameter change, user login/logout, and protocol execution event—including IP address for LAN sessions—meeting ALCOA+ data integrity principles. Firmware updates are delivered via signed .bin files with SHA-256 verification.

Applications

• High-efficiency primer optimization using simultaneous gradient testing across multiple annealing temperatures
• Parallel validation of assay conditions for diagnostic kit development (e.g., comparing Taq vs. polymerase blends across thermal profiles)
• Batch processing of clinical specimens where differential cycling parameters are required per sample type (e.g., FFPE DNA vs. cfDNA)
• Training and teaching labs requiring side-by-side demonstration of standard, nested, and touchdown PCR protocols
• QC/QA release testing in biomanufacturing environments where thermal cycle reproducibility must be documented per batch record

FAQ

Can the MultiBlock perform different ramp rates on each block during the same run?
Yes. Each block operates with fully independent thermal control logic, allowing distinct ramp rates, hold times, and gradient configurations to be programmed simultaneously.
Is remote monitoring supported over LAN?
Yes—via HTTP-based status polling and authenticated API endpoints for integration into centralized lab monitoring systems (e.g., LabVantage, Thermo Fisher SampleManager).
Does the system support 384-well plates?
No. The MultiBlock is optimized for 96-well format compatibility only; 384-well support requires dedicated high-density cyclers.
How is temperature calibration maintained over time?
The system includes built-in self-diagnostic routines that verify Peltier voltage response and thermal sensor linearity at startup; annual third-party calibration using ISO/IEC 17025-accredited providers is recommended.
Are audit trails exportable for regulatory submission?
Yes—complete event logs can be exported as GZIP-compressed CSV bundles with digital signature verification for FDA eCTD or EMA CTD submissions.
