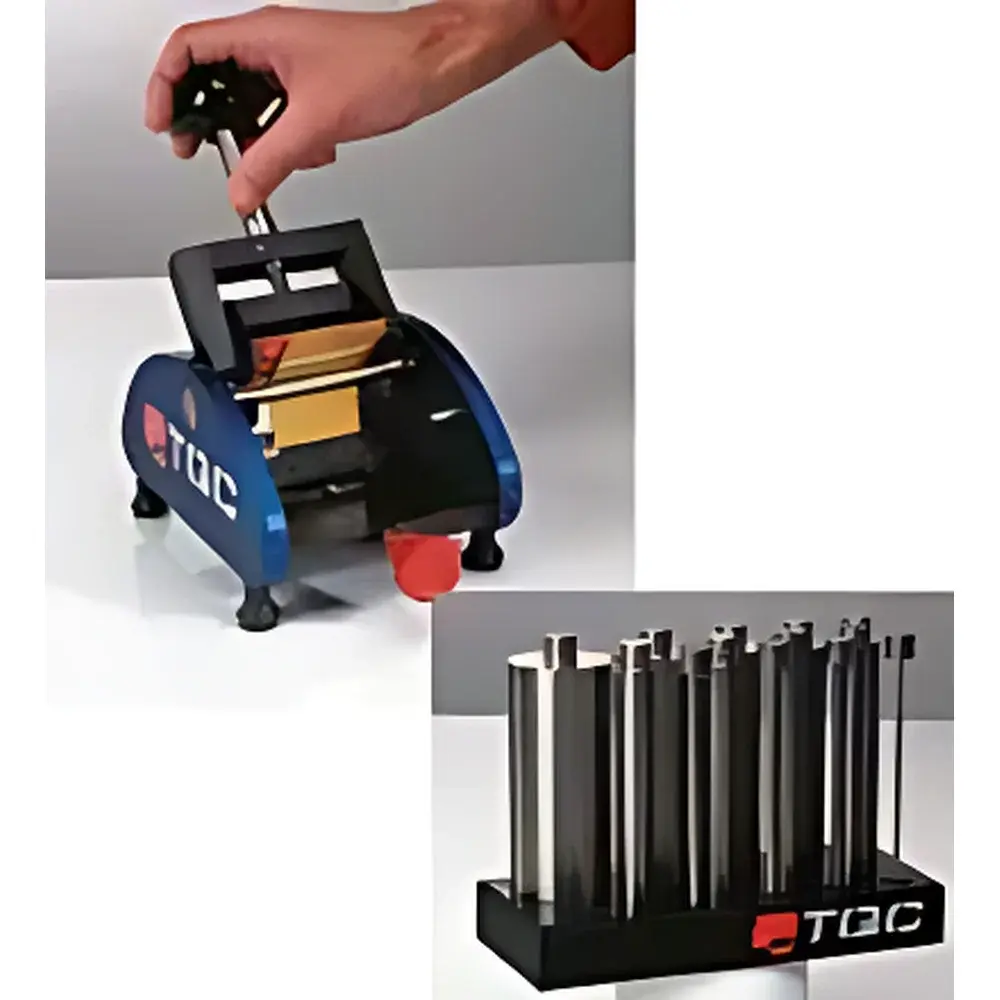

Bendix BD2000 Paint Film Bend Tester
| Origin | Netherlands |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | BD2000 |
| Pricing | Available Upon Request |
Overview
The Bendix BD2000 Paint Film Bend Tester is a precision-engineered mechanical testing instrument designed to evaluate the flexibility, adhesion, and ductility of organic coatings—including paints, varnishes, lacquers, and laminates—applied to rigid substrates such as metal, plastic, or composite panels. It operates on the principle of controlled cylindrical bending, in strict accordance with ISO 1519:2022, “Paints and varnishes — Determination of resistance to bending.” During testing, a coated test panel is clamped and bent over a precisely machined cylindrical mandrel under defined geometric constraints. The resulting deformation induces tensile and compressive stresses within the coating layer; visual and microscopic assessment of cracking, flaking, or delamination after bending provides quantitative insight into film integrity and substrate-coating interfacial performance.
Key Features
- Triple-roller bending mechanism compliant with ISO 1519:2022 requirements for uniform force distribution and minimized surface abrasion during mandrel contact.
- Modular mandrel carrier system enabling rapid, tool-free replacement of interchangeable mandrels across 14 standardized diameters (2 mm to 32 mm in increments of 1–3 mm).
- High-strength anodized aluminum frame with hardened steel rollers and precision-ground mandrel surfaces to ensure dimensional stability and long-term repeatability.
- Integrated depth-stop and parallel alignment guides to maintain consistent panel thickness registration and eliminate angular deviation during bending.
- No external power supply required—fully manual operation ensures intrinsic safety, portability, and compliance with laboratory environments where electromagnetic interference must be avoided.
Sample Compatibility & Compliance
The BD2000 accommodates standard test panels measuring up to 150 mm × 70 mm × 0.3–1.0 mm thickness (e.g., cold-rolled steel per ISO 1514 or aluminum per ASTM D609). It supports both single-layer and multi-layer coating systems, including UV-cured, waterborne, and high-solids formulations. Test results are directly interpretable against pass/fail criteria defined in ISO 1519, ASTM D522 (for conical mandrel variant), and EN 13523-8 (coil coating flexibility). The instrument’s geometry and loading path have been validated for use in GLP-compliant quality control laboratories and supplier qualification protocols requiring documented traceability to national metrology institutes.
Software & Data Management
As a purely mechanical benchtop tester, the BD2000 does not incorporate embedded electronics or digital interfaces. All test parameters—including mandrel diameter, panel substrate type, coating thickness (measured separately via magnetic induction or eddy current gauges), and observed failure mode—are recorded manually in laboratory notebooks or integrated LIMS platforms. To support audit readiness, users may pair the BD2000 with calibrated digital calipers (e.g., Mitutoyo 500-196-30) and standardized evaluation charts (e.g., ISO 4628-4 for rating cracking severity). Full compliance with FDA 21 CFR Part 11 is achievable when test records are generated and archived within validated electronic documentation systems that enforce user authentication, change tracking, and electronic signatures.
Applications
- Quality assurance of automotive OEM and refinish coatings subjected to thermal cycling and mechanical strain.
- R&D validation of novel binder-resin systems targeting improved low-temperature flexibility or impact resistance.
- Supplier qualification for coil-coated building materials (e.g., roofing, façade panels) where bending performance correlates with roll-forming durability.
- Regulatory submission support for architectural coatings seeking CE marking under EN 10169 or EPA Safer Choice certification.
- Failure analysis investigations involving field-applied coatings exhibiting premature cracking at bends or edges.
FAQ
What standards does the BD2000 fully comply with?
ISO 1519:2022 is the primary referenced standard; supplementary alignment with ASTM D522 (Method A), EN 13523-8, and JIS K 5600-5-2 is confirmed through geometric and procedural equivalence.
Can the BD2000 be used for non-metallic substrates?
Yes—rigid plastic sheets (e.g., PVC, polycarbonate per ISO 2818 cut specimens) and fiber-cement boards are compatible provided they meet minimum flexural modulus and thickness requirements specified in ISO 1519 Annex B.
Is calibration required before each test?
No periodic calibration is mandated for the mechanical assembly; however, mandrel diameters must be verified annually using certified ring gauges traceable to NIST or EUROMET standards.
How is test repeatability ensured across operators?
Standardized operator training, use of the included alignment jig, and adherence to the mandated 3-second bending speed (per ISO 1519 Section 7.3) minimize inter-user variability; intra-laboratory RSD for pass/fail outcomes is typically ≤5% at the critical bend diameter.
Are replacement mandrels supplied with calibration certificates?
Each individually packaged mandrel set includes a manufacturer’s dimensional conformity statement; full ISO/IEC 17025 calibration certificates are available upon request for traceable metrology applications.
