BEQ BTF-1200C-MS Miniature Atmosphere Tube Furnace
| Brand | BEQ |
|---|---|
| Origin | Anhui, China |
| Model | BTF-1200C-MS |
| Max Operating Temperature | 1100 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 1.1 kW |
| Heating Rate (to Max Temp) | ≤10 °C/min |
| Heating Element | Resistance Wire |
| Control System | Fuzzy PID with Auto-Tuning + 30-Stage Programmable Ramp/Soak Profile |
| Tube Diameter | φ25 mm |
| Standard Configuration | Stainless Steel Vacuum Flange with Valve + Fused Quartz Tube |
| Safety Features | Over-Temperature Protection & Thermocouple Break Alarm |
Overview

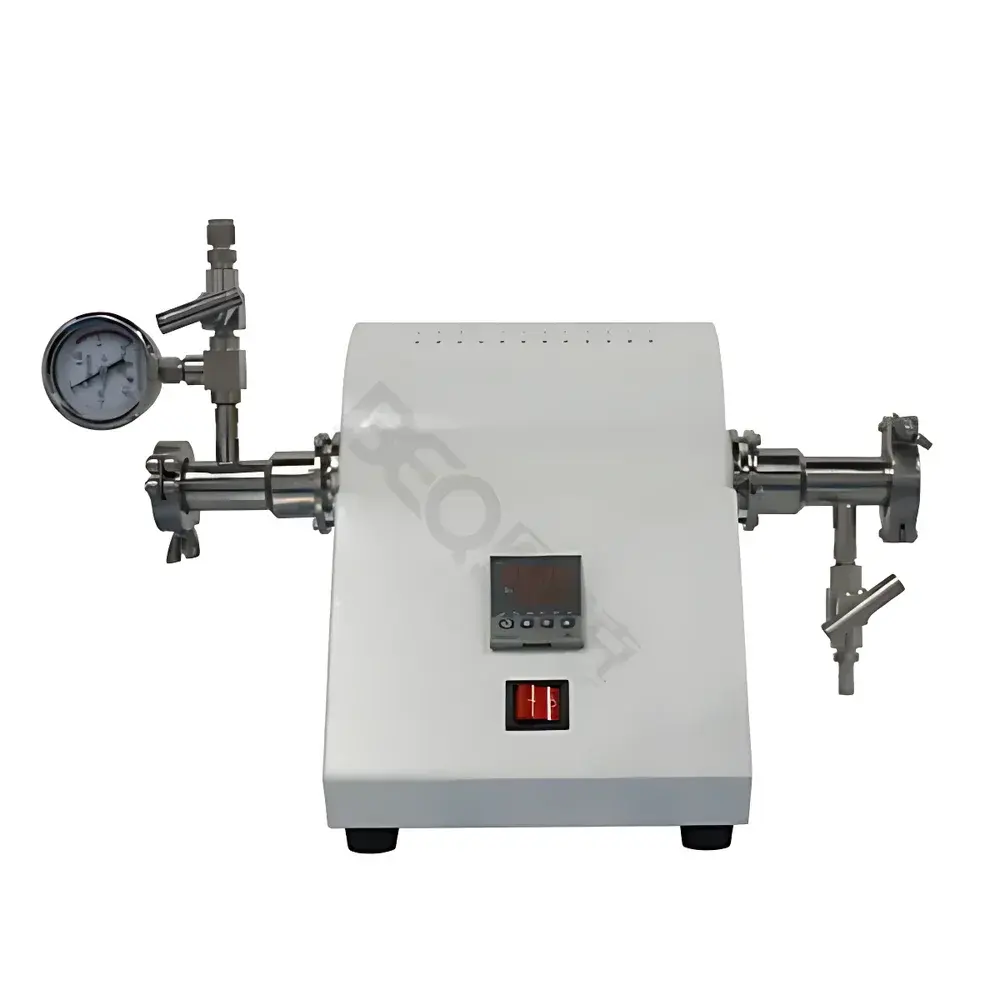

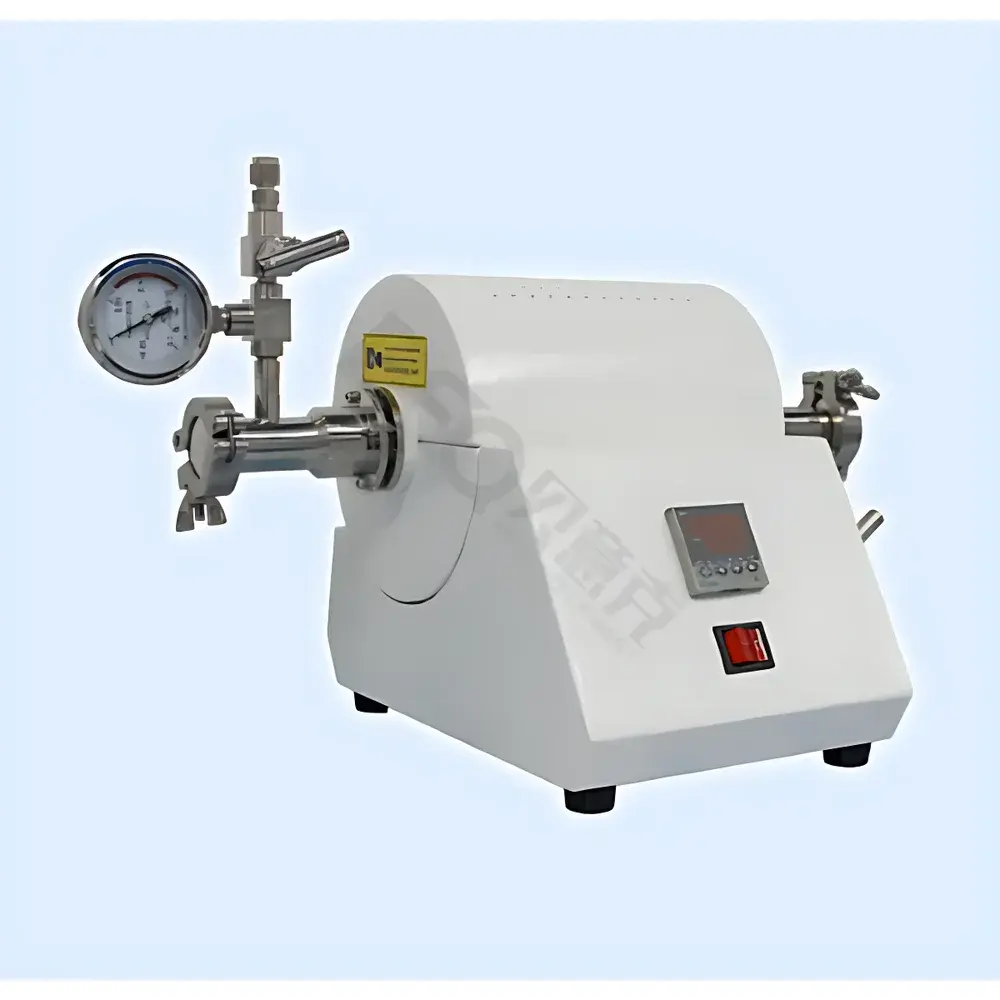

The BEQ BTF-1200C-MS Miniature Atmosphere Tube Furnace is a compact, high-precision thermal processing system engineered for controlled atmosphere and vacuum-based heat treatment of small-volume samples in research and development laboratories. Designed around a horizontal cylindrical quartz tube (25 mm inner diameter), the furnace enables reproducible thermal exposure under inert, reducing, oxidizing, or vacuum environments—critical for applications including precursor decomposition, thin-film synthesis, catalyst activation, and thermogravimetric sample conditioning. Its core architecture employs Kanthal A1 resistance wire heating elements embedded in high-purity alumina fiber insulation, delivering uniform axial temperature distribution within ±2 °C across the 150 mm effective hot zone. The furnace operates up to 1100 °C (not 1200 °C; rated maximum is 1100 °C per technical specification), with thermal stability maintained at ±1 °C under steady-state conditions—a performance benchmark aligned with ASTM E220 and ISO/IEC 17025 calibration traceability requirements for laboratory thermal equipment.
Key Features
- Compact form factor (L × W × H ≈ 420 × 220 × 280 mm) enables integration into fume hoods, gloveboxes, or custom gas-handling rigs without spatial compromise.
- Modular mechanical design: furnace tube assembly and temperature controller are physically separable, supporting both horizontal and vertical orientation for process-specific configurations—e.g., vertical placement for CVD precursor delivery or horizontal alignment for gas-phase reaction kinetics studies.
- 30-stage programmable temperature controller with fuzzy logic PID algorithm and auto-tuning capability ensures precise ramp rate control (0.1–10 °C/min), dwell time accuracy (±1 s), and seamless transition between heating, soaking, and cooling segments.
- Integrated safety architecture includes dual independent over-temperature cutoff (hardware limit switch + software threshold), real-time thermocouple continuity monitoring, and audible/visual fault indication upon sensor failure or power anomaly.
- Standard quartz tube (OD 30 mm, length 600 mm) accommodates sample boats up to 20 mm in height; optional quartz end caps and gas inlet/outlet ports support custom manifold integration.
Sample Compatibility & Compliance
The BTF-1200C-MS is compatible with ceramic crucibles (alumina, quartz), graphite boats, and metal substrates (stainless steel, molybdenum) suitable for temperatures ≤1100 °C. It supports sample masses up to 5 g for uniform thermal response. All wetted components—including the stainless steel CF-40 vacuum flange, Viton O-rings (standard), and optional Kalrez seals—meet USP Class VI biocompatibility requirements for pharmaceutical R&D use. The system complies with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity to electrostatic discharge and fast transients). When operated with validated procedures, it supports GLP documentation workflows and satisfies audit requirements for ISO 17025-accredited testing laboratories.
Software & Data Management
The furnace controller features RS485 Modbus RTU communication interface for integration with LabVIEW, MATLAB, or custom SCADA systems. Optional PC software (BEQ-ThermoControl v3.2) provides real-time temperature logging (1 Hz sampling), profile validation reports (CSV/PDF export), and electronic signature-capable audit trails compliant with FDA 21 CFR Part 11 Annex 11 principles. All program parameters—including segment setpoints, ramp rates, soak durations, and alarm thresholds—are stored in non-volatile memory with write-protection options to prevent accidental modification during routine operation.
Applications
- Low-volume thermal annealing of 2D materials (graphene, MoS₂) under Ar/H₂ atmospheres.
- Pre-sintering of ceramic nanopowders prior to HIP or SPS densification.
- In situ gas-phase reduction of metal oxide precursors for catalyst synthesis.
- Calibration reference source for thermocouple verification protocols (per ASTM E230).
- Controlled pyrolysis of polymer-derived ceramics in nitrogen or argon environments.
- Gas-sensing material conditioning (e.g., SnO₂, WO₃) with integrated mass flow controllers.
FAQ
What is the maximum continuous operating temperature of the BTF-1200C-MS?
The furnace is rated for continuous operation up to 1100 °C. Operation above this temperature voids warranty and risks quartz tube deformation or heater degradation.
Can the quartz tube be replaced with an alumina tube for higher temperature use?
No—alumina tubes are incompatible with the standard flange geometry and thermal expansion profile. Alumina variants require custom engineering and are not supported under standard configuration.
Is the system compatible with reactive gases such as NH₃ or Cl₂?
Yes, when equipped with appropriate corrosion-resistant seals (e.g., Kalrez) and stainless steel gas lines. Consult BEQ’s chemical compatibility guide before introducing aggressive gases.
Does the controller support data export for regulatory submission?
Yes—CSV-formatted time-stamped logs include temperature, setpoint, power output, and alarm status, meeting ALCOA+ data integrity criteria for GMP-regulated environments.
What maintenance intervals are recommended for long-term reliability?
Inspect quartz tube for devitrification every 200 operational hours; verify thermocouple calibration annually or after 50 thermal cycles exceeding 900 °C.
