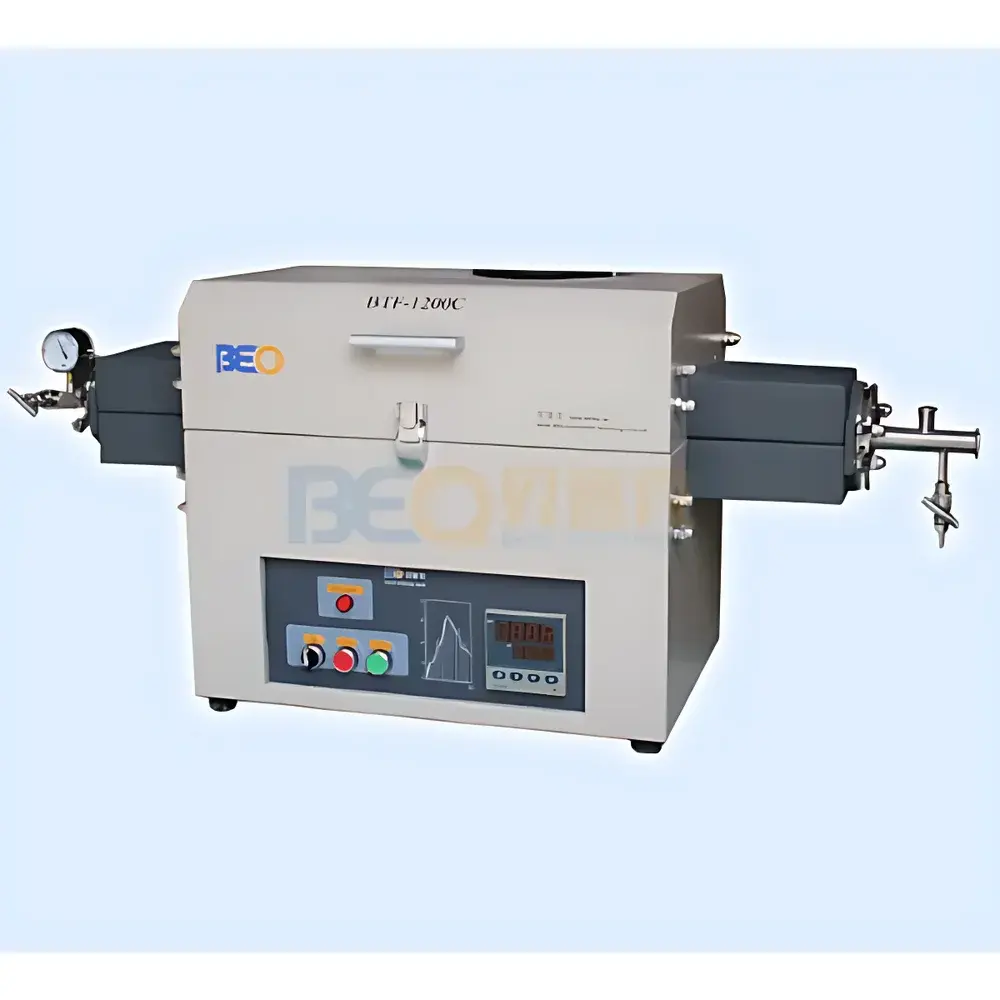

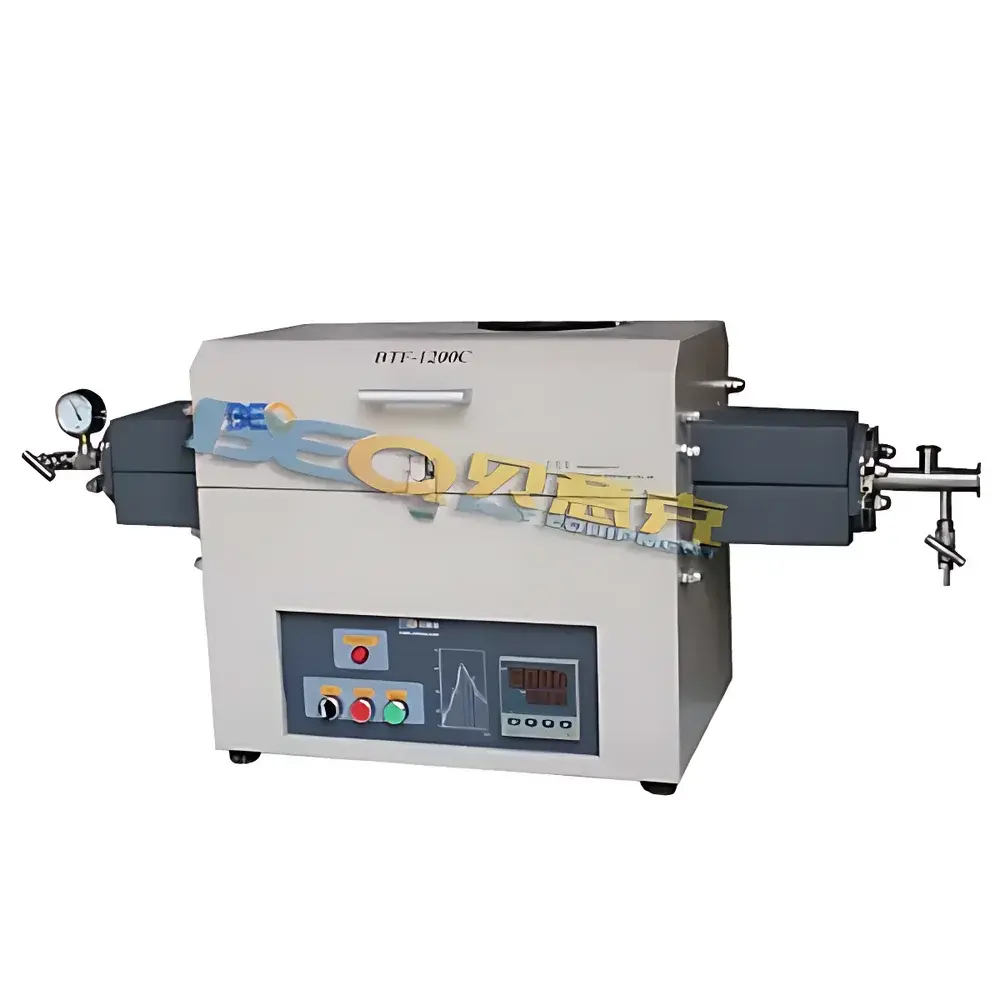

BEQ BTF-1200C-PV Positive-Pressure Vacuum & Atmosphere Tube Furnace

Overview

The BEQ BTF-1200C-PV is a high-performance horizontal tube furnace engineered for precise thermal processing under controlled positive-pressure, vacuum, or reactive/inert gas atmospheres. Unlike standard muffle furnaces, this system integrates robust pressure containment architecture with dual-mode environmental control—enabling reproducible synthesis, annealing, sintering, and heat treatment of advanced materials where ambient composition and mechanical stress must be tightly regulated. Its core operating principle relies on resistive heating via high-stability Kanthal A1 alloy wire elements, uniformly distributed along the furnace chamber’s length to ensure axial temperature homogeneity within ±3 °C over a 200 mm hot zone. The furnace is rated for continuous operation up to 1200 °C and certified for safe operation under static positive pressures up to 1.5 MPa (15 kgf/cm²), making it suitable for applications such as high-pressure CVD precursor decomposition, metal hydride formation, and oxide reduction under H₂/N₂ mixtures.

Key Features

• Positive-pressure capability up to 1.5 MPa, verified by ASME BPVC Section VIII Div. 1 design principles and factory hydrostatic testing.
• Vacuum compatibility down to 10⁻³ mbar using optional two-stage rotary vane pump; integrated vacuum gauge port and KF25 flange interface.
• Explosion-resistant fused quartz tube (custom-synthesized with elevated SiO₂ purity and reduced alkali content), externally reinforced with stainless steel protective sleeve for mechanical integrity during pressurization.
• Adjustable spring-loaded pressure relief valve mounted on exhaust flange—calibrated to activate at user-defined setpoints, ensuring passive overpressure protection without electronic dependency.
• Horizontal split-type (top-opening) structure enables rapid tube access and simplified sample loading/unloading, minimizing thermal shock to the heating zone during routine operation.
• Fuzzy PID controller with auto-tuning functionality ensures stable setpoint tracking across wide load variations; supports 30-segment programmable ramp/soak profiles with dwell time, rate, and target temperature parameters stored in non-volatile memory.
• Dual safety interlocks: hardware-based over-temperature cutoff (independent of main controller) and thermocouple break detection with audible/visual alarm and automatic power shutdown.

Sample Compatibility & Compliance

The BTF-1200C-PV accommodates cylindrical samples and crucibles up to 90% of selected tube inner diameter (e.g., 45 mm ID for 50 mm OD tube). Compatible with ceramic, graphite, quartz, and high-purity alumina boats; inert gas purging protocols support oxygen-sensitive processes (e.g., Li-ion cathode material calcination per ASTM D7348). The furnace meets general laboratory equipment safety requirements per IEC 61010-1:2010 and incorporates grounding continuity, double-insulated wiring, and IP20-rated enclosure. While not inherently GLP/GMP-certified, its programmable profile logging, alarm event timestamping, and manual calibration certificate support audit-ready documentation when integrated into validated workflows compliant with ISO/IEC 17025 or FDA 21 CFR Part 11 (with optional data acquisition module).

Software & Data Management

The embedded controller provides local parameter configuration via 4.3-inch TFT touchscreen with multilingual UI (English default). All 30-step programs, real-time temperature/pressure traces, and alarm logs are exportable via USB 2.0 to CSV format. Optional RS485 Modbus RTU interface enables integration into SCADA or LabVIEW environments for centralized monitoring. Firmware supports firmware update via USB stick and retains all user settings after power loss. No cloud connectivity or proprietary software installation is required—data integrity is maintained through cyclic redundancy check (CRC) validation on all stored profiles.

Applications

• Synthesis of functional nanomaterials (e.g., MoS₂, g-C₃N₄) under controlled H₂/Ar mixtures at elevated pressure to enhance crystallinity and phase purity.
• Thermal reduction of metal oxides (e.g., NiO → Ni, Co₃O₄ → Co) in sealed quartz ampoules with internal pressure buildup.
• Graphitization of carbon precursors under N₂ flow at 1100–1200 °C with dynamic pressure regulation to suppress volatilization.
• Pre-sintering of solid-state electrolyte pellets (e.g., LLZO, LATP) under dry O₂ to minimize lithium loss while maintaining stoichiometric control.
• Calibration and aging tests of high-temperature sensors and thermocouples under repeatable thermal-mechanical stress conditions.

FAQ

What pressure ranges can the furnace safely operate in vacuum mode?
The system achieves base vacuum ≤10⁻³ mbar with standard pumping; ultimate vacuum depends on pump selection and system leak integrity.
Is the quartz tube replaceable, and what is its typical service life under 1200 °C cycling?
Yes—the tube is field-replaceable; expected lifetime exceeds 150 cycles at 1200 °C with proper cooldown protocol (≤5 °C/min below 800 °C).
Can the furnace be configured for automated gas mixing (e.g., 5% H₂ in Ar)?
Yes—via external mass flow controllers connected to inlet ports; the furnace includes dual gas inlets with VCR fittings and pressure-rated stainless tubing.
Does the controller support remote start/stop via digital I/O signals?
Yes—dry-contact terminals are provided for external PLC integration, including RUN/STOP, ALARM RESET, and READY status outputs.
What calibration documentation is supplied with shipment?
Each unit ships with a traceable temperature calibration report (NIST-traceable Type S thermocouple), pressure relief valve test certificate, and electrical safety compliance statement.
