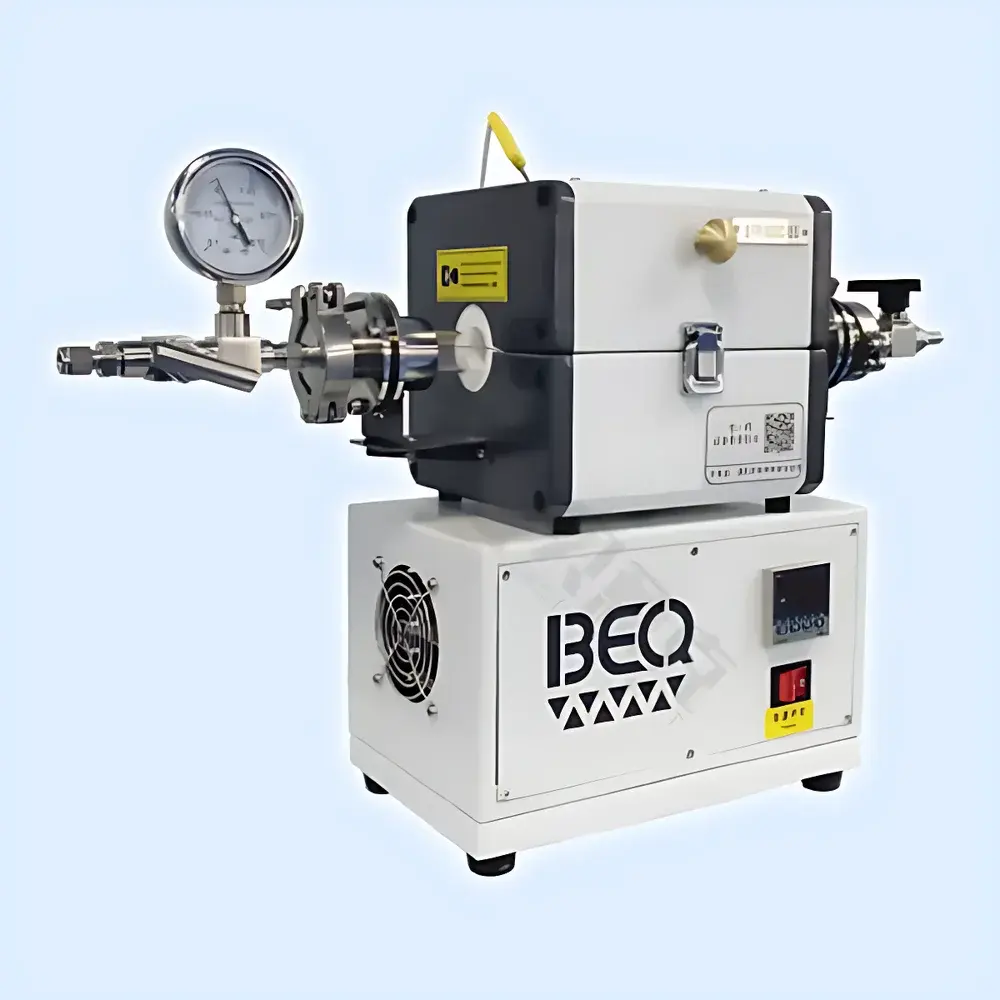

BEQ BTF-900C-SS Mini Tube Furnace

Overview

The BEQ BTF-900C-SS Mini Tube Furnace is a compact, high-precision resistive-heating furnace engineered for controlled thermal processing in research laboratories and small-scale development environments. Designed around the fundamental principle of axial conductive and radiative heat transfer within a sealed quartz tube, it enables reproducible heat treatment, annealing, sintering, and atmosphere-controlled reactions at temperatures up to 900 °C. Its modular architecture—featuring a physically separated heating chamber and control unit connected via quick-release aviation connectors—minimizes thermal coupling to electronics, enhances operational safety, and supports rapid reconfiguration for multi-step experiments. The furnace’s hot zone is uniformly insulated with high-purity alumina fiber (Al₂O₃ ≥ 99.5%), ensuring low thermal mass, fast thermal response, and minimal energy loss during ramp-hold-cool cycles.

Key Features

• Compact footprint (approx. 280 × 180 × 260 mm) optimized for benchtop integration in fume hoods or glovebox interfaces;
• High-purity fused quartz tube (OD 30 mm, ID 25 mm, length 400 mm) rated for vacuum down to 10⁻² mbar and compatible with inert (N₂, Ar), reducing (H₂/N₂), or oxidizing (air, O₂) atmospheres;
• Fuzzy PID temperature controller with auto-tuning capability ensures stable setpoint maintenance (±1 °C) across the full 50–900 °C operating range;
• 30-segment programmable ramp-soak profile support enables complex thermal protocols—including multi-stage annealing, controlled cooling, and dwell-based crystallization studies;
• Dual-safety architecture: independent over-temperature cutoff (hardware-based limit switch) and thermocouple break detection prevent uncontrolled thermal runaway;
• Low thermal inertia design achieves 10 °C/min average heating rate from ambient to 900 °C, facilitating time-resolved kinetic studies;
• Front-panel LED display with intuitive navigation and real-time parameter monitoring (setpoint, actual temperature, segment progress, alarm status).

Sample Compatibility & Compliance

The BTF-900C-SS accommodates standard cylindrical samples up to 20 mm in diameter and 80 mm in length, making it suitable for catalyst pellets, thin-film substrates, powder compacts, and nanowire precursors. Its quartz tube configuration complies with ASTM E1113 (Standard Practice for Calibration of Laboratory Furnaces) when used with traceable Type K thermocouples. While not certified for GMP manufacturing, its programmable logic, alarm logging, and repeatable thermal profiles align with GLP documentation requirements for academic and preclinical material synthesis. The device meets IEC 61010-1:2010 safety standards for laboratory electrical equipment and incorporates double-insulated wiring and grounded chassis construction.

Software & Data Management

Although the base model operates via standalone front-panel control, optional RS485 communication (Modbus RTU protocol) enables integration with LabVIEW, MATLAB, or custom SCADA systems for remote operation and automated data acquisition. Temperature logs—including timestamped setpoint, measured value, and alarm events—are stored internally for up to 72 hours and exportable via USB-to-serial adapter. When paired with compliant third-party software, the system supports 21 CFR Part 11–aligned audit trails (user login, parameter changes, run history) for regulated R&D workflows. Firmware updates are performed via UART interface using manufacturer-provided utilities.

Applications

• Controlled-atmosphere annealing of transition metal dichalcogenides (TMDs) and perovskite thin films;
• Thermal decomposition studies of metal-organic frameworks (MOFs) under nitrogen purge;
• Low-power sintering of ceramic nanopowders and battery electrode composites;
• Inert-gas pyrolysis of polymer-derived ceramics;
• Calibration reference source for thermocouple verification (within 50–800 °C range);
• Small-batch carbonization of biomass precursors under argon flow;
• Pre-treatment of catalytic supports prior to metal loading in heterogeneous catalysis research.

FAQ

What vacuum level is compatible with the standard quartz tube?
The included high-purity quartz tube is rated for continuous operation at pressures down to 1 × 10⁻² mbar; for deeper vacuum, optional stainless-steel end flanges with Viton or Kalrez seals are available.
Can the furnace be operated vertically or only horizontally?
It is designed exclusively for horizontal orientation to ensure uniform gas flow and thermal gradient stability; vertical use may compromise insulation integrity and thermocouple positioning accuracy.
Is the temperature controller NIST-traceable?
The unit ships with a factory-calibrated Type K thermocouple; users must perform periodic verification using a NIST-traceable reference thermometer per ISO/IEC 17025 guidelines.
What maintenance is required for long-term reliability?
Annual inspection of heating element continuity, quartz tube surface integrity, and connector oxidation is recommended; alumina fiber insulation requires no routine replacement under normal operating conditions.
Does the furnace support custom tube lengths or diameters?
Yes—BEQ offers OEM quartz tube configurations (ID 15–50 mm, length 300–600 mm) with matching flange kits; lead time and pricing vary by specification.
