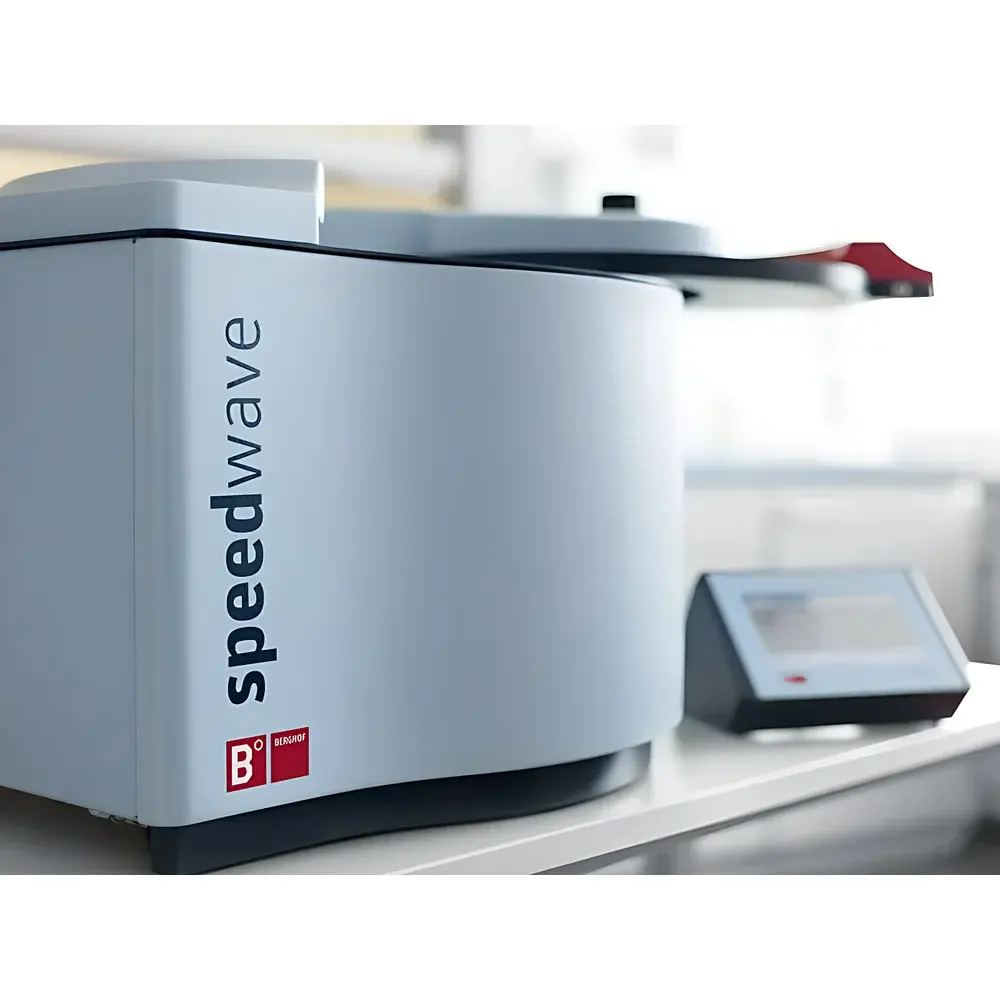

Berghof Speedwave Xpert Microwave Digestion System
| Brand | Berghof |
|---|---|
| Origin | Germany |
| Model | SW-Xpert |
| Cavity Class | Industrial-Grade |
| Sample Capacity | 32 vessels |
| Microwave Source | Dual Magnetron |
| Max Temperature | 300 °C |
| Max Pressure | 1450 psi |
| Output Power | 2000 W |
| Compliance | FDA 21 CFR Part 11, ISO/IEC 17025-compatible workflows, GLP/GMP-ready audit trail |
Overview
The Berghof Speedwave Xpert Microwave Digestion System is an industrial-grade, high-throughput sample preparation platform engineered for complete, reproducible acid digestion of challenging matrices prior to elemental analysis by ICP-OES, ICP-MS, AAS, and electrochemical techniques. Based on controlled microwave-assisted thermal decomposition in sealed quartz or high-performance polymer vessels, the system delivers rapid, uniform energy coupling via dual magnetron irradiation—enabling precise regulation of temperature and pressure profiles across all 32 reaction positions simultaneously. Designed and manufactured in Germany, the SW-Xpert adheres to stringent CE, IEC 61000-6-3, and IEC 61000-6-4 electromagnetic compatibility standards, and integrates hardware-level safety interlocks aligned with DIN EN 61000-1-2 and IEC 61010-1 for laboratory-grade operational integrity.
Key Features
- Industrial-class stainless-steel cavity with proprietary anti-corrosion ceramic coating, ensuring long-term resistance to aggressive reagents (e.g., HF, HNO₃/HCl mixtures) and uniform microwave field distribution.
- Dual 1000 W magnetron system operating at 2450 MHz, delivering up to 2000 W total output power for accelerated ramping and sustained high-temperature/pressure conditions (up to 300 °C / 1450 psi).
- Top-loading, rotary-lid architecture with motorized lid actuation and triple-redundant electronic safety interlocks—mechanically preventing operation unless all vessels are correctly seated and the lid fully engaged.
- Non-contact real-time monitoring: IR pyrometry measures external vessel surface temperature per position; high-sensitivity piezoresistive pressure transducers record internal pressure without reference vessels or vented caps.
- Monolithic digestion vessels fabricated via precision injection molding (PTFE–PFA–quartz composite options), featuring seamless construction, zero dead volume, and tool-free sealing/unsealing mechanisms.
- High-resolution 10.1″ capacitive touchscreen interface with intuitive workflow navigation, multi-language support, and optional remote access via secure HTTPS-enabled mobile web client (iOS/Android compatible).
- Built-in method library with >120 validated protocols for environmental soils, geological samples, polymers, biological tissues, pharmaceutical excipients, and food matrices—fully editable and version-controlled.
Sample Compatibility & Compliance
The SW-Xpert accommodates standard and custom vessel configurations ranging from 15 mL to 100 mL, supporting closed-vessel digestion under inert or oxidizing atmospheres. It is routinely deployed in accredited laboratories performing EPA Method 3050B, 3051A, 3052; ISO 11885; ASTM D5683; USP ; and CLP Regulation (EC) No 1272/2008-compliant workflows. All data acquisition, user authentication, electronic signatures, and audit trail generation conform to FDA 21 CFR Part 11 requirements—including role-based access control, immutable event logging, and automatic timestamping synchronized to NTP servers.
Software & Data Management
Control software (Speedwave Control Suite v5.2+) runs on embedded Linux OS and supports CSV, PDF, and XML export with embedded metadata (operator ID, method name, calibration history, environmental sensor logs). Raw temperature/pressure time-series data are stored with 100 ms resolution and retained for ≥10 years via configurable network-attached storage (NAS) integration. The system supports LIMS connectivity through ASTM E1384-compliant HL7 and OPC UA interfaces, enabling automated result forwarding to QA/QC dashboards and regulatory reporting modules.
Applications
The SW-Xpert is optimized for trace-element quantification in complex, refractory, or heterogeneous materials—including silicate minerals, carbon-rich sediments, catalysts, battery cathode powders, plant-based nutraceuticals, and metal-plated electronic components. Its high-pressure capability enables complete dissolution of zirconium dioxide, chromium oxide, and tungsten carbide—materials commonly resistant to conventional hotplate digestion. In environmental labs, it achieves sub-ng/g detection limits for As, Cd, Pb, and Hg in certified reference materials (e.g., NIST SRM 2711a, BCR-701) when coupled with quadrupole ICP-MS instrumentation.
FAQ
Does the SW-Xpert support unattended overnight operation?
Yes—equipped with automatic cooldown sequencing, pressure-relief validation, and thermal runaway detection, the system meets DIN EN 61010-1 Category III safety certification for extended无人值守 operation.
Can digestion vessels be cleaned in an ultrasonic bath?
All PTFE/PFA vessels are ultrasonically cleanable; quartz vessels require manual rinsing with high-purity water followed by drying in class-100 laminar flow hoods.
Is method transfer possible between older Speedwave models and the SW-Xpert?
Legacy Speedwave 4 and Xplorer methods can be imported and auto-converted; however, pressure ramp profiles must be re-validated due to enhanced thermal inertia and dual-source power delivery.
What maintenance intervals are recommended?
Magnetron output calibration and cavity waveguide inspection are scheduled every 12 months or after 2000 operating hours; door seal integrity testing is performed quarterly per ISO/IEC 17025 Annex A.3 guidelines.
