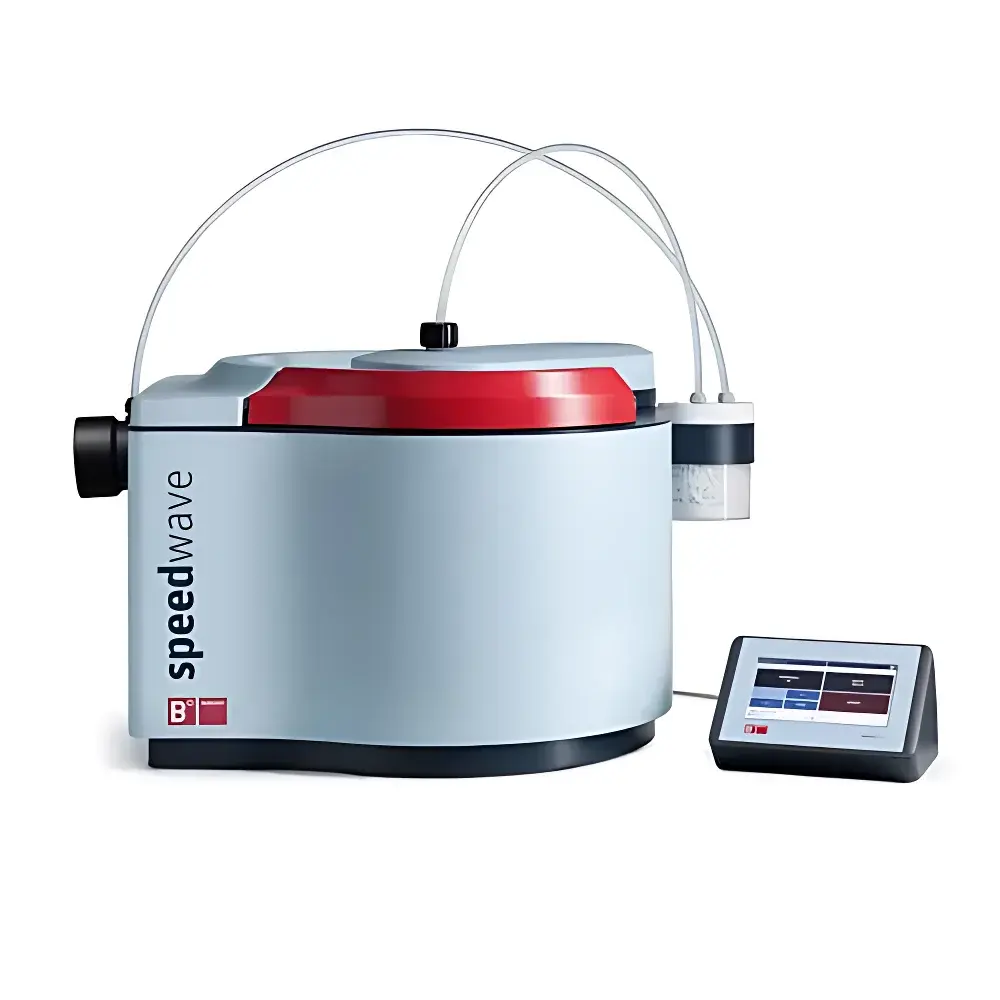

Berghof Speedwave Xpert Microwave Digestion System
| Brand | Berghof |
|---|---|
| Origin | Germany |
| Model | Speedwave Xpert |
| Cavity Class | Industrial-Grade |
| Sample Capacity | 32 vessels |
| Microwave Source | Dual Magnetron |
| Max Temperature | 300 °C |
| Max Pressure | 1450 psi |
| Output Power | 2000 W |
| Compliance | FDA 21 CFR Part 11 |
Overview
The Berghof Speedwave Xpert Microwave Digestion System is an industrial-grade, high-throughput sample preparation platform engineered for complete, reproducible acid digestion of challenging matrices prior to elemental analysis by ICP-OES, ICP-MS, AAS, and electrochemical techniques. Based on over five decades of microwave technology development in analytical sample preparation, the Speedwave Xpert employs controlled, closed-vessel microwave heating under inert atmosphere conditions to achieve rapid, uniform thermal energy transfer via dielectric loss mechanisms. Its dual-magnetron architecture delivers 2000 W nominal output power, enabling robust temperature ramping (up to 300 °C) and pressure control (up to 1450 psi) required for refractory materials—including silicates, alloys, polymers, biological tissues, and geological samples—without compromising vessel integrity or analytical accuracy.
Key Features
- Industrial-strength stainless-steel cavity with proprietary anti-corrosion coating, ensuring long-term microwave field homogeneity and resistance to aggressive reagents (e.g., HF, HNO₃/HCl mixtures)
- Top-loading, rotary-lid design with multi-point electronic interlock system compliant with IEC 61000-4-3 and EN 61000-6-3 electromagnetic compatibility standards
- Non-contact real-time monitoring of both internal vessel temperature and pressure per individual reaction vessel—no reference vial required—using fiber-optic temperature sensors and piezoresistive pressure transducers
- Integrated surface-temperature sensing across all 32 positions to detect localized thermal anomalies and prevent runaway reactions
- Monolithic, seamless digestion vessels fabricated via precision die-casting from PTFE-TFM™/PFA composites; chemically inert, low-background, and compatible with trace-metal cleanroom protocols (Class 1000 or better)
- High-resolution color touchscreen interface with intuitive workflow navigation and remote operation capability via secure HTTPS-based web client accessible from smartphones or tablets
- Pre-validated method library supporting >120 standardized digestion protocols aligned with ASTM D5686, ISO 11885, USP <231>, and EPA Methods 3050B, 3051A, and 3052
Sample Compatibility & Compliance
The Speedwave Xpert accommodates a wide range of solid and semi-solid samples—from environmental soils and sediments to pharmaceutical excipients, foodstuffs, catalysts, and high-performance ceramics. Vessel configurations support volumes of 15 mL, 30 mL, and 55 mL, allowing optimization of acid-to-sample ratio and headspace management. All digestion protocols are fully traceable and auditable in accordance with GLP and GMP requirements. The system implements full 21 CFR Part 11 compliance, including electronic signatures, role-based user access control, immutable audit trails, and automatic data backup to network-attached storage (NAS) or cloud repositories with TLS 1.2 encryption.
Software & Data Management
Control software (Speedwave Control Suite v4.x) provides automated method execution, dynamic power modulation based on real-time sensor feedback, and adaptive hold-time adjustment to maintain target temperature setpoints within ±1.5 °C. Raw sensor data—including time-resolved temperature, pressure, and microwave power absorption curves—are stored in vendor-neutral CSV and XML formats. Integrated reporting modules generate PDF certificates of digestion completeness, including peak temperature/pressure logs, ramp rates, and deviation alerts. Data export supports LIMS integration via ASTM E1394-compliant interfaces.
Applications
- Environmental laboratories performing heavy metal speciation in contaminated soils per EPA 6020B
- Clinical and forensic labs quantifying toxic elements (As, Cd, Pb, Hg) in whole blood and hair using ICP-MS
- Materials science R&D for trace impurity profiling in battery cathode precursors (Ni-Co-Mn oxides)
- Pharmaceutical QC testing for residual catalyst metals (Pd, Pt, Rh) in active pharmaceutical ingredients (APIs)
- Geochemical analysis of rare earth elements (REEs) in monazite and bastnäsite ores via ICP-OES after HF-assisted dissolution
- Food safety surveillance for aluminum migration from packaging into acidic beverages
FAQ
What safety certifications does the Speedwave Xpert hold?
It complies with CE marking requirements under the EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU, and meets UL 61010-1 third-party certification for laboratory equipment.
Can the system be integrated into an existing LIMS environment?
Yes—via configurable ODBC drivers and RESTful API endpoints supporting JSON payloads for method upload, run status polling, and result ingestion.
Is HF acid digestion supported?
Yes—vessels are rated for continuous use with hydrofluoric acid up to 20% concentration at temperatures ≤230 °C; optional quartz inner liners available for extended HF exposure.
How is method validation documented?
Each digestion run generates a timestamped, digitally signed certificate containing calibration history, sensor drift correction factors, and pass/fail flags against predefined recovery criteria (e.g., CRM spike recoveries between 85–115%).
What maintenance intervals are recommended?
Magnetron performance verification every 1,000 operating hours; cavity coating inspection and sensor recalibration annually or after 500 digestion cycles—whichever occurs first.
