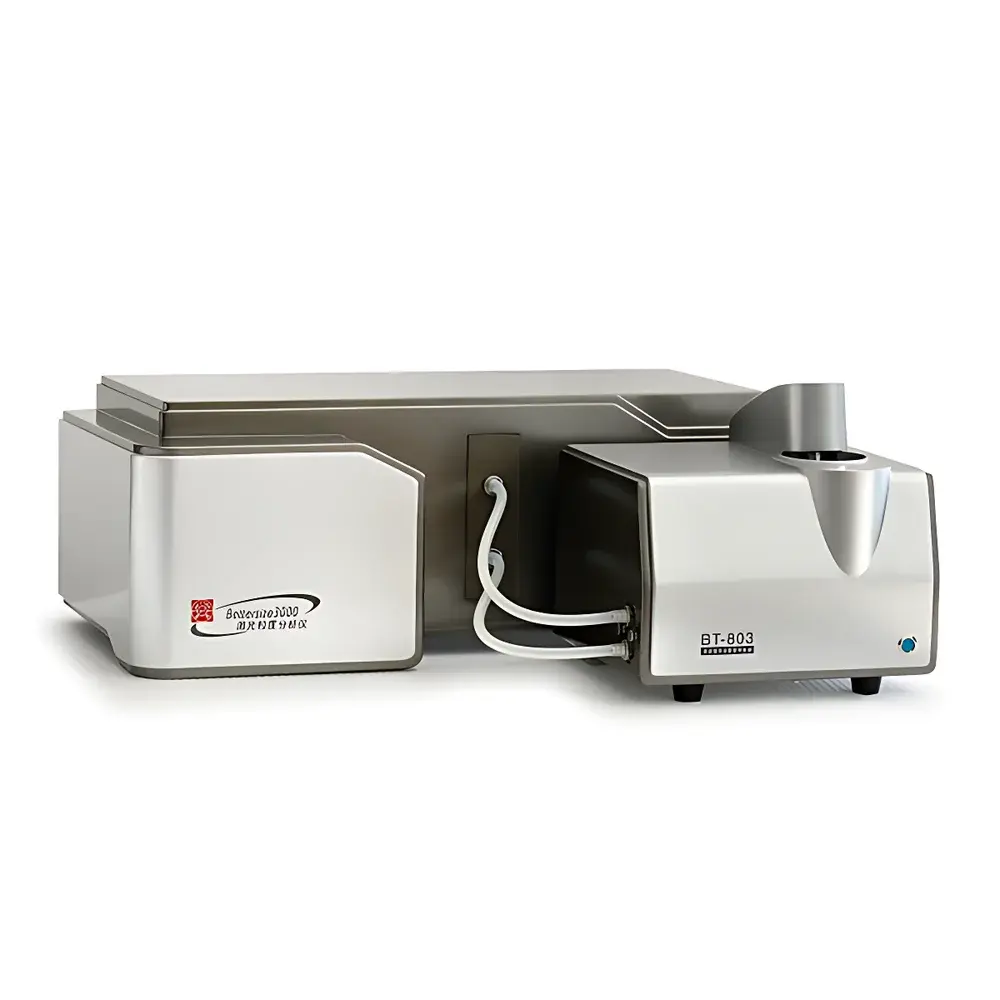

Bettersize3000 Laser Diffraction and Dynamic Image Particle Size and Shape Analyzer

Overview

The Bettersize3000 Laser Diffraction and Dynamic Image Particle Size and Shape Analyzer is a dual-modal laboratory instrument engineered for high-precision, traceable particle characterization across an exceptionally broad size range—from 0.01 µm to 3500 µm. It integrates two physically independent measurement systems into a single platform: a patented dual-lens oblique-incidence laser diffraction optical system and a synchronized high-speed dynamic imaging module. The laser system operates on Mie scattering theory (with optional Fraunhofer approximation), enabling rigorous size distribution analysis grounded in first-principles optical modeling. Its oblique-incidence architecture—featuring a high-power, short-wavelength polarized fiber-coupled solid-state laser and a 96-channel full-angle photodetector array—achieves continuous angular coverage without beam splitting or multi-wavelength compromises. This eliminates interpolation artifacts common in segmented multi-beam systems and ensures consistent refractive index handling across the entire size spectrum. Critically, the integrated dynamic imaging subsystem captures real-time flow images of coarse particles (>50 µm) at up to 100 fps, enabling direct D₁₀₀ determination—a capability not attainable with conventional laser diffraction alone. The system is designed for regulatory-compliant environments, supporting audit trails, electronic signatures, and data integrity frameworks aligned with FDA 21 CFR Part 11 and GLP/GMP workflows.

Key Features

• Patented Oblique-Incidence Dual-Lens Optics: Eliminates blind angles and signal discontinuities by capturing forward, side, and backward scattered light in a single beam path—enabling accurate sub-100 nm and super-millimeter particle sizing without calibration transfer errors.
• In-Situ Refractive Index Measurement: Uses proprietary dual-wavelength attenuation analysis to determine both real and imaginary components of unknown sample refractive index—essential for accurate Mie-based modeling of absorbing or composite materials (e.g., carbon-coated cathode powders, metal oxides).
• D₁₀₀-Capable Dynamic Imaging Module: A dedicated coaxial imaging channel with adjustable magnification and automated focus tracks particles in laminar flow, delivering statistically robust maximum particle detection validated per ISO 13322-2:2022.
• Intelligent Wet Dispersion System: Includes dry-run protected ultrasonic dispersion (0–50 W, continuously adjustable), self-priming centrifugal circulation pump, auto-fill/auto-drain valves, bubble elimination protocol, and programmable cleaning cycles—all controlled via SOP-driven workflow engine.
• Multi-Mode Operational Flexibility: Supports five distinct acquisition modes: SOP-triggered batch testing, manual parameter tuning, BT-A60 auto-sampler integration, concurrent laser + image acquisition, and standalone dynamic imaging—each preserving full metadata traceability.
• Regulatory-Ready Data Architecture: Built-in audit trail with immutable timestamps, user-level access control, electronic signature support, and export formats compliant with USP , EP 2.9.38, and ChP 0982 requirements.

Sample Compatibility & Compliance

The Bettersize3000 accommodates aqueous and organic dispersions—including water, ethanol, isopropanol, and xylene—via interchangeable fluidic modules. Its dispersion system handles high-density suspensions (up to 60% w/v), shear-sensitive biopolymers, and electrostatically stabilized nanosuspensions without aggregation bias. All optical and mechanical components meet IP54 environmental rating standards. Regulatory alignment includes full conformance with ISO 13320:2020 (laser diffraction), ISO 13322-2:2022 (image analysis), GB/T 19077–2024 (Chinese national standard for particle sizing), and pharmacopeial methods USP (light diffraction) and EP 2.9.38 (particle size distribution). Software validation documentation supports IQ/OQ/PQ protocols for pharmaceutical and medical device manufacturing facilities operating under GMP Annex 11 and FDA guidance.

Software & Data Management

Operating software is built on a modular, database-backed architecture with role-based permissions and version-controlled method templates. Raw scattering patterns and image sequences are stored losslessly alongside calibrated detector response matrices. Advanced algorithms include non-negative least squares (NNLS) inversion for polydisperse systems, edge-detection–enhanced particle segmentation, and convex hull–based shape factor calculation (aspect ratio, circularity, convexity, solidity). Reports generate PDF/CSV/XLSX outputs with embedded metadata (operator ID, timestamp, instrument serial number, calibration certificate ID), and support configurable pass/fail thresholds against reference standards (e.g., NIST SRM 1963, ERM-FD102). Data export complies with ASTM E2500-22 for analytical instrument qualification.

Applications

The Bettersize3000 serves as a primary characterization tool in R&D, QC, and release testing across multiple regulated and industrial sectors. In battery materials development, it quantifies D₁₀₀ of LiCoO₂ and graphite anodes while resolving multimodal distributions from milling and classification processes. For pharmaceutical excipients (e.g., microcrystalline cellulose, lactose), it verifies compliance with USP limits and detects agglomerate breakage during wet granulation. In catalyst manufacturing, its refractive index measurement capability enables accurate sizing of Pt/C or Ni/Al₂O₃ composites where optical contrast is low. Additional validated use cases include cement fineness control (ASTM C114), ceramic slurry stability assessment, nanoparticle toxicology studies (OECD TG 125), and pigment dispersion quality in coatings (ISO 8130-1).

FAQ

Does the Bettersize3000 require external refractive index input for accurate results?
No. Its integrated refractive index measurement function determines both real and imaginary components directly from transmission and scattering intensity profiles—eliminating reliance on literature values or guesswork.

How is D₁₀₀ validated for regulatory submissions?
D₁₀₀ is derived from statistically significant imaging datasets (≥10,000 particles per run) using ISO 13322-2:2022–compliant detection algorithms, with uncertainty quantified via bootstrap resampling and reported with 95% confidence intervals.

Can the instrument be qualified for 21 CFR Part 11 compliance?
Yes. Full validation packages—including IQ/OQ/PQ protocols, electronic signature configuration guides, and audit trail verification procedures—are provided with each system.

What maintenance is required for long-term accuracy?
Annual optical alignment verification and detector responsivity recalibration using NIST-traceable standards are recommended; all procedures are documented in the GMP-aligned service manual.

Is SOP automation compatible with LIMS integration?
Yes. The software supports ASTM E1578-compliant instrument driver interfaces and provides RESTful API endpoints for bidirectional LIMS communication (sample ID push, result pull, status polling).
