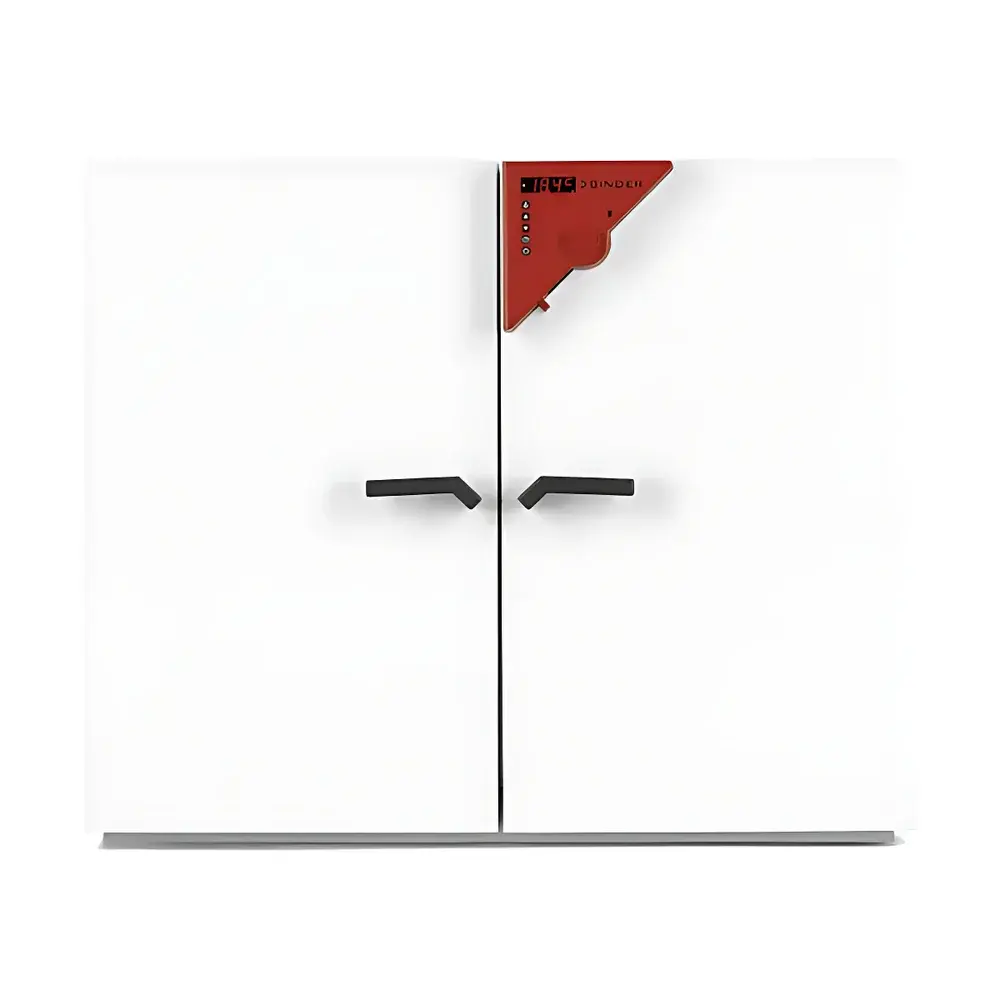

BINDER BF Series Classic.Line Plant Growth Chamber

Overview

The BINDER BF Series Classic.Line Plant Growth Chamber is a precision-engineered, forced-air incubation system designed for reproducible, long-term plant cultivation, photobiological studies, and controlled-environment life science research. Engineered in Germany and compliant with DIN 12880 Class 3.1 safety standards, the BF chamber employs ACT.line™ preheating cavity technology—where incoming air is conditioned prior to entering the working chamber—to ensure exceptional thermal uniformity (±0.4 K at 37 °C) and minimal fluctuation (±0.1 K at 37 °C). Its robust stainless-steel construction, ESG (toughened safety glass) inner door, and dual independent temperature safety circuits provide fail-safe operation during extended unattended runs. With a usable internal volume of 400 L and structural capacity for up to 9 shelves (standard configuration: 2 chrome-plated adjustable shelves), the BF series supports high-density experimental setups without compromising environmental stability—even under full load or after standardized 30-second door openings (recovery time: ≤5 min at 37 °C).

Key Features

• ACT.line™ preheating chamber technology ensures precise, homogeneous airflow distribution and eliminates cold spots across the entire working volume
• Adjustable fan speed allows optimization of air velocity for sensitive specimens—minimizing desiccation while maintaining uniformity
• Time-programmable controller with RS 422 interface enables integration into centralized lab automation systems and supports audit-ready data logging
• ESG safety glass inner door maintains stable internal conditions during observation and reduces thermal loss during routine access
• Dual independent temperature safety devices (DIN 12880 Class 3.1) with optical high-temperature alarm provide redundant overtemperature protection
• Configurable exhaust valve with adjustable opening degree facilitates CO₂ or humidity balance control in multi-parameter growth protocols
• Temperature range spans ambient +5 °C to 100 °C, supporting both standard incubation and validated dry-heat decontamination cycles (e.g., 100 °C for 30 min)

Sample Compatibility & Compliance

The BF Classic.Line chamber accommodates diverse biological samples—including seedlings, tissue cultures, algae suspensions, and small-scale hydroponic arrays—across standardized ISO 14644-1 Class 8 cleanroom-compatible environments. Its sealed, corrosion-resistant interior (electropolished stainless steel) resists microbial adhesion and supports routine cleaning with ethanol, hydrogen peroxide vapor (HPV), or validated sporicidal agents. The system meets essential regulatory benchmarks for GLP-compliant plant phenotyping workflows: temperature uniformity and recovery performance are traceable to PTB (Physikalisch-Technische Bundesanstalt) calibration protocols; controller firmware supports electronic signature-capable operation under FDA 21 CFR Part 11 when paired with compliant LIMS or ELN platforms. All electrical components comply with IEC 61010-1 and CE marking requirements.

Software & Data Management

While the BF Classic.Line operates via an intuitive, menu-driven front-panel controller, its RS 422 serial interface enables bidirectional communication with third-party laboratory information management systems (LIMS) or custom SCADA environments. Users may configure multi-step temperature profiles, setpoint ramping rates, and alarm thresholds remotely. Audit trails—including parameter changes, door-opening events, and safety-trigger activations—are timestamped and stored internally for ≥30 days. When integrated with BINDER’s optional ecoLINK software (sold separately), real-time monitoring, automated report generation (PDF/CSV), and remote diagnostics become available—facilitating 21 CFR Part 11 compliance through user authentication, role-based access control, and immutable electronic records.

Applications

• Controlled-environment plant phenotyping under defined photoperiods (when combined with external LED lighting systems)
• Seed germination assays requiring strict thermal consistency across replicate batches
• Long-term stress response studies (e.g., heat shock, drought simulation via controlled humidity coupling)
• Microbial culture maintenance where temperature stability outweighs rapid cycling demands
• Pre-conditioning of growth media and agar plates prior to inoculation
• Validation of sterilization efficacy using 100 °C dry-heat cycles per ISO 14937

FAQ

Does the BF chamber support humidity control?
No—the BF Classic.Line is a temperature-controlled, non-humidified incubator. For combined temp/humidity applications, consider BINDER’s KBW or C150 series.
Can additional shelves be installed post-purchase?
Yes—up to seven optional shelves (part no. 10-000-123) may be added; all shelves are independently height-adjustable and rated for 35 kg each.
Is the RS 422 interface compatible with modern USB or Ethernet networks?
RS 422 requires a protocol converter (e.g., BINDER’s USB-RS422 adapter or third-party industrial gateways) for connection to USB/Ethernet infrastructure.
What validation documentation is supplied with the unit?
Each BF chamber ships with a factory calibration certificate (traceable to national standards), DIN 12880 conformity statement, and EU Declaration of Conformity (DoC). IQ/OQ protocols are available upon request.
How often does the temperature safety device require recalibration?
Per DIN 12880, annual verification by an accredited service provider is recommended; BINDER offers certified on-site recalibration services globally.
