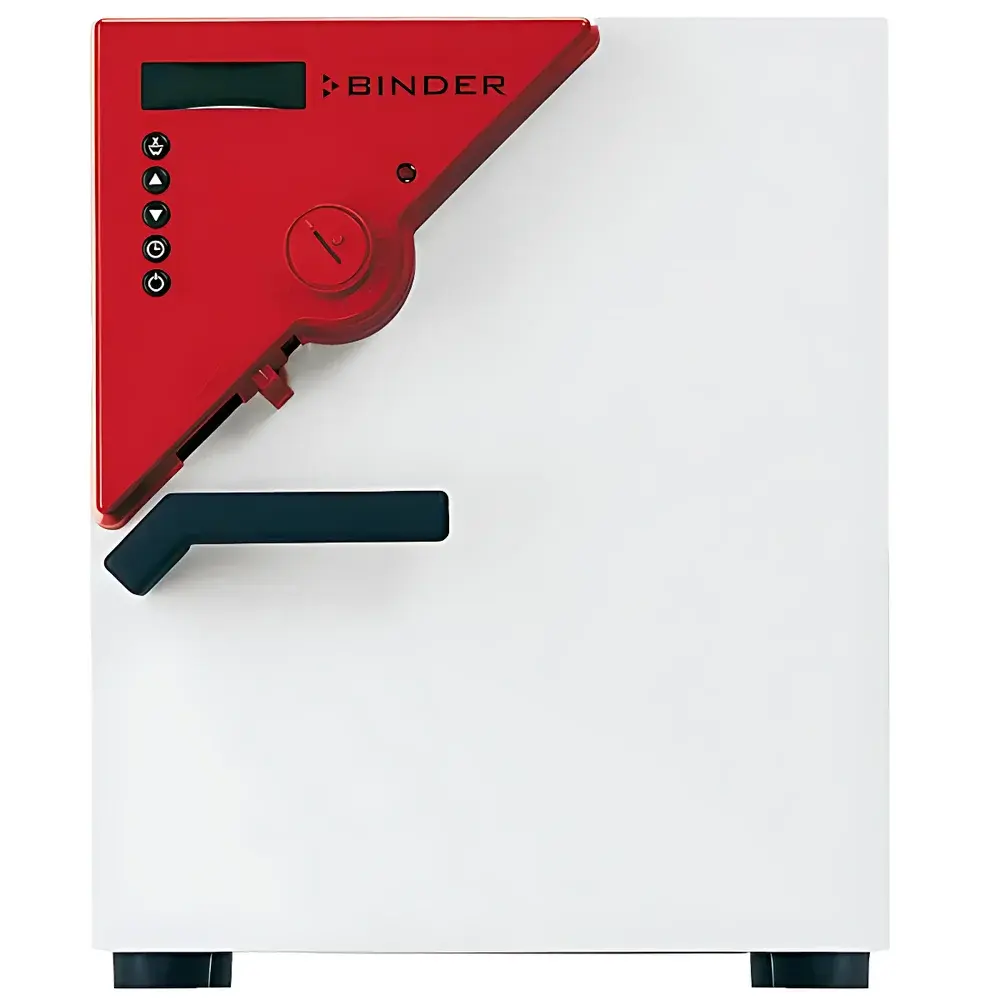

Binder FD Series Forced Convection Oven with Circulating Air Function

Overview

The Binder FD Series Forced Convection Oven is a precision-engineered laboratory oven designed for thermally stable, reproducible heat treatment of samples in research, quality control, and routine testing environments. Unlike natural convection ovens, the FD series employs a robust forced-air circulation system—driven by a rear-mounted fan and optimized airflow ducting—to ensure uniform temperature distribution across the entire working chamber (±0.5 °C at 100 °C, per DIN 12880). Its core thermal architecture integrates Binder’s proprietary PAT.line™ preheating chamber technology, which isolates and preconditions incoming air before introduction into the workspace, minimizing thermal lag and enhancing ramp stability during dynamic temperature programs. This design is particularly critical for applications demanding strict thermal consistency—such as moisture loss determination, polymer curing validation, residual solvent evaporation, and pre-conditioning of test specimens prior to mechanical or combustion analysis. While not a combustion test chamber per se, the FD series is frequently deployed upstream in standardized fire testing workflows (e.g., ISO 5657, ASTM E84 specimen conditioning) to meet mandatory pre-test thermal equilibration requirements.

Key Features

• Forced-air convection system with rear-mounted centrifugal fan and baffle-guided airflow for high homogeneity (≤ ±0.5 °C deviation at setpoint, validated per DIN 12880)
• PAT.line™ preheating chamber ensures rapid, stable temperature ramping and reduced overshoot during program transitions
• Dual-stage independent temperature safety circuit (DIN 12880 Class 2), featuring optical alarm activation upon exceeding user-defined upper limits
• Time-programmable digital controller with intuitive interface, supporting multi-step heating profiles and hold functions
• Manually adjustable exhaust valve for controlled vapor removal and pressure equilibrium during volatile sample processing
• Robust stainless-steel interior chamber with rounded corners for easy cleaning and corrosion resistance
• Two removable, height-adjustable chrome-plated wire shelves included as standard; shelf positions configurable without tools

Sample Compatibility & Compliance

The FD series accommodates a broad range of non-hazardous solid and granular samples—including plastics, textiles, composites, pharmaceutical excipients, and ceramic precursors—within its 20 L internal volume. Chamber geometry and airflow dynamics have been validated to support uniform thermal exposure of stacked or nested specimens up to 250 mm in height. The oven complies with EN 61000-6-3 (EMC), EN 61000-6-2 (immunity), and meets essential requirements of the EU Machinery Directive 2006/42/EC. For regulated environments, optional factory calibration certificates (traceable to DKD/DAkkS standards) and IQ/OQ documentation packages are available to support GLP, ISO/IEC 17025, and FDA 21 CFR Part 11–aligned validation protocols. It is not rated for flammable atmospheres (ATEX/IECEx) or explosive vapors; use with volatile organics requires external fume extraction.

Software & Data Management

The FD series operates via an embedded microprocessor-based controller with local parameter input and real-time display of setpoint, actual temperature, elapsed time, and remaining program duration. While it does not include built-in Ethernet or USB data logging, analog output (0–10 V) and relay contact signals are provided for integration into centralized lab monitoring systems (e.g., SCADA, LIMS). Optional accessories include the Binder CTV software suite (via RS485 interface) for remote configuration, profile upload/download, and time-stamped temperature logging with CSV export—enabling audit-ready records compliant with ALCOA+ data integrity principles. All event logs (alarms, safety trips, door openings) are timestamped and retained in non-volatile memory for post-run review.

Applications

• Pre-conditioning of specimens prior to horizontal/vertical flame spread tests (e.g., UL 94, ISO 60693, GB/T 2408)
• Drying and stabilization of reference materials used in calorimetric or thermogravimetric combustion analysis
• Thermal aging studies of polymeric insulating materials per IEC 60216
• Moisture content determination in accordance with ISO 15512 and ASTM D229
• Curing verification of powder coatings and adhesives under controlled ramp-and-soak cycles
• Stabilization of filter media and sorbent substrates used in smoke density chamber testing (ISO 5659-2)

FAQ

Is the FD series certified for use in GMP-regulated laboratories?
Yes—when equipped with optional validation documentation (IQ/OQ), traceable calibration certificates, and audit-trail-capable CTV software, the FD oven supports compliance with EU GMP Annex 15 and FDA guidance on equipment qualification.
Can the exhaust valve be automated or linked to a pressure sensor?
No—the exhaust valve is manually adjustable only; automated pneumatic or motorized variants are not available for the FD platform.
What is the maximum allowable load mass for thermal uniformity compliance?
Binder specifies ≤ 10 kg of evenly distributed, non-insulating load for full compliance with stated temperature homogeneity specifications.
Does the oven support nitrogen purging?
Not natively—the FD series lacks gas inlet/outlet ports; inert atmosphere operation requires third-party retrofitting, which voids warranty and compromises safety certification.
Are replacement shelves and door gaskets available as spare parts?
Yes—Binder maintains a full catalog of OEM spares (part numbers FD-SHELF-CHROME, FD-GASKET-DOOR) with documented shelf life and material compatibility data.
