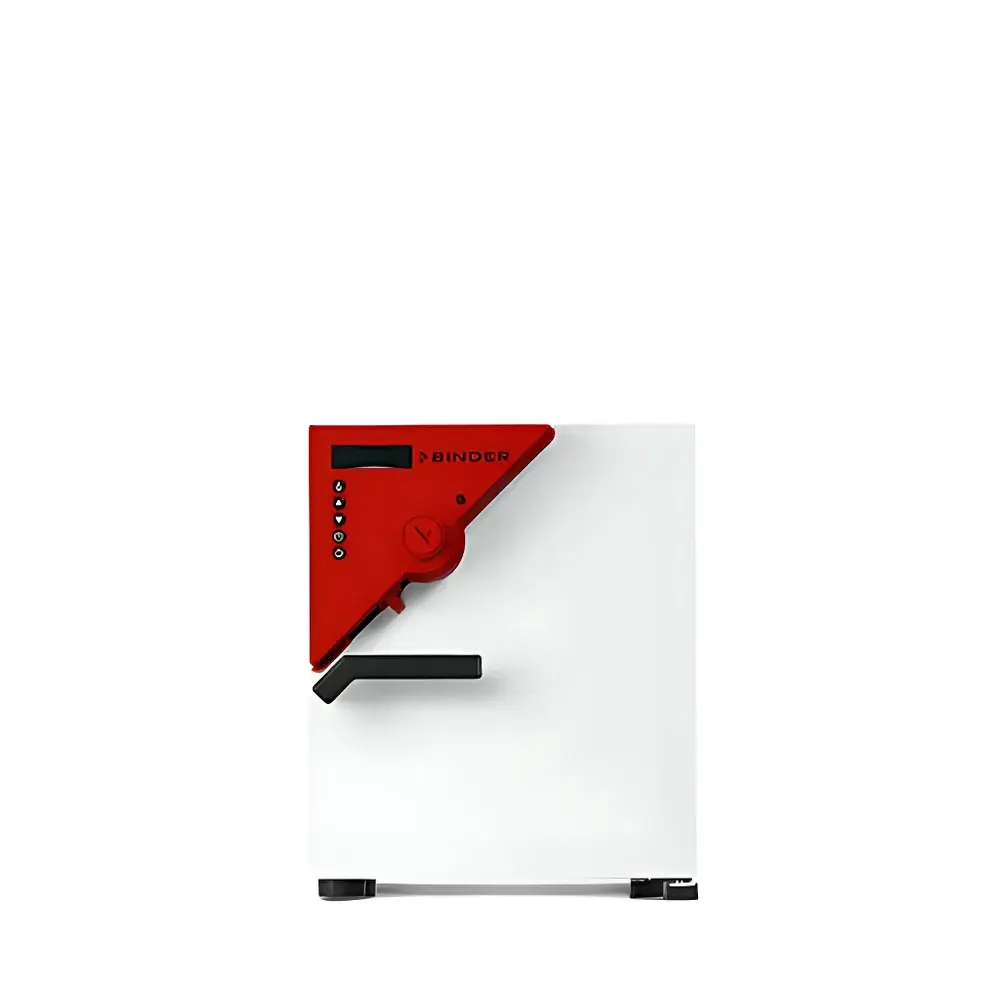

BINDER FD23 Classic.Line Drying Oven

Overview

The BINDER FD23 Classic.Line Drying Oven is a precision-engineered forced-air laboratory oven designed for routine drying, sterilization, and heat treatment applications in quality control, research, and production environments. Built in Germany and compliant with DIN 12880 safety standards, it employs BINDER’s proprietary APT.line™ preheating chamber technology—a thermally isolated air channel surrounding the working chamber—to ensure exceptional temperature uniformity and stability across the entire 20 L internal volume. This architecture eliminates cold spots and minimizes thermal gradients, enabling reproducible results regardless of sample size, load distribution, or shelf configuration. The oven operates within a wide temperature range from ambient +5 °C up to 300 °C, making it suitable for low-temperature desiccation as well as high-temperature ashing preparation and glassware conditioning.

Key Features

• APT.line™ preheating chamber ensures homogeneous temperature distribution (±2.5 K at 150 °C) and rapid thermal recovery (6 minutes after 30-second door opening at 150 °C)
• Forced-air convection system with high-efficiency axial fan and optimized airflow path for consistent heat transfer
• Dual-stage independent temperature safety device (DIN 12880 Class 2) with visual optical alarm—prevents overheating even in case of primary controller failure
• Adjustable exhaust valve with integrated timer function for controlled moisture and volatile removal during drying cycles
• Two standard chrome-plated wire shelves (expandable up to four), each supporting up to 12 kg; total maximum load capacity: 25 kg
• Energy-efficient insulation design reduces standby power consumption and contributes to lower operational costs over extended use
• Robust stainless steel interior and powder-coated steel exterior for long-term corrosion resistance and ease of cleaning

Sample Compatibility & Compliance

The FD23 accommodates a broad spectrum of sample types—including Petri dishes, weighing boats, glassware, metal parts, polymer films, and pharmaceutical excipients—without compromising thermal integrity. Its 20 L chamber allows flexible arrangement of samples on adjustable shelves while maintaining compliance with ISO 17025 requirements for equipment qualification. The oven meets key regulatory expectations for laboratory thermal equipment: its dual safety system satisfies DIN 12880, its construction adheres to IEC 61010-1 for electrical safety, and its stable thermal performance supports GLP-compliant documentation workflows. While not inherently 21 CFR Part 11–enabled, the FD23 can be integrated into validated processes when paired with external data loggers meeting audit-trail and electronic signature requirements.

Software & Data Management

The FD23 features an intuitive analog-digital hybrid controller with time-programmable functions—including delayed start, hold phases, and automatic shut-off—enabling unattended operation for overnight drying or timed sterilization protocols. Though it does not include built-in Ethernet or USB connectivity, its controller provides real-time display of setpoint, actual temperature, elapsed time, and remaining time. For laboratories requiring electronic recordkeeping, the oven is compatible with third-party temperature validation systems (e.g., Ellab, Miraclon) using PT100 probe inputs. Calibration certificates traceable to national standards (e.g., DAkkS) are available upon request to support IQ/OQ/PQ documentation packages.

Applications

• Routine moisture content determination (e.g., ASTM D2231, ISO 4611) in polymers, textiles, and food matrices
• Glassware and instrument drying prior to aseptic processing or analytical weighing
• Pre-sterilization of non-critical labware and packaging components
• Thermal conditioning of reference materials and calibration standards
• Accelerated aging studies under controlled dry-heat conditions (e.g., ICH Q1A stability testing)
• Residue drying in gravimetric analysis and ash content preparation (AOAC 920.153)

FAQ

What is the purpose of the APT.line™ preheating chamber?
The APT.line™ is a thermally insulated air jacket surrounding the main chamber that preheats incoming air before it enters the workspace—ensuring minimal temperature deviation and eliminating stratification.
Can the FD23 be used for sterilization?
It is suitable for dry-heat sterilization of heat-stable items (e.g., metal instruments, glassware) at ≥160 °C for ≥2 hours per ISO 15883-1, but does not replace steam autoclaves for biological load reduction.
Is the oven compatible with external data logging systems?
Yes—via optional PT100 sensor ports, enabling integration with validated thermal mapping and continuous monitoring platforms.
What maintenance is required for long-term reliability?
Routine cleaning of the chamber and fan intake grille; annual verification of temperature uniformity and safety cutoff functionality by qualified service personnel.
Does the FD23 support GMP or FDA-regulated environments?
While the unit itself lacks embedded electronic signatures or audit trails, its mechanical robustness, traceable calibration options, and compliance with DIN/IEC standards make it appropriate for use in GMP-aligned labs when supported by procedural controls and periodic requalification.
