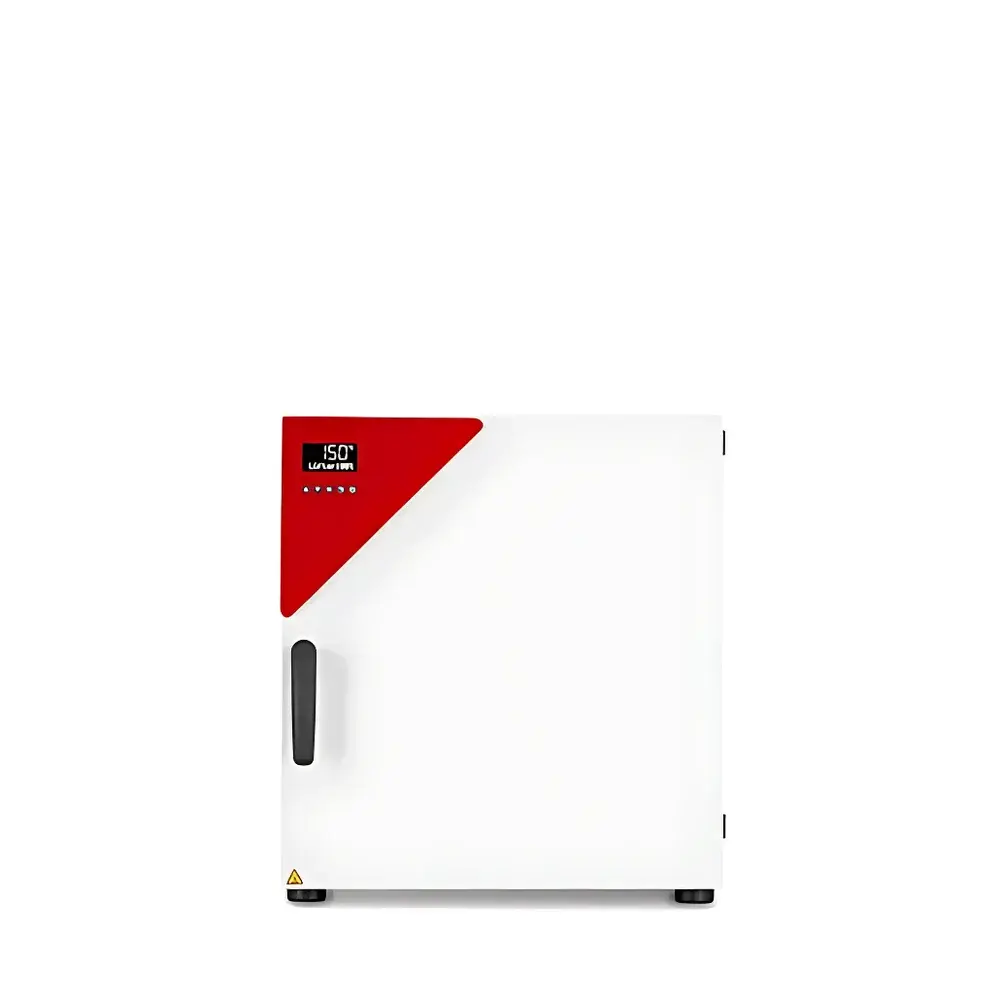

BINDER FED Series Avantgarde.Line Precision Drying Oven

Overview

The BINDER FED Series Avantgarde.Line Precision Drying Ovens represent a benchmark in laboratory-grade thermal processing equipment engineered for reproducible, energy-efficient, and GxP-compliant drying, curing, sterilization, and conditioning applications. Built in Germany to stringent DIN EN ISO 9001 manufacturing standards, each FED model—FED56, FED115, FED260, and FED720—integrates BINDER’s proprietary APT.line™ preheating chamber technology. This architecture isolates the heating elements from the working chamber via an insulated air jacket, enabling precise thermal decoupling and minimizing temperature overshoot during ramp-up or load changes. The result is superior spatial and temporal temperature uniformity across the entire usable volume—even under dynamic loading conditions—meeting critical requirements for ISO/IEC 17025-accredited laboratories and pharmaceutical process validation (e.g., USP , ASTM E2876). Operating from ambient +10 °C up to 300 °C, these ovens are validated for long-term stability in regulated environments where traceable thermal performance, audit-ready data integrity, and mechanical robustness are non-negotiable.

Key Features

• APT.line™ preheating chamber technology ensures high-precision temperature control and exceptional uniformity (±0.3 K to ±2.0 K at 150 °C), verified per DIN 12880 and VDI/VDE 2655 Part 2
• Adjustable forced-air circulation with multi-stage fan speed control optimizes heat transfer for heterogeneous sample loads while minimizing convective disturbance of delicate specimens
• Dual independent temperature safety system (DIN 12880 Class 2) with optical alarm provides hardware-level redundancy, eliminating single-point failure risk in continuous operation
• LCD controller with advanced timer functions supports complex multi-step programs—including hold, ramp, and cooling phases—with real-time deviation logging
• Ergonomic door handles, reinforced double-walled stainless steel construction, and stackable design support modular lab integration and ergonomic workflow compliance
• Integrated Ethernet and USB 2.0 interfaces enable direct connection to LIMS or ELN systems; raw temperature/time data export supports 21 CFR Part 11-compliant electronic records when paired with validated software

Sample Compatibility & Compliance

The FED Series accommodates a broad spectrum of sample formats—from Petri dishes and glassware to metal trays, polymer components, and coated substrates—across all four internal volumes (60 L to 741 L). Internal chambers feature electropolished stainless steel (1.4301) construction with seamless welds and radiused corners, facilitating cleaning validation and resistance to aggressive solvents or acidic vapors. Each unit complies with CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), DIN 12880 for laboratory ovens, and IEC 61000-6-3 for industrial emission limits. Optional accessories—including inert gas purging kits, external exhaust adapters, and calibrated PT100 probe ports—support applications requiring oxygen-sensitive drying or volatile organic compound (VOC) management in accordance with ISO 14001 environmental protocols.

Software & Data Management

Data acquisition is supported natively via USB mass storage mode: time-stamped temperature logs (including setpoint, actual value, and deviation) are written directly to FAT32-formatted drives without proprietary drivers. For networked deployment, the integrated Ethernet port enables Modbus TCP communication for integration into centralized building management systems (BMS) or SCADA platforms. When used with BINDER’s optional C.A.R.E. software (validated for Windows 10/11, 64-bit), users achieve full 21 CFR Part 11 compliance—including electronic signatures, audit trails with immutable timestamps, role-based access control, and ALCOA+ data integrity principles. All firmware updates are digitally signed and delivered via secure HTTPS channels to maintain cryptographic integrity.

Applications

These ovens serve as core infrastructure in quality control laboratories (QC/QA), materials science research, pharmaceutical manufacturing (API drying, excipient conditioning), electronics (PCB pre-baking, conformal coating cure), and academic institutions conducting thermal gravimetric analysis (TGA) sample preparation. Specific use cases include moisture content determination per ISO 712, residual solvent removal in lyophilized formulations, catalyst activation, ceramic sintering pre-treatment, and stability testing per ICH Q1A(R2). Their consistent thermal profile and low energy consumption (up to 30% less than conventional ovens per DIN EN 15316-3-1) make them suitable for ISO 50001-certified energy management systems.

FAQ

What is the maximum allowable operating temperature, and how is it maintained under load?
The FED Series operates continuously up to 300 °C. APT.line™ technology maintains setpoint accuracy by thermally isolating heating elements, ensuring stable chamber conditions even with full load (up to 315 kg in the FED720) and repeated door openings.
Does the oven support GLP/GMP-compliant data archiving?
Yes—when configured with C.A.R.E. software and appropriate IT infrastructure, it fulfills FDA 21 CFR Part 11 requirements for electronic records, including audit trails, user authentication, and data encryption.
Can the fan speed be manually adjusted during operation?
Yes—the controller allows real-time adjustment of airflow velocity across multiple discrete stages to optimize drying kinetics for porous, hygroscopic, or thermally sensitive samples.
Is calibration documentation provided with the instrument?
Each unit ships with a factory calibration certificate traceable to national standards (DAkkS-accredited labs available upon request), covering temperature uniformity, deviation, and recovery performance at 150 °C and 300 °C.
What safety certifications apply to the FED Series?
Units comply with DIN 12880 Class 2 dual safety, CE (EMC/LVD), RoHS, and meet UL 61010-1 requirements for laboratory electrical equipment when installed per manufacturer instructions.
