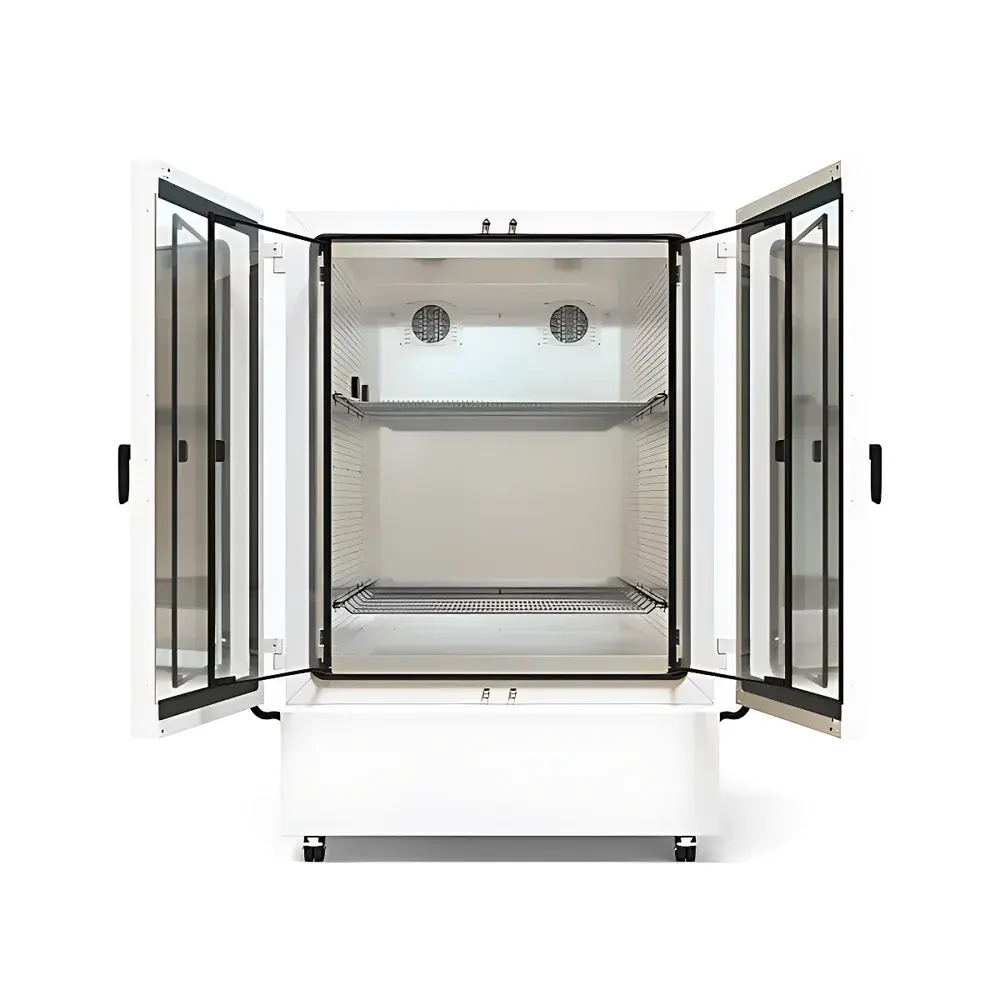

BINDER KBF 1600 Temperature and Humidity Controlled Chamber

Overview

The BINDER KBF 1600 is a high-precision, upright temperature and humidity controlled chamber engineered for long-term stability testing in pharmaceutical, biotechnology, and regulatory-compliant R&D environments. Designed in accordance with ICH Q1A(R3), Q1B, Q5C, and Q5E guidelines, it delivers metrologically traceable climatic conditions across its full operational range—0 °C to +70 °C and 10 % RH to 80 % RH—with exceptional spatial uniformity and temporal stability. Its core architecture integrates the patented APT.line™ preheating chamber technology, which ensures homogeneous thermal distribution even under full load by eliminating cold spots at corners and walls. The chamber employs a water-cooled, variable-speed compressor system using environmentally compliant refrigerant R-600a, achieving up to 40 % lower energy consumption versus prior-generation models without compromising control fidelity or recovery time. Stainless steel interior construction (AISI 304), HIT-insulated double-wall housing, and condensation-preventing heated door technology collectively support uninterrupted operation over multi-month test cycles—critical for ICH accelerated and real-time stability protocols.

Key Features

• APT.line™ preheating chamber technology for superior temperature homogeneity (±0.1 °C) and humidity uniformity (±1.5 % RH) throughout the entire 1.6 m³ workspace
• Water-cooled, inverter-driven refrigeration unit with R-600a refrigerant—optimized for low noise, high efficiency, and reduced environmental impact
• Capacitive humidity sensor coupled with rapid-response steam humidification system for precise RH control and fast stabilization
• Heated inner glass door with metal oxide coating prevents condensation and maintains optical clarity during low-temperature/high-humidity operation
• Touchscreen controller with ergonomic tilt adjustment (model-dependent), segmented real-time programming, and status-indicating red triangle LED
• Dual stainless steel shelves with telescopic rails; large-diameter access port with silicone plug for sensor feedthroughs or cable routing
• Independent temperature safety device (DIN 12880 Class 3.3) featuring optical and acoustic alarm, plus automatic self-diagnostic routines
• Robust base frame with dual swivel casters (front wheels equipped with locking brakes) for stable floor mounting and safe relocation

Sample Compatibility & Compliance

The KBF 1600 accommodates diverse sample configurations—including stacked trays, open petri dishes, sealed vials, and packaged dosage forms—without compromising climatic integrity. Its stainless steel interior (electropolished finish optional), non-outgassing materials, and absence of organic insulation ensure compatibility with GxP-regulated workflows. All operational parameters—including setpoints, deviations, alarms, and system events—are recorded with timestamped audit trails meeting FDA 21 CFR Part 11 requirements when used with APT-COM™ software. The chamber supports IQ/OQ/PQ validation documentation packages and conforms to ISO 17025 traceability frameworks for calibration of integrated sensors. It is routinely deployed in laboratories undergoing MHRA, EMA, and PMDA inspections for stability protocol execution.

Software & Data Management

Data acquisition and remote supervision are enabled via embedded Ethernet and USB interfaces. Internal data logger stores measurement values in open CSV format, accessible directly via USB drive without proprietary software. The included APT-COM™ Basic Edition provides secure, password-protected configuration, real-time monitoring, report generation (PDF/CSV), and export of raw time-series datasets. For advanced compliance needs, APT-COM™ Professional supports electronic signatures, user role management, and 21 CFR Part 11–compliant audit trail archiving. Optional photostability light modules (IEC 60601-2-57 compliant) and plant growth LED arrays integrate seamlessly into the same control logic—enabling hybrid stress-testing protocols within a single validated platform.

Applications

• ICH Q1A(R3) real-time and accelerated stability studies for APIs and finished pharmaceutical products
• Long-term storage condition validation per USP <1151> and Ph. Eur. 2.2.45
• Accelerated degradation testing under elevated temperature/humidity (e.g., 40 °C/75 % RH)
• Excipient compatibility screening and formulation robustness assessment
• Biological sample preservation studies requiring tightly controlled hygrothermal environments
• Material aging tests for medical device packaging (ISO 11607-1) and polymer stability evaluation
• Environmental stress screening of electronic components and sensors (MIL-STD-810G, IEC 60068-2)

FAQ

What ICH guidelines does the KBF 1600 support?

It is fully aligned with ICH Q1A(R3), Q1B (photostability), Q5C (biotechnological product stability), and Q5E (comparability), including required temperature/humidity tolerances, mapping protocols, and documentation standards.
Is the chamber suitable for GMP environments?

Yes—its hardware design, sensor traceability, data integrity features, and APT-COM™ software options meet ALCOA+ principles and support GMP-compliant stability programs.
Can humidity be maintained below 10 % RH?

No—the specified operational humidity range is 10–80 % RH; sub-10 % RH requires desiccant-based or nitrogen-purged systems.
Does the KBF 1600 include factory calibration certificates?

Standard delivery includes a DIN EN ISO/IEC 17025-accredited calibration certificate for temperature and humidity sensors, with optional on-site IQ/OQ services available.
How is water cooling integrated into facility infrastructure?

The unit accepts standard deionized or softened water supply (max. 30 °C inlet, 1.5–3.0 bar pressure); closed-loop chillers or building cooling circuits may be connected via provided quick-coupling fittings.
