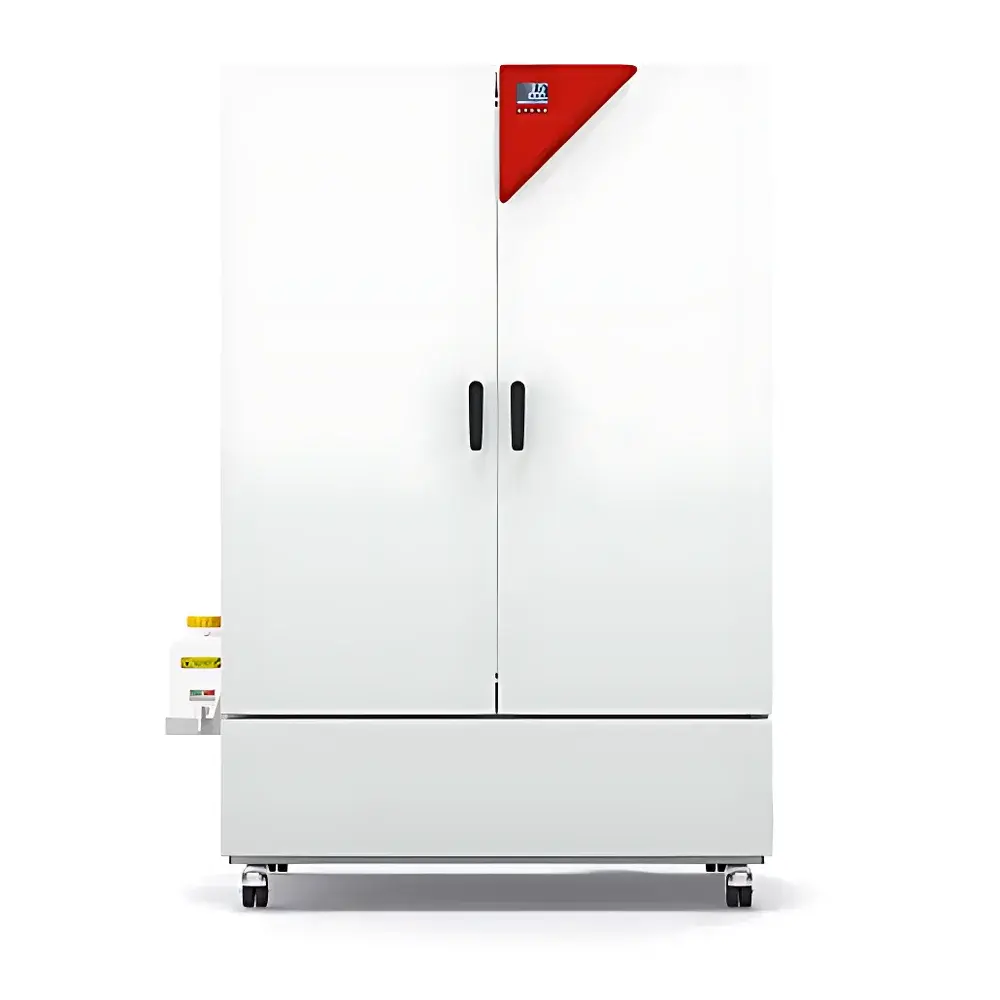

BINDER KBF-S ECO Solid.Line Temperature and Humidity Controlled Incubator (Peltier-Cooled)

Overview

The BINDER KBF-S ECO Solid.Line is a precision-engineered temperature and humidity controlled incubator designed for long-term stability-critical applications in pharmaceutical development, biopharmaceutical storage, stability testing, and life science research laboratories. Unlike conventional compressor-based systems, this model employs solid-state Peltier cooling technology—enabling precise, oil-free, and maintenance-light thermal control without refrigerants. Its operation adheres to the thermodynamic principles of thermoelectric heat transfer, delivering consistent cooling even at sub-ambient temperatures (down to 0 °C, up to 28 K below ambient under specified conditions), while maintaining tight coupling between temperature and relative humidity regulation. The chamber’s stainless steel interior, combined with APT.line™ preheating technology, ensures rapid, uniform thermal equilibration across the entire working volume—critical for ICH Q1A(R3)-compliant accelerated stability studies and real-time shelf-life monitoring.

Key Features

• Peltier-based cooling system: Eliminates compressors, refrigerants, and associated vibration—ideal for sensitive cell cultures and enzymatic assays requiring ultra-low mechanical disturbance.
• APT.line™ preheating technology: Independently heated inner chamber walls prevent condensation and ensure homogeneous temperature distribution (±0.1 K at 25 °C / 60 % RH).
• High-precision climate control: Simultaneous regulation of temperature (0–70 °C) and humidity (10–98 % RH) with fluctuation stability of ±0.1 K and ±0.3 % RH under standard operating conditions.
• Robust safety architecture: Integrated fault-tolerant monitoring of temperature, humidity, door status, and power supply; automatic alarm activation and shutdown on deviation beyond user-defined thresholds.
• Energy-optimized design: Achieves up to 40 % lower energy consumption versus comparable compressor-driven units (e.g., 55 Wh/h at 25 °C / 60 % RH for KBF-S ECO 240), validated per ISO 15378 Annex 2 energy performance benchmarks.
• Compliance-ready interface: Equipped with Ethernet (TCP/IP) and USB ports for seamless integration into laboratory informatics systems; supports audit-trail-capable data export in open CSV format for FDA 21 CFR Part 11 alignment.

Sample Compatibility & Compliance

The KBF-S ECO Solid.Line accommodates a broad range of sample formats—including multi-well plates, flasks, Petri dishes, vials, and stability test packages—across all four internal volume variants (247–1020 L). Its stainless steel construction (DIN 1.4301/AISI 304), seamless welded corners, and smooth internal surfaces meet ISO 14644-1 Class 5 cleanroom compatibility requirements when operated under laminar airflow hoods. All models are validated for compliance with ICH Q1A(R3) guidelines for long-term and accelerated stability testing, including the mandated 40 °C / 75 % RH condition. Humidity control utilizes a dedicated water reservoir with independent heating—ensuring stable vapor generation without cross-contamination risk. The unit satisfies GLP/GMP environmental monitoring prerequisites and supports full traceability via built-in data logger (10,000-point memory, timestamped, user-configurable sampling intervals).

Software & Data Management

Data acquisition and remote supervision are enabled through BINDER’s optional C-Control software suite (v3.2+), compatible with Windows-based laboratory networks. Real-time monitoring of temperature, humidity, door events, and system diagnostics is accessible via web browser or dedicated client. All logged measurements are stored in non-proprietary CSV format, enabling direct import into LIMS, ELN, or statistical analysis platforms (e.g., JMP, Minitab). The embedded Ethernet interface supports SNMP v3 and Modbus TCP protocols for enterprise-level integration. Audit trails record operator login/logout, parameter changes, alarm acknowledgments, and calibration events—all time-stamped and digitally signed per ALCOA+ principles. Firmware updates are performed securely via USB or network push, preserving configuration integrity throughout the update cycle.

Applications

• ICH-compliant stability testing of APIs and finished dosage forms under defined stress conditions (e.g., 25 °C / 60 % RH, 40 °C / 75 % RH).
• Long-term storage of reference standards, biological reagents, and hygroscopic compounds requiring strict RH control.
• Cell culture incubation where low-vibration environments minimize shear stress on adherent monolayers.
• Environmental simulation for material degradation studies (polymers, coatings, packaging components).
• Seed germination, fungal growth, and entomological studies requiring programmable diurnal humidity/temperature cycles.
• Calibration and verification of secondary environmental sensors used in cleanroom monitoring systems.

FAQ

Does the KBF-S ECO Solid.Line support validation documentation (IQ/OQ/PQ)?
Yes—BINDER provides comprehensive validation support packages, including pre-qualified test protocols, factory-as-tested reports, and electronic copies of calibration certificates traceable to DKD/DAkkS-accredited standards.
Can humidity be maintained at 0 °C?
No—minimum operational humidity is 10 % RH, and humidification is disabled below 5 °C to prevent internal condensation and ice formation.
Is the unit suitable for GMP-regulated environments?
Yes—when deployed with C-Control software and configured with audit trail, electronic signature, and backup logging, it meets core requirements of EU Annex 11 and FDA 21 CFR Part 11 for computerized system validation.
What is the maximum load capacity for the 700 L model?
The KBF-S ECO 700 supports up to 150 kg total load, with individual shelves rated for 45 kg each (stainless steel, adjustable height, up to 15 positions).
How is temperature uniformity verified during installation qualification?
BINDER recommends a 9-point sensor mapping protocol (per ISO 14644-3 Annex B) using NIST-traceable Class A PT100 probes, with acceptance criteria of ±0.3 K across all tested points at nominal setpoints.
