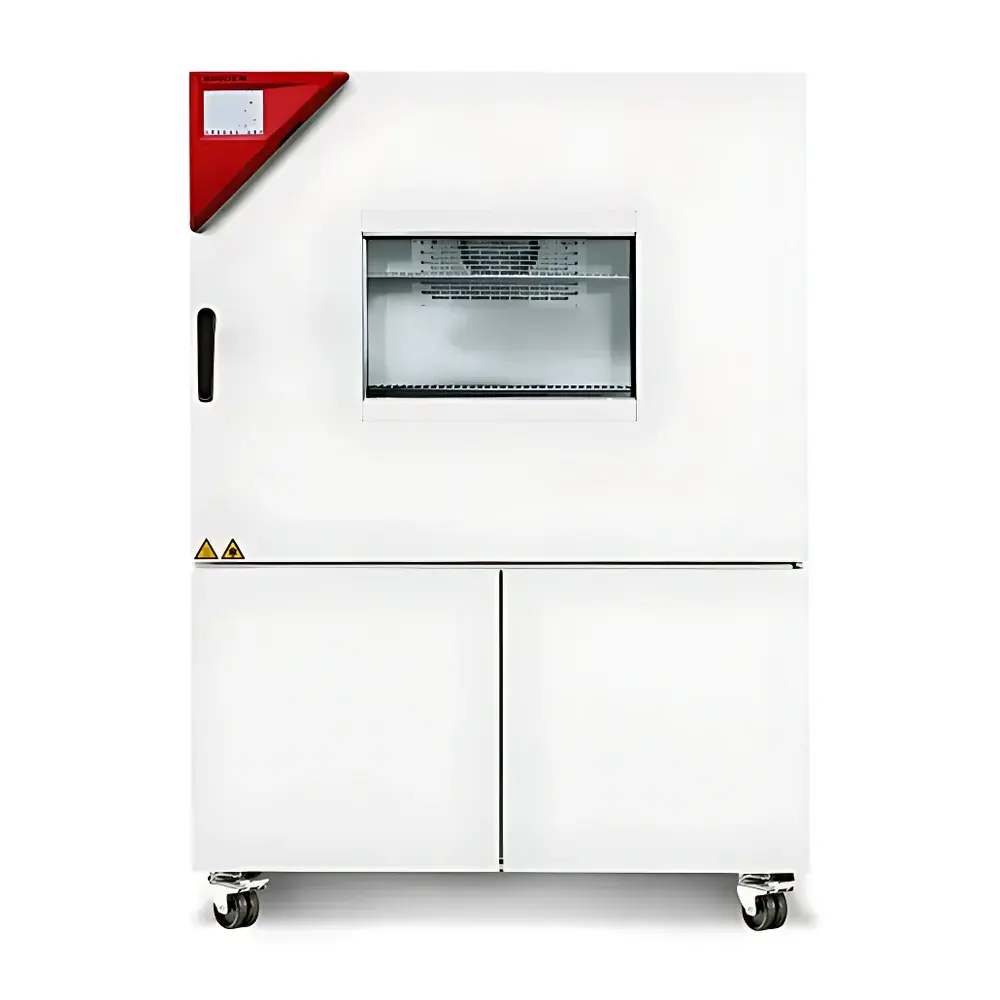

BINDER MKFT Series Climatic Chambers

Overview

The BINDER MKFT Series Climatic Chambers are precision-engineered environmental test systems designed for dynamic temperature and humidity profiling under stringent laboratory and industrial validation conditions. Based on the proven APT.line™ preheating chamber technology, these chambers ensure uniform thermal distribution and eliminate cold spots by actively preheating air before it enters the working compartment—minimizing condensation risk during rapid cooling or high-humidity transitions. The MKFT series operates across an extended climatic range of –70 °C to +180 °C and 10–98 % relative humidity (RH), making them suitable for accelerated aging, thermal shock simulation, material stability testing, and qualification of electronic components, pharmaceutical packaging, adhesives, and composite materials per ISO 16750, ASTM D4332, IEC 60068-2-1/2/14/30, and USP . All models integrate steam-based humidification with capacitive RH sensors for high-resolution, drift-compensated moisture control—critical for reproducible hygrothermal cycling.

Key Features

• APT.line™ preheating chamber architecture ensures ±0.3 °C temperature uniformity (at 25 °C, 50 % RH) and eliminates condensation on samples during ramp-down phases
• Steam humidification system with 20 L integrated water reservoir and automatic refill detection; avoids mineral deposits and supports long-term unattended operation
• MCS touchscreen controller with dual programming modes: real-time (event-triggered) and segment-based (up to 999 steps), including programmable ramp rates, dwell times, and slope functions
• Dual-stage independent temperature safety system (DIN 12880 Class 2) with optical alarm and configurable cut-off thresholds
• Heated, LED-illuminated observation window with anti-fog coating and integrated door heating to maintain visibility during sub-zero or high-RH operation
• Four castors (two braked), rear-mounted 230 V power socket, Ethernet interface (TCP/IP), and USB port for data export in CSV format
• Onboard internal data logger records temperature and humidity at user-defined intervals; logged values remain accessible post-cycle without external software
• Four zero-voltage switch outputs (configurable via MCS) for integration with external monitoring systems, safety interlocks, or auxiliary equipment

Sample Compatibility & Compliance

The MKFT chambers accommodate diverse sample geometries through standardized internal dimensions (e.g., MKFT115: 600 × 480 × 400 mm W×H×D) and robust interior construction (electropolished stainless steel chamber walls, seamless corners). Their design conforms to DIN EN 60068-3-5 (humidity methods), DIN EN 60068-3-6 (temperature change), and IEC 60068-2-30 (damp heat cyclic tests). Optional validation packages support IQ/OQ documentation per GMP Annex 15 and FDA 21 CFR Part 11 requirements—including electronic signature capability, audit trail logging, and user role management when paired with BINDER’s optional validation software suite. The R-452A refrigerant complies with current EU F-Gas Regulation (EU) No 517/2014 and delivers lower global warming potential (GWP) versus legacy R-404A systems.

Software & Data Management

The MCS controller provides native data logging with timestamped temperature/humidity values stored internally for up to 30 days (depending on sampling interval). Data can be exported via USB in industry-standard CSV format for traceability and statistical analysis (e.g., ANOVA, trend charts in Excel or JMP). Optional BINDER Software Suite enables remote monitoring, centralized fleet management, automated report generation (PDF/Excel), and full 21 CFR Part 11 compliance—including electronic signatures, secure user authentication, and immutable audit trails. All firmware updates are delivered via encrypted HTTPS and validated prior to installation to ensure system integrity.

Applications

• Pharmaceutical stability testing (ICH Q1A–Q1E, USP ) under defined temperature/humidity stress conditions
• Automotive component validation per ISO 16750-4 (climate resistance) and GMW3172 (environmental stress screening)
• Electronics reliability assessment: solder joint fatigue, conformal coating performance, PCB delamination under thermal-hygric cycling
• Polymer and adhesive development: cure kinetics, glass transition mapping, moisture diffusion coefficient determination
• Aerospace material qualification per MIL-STD-810G Method 502.6 (temperature shock) and Method 507.6 (humidity)
• Research-grade climate simulation for biomaterials, coatings, and nanocomposites requiring precise RH ramping and condensation control

FAQ

What is the purpose of APT.line™ preheating chamber technology?

APT.line™ actively preheats supply air before introduction into the working chamber, ensuring rapid thermal equilibration and eliminating localized condensation—especially critical during low-temperature/high-RH transitions.
Can the MKFT series perform thermal shock testing?

While not a dedicated thermal shock chamber, the MKFT series supports controlled ramp rates down to 10 K/min (model-dependent) and meets IEC 60068-2-14 requirements for change-over time between extreme conditions.
Is remote monitoring supported out of the box?

Yes—the built-in Ethernet interface enables TCP/IP communication; BINDER’s free LabView drivers and Modbus TCP protocol support allow seamless integration into existing SCADA or LIMS platforms.
How is humidity calibrated and maintained over time?

Capacitive RH sensors are factory-calibrated against NIST-traceable standards; optional periodic recalibration kits and sensor exchange modules ensure long-term metrological traceability per ISO/IEC 17025.
Are validation documents (IQ/OQ) available?

BINDER provides standardized IQ/OQ templates and on-site qualification services; full GMP-compliant validation packages—including risk assessments and deviation handling procedures—are available upon request.
