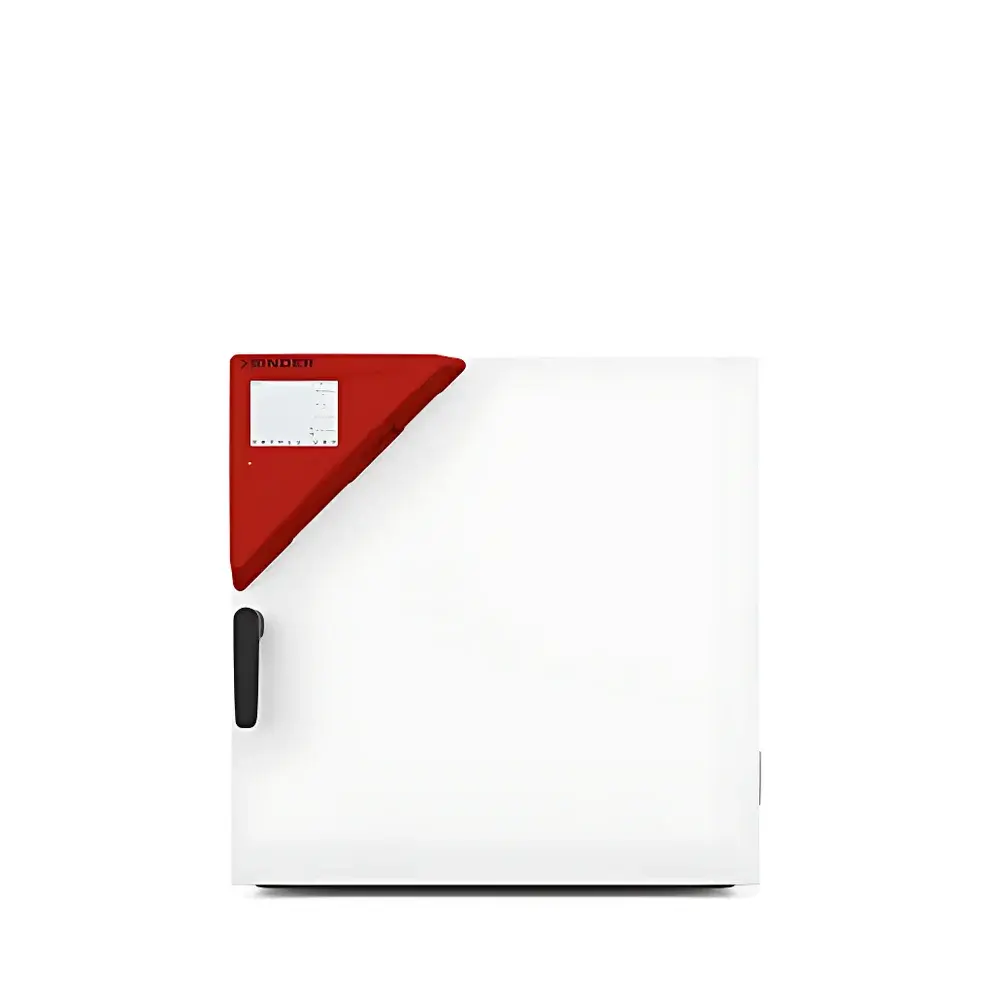

BINDER M Series Classic.Line Drying Oven
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | M53 / M115 / M240 / M400 / M720 |
| Temperature Range | Ambient +5 °C to 300 °C |
| Internal Volume | 53–720 L |
| External Dimensions (W×H×D) | 1235 mm × 1690 mm × 865 mm |
| Internal Dimensions (W×H×D) | 1000 mm × 1200 mm × 610 mm |
| Heating Method | Forced Convection (Hot Air) |
| Temperature Uniformity at 150 °C | ±1.3–1.9 K |
| Temperature Fluctuation at 150 °C | ±0.3 K |
| Heating Time to 150 °C | 15–21 min |
| Recovery Time after 30-sec Door Opening at 150 °C | ≤3 min |
| Max. Load Capacity | 40–120 kg |
| Max. Shelf Load | 15–45 kg |
| Standard Shelves | 2 (adjustable), Max. Shelves: 5–16 |
| Power Rating (230 V) | 1.2–2.7 kW |
| Power Rating (400 V) | 3.45 kW |
| Interface | Ethernet, USB for Data Logger Export |
| Safety | Dual Independent Temperature Safety Devices (DIN 12880 Class 2 & Class 3.1), Redundant Pt100 Sensor |
Overview
The BINDER M Series Classic.Line Drying Oven is a precision-engineered forced-convection laboratory oven designed for reproducible thermal processing across demanding applications in materials science, quality control, and regulatory-compliant stability testing. Operating on the principle of uniform hot-air circulation—enabled by a high-efficiency, speed-adjustable centrifugal fan and BINDER’s proprietary APT.line™ preheating chamber—the M Series ensures exceptional temperature homogeneity throughout the entire working volume. This architecture eliminates thermal stratification and mitigates edge effects caused by sample size, position, or load density—critical for ASTM E145, ISO 17025, and ICH Q1–Q5 accelerated aging protocols. With a maximum operating temperature of 300 °C and validated performance across its five capacity variants (53 L to 720 L), the M Series meets stringent requirements for gravimetric moisture analysis, polymer curing, solvent evaporation, and pre-conditioning of test specimens prior to mechanical or electrical evaluation.
Key Features
- APT.line™ preheating chamber technology for rapid, uniform heat distribution and minimized thermal gradients (±0.3 K fluctuation at 150 °C)
- Speed-regulated high-volume convection system ensuring consistent airflow velocity and laminar thermal exchange
- Dual independent temperature safety circuits: adjustable Class 2 (DIN 12880) and Class 3.1 (DIN 12880) overtemperature protection with visual/audible alarm options
- Redundant Pt100 sensor architecture providing fail-safe monitoring and automatic shutdown upon primary sensor deviation
- Intuitive 7-inch capacitive touchscreen controller supporting both time-segment programming and real-time parameter adjustment
- Robust stainless-steel interior (electropolished finish), double-walled insulated housing, and energy-efficient vacuum-insulated door gasket
- Standard configuration includes two chrome-plated, height-adjustable shelves; up to 16 shelves supported depending on model
- Ethernet interface for remote monitoring, data export, and integration into LIMS or MES environments; USB port enables direct retrieval of internal logger data in CSV format
Sample Compatibility & Compliance
The M Series accommodates diverse sample formats—including Petri dishes, crucibles, glassware, polymer sheets, electronic components, and coated substrates—without compromising thermal fidelity. Its large internal depth (up to 610 mm), vertical clearance (up to 1200 mm), and flat floor design support oversized or stacked configurations common in automotive sealant aging or aerospace composite conditioning. The oven complies with DIN 12880 for laboratory drying equipment, EN 61000-6-3 (EMC), and EN 61000-6-2 (immunity). It supports GLP/GMP workflows through audit-trail-capable data logging (timestamped, user-ID tagged), and its firmware architecture aligns with FDA 21 CFR Part 11 principles when deployed with validated software extensions. Optional validation packages include IQ/OQ documentation and temperature mapping reports per ISO/IEC 17025 Annex A.2.
Software & Data Management
Embedded firmware delivers deterministic real-time control with <100 ms loop response time. All measurement values—including chamber temperature, setpoint, fan speed, elapsed time, and safety status—are continuously logged to non-volatile memory at user-selectable intervals (1 s to 60 min). Data export via USB yields open-format CSV files compatible with Excel, MATLAB, and statistical process control (SPC) platforms. Ethernet connectivity enables HTTP-based status polling, SNMP traps, and secure TLS-encrypted remote access using industry-standard credentials. For enterprise deployment, BINDER’s optional *ecoLINK* software suite provides centralized fleet monitoring, automated report generation, and deviation alerting via email/SMS—fully traceable and compliant with ALCOA+ data integrity principles.
Applications
- Accelerated aging of polymers, adhesives, and packaging materials per ASTM D3045 and ISO 11357
- Moisture content determination (LOI) in pharmaceutical excipients, food powders, and ceramics per USP <1251>
- Curing of epoxy resins, silicone elastomers, and powder coatings under controlled ramp/soak profiles
- Pre-drying of filter media, catalyst supports, and battery electrode slurries prior to SEM or BET analysis
- Stability testing of medical devices under ISO 11607-1 environmental conditioning protocols
- Calibration of humidity sensors and reference hygrometers using saturated salt solutions
- Thermal preconditioning of PCB assemblies prior to solder reflow simulation
FAQ
What is the maximum allowable load mass for the M400 model?
The M400 supports a total load of up to 90 kg, with individual shelves rated for 35 kg each.
Does the M Series support programmable ramp-and-soak cycles?
Yes—the touchscreen controller supports up to 20 segments per program, including linear ramps, dwell times, and multi-step sequences with user-defined hold conditions.
Is the internal data logger compliant with 21 CFR Part 11 requirements?
The built-in logger satisfies core technical criteria (audit trail, electronic signature readiness); full Part 11 compliance requires implementation of BINDER’s validated ecoLINK software and associated procedural controls.
Can the oven be operated in inert atmosphere mode?
No—M Series ovens are not gas-tight and lack purge ports or pressure regulation; for inert applications, consider BINDER’s Binder CO₂ incubators or specialized nitrogen-purged ovens.
What calibration documentation is provided with shipment?
Each unit ships with a factory calibration certificate traceable to DKD/DAkkS standards, covering temperature uniformity and accuracy at three points (ambient +50 °C, 150 °C, and 300 °C).
