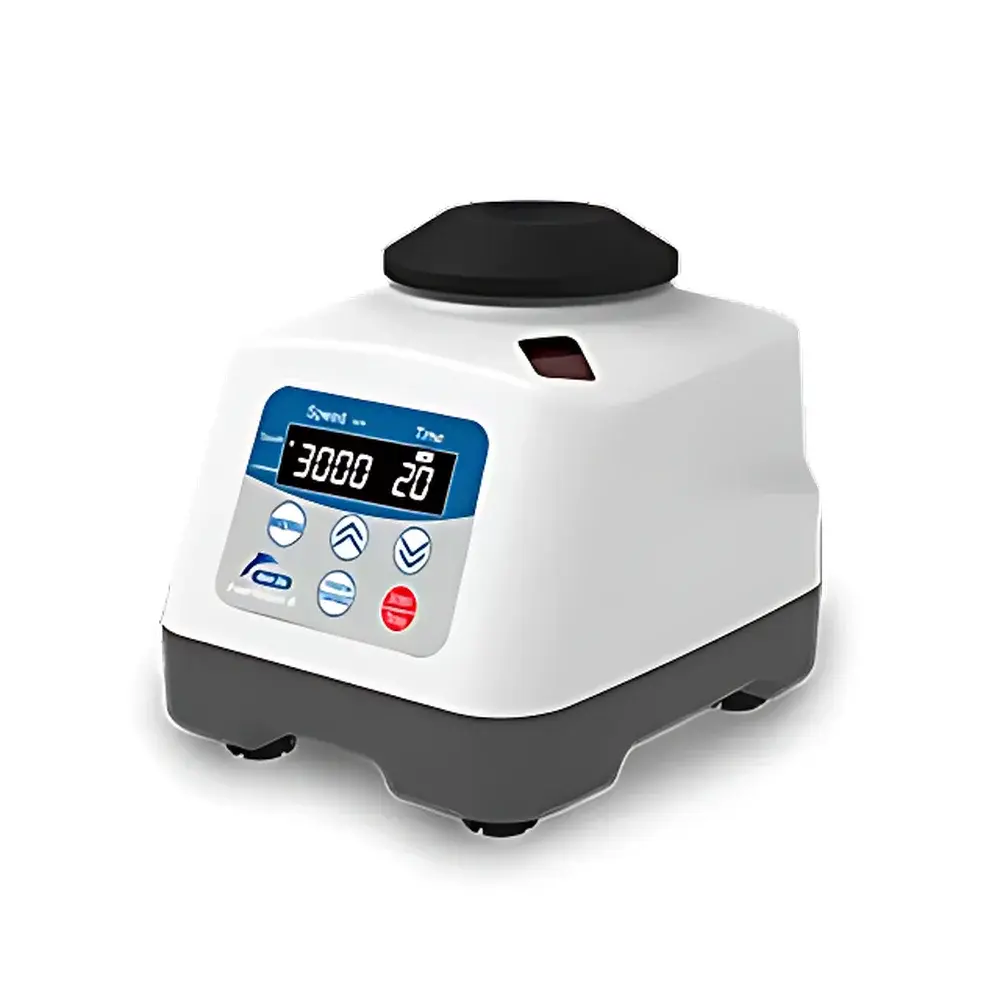

BIO-DL FeelVotex-6 Vortex Mixer

Overview

The BIO-DL FeelVotex-6 Vortex Mixer is a precision-engineered benchtop vortex shaker designed for reliable, repeatable mixing of small-volume samples across diverse laboratory workflows. It operates on the principle of orbital eccentric motion—driven by a brushless permanent magnet DC motor—to generate high-frequency circular agitation at the tip of tubes or vessels. This mechanical action induces rapid fluid shear and particle suspension, enabling efficient homogenization of liquids, liquid-solid suspensions, lyophilized powders, and reagent pellets without foaming or splashing when used with appropriate tube caps. Engineered for durability and operational consistency, the FeelVotex-6 delivers stable performance under continuous duty cycles while maintaining low acoustic emission (<55 dB(A) at 1 m), making it suitable for shared lab environments, QC/QA laboratories, and regulated research settings.

Key Features

• Brushless DC Motor Architecture: Eliminates carbon brushes to reduce mechanical wear, electrical arcing, and maintenance requirements. Delivers consistent torque output across speed ranges and supports extended service life under repetitive operation.
• Dual-Mode Operation: Switch instantly between pulse (touch-activated) and continuous modes via a single tactile control knob—enabling precise transient mixing for sensitive samples or sustained agitation for complete resuspension.
• Programmable Timing Interface: Integrated digital timer supports both forward-counting (elapsed time) and reverse-counting (countdown-to-stop) functions with resolution down to 1 second; ideal for standardized SOP execution and GLP-compliant documentation.
• Thermal Safety System: Built-in temperature sensor monitors motor housing conditions in real time; automatically reduces power or halts operation if internal temperature exceeds safe thresholds—preventing thermal degradation of motor windings or drive electronics.
• Optimized Mechanical Stability: Heavy-gauge steel chassis combined with a precisely calculated counterweight distribution ensures minimal vibration transmission to adjacent instruments and eliminates lateral drift during high-speed operation (up to 3,200 rpm typical).

Sample Compatibility & Compliance

The FeelVotex-6 accommodates standard microcentrifuge tubes (0.2–15 mL), PCR strips, conical tubes (up to 50 mL), and custom adapters for vials and deep-well plates. Its platform accepts both round-bottom and flat-bottom containers with secure grip geometry. The device complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and carries CE marking for conformity with EU health, safety, and environmental protection standards. While not certified for sterile or cleanroom applications out-of-the-box, its smooth, non-porous housing surface facilitates routine disinfection using 70% ethanol or isopropanol—supporting adherence to ISO 15189 and CLIA-mandated cleanliness protocols.

Software & Data Management

The FeelVotex-6 is a standalone hardware device with no embedded firmware-based data logging or network connectivity. All operational parameters—including mode selection, timer setting, and activation status—are controlled manually via front-panel interface. For laboratories requiring audit trails or electronic records, integration with external Lab Information Management Systems (LIMS) or electronic lab notebooks (ELN) may be achieved through manual entry or barcode-scanned protocol association. No software installation or driver dependency is required, ensuring compatibility with Windows, macOS, and Linux operating systems in heterogeneous IT environments.

Applications

• Routine resuspension of lyophilized reagents, bacterial pellets, and protein precipitates
• Homogenization of immunoassay diluents, ELISA wash buffers, and cell lysis mixtures
• Pre-analytical sample preparation prior to HPLC, GC, or mass spectrometry workflows
• QC testing of viscosity modifiers, surfactants, and colloidal dispersions
• Teaching labs requiring robust, intuitive instrumentation for undergraduate kinetics and solubility experiments

FAQ

Does the FeelVotex-6 support variable speed control?
No—the FeelVotex-6 operates at a fixed optimal speed optimized for broad-spectrum mixing efficacy. Speed adjustment is not implemented to maintain mechanical reliability, thermal stability, and regulatory simplicity.
Can it be used with capped tubes containing volatile solvents?
Yes, provided tube caps are securely tightened and compatible with the solvent’s vapor pressure profile. Avoid prolonged continuous operation with highly volatile organic solvents without adequate ventilation.
Is the unit compatible with ISO/IEC 17025-accredited testing environments?
Yes—its mechanical design, repeatability, and absence of undocumented firmware make it suitable for use within accredited calibration and testing laboratories, subject to documented verification per internal SOPs.
What maintenance is required?
Routine cleaning of the rubber cup and base surface with lint-free wipes and 70% ethanol; no lubrication or internal servicing is specified by the manufacturer.
Does it meet FDA 21 CFR Part 11 requirements?
No—this device lacks electronic record generation, user authentication, or audit trail capabilities required for Part 11 compliance. It is intended for non-GxP-critical mixing tasks unless validated as part of a broader system.
