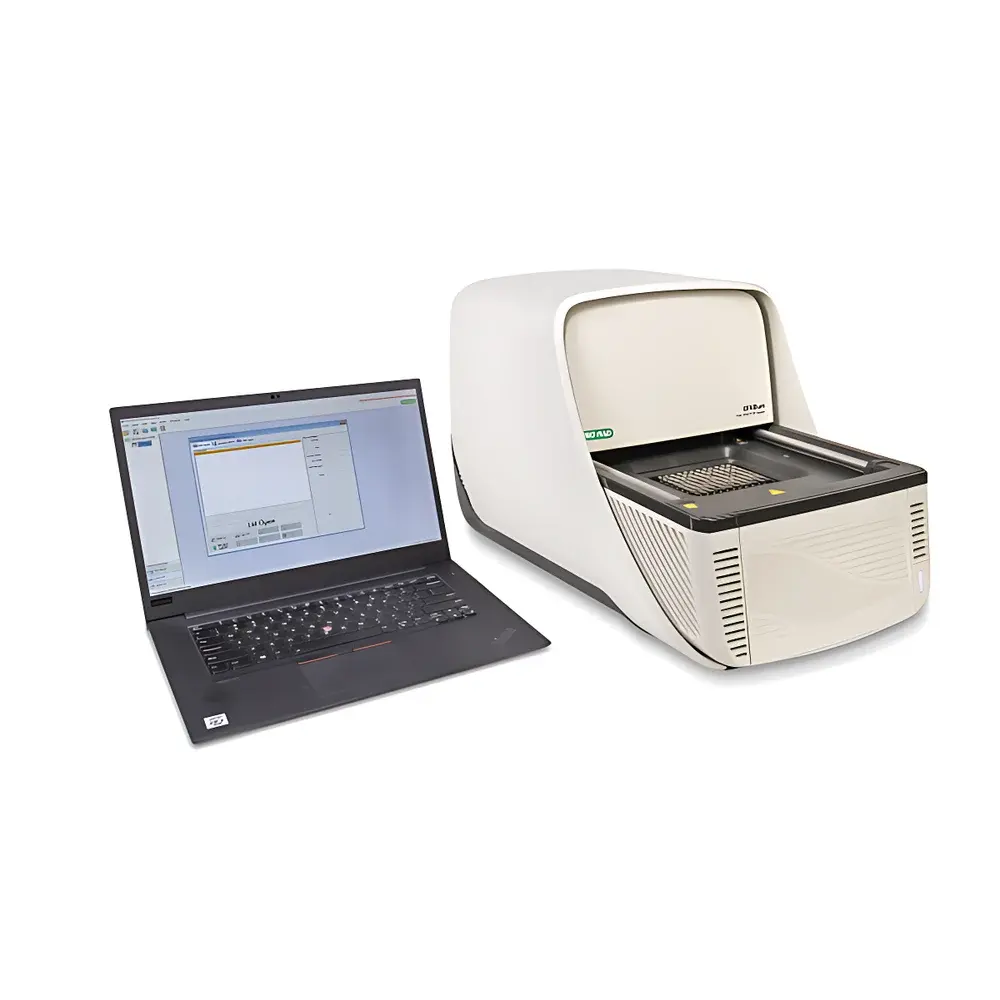

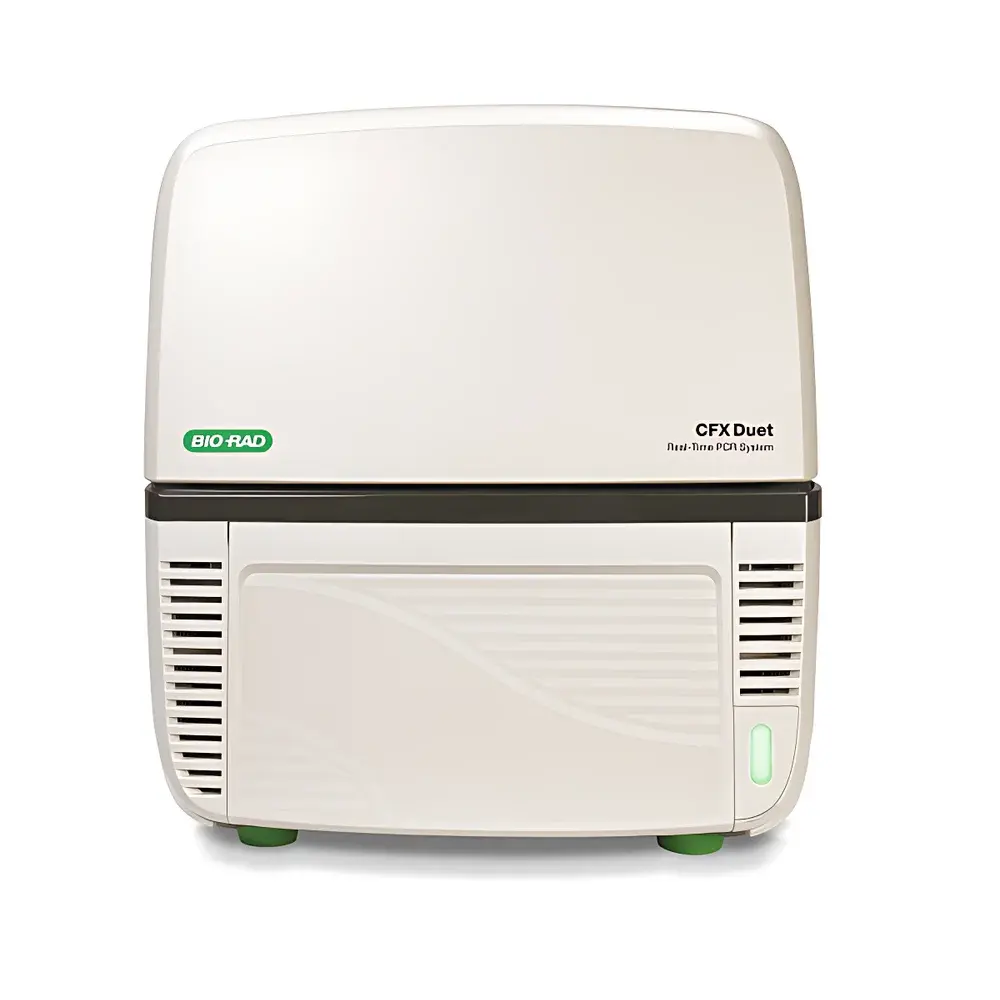

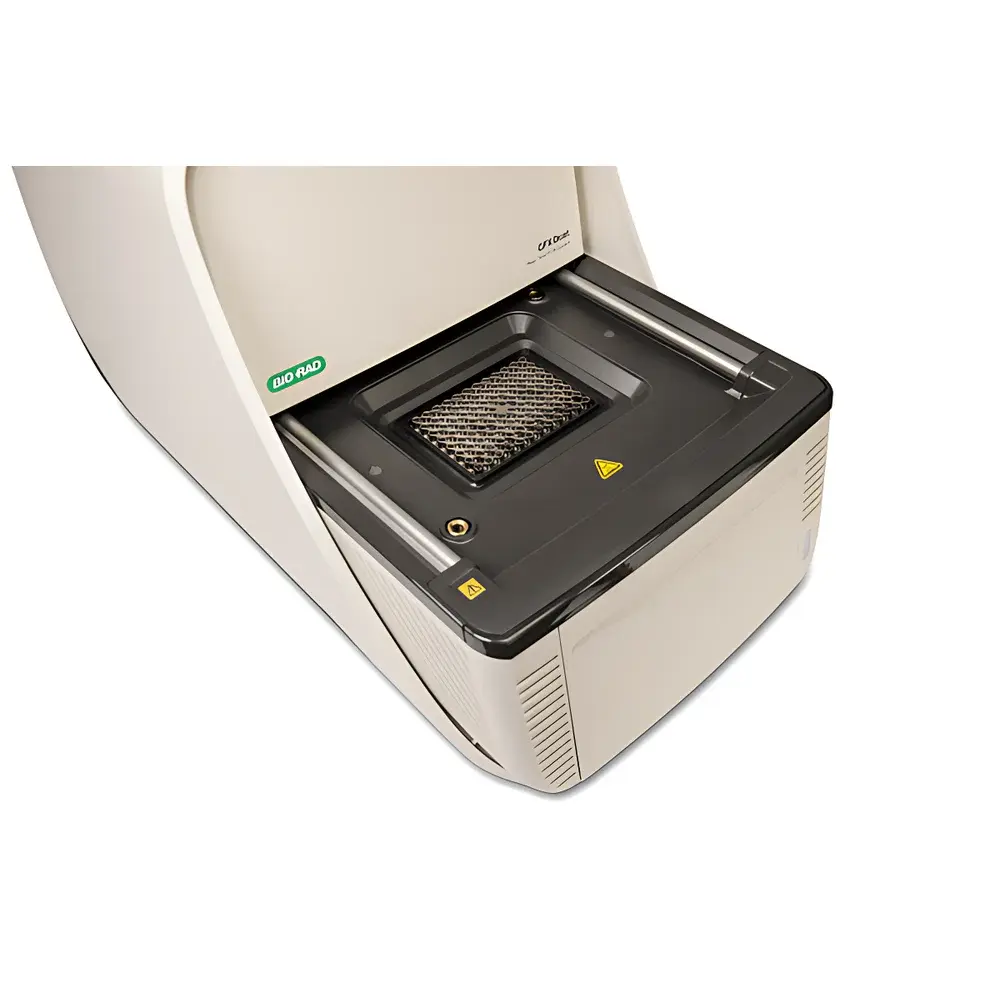

Bio-Rad CFX Duet Real-Time PCR Detection System

Overview

The Bio-Rad CFX Duet Real-Time PCR Detection System is a dual-channel, FRET-capable thermal cycler engineered for precision nucleic acid quantification in resource-conscious laboratories. Built upon the proven thermal architecture of the CFX Opus platform and integrated with Bio-Rad’s proprietary solid-state optical shuttle technology, the CFX Duet delivers high-fidelity fluorescence detection without reliance on passive reference dyes or post-acquisition normalization. Its measurement principle is based on real-time monitoring of sequence-specific amplification via hydrolysis probe (TaqMan) or intercalating dye (SYBR Green) chemistries, with synchronous excitation and emission capture at each well during every thermal cycle. The system supports quantitative gene expression analysis, genotyping, pathogen detection, and protein conformational studies via FRET-based assays — all within a compact, CE-IVD marked instrument designed for GLP-compliant workflows and routine QC environments.

Key Features

• Dual-Channel + FRET Detection Architecture: Independent optical paths for two emission channels plus dedicated FRET mode enable simultaneous detection of two targets per well and ratiometric protein folding or interaction assays without spectral bleed-through.
• Optical Shuttle Technology: A fixed-position, solid-state scanning mechanism moves precisely over each well to deliver consistent excitation intensity and collection geometry — eliminating well-to-well variability caused by off-axis illumination or CCD pixel non-uniformity.
• Enhanced Thermal Performance: Patented lightweight aluminum reaction block achieves ±0.3°C uniformity across all 96 wells, surpassing previous-generation CFX Touch systems by 0.1°C. Rapid heating/cooling kinetics minimize edge effects and improve reproducibility in low-copy-number assays.
• Dynamic Temperature Gradient: Programmable gradient functionality across up to 24°C enables method optimization in a single run — ideal for primer annealing temperature screening, multiplex assay development, and robustness testing under ISO/IEC 17025 guidelines.
• Factory-Calibrated Optical System: Pre-aligned for standard fluorophores including FAM, HEX/VIC, ROX, Cy5, and TAMRA — no user calibration required prior to first use or after routine maintenance.
• Integrated Security Framework: Optional CFX Maestro Security Edition complies with FDA 21 CFR Part 11 requirements through mandatory Windows authentication, HASP HL hardware key enforcement, AES-256 file encryption, tamper-evident audit trails, and electronic signature support.

Sample Compatibility & Compliance

The CFX Duet accepts standard 0.2 mL 96-well plates and compatible strip tubes, maintaining full interoperability with Bio-Rad’s validated consumables portfolio — including Hard-Shell Low-Profile PCR Plates, Microseal B Adhesive Seals, and SsoAdvanced Universal Probes Supermix. It supports both probe-based and dye-based chemistries and has been verified for use with PrimePCR Assays, which undergo rigorous wet-lab validation per MIQE (Minimum Information for Publication of Quantitative Real-Time PCR Experiments) standards. The system meets IEC 61010-1 safety requirements and carries CE marking for in vitro diagnostic use in the European Union. For regulated environments, its firmware and software architecture support traceable instrument qualification (IQ/OQ/PQ), data integrity assessments, and long-term archival per ALCOA+ principles.

Software & Data Management

CFX Maestro software provides an end-to-end workflow from experimental design to publication-ready visualization. Its intuitive interface allows rapid plate setup, automatic baseline/threshold determination, and comparative ΔΔC_t analysis with built-in statistical tools including unpaired t-tests and one-way ANOVA. Visualization options include bar charts with annotated p-values, box-and-whisker plots, scatter plots with regression lines, volcano plots for differential expression, and hierarchical clustering heatmaps. All figures are fully customizable — font size, axis scaling, color schemes, and legend placement can be adjusted before export in PNG, TIFF, or PDF formats at user-defined DPI. Integrated qbase+ Advanced License enables advanced normalization strategies (e.g., geNorm, NormFinder), inter-run calibration, and MIQE-compliant reporting templates. Audit trails record every action — from file creation and parameter modification to result export — with immutable timestamps and operator identifiers.

Applications

• Relative and absolute quantification of mRNA transcripts in gene expression profiling
• SNP genotyping using allele-specific probes or melting curve analysis
• Viral load monitoring and antimicrobial resistance gene detection in clinical microbiology
• Quality control of CRISPR editing efficiency via T7E1 or RFLP-coupled qPCR
• FRET-based monitoring of protein-protein interactions, conformational changes, or protease activity
• Validation of RNAi knockdown efficiency across multiple cell lines or tissue types
• Stability testing of reference genes under experimental perturbations

FAQ

Is the CFX Duet compatible with third-party master mixes and primers?
Yes — the system is chemistry-agnostic and validated with major commercial reagents including TaqMan, Luna, PowerUp SYBR, and KAPA SYBR Fast. Optimization may be required for novel dyes outside the factory calibration set.
Can I upgrade from CFX Maestro Standard to the Security Edition?
Yes — licensed upgrades are available through Bio-Rad’s authorized distributors; installation requires physical HASP HL key provisioning and administrative privileges on the host PC.
Does the system support 384-well format?
No — the CFX Duet is designed exclusively for 96-well configurations to maintain thermal and optical performance consistency across the block.
How often does the optical system require recalibration?
None — the solid-state shuttle design eliminates mechanical drift; factory calibration remains stable throughout the instrument’s service life under normal operating conditions.
Is raw fluorescence data export supported?
Yes — .rdml and .csv exports include cycle-by-cycle RFU values per well, enabling offline reanalysis in R, Python, or MATLAB environments while preserving original acquisition metadata.
