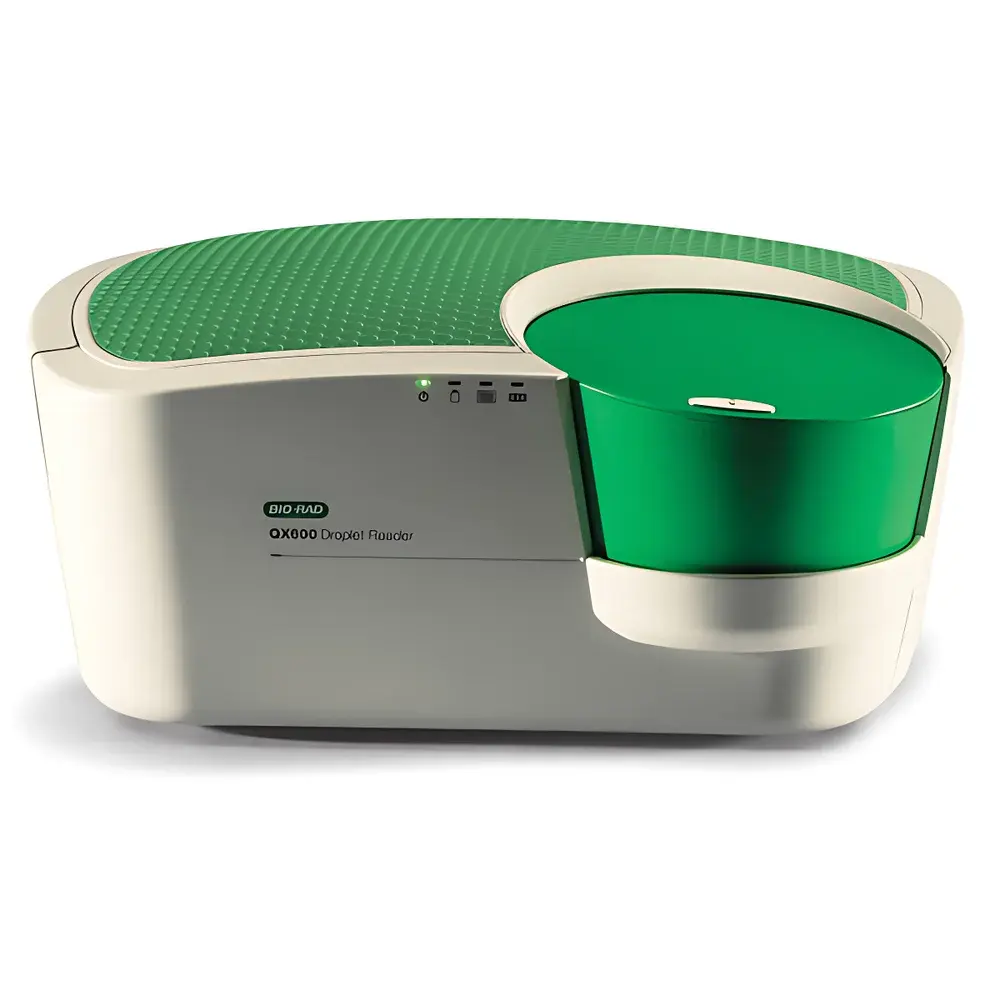

Bio-Rad QX600 Droplet Digital PCR System

Overview

The Bio-Rad QX600 Droplet Digital PCR System is a high-precision, partition-based nucleic acid quantification platform engineered for absolute quantification without reliance on standard curves. It employs water-oil emulsion droplet generation technology to partition individual nucleic acid molecules into ~20,000 nanoliter-scale droplets per sample—each acting as an independent PCR microreactor. Following endpoint amplification, fluorescence detection across six optical channels enables digital counting of positive and negative droplets, delivering binary (yes/no) amplification outcomes per partition. This binary readout underpins the system’s exceptional sensitivity, reproducibility, and resistance to PCR inhibition—making it particularly suited for rare mutation detection, copy number variation (CNV) analysis, low-abundance transcript quantification, and NGS library validation in clinical research, biopharmaceutical development, and molecular diagnostics laboratories.

Key Features

• Six-channel optical detection (FAM, HEX, Cy5, Cy5.5, ROX, ATTO 590) enabling robust multiplexing with spectral separation optimized for minimal crosstalk.
• Validated capability for up to 12-plex CNV assays per well—facilitating comprehensive genomic profiling from limited input material.
• Quantification limit of detection down to 0.1% mutant allele frequency, supported by empirical data from inter-laboratory proficiency studies and reference material characterization.
• ±10% coefficient of variation (CV) across technical replicates, demonstrating high intra- and inter-run precision under standardized operating conditions.
• Traceable metrological validation: system performance verified using certified reference materials calibrated by Australia’s National Measurement Institute (NMI), ensuring alignment with international measurement standards.
• Hardware interoperability with both Manual DG and AutoDG droplet generators—allowing flexible workflow scaling from low-throughput assay development to high-volume production environments.

Sample Compatibility & Compliance

The QX600 system accepts standard 96-well PCR plates and supports diverse sample types including genomic DNA, FFPE-derived nucleic acids, cfDNA, RNA (via reverse transcription ddPCR), and viral load specimens. All consumables—including DG8 cartridges, ddPCR supermixes, and probe- or dye-based assays—are fully interchangeable with the QX200 platform, minimizing reagent inventory complexity and enabling seamless method transfer. The system meets requirements for regulated environments: Advanced software includes full audit trail functionality, electronic signature support, user access controls, and session logging—designed to comply with FDA 21 CFR Part 11, ISO/IEC 17025, and GLP/GMP documentation standards. Routine operation aligns with ISO 13485 principles for in vitro diagnostic device workflows.

Software & Data Management

QuantaSoft Pro software provides intuitive instrument control, real-time droplet acquisition monitoring, and automated thresholding algorithms for robust cluster classification. The Advanced version adds enterprise-grade data governance features: immutable audit logs capturing all user actions (e.g., threshold adjustments, gate edits, export events), role-based permissions, and encrypted data storage compliant with HIPAA and GDPR frameworks. Integrated gene expression analysis modules support ΔΔCt–independent relative quantification, normalization against endogenous controls, and statistical comparison across experimental groups. Raw FAM/HEX/Cy5/etc. fluorescence data are stored in vendor-neutral .qdpcr format, enabling third-party analysis via Python/R APIs or import into LIMS systems via CSV/Excel export.

Applications

• Rare variant detection in oncology (e.g., EGFR T790M, KRAS G12D at sub-0.5% VAF)
• Copy number variation analysis in developmental disorders and cancer genomics
• Residual disease monitoring post-therapy using ctDNA
• Accurate quantification of CRISPR editing efficiency and off-target effects
• Reference standard characterization for NGS panel calibration
• Viral load measurement in HIV, HBV, and SARS-CoV-2 with improved precision over qPCR
• MicroRNA and lncRNA expression profiling where low-abundance targets require digital resolution

FAQ

Is the QX600 compatible with existing QX200 reagents and consumables?
Yes—the QX600 uses identical ddPCR supermixes, probes, EvaGreen dye formulations, DG8 cartridges, and 96-well plates as the QX200 platform.
Does the system support both probe-based and intercalating dye chemistries?
Yes—fully validated for TaqMan hydrolysis probe assays and EvaGreen saturation dye protocols, with optimized thermal cycling profiles for each.
What regulatory documentation is available for method validation?
Bio-Rad provides IQ/OQ/PQ protocols, software validation packages, and traceable calibration reports aligned with ISO/IEC 17025 and FDA guidance for digital PCR-based IVD development.
Can raw droplet fluorescence data be exported for custom bioinformatic analysis?
Yes—QuantaSoft Pro exports .qdpcr files containing per-droplet intensity values across all six channels, supporting downstream analysis in R, Python, or MATLAB.
How does the QX600 ensure result traceability in GLP-compliant labs?
The Advanced software enforces electronic signatures, time-stamped audit trails, and locked data archives—meeting core requirements of 21 CFR Part 11 Subpart B for electronic records and signatures.
