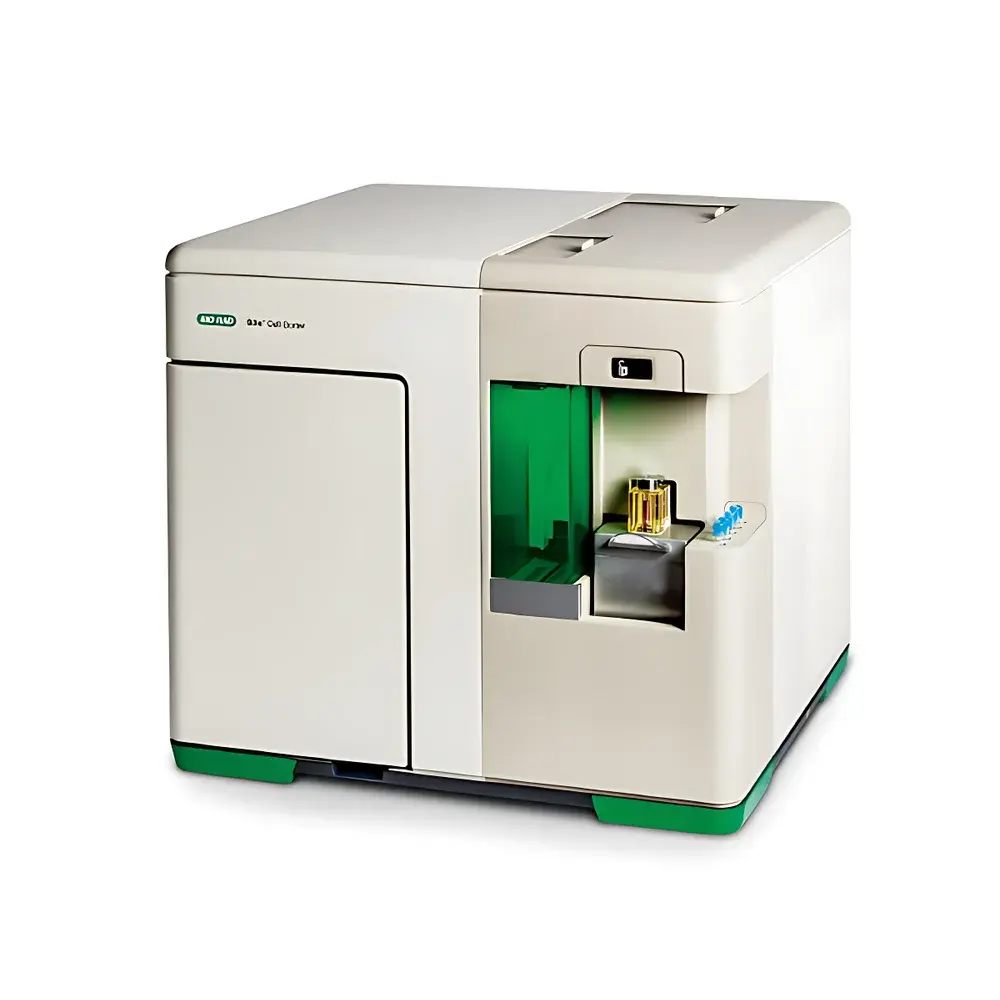

Bio-Rad S3e Cell Sorter

Overview

The Bio-Rad S3e Cell Sorter is a compact, benchtop flow cytometric cell sorter engineered for precision, reproducibility, and operational simplicity in core facilities, academic laboratories, and translational research environments. It employs hydrodynamic focusing and electrostatic droplet sorting based on the principle of charge induction and deflection—enabling high-purity isolation of live, functional cell populations at speeds up to 100,000 events per second. The system integrates three solid-state lasers (405 nm violet, 488 nm blue, and 640 nm red) with six-parameter detection capability—including forward scatter (FSC), side scatter (SSC), and four fluorescence channels—supporting multicolor immunophenotyping, viability assessment, intracellular cytokine staining, and rare-event enrichment. Its air-driven excitation architecture eliminates fluidic complexity associated with sheath pressure regulation, while integrated thermoelectric temperature control maintains sample integrity across physiological ranges (4–35 °C) with ±0.5 °C stability—critical for sensitive primary cells and stem cell applications.

Key Features

• AutoGimbal™ Alignment System: A proprietary motorized gimbal mechanism dynamically repositions the nozzle and optical train in real time, enabling fully automated, software-guided calibration of stream stability, drop delay, and laser interrogation point—reducing setup time from minutes to seconds and eliminating manual alignment drift.
• ProSort™ Software Interface: A role-based, wizard-driven acquisition and sorting platform designed for both novice and expert users; supports intuitive gating, real-time purity monitoring, sort statistics logging, and one-click protocol saving—fully compliant with GLP documentation requirements.
• Biosafety-Ready Form Factor: Compact footprint (54 × 59 × 45 cm) and low acoustic signature allow safe integration into Class I biosafety cabinets without compromising airflow dynamics or operator ergonomics—validated per NSF/ANSI 49 standards.
• Thermal Management Architecture: Dual-zone Peltier cooling/heating ensures precise temperature control of both sample chamber and collection tubes, minimizing thermal stress during extended sort sessions and preserving post-sort viability (>95% recovery for PBMCs).
• Modular Laser & Detector Configuration: Supports flexible upgrade paths—from single-laser (488 nm only) to full 3-laser/6-parameter configurations—without hardware replacement, facilitating future expansion aligned with evolving assay panels.

Sample Compatibility & Compliance

The S3e accommodates a broad range of biological samples, including peripheral blood mononuclear cells (PBMCs), dissociated tumor tissue suspensions, cultured adherent and suspension cell lines, yeast, bacteria, and extracellular vesicles. Its low-shear fluidics and gentle pressure delivery (<10 psi) maintain cellular integrity and surface antigen conformation—validated per ISO 13485 quality management protocols. All sorting workflows support traceable audit trails, electronic signatures, and user-level access controls, aligning with FDA 21 CFR Part 11 requirements for regulated environments. Instrument qualification documentation (IQ/OQ/PQ) packages are available upon request and conform to ASTM E2500 and USP guidelines for flow cytometry systems used in cell therapy manufacturing.

Software & Data Management

ProSort™ software provides native support for FCS 3.0/3.1 file formats and exports gated data directly to FlowJo™, Cytobank, and R/Bioconductor-compatible CSV/TXT outputs. Built-in instrument diagnostics log all calibration events, fluidic pressure profiles, laser power stability metrics, and temperature history—retained for ≥18 months unless manually purged. Data encryption at rest (AES-256) and TLS 1.2–secured remote desktop access ensure compliance with HIPAA and GDPR frameworks when handling human-derived specimens. Optional integration with LIMS platforms is supported via HL7 v2.x and RESTful API endpoints for automated job submission and result ingestion.

Applications

• Isolation of antigen-specific T-cell subsets for adoptive immunotherapy development
• Single-cell sorting for scRNA-seq library preparation (10x Genomics, Smart-seq2)
• Functional characterization of hematopoietic stem/progenitor cells (HSPCs) via CD34+/CD38−/CD90+ phenotyping
• High-throughput screening of CRISPR-edited clones using fluorescent reporter knock-ins
• Microbial community profiling via viability-gated bacterial sorting and downstream culturing
• Exosome subpopulation enrichment based on tetraspanin expression (CD63, CD81, CD9)

FAQ

Does the S3e support sterile sorting into 96-well plates?
Yes—equipped with plate mapping functionality and robotic arm interface options (via third-party integrators), the S3e enables direct sterile sorting into standard tissue-culture-treated or low-binding 96-well plates under laminar flow conditions.
What validation documents are provided for GMP-compliant use?
Bio-Rad supplies comprehensive IQ/OQ documentation, including laser power verification reports, CV performance certificates using Rainbow beads, and electronic audit trail configuration guides—all traceable to NIST-traceable standards.
Can the S3e be integrated into an automated cell culture workflow?
The instrument features Ethernet-based command-and-control (TCP/IP) and supports RS-232 serial triggering, enabling synchronization with liquid handlers, incubators, and imaging systems through custom scripting or LabVIEW integration.
Is post-sort viability assessment included in the software?
ProSort™ includes real-time viability estimation algorithms based on propidium iodide or DAPI exclusion kinetics, with optional integration of Annexin V-FITC/PI dual-staining modules for apoptosis staging.
How often does the AutoGimbal system require maintenance?
No scheduled maintenance is required—the AutoGimbal™ actuator is rated for >100,000 alignment cycles and operates without consumable parts; routine cleaning of the flow cell and nozzle is recommended after every 20 hours of cumulative run time.
