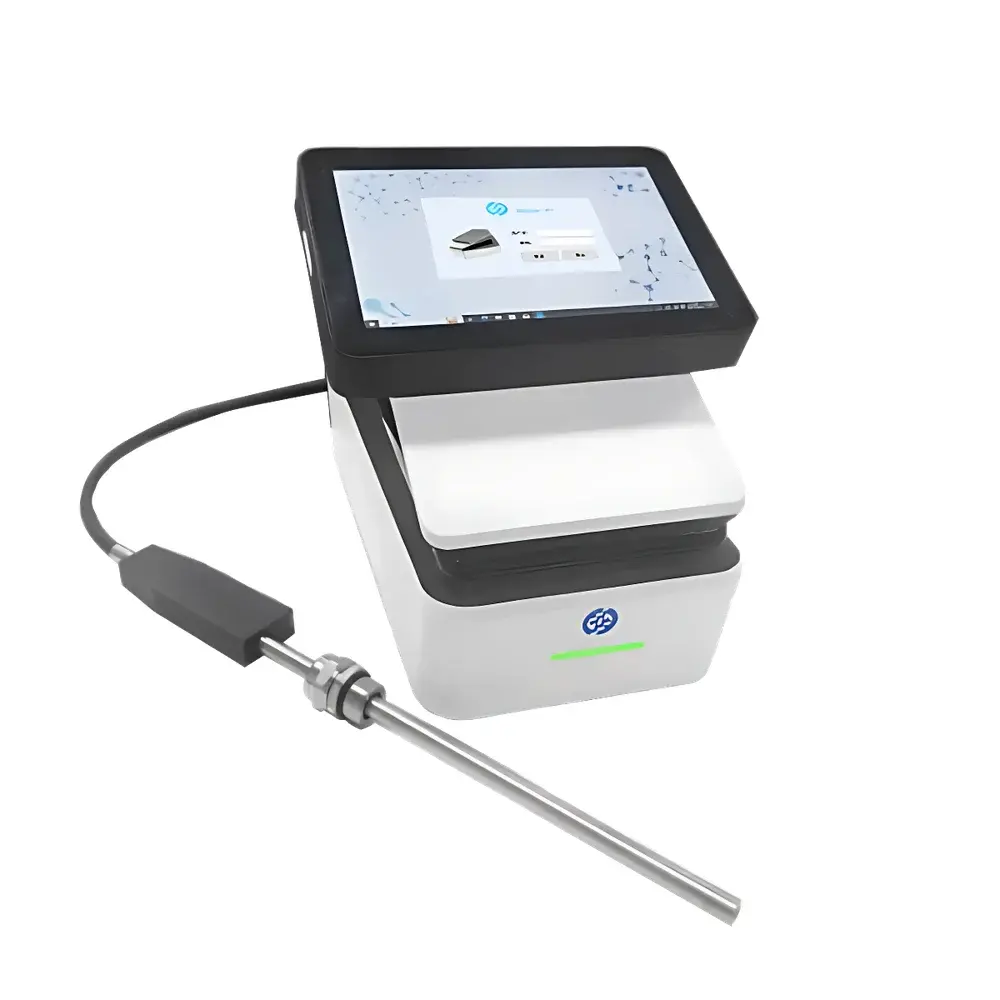

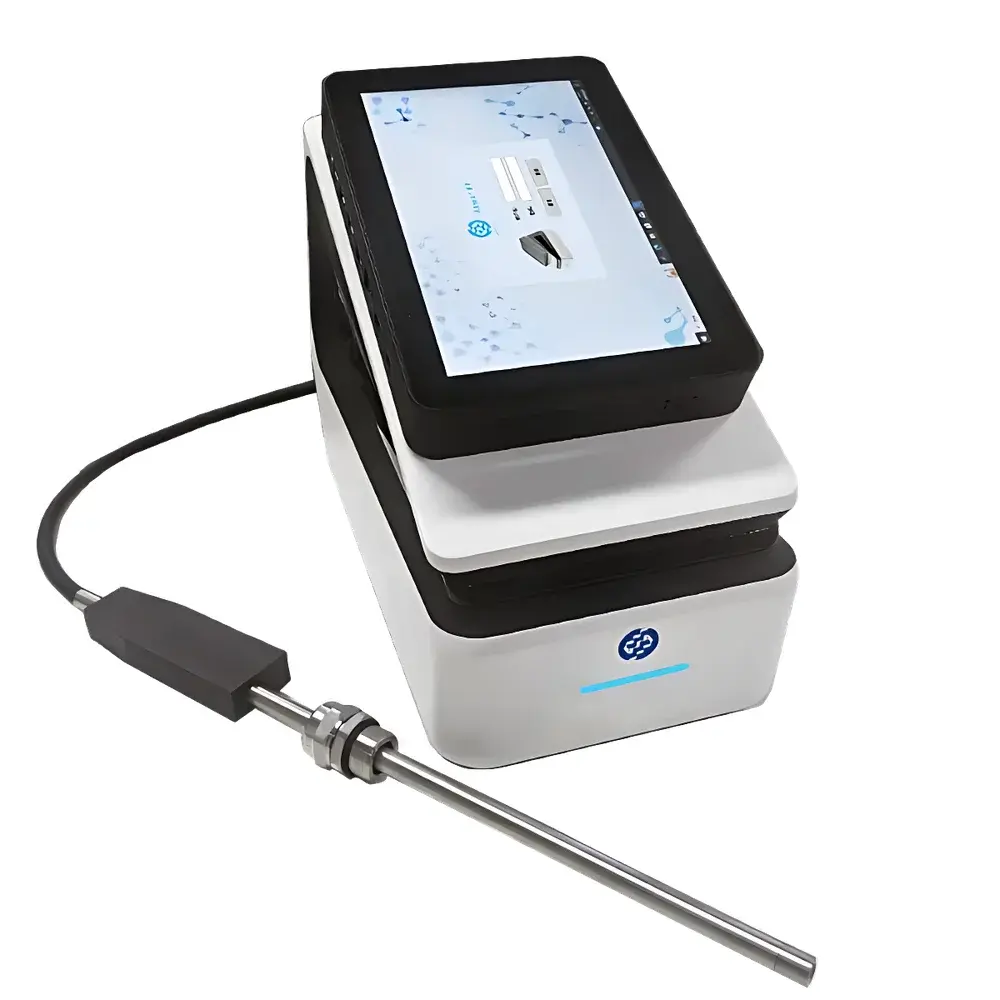

Bioaces Akwa-Raman Online Raman Bioprocess Analyzer
| Brand | Bioaces |
|---|---|
| Model | Akwa-Raman |
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Pricing | Available Upon Request |
Overview
The Bioaces Akwa-Raman Online Raman Bioprocess Analyzer is an engineered PAT (Process Analytical Technology) instrument designed for real-time, in situ molecular monitoring of biopharmaceutical manufacturing processes. Leveraging confocal Raman spectroscopy—based on inelastic light scattering from vibrational modes of chemical bonds—the system delivers non-invasive, label-free, and reagent-free quantification of critical process analytes including glucose, lactate, glutamine, ammonium, viable cell density, and product titer (e.g., monoclonal antibody concentration). Integrated directly into bioreactor manifolds or downstream purification skids via sterile-suitable fiber-optic probes, the Akwa-Raman enables continuous spectral acquisition under GMP-compliant conditions without sampling, dilution, or process interruption. Its optical architecture is optimized for high signal-to-noise ratio (SNR) acquisition within sub-60-second cycle times, supporting dynamic control loops and multivariate statistical process monitoring (MSPM) frameworks aligned with FDA’s PAT Guidance (2004) and ICH Q5 and Q8 principles.
Key Features
- Patented high-throughput Raman probe interface with adjustable immersion depth and autoclavable stainless-steel housing (IP67 rated)
- Stabilized 785 nm diode laser excitation with thermoelectrically cooled CCD detector for low fluorescence interference and enhanced spectral fidelity
- Real-time spectral preprocessing pipeline: cosmic ray removal, baseline correction (Asymmetric Least Squares), and intensity normalization
- Embedded chemometric engine supporting PCA (Principal Component Analysis), PLS (Partial Least Squares) regression, and ANN (Artificial Neural Network) modeling for quantitative prediction of CPPs (Critical Process Parameters) and CQAs (Critical Quality Attributes)
- Modular hardware design compliant with 19-inch rack-mount standards and integrated with Modbus TCP, OPC UA, and SECS/GEM protocols for MES/SCADA interoperability
- Validated firmware architecture with audit trail, electronic signatures, and role-based access control—designed to meet FDA 21 CFR Part 11 and EU Annex 11 requirements
Sample Compatibility & Compliance

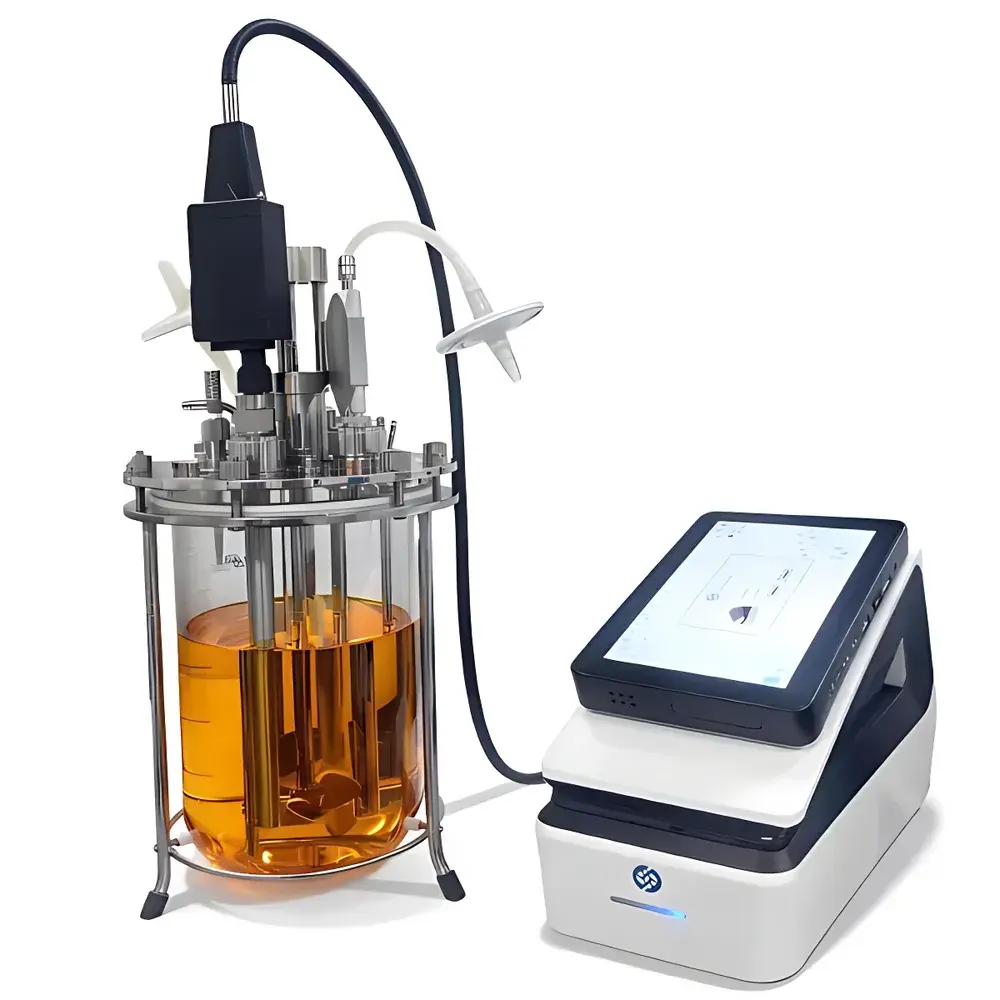

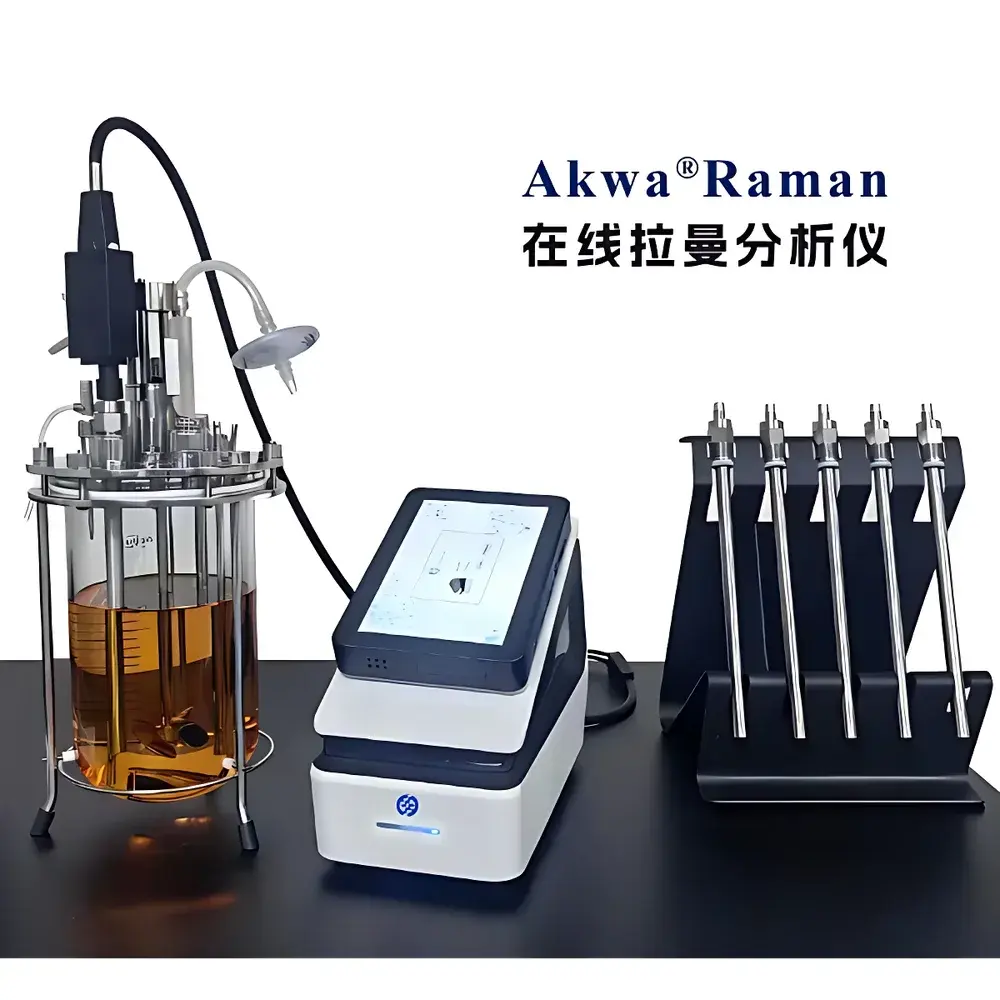

The Akwa-Raman analyzer supports direct in-line measurement across upstream (stirred-tank, wave, and single-use bioreactors) and downstream (chromatography, ultrafiltration/diafiltration, viral clearance steps) unit operations. Compatible with common bioprocess fluids—including mammalian (CHO, HEK293), microbial (E. coli, P. pastoris), and viral vector production media—the system maintains measurement integrity across turbidities up to 200 NTU and temperatures from 4 °C to 40 °C. All wetted materials comply with USP Class VI and ISO 10993-5 biocompatibility standards. The device conforms to IEC 61000-6-2 (EMC immunity) and IEC 61010-1 (safety for laboratory equipment). Installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) documentation packages are provided per ASTM E2500-13 and ISPE GAMP 5 guidelines.
Software & Data Management
The Akwa-Raman operates with Bioaces RamanSuite™ v3.x—a validated, 21 CFR Part 11–compliant software platform. It provides full lifecycle data governance: raw spectra storage in HDF5 format with embedded metadata (timestamp, probe ID, process tag), version-controlled calibration model deployment, and automated drift compensation using internal reference standards. Users can generate trending dashboards for key metrics (e.g., residual substrate depletion rate, product glycosylation shift index), export CSV/Excel reports for regulatory submissions, and synchronize with LIMS or DeltaV DCS systems via secure TLS 1.2 APIs. Audit trails record all user actions—including model training events, parameter edits, and report generation—with immutable timestamps and digital signature binding.
Applications
- Real-time monitoring of fed-batch and perfusion CHO cultures: tracking metabolite kinetics and predicting harvest time windows
- In-line quantification of mAb titer and aggregate formation during protein A elution and polishing steps
- Monitoring of viral vector genome integrity and capsid ratio in AAV and lentiviral production
- Supporting QbD (Quality by Design) initiatives through correlation of Raman spectral fingerprints with orthogonal assays (HPLC, CE-SDS, ELISA)
- Accelerating tech transfer by deploying identical chemometric models across clinical and commercial-scale facilities
- Enabling closed-loop control strategies—e.g., adaptive feed rate modulation based on real-time glucose prediction error thresholds
FAQ
Is the Akwa-Raman compatible with single-use bioreactors?
Yes—it integrates via standard sanitary fittings (Tri-Clamp® 1.5″ or SMS 1″) and supports sterilization-in-place (SIP) protocols up to 121 °C for 30 minutes.
Can existing Raman models be imported from third-party software?
Yes—PLS and PCA models exported in PMML 4.4 or MATLAB .mat format can be ingested and validated within RamanSuite™.
What validation support is included?
Bioaces provides IQ/OQ/PQ templates, traceable NIST-traceable wavelength calibration certificates, and a complete 21 CFR Part 11 compliance package including risk assessment (FMEA) and change control logs.
Does the system require periodic recalibration during operation?
No—built-in reference peak stabilization (e.g., silicon band at 520.7 cm⁻¹) enables automatic spectral alignment; full recalibration is recommended only after major hardware service or annual PQ execution.
How is cybersecurity addressed in the embedded controller?
The analyzer runs a hardened Linux OS with disabled unused ports, mandatory TLS 1.2+ encryption for remote access, and firmware signed with RSA-2048 keys to prevent unauthorized updates.
