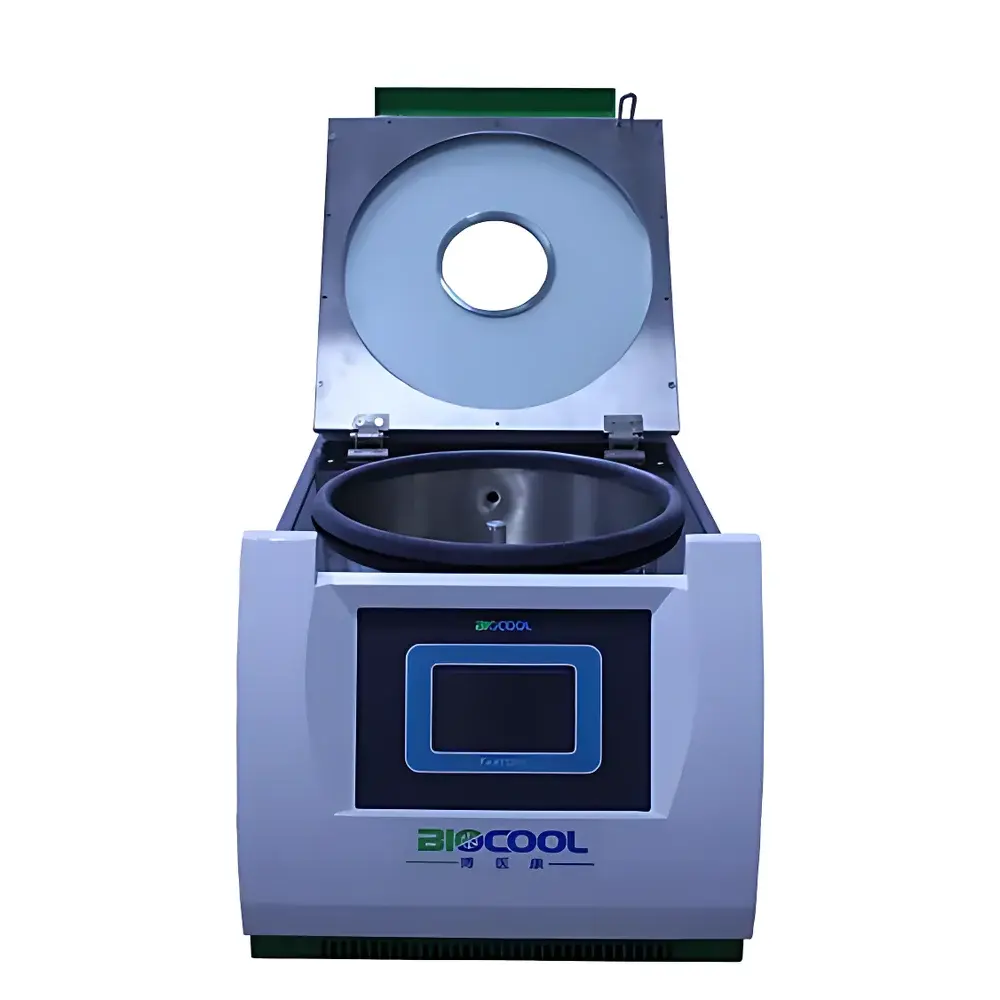

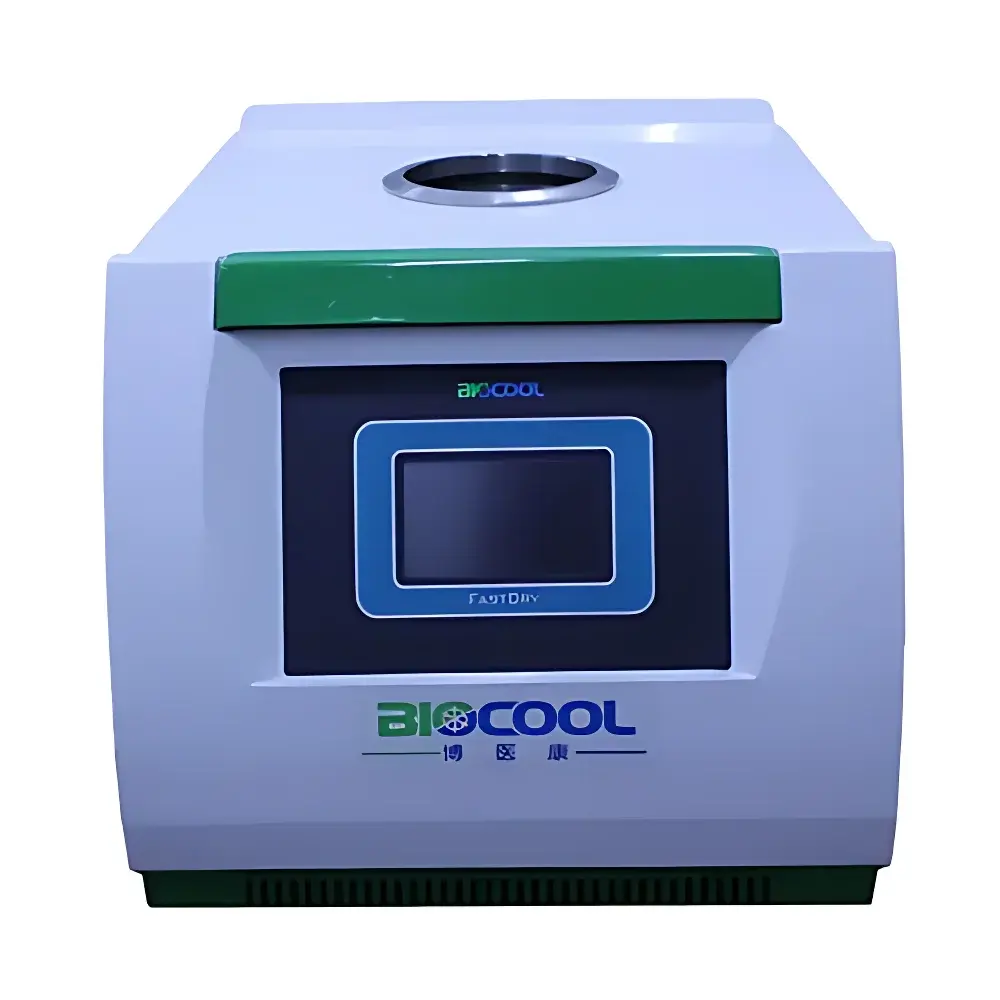

BIOCOOL FastDry-1 Vacuum Centrifugal Concentrator

Overview

The BIOCOOL FastDry-1 Vacuum Centrifugal Concentrator is an engineered solution for high-efficiency, low-temperature sample concentration and solvent removal in molecular biology, proteomics, metabolomics, and pharmaceutical development laboratories. It integrates centrifugal force, vacuum-induced solvent evaporation, and precisely regulated thermal input to achieve rapid yet gentle concentration of heat-sensitive biomolecules—including nucleic acids, proteins, peptides, antibodies, and viral vectors—without denaturation or degradation. Unlike conventional rotary evaporators or nitrogen blow-down systems, the FastDry-1 operates on the principle of simultaneous centrifugation and vacuum-assisted sublimation/evaporation under controlled thermal gradients. This dual-mode operation ensures uniform solvent removal across all sample positions while minimizing foaming, bumping, and cross-contamination. The system’s modular architecture separates the concentrator unit, vacuum pump, and optional ultra-low-temperature cold trap (-50 °C to -80 °C), enabling flexible configuration based on solvent volatility, throughput requirements, and facility infrastructure.

Key Features

• PTFE-coated centrifuge chamber and rotor—chemically inert, autoclavable, and resistant to organic solvents, acids, and bases.
• Gradient PID temperature control (ambient to –80 °C) with ±0.5 °C stability over full range—enabling precise thermal management during multi-stage protocols.
• Variable-frequency drive (VFD) motor delivering smooth, noise-free rotation from 400 to 1800 rpm with real-time speed regulation and imbalance compensation.
• 12-segment programmable touchscreen interface—each segment independently configurable for speed, vacuum level, temperature, and dwell time.
• Magnetic coupling drive system—eliminates dynamic shaft seals, ensuring absolute vacuum integrity and zero oil contamination risk.
• Auto-venting function with inert gas backfill capability—prevents oxidation and sample disturbance during vacuum release.
• Integrated safety logic: vacuum initiation delayed until target rotational speed is achieved, preventing ice crystal formation in frozen samples.
• Mobile remote monitoring via secure HTTPS web interface—enables real-time status tracking, alarm notifications, and protocol modification without physical access.
• High-fidelity rotor recognition system—supports up to 48 distinct rotor configurations, automatically loading optimized parameters for tube type, volume, and application class.

Sample Compatibility & Compliance

The FastDry-1 accommodates standard 1.5 mL microcentrifuge tubes (132 positions) and is compatible with a broad spectrum of biological and chemical matrices—including aqueous buffers, ethanol/water mixtures, acetonitrile, chloroform, ethyl acetate, and trifluoroacetic acid solutions. Its PTFE-wetted surfaces ensure compatibility with aggressive solvents and corrosive reagents commonly used in peptide synthesis and small-molecule purification. The system meets essential design criteria for Good Laboratory Practice (GLP) and current Good Manufacturing Practice (cGMP) environments: all contact surfaces are non-porous and sterilizable; vacuum lines are oil-free (when equipped with diaphragm pump); data logging supports 21 CFR Part 11-compliant audit trails when integrated with BIOCOOL’s optional LIMS-ready software package. Cold trap options down to –80 °C meet ASTM D1655 and ISO 8573-1 purity requirements for condensable vapor capture in regulated analytical workflows.

Software & Data Management

Control firmware runs on a deterministic industrial PLC platform with embedded 7-inch resistive touchscreen HMI. All user-defined protocols—including multi-step ramp-and-hold sequences—are stored locally with timestamped execution logs. Optional Ethernet/Wi-Fi connectivity enables integration into centralized lab informatics systems. Data export is supported in CSV and XML formats, including full parameter history (speed, pressure, temperature, elapsed time, error codes). For regulated environments, the system supports electronic signature authentication, role-based access control (admin/operator/technician tiers), and configurable retention policies aligned with ALCOA+ principles. Firmware updates are performed via signed USB media to maintain cryptographic integrity and traceability.

Applications

• Rapid concentration of DNA/RNA extracts prior to sequencing library preparation or qPCR analysis.
• Desalting and buffer exchange of purified monoclonal antibodies and recombinant proteins.
• Removal of volatile organic solvents (e.g., methanol, acetone) following solid-phase extraction or SPE cleanup.
• Lyophilization-compatible pre-concentration of unstable enzyme formulations.
• High-throughput sample preparation for LC-MS/MS metabolite profiling.
• Concentration of viral supernatants for titer determination or pseudovirus production.
• Preparative-scale peptide recovery after Fmoc-based synthesis and cleavage.

FAQ

What vacuum levels can the FastDry-1 achieve?
The system achieves an ultimate vacuum of <10 Pa when paired with a direct-coupled rotary vane pump; with the optional diaphragm pump, typical operating pressure is 10–50 Pa depending on solvent load and cold trap efficiency.
Is the chamber suitable for autoclaving?
Yes—the stainless-steel chamber and PTFE-coated rotor are rated for steam sterilization at 121 °C for 20 minutes, supporting reuse in aseptic applications.
Can the FastDry-1 handle acidic or basic solvents?
All fluid-contact components—including O-rings, gaskets, and condensate collection vessels—are constructed from perfluoroelastomer (FFKM) and PTFE, providing resistance to pH 0–14 solutions.
Does it support end-point detection?
While the base FastDry-1 does not include mass-loss sensing, optional integration with a precision balance module enables real-time gravimetric endpoint determination—a feature available through BIOCOOL’s Custom Integration Program.
What regulatory documentation is provided?
Each unit ships with Factory Acceptance Test (FAT) report, IQ/OQ documentation templates, material compliance certificates (RoHS, REACH, USP Class VI), and a Declaration of Conformity to IEC 61010-1 for laboratory equipment safety.
