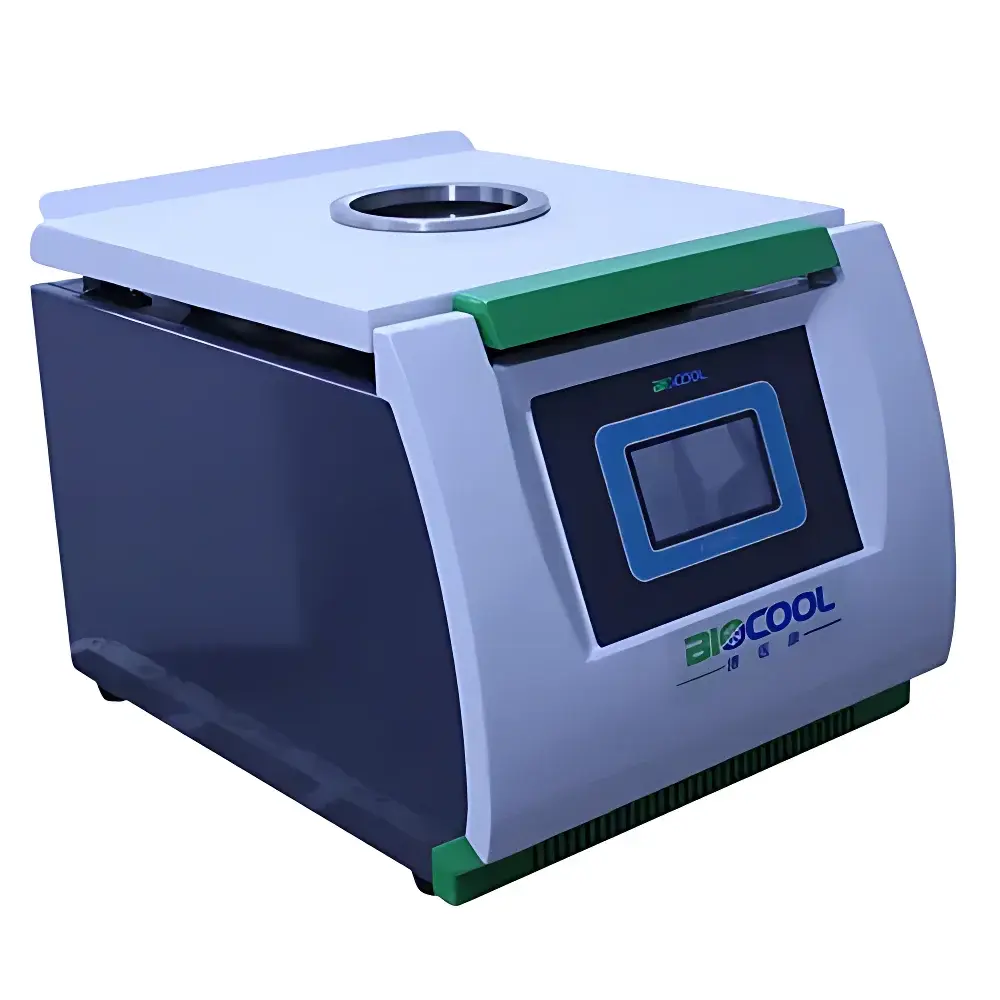

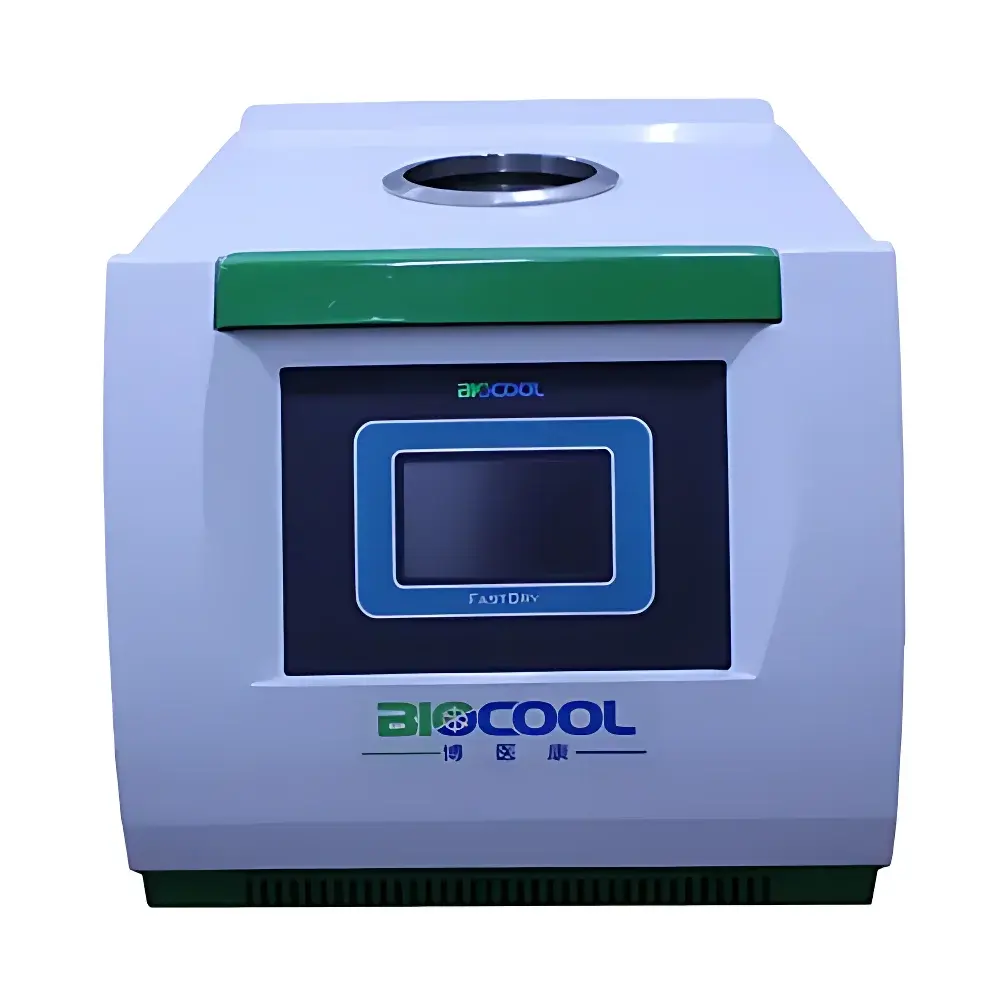

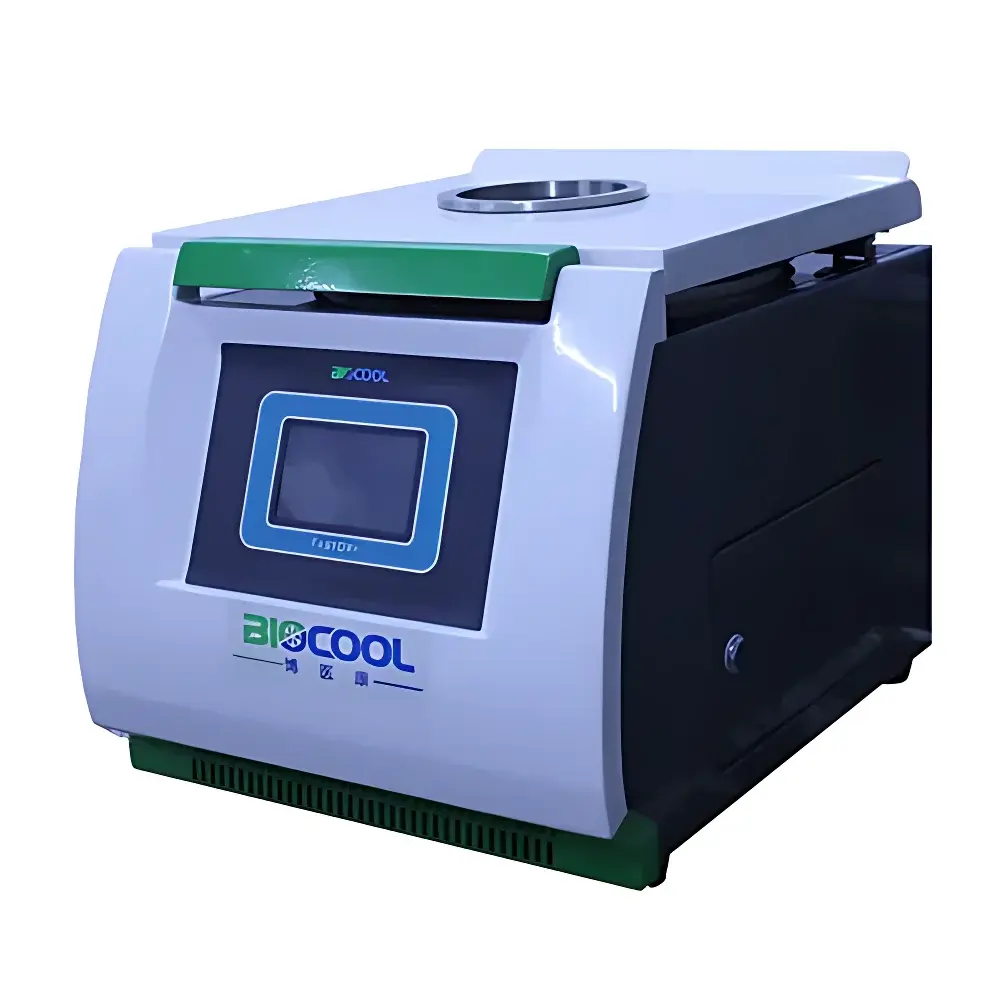

BIOCOOL FastDry-1E Vacuum Centrifugal Concentrator

Overview

The BIOCOOL FastDry-1E Vacuum Centrifugal Concentrator is an engineered solution for gentle, high-efficiency solvent removal from heat-sensitive biological and chemical samples. It integrates centrifugal force, vacuum-assisted evaporation, and precisely regulated thermal input in a single platform—operating on the principle of simultaneous rotational acceleration and pressure reduction to lower the boiling point of solvents while minimizing thermal stress. Unlike conventional evaporators, the FastDry-1E employs gradient PID temperature control across programmable stages, enabling dynamic heat compensation that matches solvent volatility and sample thermal tolerance. Its sealed, PTFE-coated chamber and magnetically coupled drive system ensure long-term vacuum integrity (>10 Pa ultimate vacuum), critical for preserving labile macromolecules such as RNA, antibodies, and enzymatic complexes during concentration.

Key Features

• PTFE-coated rotor and chamber—resistant to corrosion from acidic, basic, and organic solvents including acetonitrile, chloroform, and trifluoroacetic acid.
• 12-segment programmable touchscreen interface with independent control of speed (400–1800 rpm), vacuum setpoint, temperature (ambient to –80 °C), and dwell time per stage.
• Magnetic drive transmission—eliminates mechanical feedthroughs, ensuring vacuum seal reliability and reducing maintenance intervals.
• Auto-vacuum delay start—centrifugation reaches target speed before vacuum initiation, preventing sample foaming or ice crystal disruption in frozen matrices.
• Smart venting system with inert gas (N₂ or air) auto-fill—enables safe, controlled pressure equalization post-run without manual intervention.
• Integrated cold trap compatibility—supports optional –50 °C or –80 °C condensers; ultra-low-temperature configurations (<–110 °C) available for aggressive solvent capture (e.g., HCl, HF, DMSO).
• Real-time remote monitoring via Ethernet/Wi-Fi—compatible with standard SNMP and Modbus TCP protocols for integration into centralized lab infrastructure.

Sample Compatibility & Compliance

The FastDry-1E accommodates up to 132 × 1.5 mL microcentrifuge tubes, supporting common formats used in nucleic acid purification, peptide synthesis, metabolomics, and pharmaceutical QC workflows. Its temperature-controlled operation—from ambient down to –80 °C—enables both room-temperature ethanol precipitation and cryo-concentration of thermolabile analytes. All wetted surfaces comply with USP Class VI biocompatibility standards. The PTFE coating meets ISO 10993-5 cytotoxicity requirements. When configured with audit-trail-enabled software and electronic signatures, the system supports GLP and GMP environments under FDA 21 CFR Part 11 and EU Annex 11 regulatory frameworks. Routine IQ/OQ documentation packages are available upon request.

Software & Data Management

Control firmware runs on a deterministic PLC architecture with real-time OS, synchronized to the industrial-grade 7-inch capacitive touchscreen. All method parameters—including speed ramps, vacuum ramp rates, temperature gradients, and endpoint criteria—are stored in non-volatile memory with timestamped revision history. Optional data export includes CSV-formatted run logs with full parameter traceability (time, rpm, mbar, °C, vacuum status). For regulated labs, the BioVac™ software suite (v3.2+) offers 21 CFR Part 11 compliance modules: role-based user access, electronic signatures, and immutable audit trails with SHA-256 hashing of all critical events.

Applications

• Nucleic acid concentration following phenol-chloroform extraction or column elution—maintaining integrity of >10 kb DNA fragments and small RNAs.
• Peptide library desalting prior to MALDI-TOF or LC-MS analysis, minimizing adduct formation.
• Concentration of unstable enzyme preparations (e.g., kinases, dehydrogenases) under sub-zero thermal conditions to suppress denaturation kinetics.
• Removal of volatile organic solvents (ethyl acetate, hexane, acetone) from natural product extracts without thermal degradation.
• Preparative-scale lyophilization support—used as a primary drying step before secondary drying in freeze dryers.
• High-throughput sample prep for clinical proteomics, where batch consistency and traceability are mandated by CAP/CLIA guidelines.

FAQ

What vacuum level can the FastDry-1E achieve with its standard pump configuration?
With the included diaphragm pump, the system achieves ≤10 Pa base pressure. When paired with the optional direct-coupled rotary vane pump, ultimate vacuum improves to ≤0.1 Pa—critical for low-volatility solvent removal.
Is the –80 °C cooling capability active during centrifugation?
Yes—the Peltier-based cooling system operates synchronously with rotation, maintaining setpoint stability within ±0.5 °C across the full speed range (400–1800 rpm).
Can I validate this instrument for use in a GMP manufacturing environment?
Yes—BIOCOOL provides IQ/OQ protocol templates, factory calibration certificates (traceable to NIST standards), and optional PQ support services. Full 21 CFR Part 11 readiness requires the BioVac™ v3.2+ software package with enabled audit trail.
Does the system support third-party rotor interchangeability?
No—the FastDry-1E uses proprietary rotor identification via RFID tags; only BIOCOOL-certified rotors (48 variants validated) are recognized and permitted to operate.
How is solvent vapor captured without a built-in cold trap?
The FastDry-1E is designed for external cold trap integration. It features standardized KF-16 and NW25 vacuum ports, compatible with commercial –50 °C to –110 °C condensers from major OEMs (e.g., Labconco, SP Scientific, Genevac).
