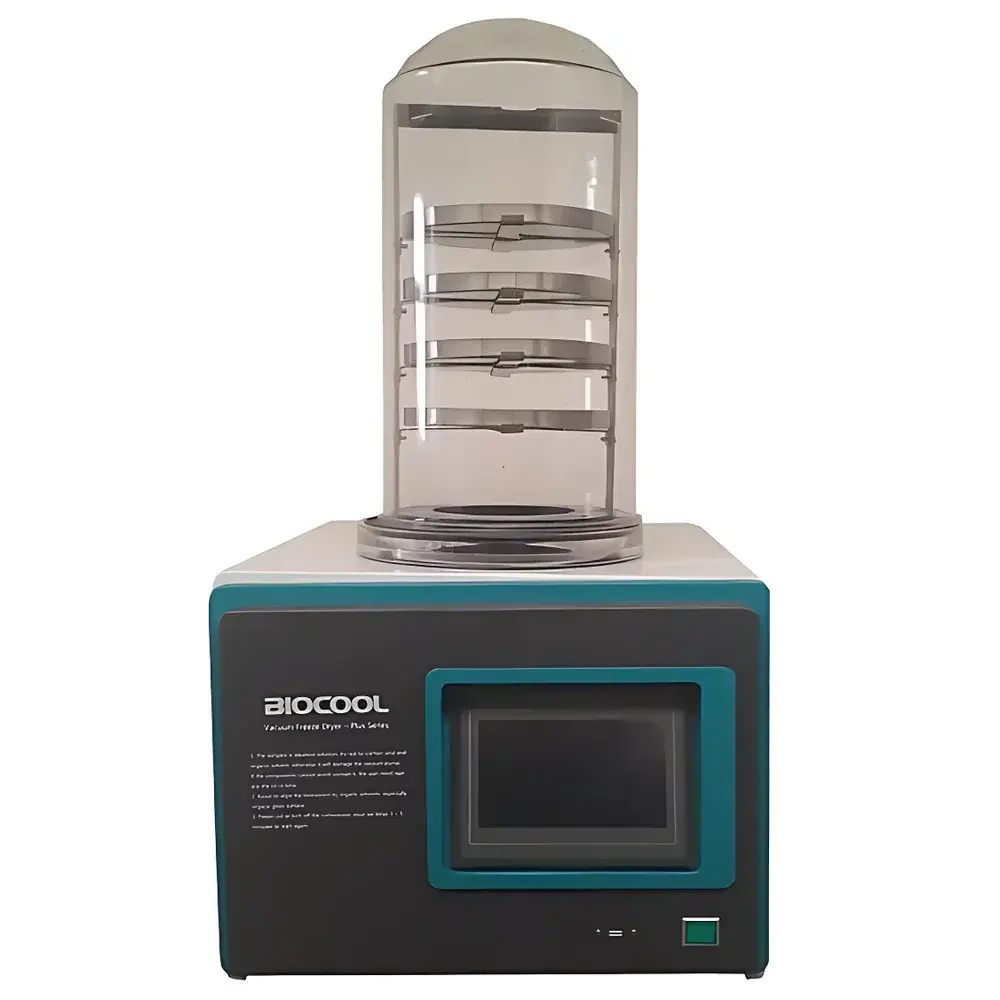

BioCoool FD-1B-80+ Laboratory Benchtop Freeze Dryer

Overview

The BioCoool FD-1B-80+ is a benchtop, stoppering-capable laboratory freeze dryer engineered for reproducible, controlled lyophilization of heat-sensitive biological and pharmaceutical samples. It operates on the fundamental principles of sublimation under deep vacuum and low-temperature condensation—where frozen water is removed directly from the solid phase to vapor without passing through the liquid state. The system integrates a high-efficiency dual-stage cascade refrigeration unit capable of achieving a no-load condenser temperature of −85 °C, enabling reliable drying of formulations with eutectic points down to −40 °C. Its sealed, one-piece stainless-steel drying chamber eliminates weld seams and potential leak paths, ensuring vacuum integrity and long-term operational stability. Designed for compliance-driven environments, the FD-1B-80+ supports process documentation requirements aligned with GLP and basic GMP practices—including timestamped data logging, user-accessible audit trails, and exportable freeze-drying profiles.

Key Features

• Monolithic stainless-steel drying chamber: Seamless construction ensures structural rigidity, vacuum-tight integrity, and resistance to corrosion from aggressive solvents or buffer residues.
• High-performance cascade condenser: Achieves −85 °C no-load temperature using internationally certified compressors; optimized thermal design minimizes noise (<62 dB(A)) and energy consumption.
• Integrated pre-freezing capability: Samples can be frozen directly in the chamber prior to primary drying—eliminating the need for external ultra-low temperature freezers and reducing handling risks.
• Dual independent Pt100 temperature sensors: Monitor both shelf surface and sample core temperatures in real time, supporting accurate determination of endpoint and critical process transitions.
• Graphical freeze-drying curve visualization: Onboard touchscreen interface displays and stores time-resolved data for shelf temperature, chamber pressure, condenser temperature, and sample temperature—exportable via USB flash drive in CSV format.
• Intelligent hot-gas defrost system: Reduces defrost cycle duration by >40% compared to resistive heating methods while maintaining condenser coil integrity and minimizing thermal stress.
• Inert gas backfilling module: Equipped with an imported solenoid valve for precise, programmable nitrogen or argon reintroduction post-drying—critical for oxygen-sensitive biologics and sterile product stabilization.

Sample Compatibility & Compliance

The FD-1B-80+ accommodates vial-based preparations typical of pharmaceutical R&D and academic bioprocessing workflows, including lyophilized monoclonal antibodies, vaccines, diagnostic reagents, and enzyme formulations. It is validated for aqueous solutions, suspensions, and pastes with eutectic temperatures above −20 °C—though extended hold times at −40 °C enable broader applicability. All control logic and data storage comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). While not 21 CFR Part 11–certified out-of-the-box, the system’s audit-trail-enabled firmware and password-protected user roles support validation pathways for regulated labs. Optional accessories—including eutectic point analyzers, external shelf temperature calibrators, and ISO 17025–traceable calibration reports—facilitate IQ/OQ/PQ execution.

Software & Data Management

Control is executed via a rugged industrial-grade PLC interfaced with a 7-inch capacitive touchscreen HMI. The embedded software provides intuitive step-by-step protocol programming (pre-freeze, primary drying, secondary drying, backfill), real-time alarm management (e.g., vacuum breach, condenser overload, temperature deviation), and configurable data sampling intervals (1–60 sec). All logged parameters are stored internally with date/time stamps and can be retrieved and exported to USB media in comma-separated values (CSV) format—compatible with Excel, MATLAB, and LabArchives. User accounts support three permission levels (Operator, Technician, Administrator), each with distinct access rights to settings modification, method editing, and data deletion. Firmware updates are performed offline via SD card to ensure network isolation in secure lab networks.

Applications

• Pharmaceutical development: Formulation screening of lyophilized dosage forms, stability studies per ICH Q5C, and small-batch clinical trial material production.
• Biotechnology research: Preservation of cell lysates, purified proteins, plasmid DNA, and viral vectors without denaturation or aggregation.
• Academic life sciences: Long-term storage of microbial cultures, tissue extracts, and metabolomics standards under inert atmosphere.
• Diagnostic manufacturing: Stabilization of ELISA reagents, lateral flow assay components, and PCR master mixes.
• Quality control laboratories: Routine moisture content verification per USP <<751> and residual solvent analysis preparation.

FAQ

What types of vials are compatible with the FD-1B-80+ stoppering configuration?
Standard 10–20 mL serum vials (e.g., 20R, 22R) with butyl rubber stoppers and aluminum crimp seals are supported. Custom stopper height adjustment is available upon request.
Can the system operate continuously for multi-day cycles?
Yes—the condenser capacity (4 L/24 h) and thermal management architecture allow uninterrupted operation up to 72 hours, provided ambient room temperature remains ≤25 °C and relative humidity ≤60%.
Is remote monitoring supported?
The base model does not include Ethernet or Wi-Fi connectivity; however, RS-485 Modbus RTU output is standard for integration into building SCADA or centralized lab monitoring systems.
How is calibration traceability ensured?
All temperature sensors ship with individual calibration certificates traceable to NIM (National Institute of Metrology, China); optional UKAS-accredited third-party calibration services are available.
What maintenance intervals are recommended?
Compressor oil replacement every 24 months; vacuum pump oil change every 6 months (or per pump manufacturer specifications); condenser coil cleaning quarterly; full system performance verification annually.
