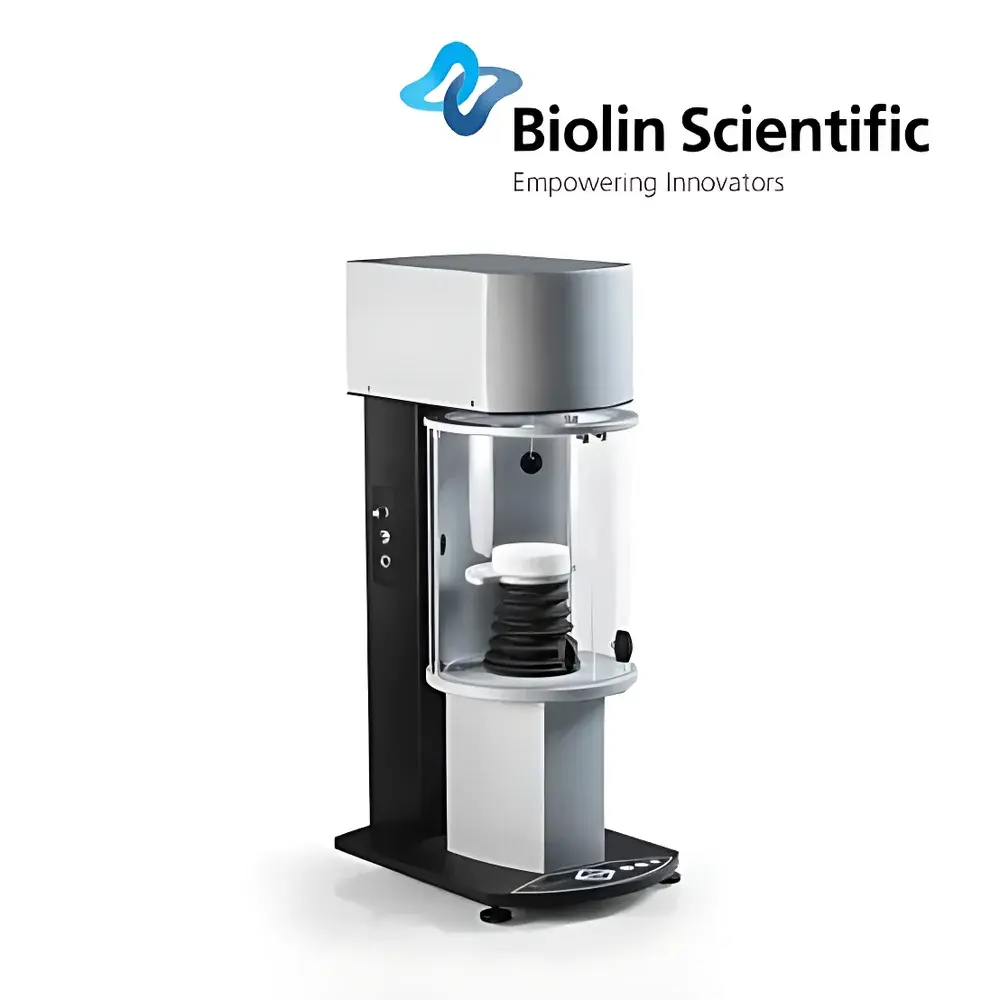

Biolin Scientific Sigma 700 Advanced Automated Surface Tensiometer

Overview

The Biolin Scientific Sigma 700 is a high-precision, fully automated surface tensiometer engineered for rigorous surface and interfacial property characterization in research laboratories, pharmaceutical development, coatings formulation, and industrial quality control environments. It operates on the fundamental principles of force-based interfacial measurement—primarily utilizing the Du Noüy ring and Wilhelmy plate methods—where surface or interfacial tension is derived from the precise quantification of the force exerted on a calibrated probe immersed at or drawn through a liquid interface. The instrument integrates a high-stability microbalance with sub-micron displacement resolution, coupled with a thermally regulated sample stage and motorized Z-axis positioning, enabling reproducible measurements under controlled temperature conditions from −20 °C to +200 °C. Its architecture supports both static and dynamic measurements—including time-resolved surface tension decay, critical micelle concentration (CMC) determination, and contact angle evolution on powders and porous substrates—making it suitable for complex formulations such as surfactant solutions, polymer melts, emulsions, and nanofluids.

Key Features

• High-resolution microbalance with dual-range sensitivity: 0.0001 mN/m for static surface tension and 0.001 mN/m for dynamic or high-force applications (e.g., Washburn penetration, adhesion force)
• Motorized, programmable Z-stage with sub-micrometer repeatability for precise immersion depth control and automated meniscus detection
• Integrated Peltier-based temperature control system with real-time monitoring and stability of ±0.01 °C across the full −20 to +200 °C range
• Modular mechanical design accommodating interchangeable probes: platinum-iridium Du Noüy rings, Wilhelmy plates (standard and mini), fiber holders, and custom Washburn tubes
• Open-access platform geometry facilitating rapid attachment of optional accessories—including environmental chambers, video modules for drop shape analysis (DSA), and rheological extension kits
• Compliance-ready hardware architecture supporting audit trails, user access levels, and electronic signatures per FDA 21 CFR Part 11 and EU Annex 11 requirements when configured with appropriate software licensing

Sample Compatibility & Compliance

The Sigma 700 accommodates a broad spectrum of sample types—from low-viscosity aqueous surfactant solutions and volatile organic solvents to high-viscosity polymer melts, molten waxes, and heterogeneous suspensions. Its robust mechanical design and large sample chamber volume (≥300 mL) allow direct testing of bulk liquids, slurries, and granular powders using the Washburn method. For regulatory environments, the system meets ISO 1409 (plastics—determination of surface tension of plastics), ISO 6295 (petroleum products—determination of interfacial tension), ASTM D971 (interfacial tension of oil against water), and ASTM D724 (surface wettability of paper). When operated with validated OneAttension software configurations, it supports GLP/GMP workflows including instrument qualification (IQ/OQ/PQ), calibration traceability to NIST-certified standards, and secure data archiving compliant with ALCOA+ principles.

Software & Data Management

OneAttension is the native, Windows-based control and analysis platform designed exclusively for Biolin’s tensiometry platforms. It provides unified access to all measurement modes—including surface/interfacial tension, CMC titration, dynamic contact angle on powders and fibers, surface free energy calculation via Owens-Wendt, Fowkes, or Wu models, and Washburn kinetics analysis. The software features a wizard-driven experiment setup, real-time graphical feedback during acquisition, automatic baseline correction, and batch processing for multi-sample sequences. All raw force-time datasets are stored in vendor-neutral HDF5 format with embedded metadata (operator ID, timestamp, environmental conditions, calibration history). Audit trail functionality logs every parameter change, measurement execution, and report export event, ensuring full traceability for internal audits or regulatory submissions.

Applications

• Surfactant screening and CMC optimization in detergent, personal care, and agrochemical R&D
• Surface energy mapping of polymer films and composite substrates for adhesive bonding validation
• Wettability assessment of pharmaceutical excipients and active ingredient powders using Washburn capillary rise analysis
• Interfacial tension profiling of crude oil–brine systems in enhanced oil recovery (EOR) studies
• Dynamic contact angle hysteresis analysis on functionalized textiles and filtration membranes
• Density and surface tension co-measurement for thermophysical property modeling of ionic liquids and deep eutectic solvents

FAQ

What measurement methods does the Sigma 700 support?
Du Noüy ring, Wilhelmy plate, dynamic contact angle (on powders and fibers), critical micelle concentration (CMC), surface free energy (SFE), Washburn penetration, adhesion force, sedimentation rate, and density.
Is temperature control integrated into the instrument?
Yes—the Sigma 700 includes a built-in Peltier-controlled sample stage with programmable ramping, stabilization, and real-time feedback across −20 °C to +200 °C.
Can the Sigma 700 be used for GMP-regulated environments?
When deployed with validated OneAttension software configuration, electronic signature support, and documented IQ/OQ/PQ protocols, it meets requirements for pharmaceutical and medical device manufacturing under 21 CFR Part 11 and EU GMP Annex 11.
How does the Sigma 700 differ from the Sigma 701?
The Sigma 700 is optimized for heavier samples and powder/fiber systems requiring higher force capacity and larger sample volumes; the Sigma 701 features enhanced vertical resolution and specialized fixtures for single-fiber dynamic contact angle measurements.
Is third-party software integration possible?
Yes—OneAttension provides COM/ActiveX interfaces and RESTful API endpoints for integration with LIMS, ELN, and MES platforms, enabling automated data ingestion and workflow orchestration.
