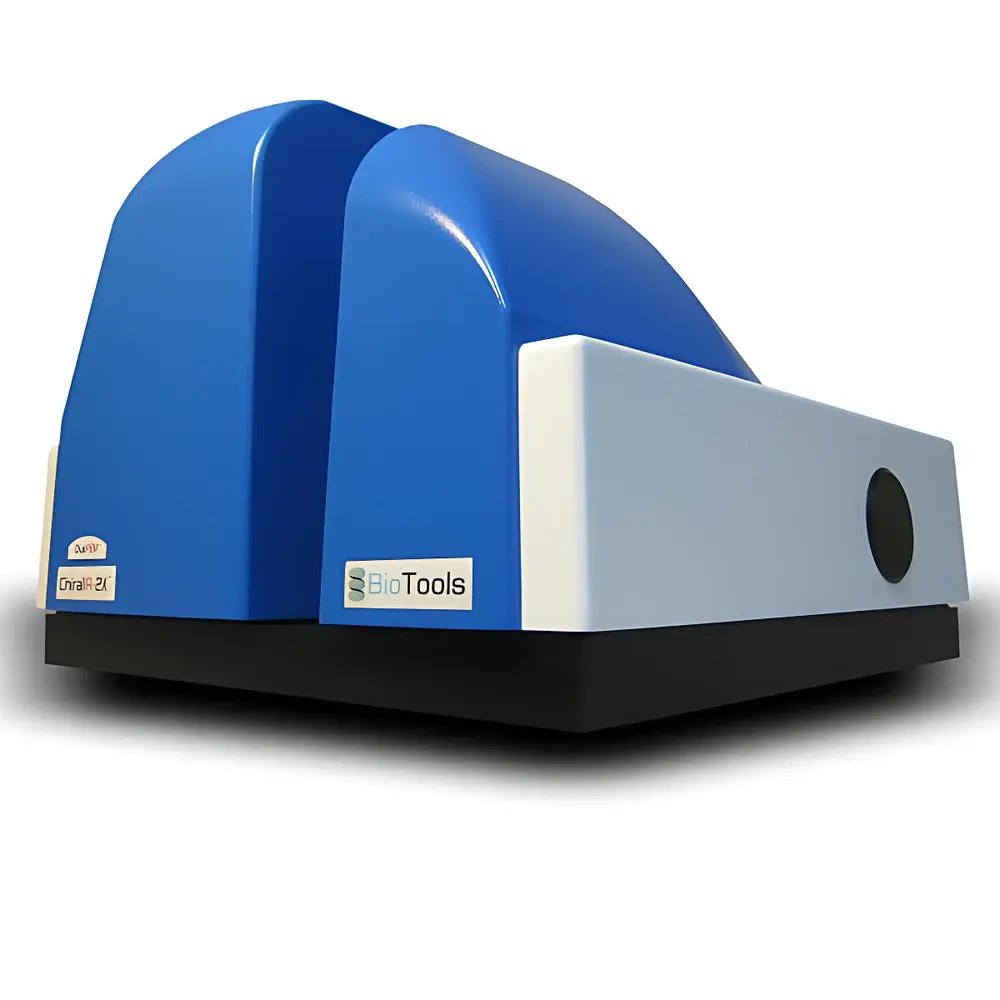

BioTools ChiralIR-2X Vibrational Circular Dichroism (VCD) Spectrometer
| Brand | BioTools |
|---|---|
| Origin | USA |
| Model | ChiralIR-2X |
| Instrument Type | Vibrational Circular Dichroism (VCD) Spectrometer |
| Spectral Range | 4000–850 cm⁻¹ (standard), optional extension to 10,000 cm⁻¹ (NIR) |
| Baseline Drift | < 2 × 10⁻⁵ AU |
| Signal-to-Noise Ratio | >3.6× improvement over single-source systems |
| Detector Continuous Operation | 30–48 hours |
| Optical Path | Fully automated alignment and calibration |
| Data Acquisition | Digital signal processing (no lock-in amplifiers or analog filtering required) |
| Sample Stage | SyncRoCell™ rotating sample cell platform |
| DualPEM™ capability | Optional upgrade for solid-sample VCD correction |
Overview
The BioTools ChiralIR-2X is a high-performance, research-grade Vibrational Circular Dichroism (VCD) spectrometer engineered for the unambiguous determination of absolute molecular configuration and detailed conformational analysis of chiral molecules in solution and solid states. Unlike electronic CD (ECD), which probes π→π* transitions in the UV-Vis range, VCD measures the differential absorption of left- versus right-circularly polarized infrared light during vibrational transitions—providing bond-specific stereochemical information rooted in fundamental molecular symmetry and dipole/rotational strength coupling. The ChiralIR-2X implements a dual-source optical architecture with phase-matched mid-IR emitters, enabling exceptional signal fidelity across the entire 4000–850 cm⁻¹ fingerprint region without mechanical filter changes. Its core design adheres to first-principles requirements for quantitative VCD: rigorous polarization modulation, path-length stability, and minimized instrumental artifacts—making it suitable for regulatory-compliant structural characterization in pharmaceutical development and academic biophysical laboratories.
Key Features
- Dual-source mid-IR optical system delivering >3.6× higher signal-to-noise ratio (SNR) compared to conventional single-source VCD platforms, critical for low-concentration or weakly absorbing chiral analytes.
- SyncRoCell™ sample rotation stage actively compensates for linear dichroism and birefringence artifacts inherent to standard IR cells, eliminating systematic baseline distortions caused by cell wall asymmetry or stress-induced optical activity.
- Baseline stability of < 2 × 10⁻⁵ absorbance units (AU) over multi-hour acquisitions—enabling high-resolution spectral deconvolution and reliable second-derivative analysis for overlapping band assignment.
- Integrated DualPEM™ (Dual Photoelastic Modulator) option supports artifact-free VCD measurements of compressed pellets, KBr disks, and other solid-phase samples by decoupling sample-induced linear birefringence from true chiral signals.
- Full-spectrum digital signal processing architecture—no analog lock-in amplifiers, no external reference detectors, and no hardware-based bandpass filtering—ensuring traceable, reproducible data acquisition compliant with ALCOA+ principles.
- Automated optical path calibration routine executed prior to each measurement sequence, verifying alignment of polarization optics, beam collimation, and detector responsivity across the full spectral window.
Sample Compatibility & Compliance
The ChiralIR-2X accommodates standard CaF₂, BaF₂, or ZnSe liquid cells (path lengths 10–100 µm), as well as custom solid-sample holders compatible with standard IR pellet dies. It supports solvent systems including CDCl₃, DMSO-d₆, and H₂O/D₂O mixtures (with appropriate attenuation). All firmware and acquisition logic comply with FDA 21 CFR Part 11 requirements for electronic records and signatures when operated with validated software configurations. Audit trails, user access controls, and instrument calibration logs are natively supported. The system meets ISO/IEC 17025 general requirements for competence of testing and calibration laboratories, and its spectral accuracy is traceable to NIST SRM 1921b (polystyrene film) and ASTM E1421-22 standards for FTIR instrument qualification.
Software & Data Management
Controlled via BioTools’ ChiralSoft™ v5.x suite, the ChiralIR-2X provides integrated acquisition, real-time SNR monitoring, spectral preprocessing (zero-filling, apodization, phase correction), and advanced VCD-specific analysis modules—including band fitting, exciton coupling modeling, and quantum-chemical spectral simulation import (Gaussian, ORCA, ADF outputs). Raw interferograms and processed spectra are stored in HDF5 format with embedded metadata (instrument parameters, environmental conditions, operator ID, timestamp). Export options include JCAMP-DX, CSV, and proprietary .chir files supporting GLP audit workflows. Software validation packages—including IQ/OQ documentation, test scripts, and UAT protocols—are available for regulated environments.
Applications
- Determination of absolute configuration of small-molecule pharmaceuticals (e.g., APIs, chiral intermediates) without crystallization or derivatization—directly supporting ICH M7 and Q5B regulatory submissions.
- Conformational analysis of peptides, intrinsically disordered proteins, and glycoconjugates under native-like conditions, complementing NMR and X-ray crystallography data.
- Real-time monitoring of asymmetric catalysis and enzymatic stereoselectivity—tracking time-resolved VCD intensity changes at diagnostic amide-I, C=O, or C–H stretching bands.
- Characterization of chiral nanomaterials and supramolecular assemblies where electronic CD lacks sufficient structural resolution due to broad, overlapping transitions.
- Validation of computational chemistry predictions: experimental VCD spectra serve as stringent benchmarks for DFT-level conformational searching and vibrational mode assignment.
FAQ
What spectral range does the ChiralIR-2X cover in standard configuration?
The base system operates from 4000 cm⁻¹ to 850 cm⁻¹. An optional NIR extension module extends coverage up to 10,000 cm⁻¹ for overtones and combination bands.
Is the instrument compatible with aqueous samples?
Yes—using specialized short-path CaF₂ cells and spectral subtraction techniques; D₂O exchange is recommended to minimize strong H₂O absorption interference.
Can VCD data generated on this system be used for regulatory filings?
Yes—when acquired under validated software settings and documented per 21 CFR Part 11, ChiralIR-2X data meet ICH, FDA, and EMA expectations for stereochemical characterization.
How often does the optical path require manual recalibration?
None—full automated calibration is performed before every measurement sequence; no user intervention is required for alignment stability over 12+ months under normal lab conditions.
Does the system support kinetic VCD measurements?
Yes—via time-resolved scanning mode with user-defined delay intervals; minimum dwell time per spectrum is 30 seconds for 4 cm⁻¹ resolution in the amide I region.
