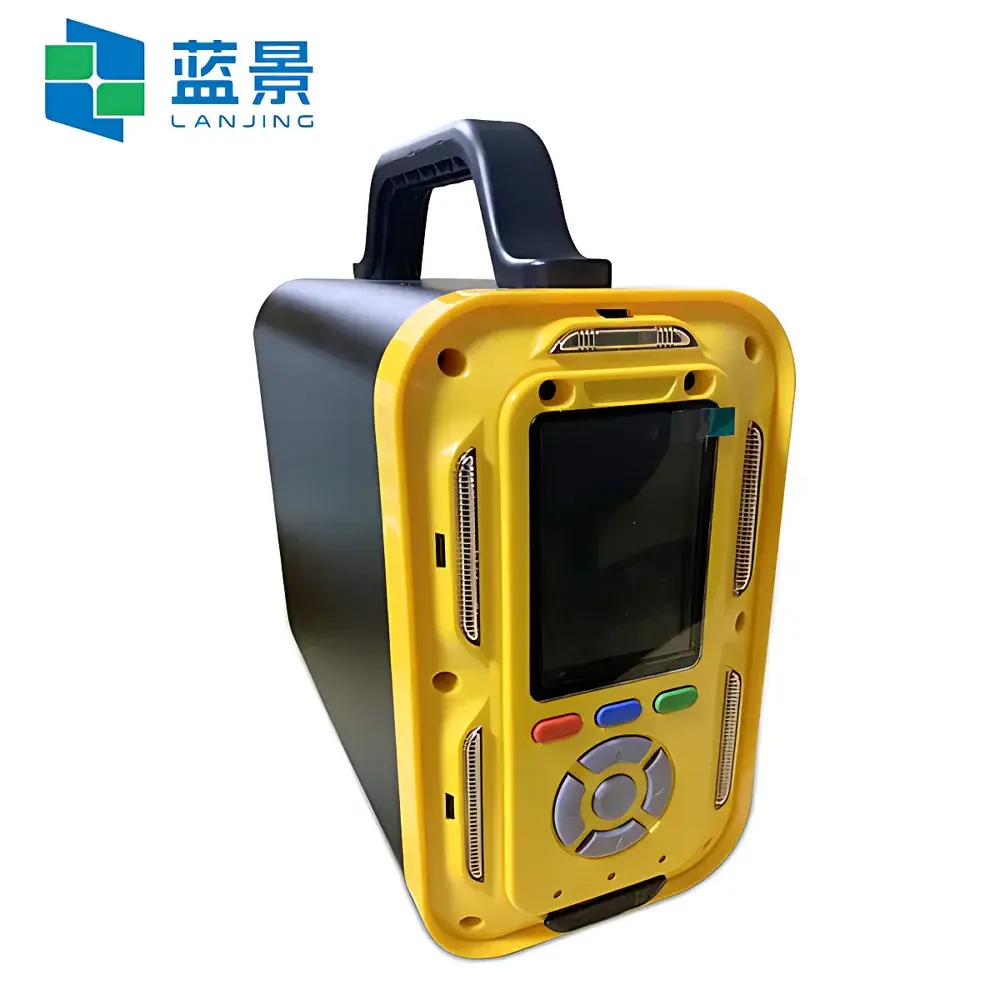

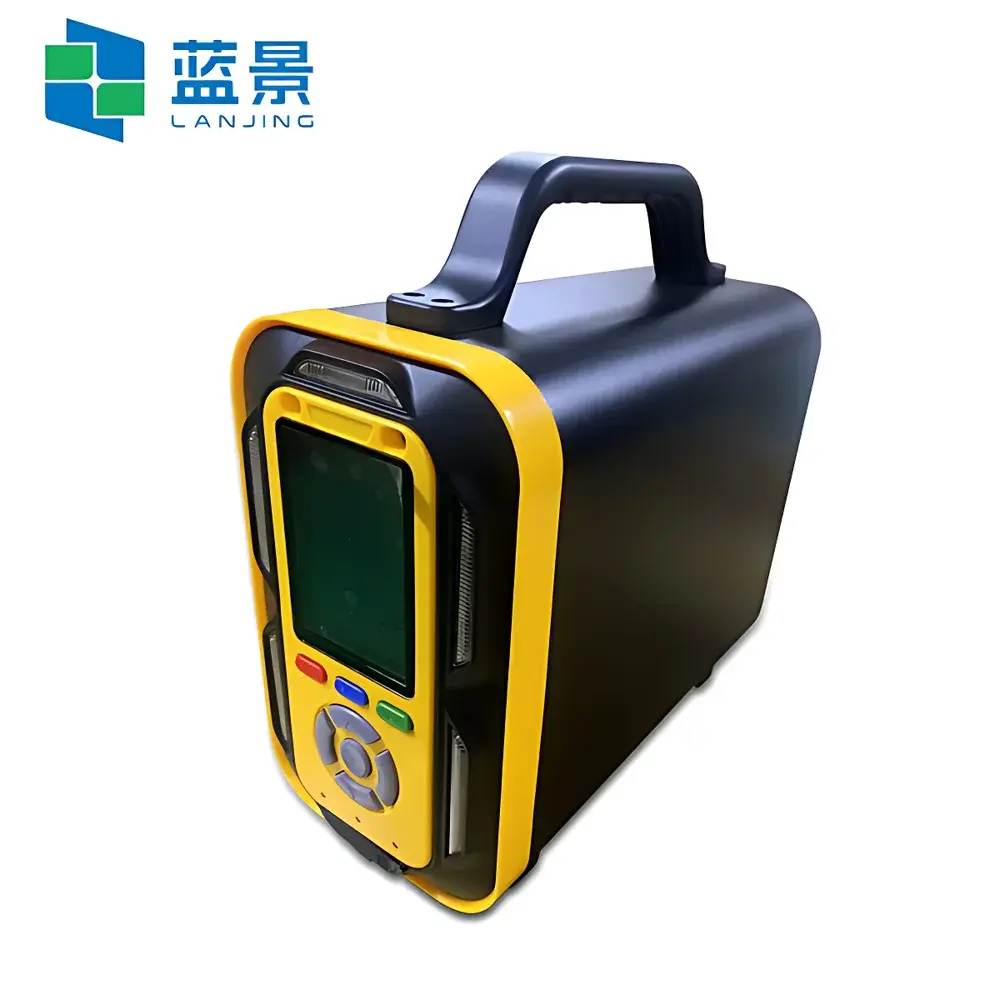

BlueJing LJ-JK90-CH2O Portable Multi-Gas Formaldehyde Analyzer with Integrated Humidity & Temperature Measurement

Overview

The BlueJing LJ-JK90-CH2O is a field-deployable, intrinsically safe portable formaldehyde analyzer engineered for quantitative measurement of formaldehyde (CH₂O) in ambient air, industrial workspaces, indoor environments, and confined spaces. It employs a high-selectivity electrochemical sensor specifically calibrated for formaldehyde detection—providing stable baseline response, low cross-sensitivity to common interferents (e.g., CO, NO₂, VOCs), and compliance with ISO 16000-23 (indoor air—determination of formaldehyde—active sampling followed by electrochemical analysis). The instrument integrates real-time temperature and relative humidity monitoring using a factory-calibrated capacitive digital sensor (accuracy ±0.5 °C, ±3% RH), enabling automatic thermal compensation of sensor output to maintain measurement integrity across wide environmental conditions (−40 °C to +70 °C operating range).

Key Features

• Intrinsically safe design certified to Ex ia II CT6, suitable for Zone 0/1 hazardous areas in petrochemical, pharmaceutical, and wastewater treatment facilities.
• IP66-rated enclosure with integrated hydrophobic dust/water filter, protecting internal sensors from particulate ingress and condensation during outdoor or high-humidity operation.
• Built-in diaphragm sampling pump (800 mL/min) supports extended-distance sampling up to 10 meters via flexible PTFE tubing; compatible with both positive-pressure (up to +2 bar) and negative-pressure (down to −0.3 bar) gas streams without calibration drift.
• Configurable multi-range detection: user-selectable full-scale ranges from 0–100 ppm to 0–50,000 ppm or 0–20% Vol, with resolution as fine as 0.001 ppm in low-concentration modes (0–10 ppm range).

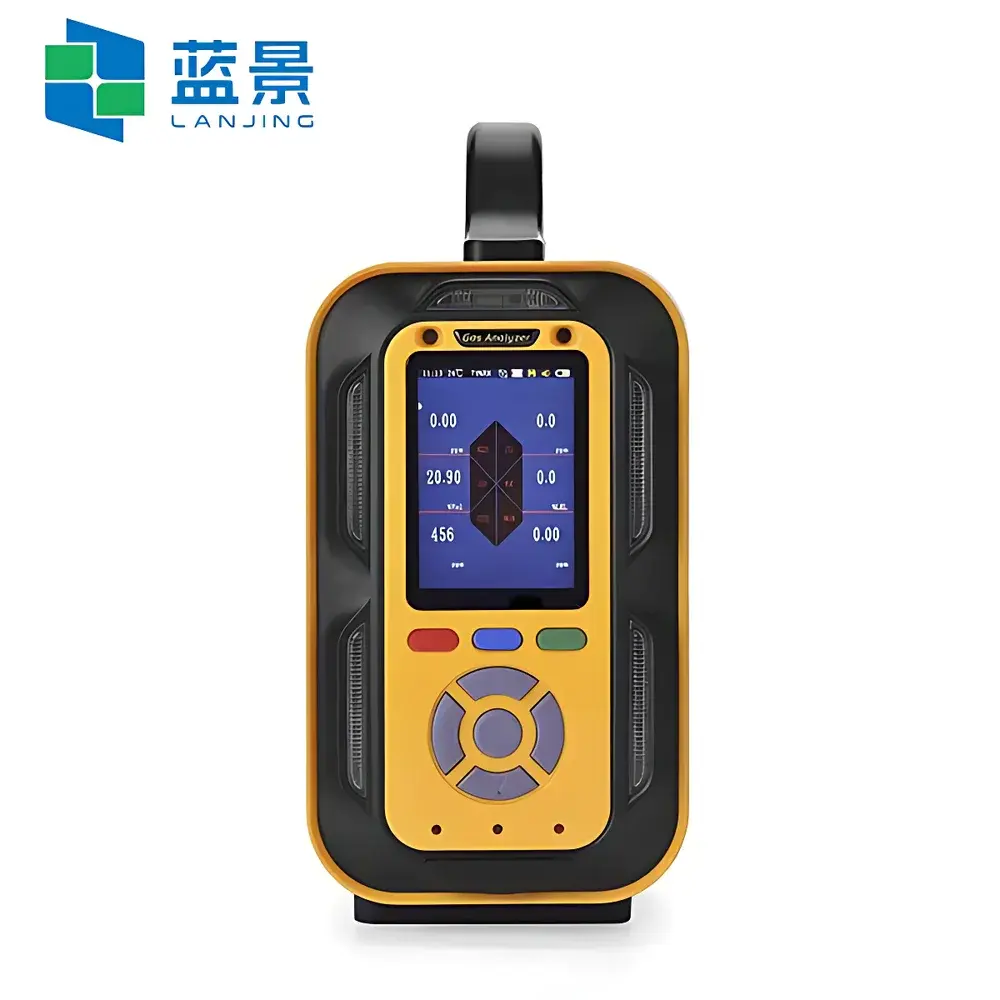

• Real-time dual-parameter display on 3.5″ high-resolution color LCD: simultaneous visualization of CH₂O concentration, temperature, humidity, battery status, alarm flags, and data logging indicators.
• Comprehensive data management architecture: standard 100,000-point internal memory with timestamped entries; optional export via USB 2.0, RS232 serial, or infrared interface; free PC-based software supports CSV export, trend plotting, statistical summary (min/max/avg), and GLP-compliant audit trail generation.
• Multi-level alarm system: programmable low/high/interval/weighted-average thresholds with audible (85 dB @ 30 cm), visual (flashing LED), and vibratory alerts; alarm history is automatically logged with timestamps and trigger values.
• Intelligent power management: 10,000 mAh Li-polymer battery enables >16 hours continuous operation at 1 Hz sampling; supports hot-swap USB charging from power banks or laptop ports with overvoltage/overcurrent/thermal protection.

Sample Compatibility & Compliance

The LJ-JK90-CH2O is validated for formaldehyde measurement in gaseous matrices including ambient air, HVAC ducts, cleanroom exhaust, laboratory fume hoods, and industrial process vents. Its electrochemical sensor demonstrates minimal interference from methanol, acetaldehyde, and low-molecular-weight aldehydes under typical indoor and occupational exposure conditions. The device meets EN 50104 (electrochemical gas detectors), IEC 61508 SIL2 functional safety requirements (for standalone use), and aligns with OSHA 29 CFR 1910.1048 and ACGIH TLV® guidelines for formaldehyde exposure monitoring. Optional high-temperature sampling accessories (e.g., cooled probe with ceramic filtration) extend applicability to flue gas streams up to 1300 °C after dilution and conditioning.

Software & Data Management

BlueJing’s proprietary PC software (Windows/macOS compatible) provides secure, traceable data handling compliant with FDA 21 CFR Part 11 Annex 11 principles. Features include electronic signature support, user-access-level permissions (admin/operator), immutable audit logs for calibration events and configuration changes, and automated report generation (PDF/Excel) with embedded metadata (instrument ID, operator ID, location tag, environmental conditions). Data files are cryptographically hashed to ensure integrity; exported datasets include raw sensor voltage, compensated concentration, temperature/humidity readings, and GPS coordinates (when paired with optional Bluetooth GNSS module). Firmware updates are delivered via signed binary packages to prevent unauthorized modification.

Applications

• Indoor Air Quality (IAQ) assessment in schools, hospitals, and residential buildings post-renovation or furniture installation.
• OEL (Occupational Exposure Limit) verification in wood-processing plants, textile dyeing facilities, and resin manufacturing lines.
• Regulatory compliance testing for LEED IEQ Credit 4.3 (low-emitting materials) and ISO 16000-23 accredited laboratories.
• Emergency response screening during chemical spills or fire investigations involving formaldehyde-containing materials.
• Validation of air purification systems (e.g., photocatalytic oxidation, activated carbon filters) through pre- and post-treatment concentration profiling.
• Field calibration verification of fixed-site formaldehyde monitors using NIST-traceable span gas challenges.

FAQ

What formaldehyde detection principle does the LJ-JK90-CH2O employ?
It uses a dedicated electrochemical sensor with a three-electrode configuration optimized for CH₂O selectivity, minimizing cross-reactivity with CO, NO_x, and common VOCs.
Is the instrument suitable for use in explosive atmospheres?
Yes—certified to Ex ia II CT6 intrinsic safety standard, permitting deployment in Zone 0 gas hazardous areas without additional barriers.
Can the device measure formaldehyde in high-humidity environments?
Yes—the integrated capacitive humidity sensor enables real-time thermal compensation, and the IP66-rated housing with hydrophobic inlet filter prevents condensation-related drift.
How is data traceability ensured for regulatory reporting?
The onboard logging system records each measurement with UTC timestamp, sensor ID, battery voltage, temperature, and humidity; PC software enforces 21 CFR Part 11–compliant audit trails and electronic signatures.
What maintenance intervals are recommended?
Zero calibration every 30 days; span calibration with certified 10 ppm CH₂O gas every 90 days; sensor replacement every 36 months under normal operating conditions.
