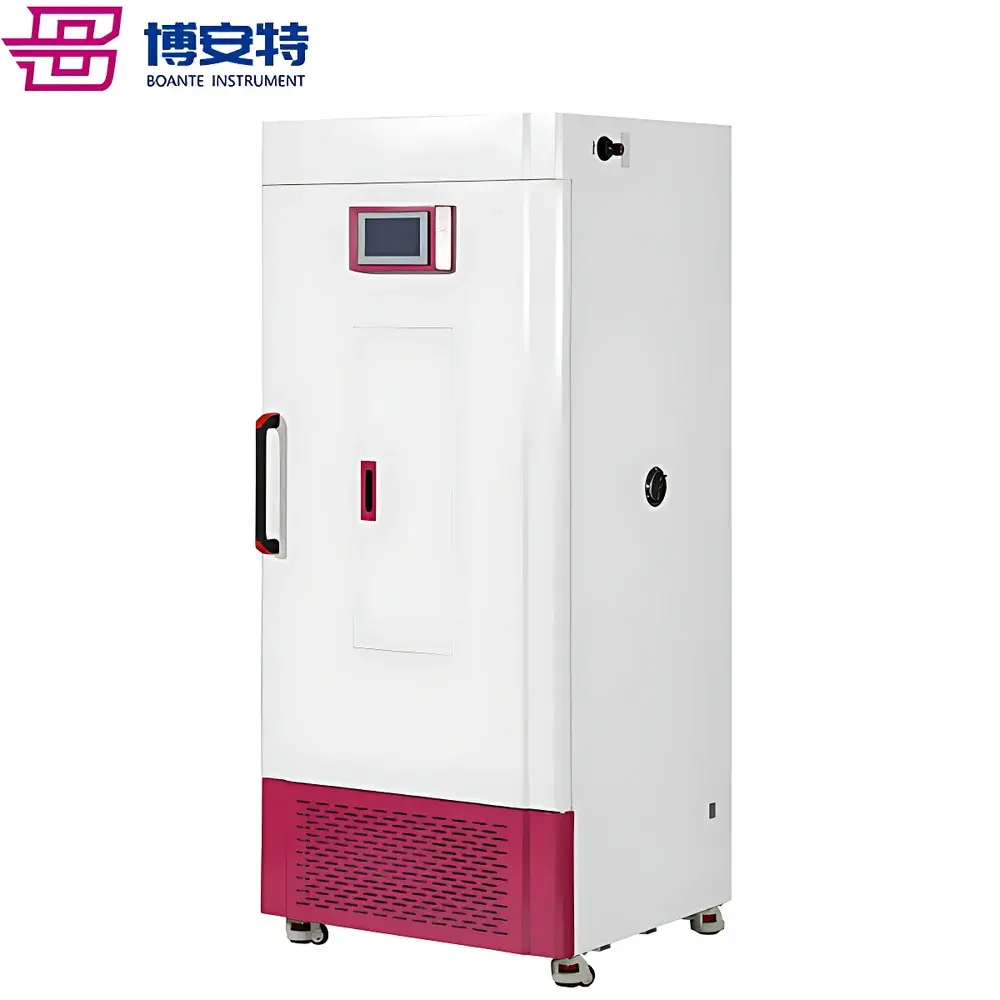

Boante BAT-GZ Series Top-Mounted LED Dimmable Plant Growth Incubator

Overview

The Boante BAT-GZ Series Top-Mounted LED Dimmable Plant Growth Incubator is an engineered environmental chamber designed for precise, reproducible photobiological experimentation under controlled temperature and light conditions. Unlike conventional incubators with fixed-intensity fluorescent or incandescent lighting, the BAT-GZ integrates a top-mounted, horizontally oriented LED illumination system featuring continuous (infinite) dimming capability across 0–600 μmol/m²/s photosynthetic photon flux density (PPFD). This enables rigorous simulation of diurnal cycles, spectral gradients, and light-stress regimes—critical for plant physiology, algal culture, seed germination studies, and photomorphogenesis research. The chamber operates within a stable thermal range of 5–50 °C, maintained via adaptive three-stage fuzzy logic PID control with thermal bypass refrigeration architecture, minimizing compressor cycling and enhancing long-term system reliability. As a humidity-free platform (GZ designation), it eliminates condensation-related variability and simplifies calibration traceability in applications where moisture control introduces unwanted confounding variables.

Key Features

• Top-mounted LED lighting system with independent per-shelf intensity control—ensures zero optical crosstalk between layers and eliminates shadowing effects common in side-illuminated designs.
• BAT200PG intelligent controller with 7-inch capacitive touchscreen interface, supporting real-time Beijing time-synchronized 24-segment programming for temperature, light intensity, and timing parameters.
• Adaptive fuzzy logic PID algorithm with thermal overshoot suppression and dynamic response tuning—delivers ±0.1 °C temperature stability and ±1 °C uniformity across each shelf plane.
• Four-tier hierarchical password management (Factory Administrator, User Administrator, Operator, Engineer) enforcing role-based access control in alignment with GLP/GMP documentation requirements.
• Internal non-volatile memory retaining ≥5 years of timestamped operational logs—including setpoints, actual values, alarm events, and user actions—with automatic power-fail recovery and clock memory retention.
• Thermal bypass refrigeration circuit enabling uninterrupted operation without compressor restart delays—reducing mechanical wear and improving thermal continuity during extended experiments.
• Modular shelf configuration with adjustable-height LED carrier plates—allowing customizable vertical spacing to accommodate flasks, petri dishes, growth trays, or custom vessels.

Sample Compatibility & Compliance

The BAT-GZ series accommodates standard and oversized biological sample formats across its 260–2500 L capacity range, with internal dimensions optimized for ANSI/SLAS-compliant microplate stacks, Erlenmeyer flasks (up to 5 L), and multi-tier plant growth racks. Its humidity-free design complies with ISO 17025 clause 5.9.1 for environmental condition monitoring in accredited testing laboratories where RH-induced measurement drift must be excluded. The controller’s audit-ready data logging supports traceability per FDA 21 CFR Part 11 Annex A guidelines, including electronic signature capability (when paired with optional USB export or RS485 integration), event-driven alarm logging, and immutable session timestamps. All safety interlocks—including dual redundant overtemperature cutoffs (electronic + mechanical)—meet IEC 61010-1:2010 requirements for laboratory equipment.

Software & Data Management

Data acquisition and archival are handled natively by the BAT200PG controller firmware, which records temperature, light output status, program phase, and fault codes at user-configurable intervals (1 min to 24 h resolution). Raw logs export via USB flash drive in CSV format compatible with MATLAB, Python pandas, and LIMS platforms. Optional RS485 serial interface enables integration with SCADA systems or centralized lab monitoring servers using Modbus RTU protocol. For remote oversight, the incubator supports secure cloud connectivity through Boante’s certified IoT gateway (sold separately), enabling real-time dashboard visualization and push notifications via encrypted TLS 1.2 channels. All firmware updates undergo cryptographic signature verification to prevent unauthorized modification.

Applications

• Controlled-environment plant phenotyping under defined photoperiods and PPFD gradients.
• Algal biomass production optimization with tunable blue/red/far-red LED spectra (when configured with optional multi-channel LED modules).
• Seed dormancy and germination assays requiring precise thermal ramping and light-triggered activation.
• Microbial culture studies where humidity-induced condensation would compromise sterility or interfere with optical density measurements.
• Pre-acclimation protocols for tissue-cultured explants prior to greenhouse transfer.
• Long-duration circadian rhythm investigations in model organisms (e.g., Arabidopsis thaliana, Chlamydomonas reinhardtii) requiring uninterrupted environmental fidelity.

FAQ

Does the BAT-GZ series support humidity control?
No—the GZ designation explicitly indicates a humidity-free configuration. For integrated RH management, select the BAT-QH series.
What is the maximum PPFD output, and how is it calibrated?
The system delivers up to 600 μmol/m²/s at 100 mm distance from the LED plane, traceable to NIST-calibrated quantum sensors. Calibration certificates are available upon request.
Can multiple incubators be synchronized for large-scale experiments?
Yes—via RS485 daisy-chaining and master-slave configuration using Modbus address assignment, enabling coordinated program execution across up to 32 units.
Is the controller compliant with FDA 21 CFR Part 11?
The firmware implements core technical controls (audit trail, electronic signatures, role-based access); full Part 11 validation requires site-specific IQ/OQ/PQ documentation and third-party verification.
What maintenance is required for the LED lighting system?
LED modules are rated for 50,000 hours L70 lifetime; no routine replacement is needed within typical academic or industrial service intervals. Optical surfaces should be cleaned quarterly with isopropyl alcohol and lint-free wipes.
