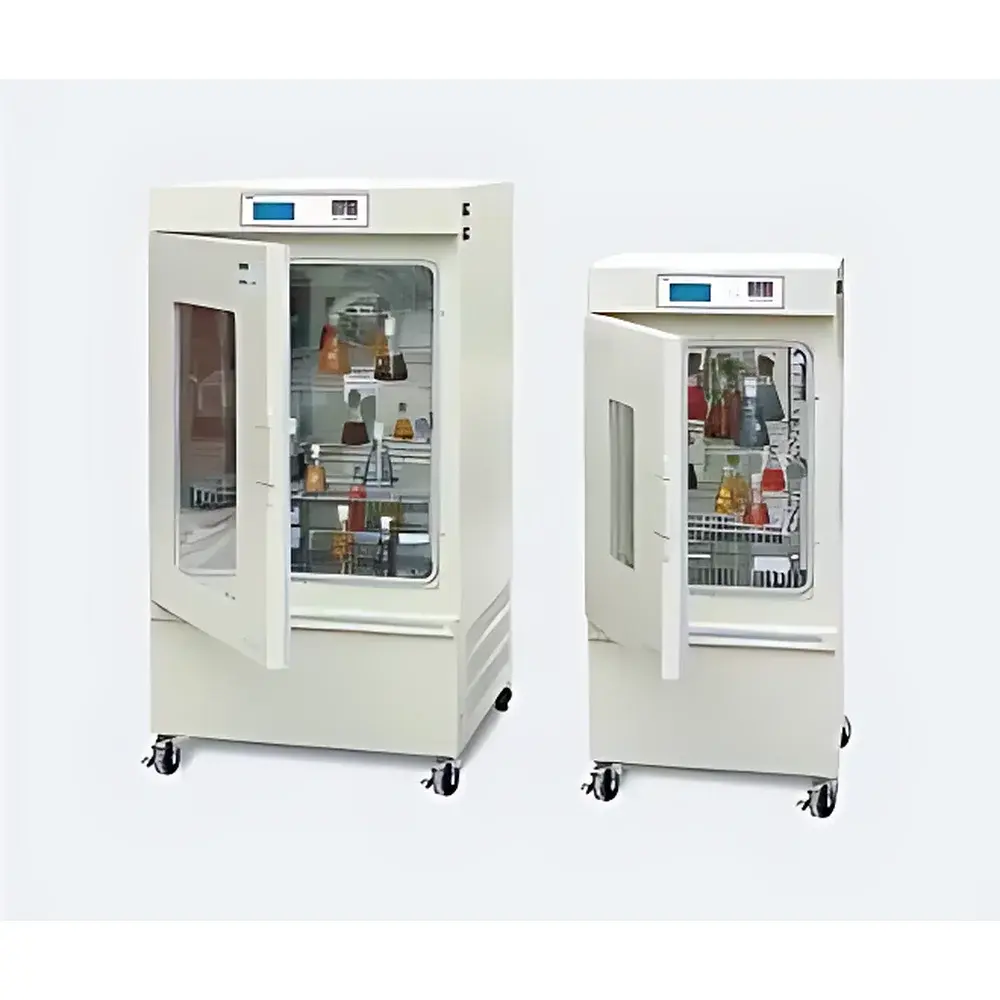

Boante BAT-Series Precision Environmental Chamber (Humidity & Temperature Controlled)

Overview

The Boante BAT-Series Precision Environmental Chamber is an engineered solution for laboratory and industrial applications requiring tightly controlled temperature and relative humidity conditions over extended operational cycles. Designed according to fundamental principles of thermodynamic equilibrium and psychrometric control, the chamber employs a dual-loop feedback architecture—separate proportional-integral-derivative (PID) controllers for temperature and humidity—to maintain stable setpoints under dynamic load conditions. Its core functionality relies on precise regulation of refrigerant flow via a DC inverter compressor, coupled with a calibrated humidification system (typically steam or ultrasonic type) and dehumidification through cold surface condensation. The chamber’s internal environment is actively homogenized using an axial-flow micro-circulation fan array, minimizing stratification and ensuring uniform exposure across all sample positions—a critical requirement for stability testing, accelerated aging studies, and biological incubation protocols compliant with ICH Q1A(R2), ISO 14644-1, and ASTM E145.

Key Features

• 7-inch high-resolution capacitive touchscreen interface with real-time graphical display of temperature, humidity, elapsed time, and setpoint deviation
• Adaptive PID control algorithm dynamically adjusts gain parameters to suppress overshoot and accelerate recovery after door opening or load changes
• PT100 Class A temperature sensors mounted at multiple strategic locations ensure rapid response (<2 s for 63% step change) and minimal self-heating error (<0.05 °C)
• Seamless mirror-finish 304 stainless steel interior with radius-corner construction eliminates crevices and facilitates cleaning per cGMP Annex 1 and USP guidelines
• DC inverter-driven refrigeration system enables continuous modulation of cooling capacity—eliminating on/off cycling and enhancing long-term thermal stability
• Dual-glass observation door with low-emissivity inner pane minimizes radiant heat transfer while preserving visual access without compromising environmental integrity
• Adjustable stainless steel shelving system supports customizable load configurations; shelves are removable and repositionable without tools
• Comprehensive safety architecture includes independent thermal cutouts, pressure switches, motor thermal protectors, and electronic overload detection—all logged in non-volatile memory

Sample Compatibility & Compliance

The BAT-Series accommodates a broad spectrum of sample types—including pharmaceutical dosage forms, polymer films, electronic components, seed stocks, and microbiological cultures—without cross-contamination risk due to its sealed, corrosion-resistant chamber design. All models comply with electromagnetic compatibility (EMC) requirements per EN 61326-1 and electrical safety standards per EN 61010-1. For regulated environments, optional audit-trail-enabled firmware supports 21 CFR Part 11 compliance when paired with validated software platforms. Humidity control performance meets ISO 8573-1 Class 4 specifications for compressed air dew point stability, and temperature uniformity data can be documented to satisfy GLP and GMP validation protocols (IQ/OQ/PQ).

Software & Data Management

Standard configuration includes embedded logging of temperature and humidity values at user-defined intervals (1 s to 60 min), stored internally for up to 30 days. Optional RS485 Modbus RTU or USB CDC interfaces allow integration with SCADA systems, LIMS, or custom Python-based acquisition scripts. Thermal printer output provides immediate hardcopy records traceable to NIST-calibrated references. When connected to Boante’s optional CloudLink Gateway, chambers support remote status monitoring, alarm notification via email/SMS, and secure TLS-encrypted data upload to time-stamped cloud repositories—enabling centralized fleet management across multi-site laboratories.

Applications

• Stability testing of APIs and finished pharmaceutical products per ICH Q5C and Q1A(R2)
• Accelerated aging of packaging materials and medical devices per ASTM F1980 and ISO 11607
• Conditioning of hygroscopic samples prior to mechanical or spectroscopic analysis
• Environmental stress screening (ESS) of printed circuit boards and automotive electronics
• Cultivation of mesophilic fungi and bacteria requiring strict RH control beyond standard CO₂ incubators
• Calibration and verification of portable hygrometers and thermometers against reference-grade standards

FAQ

What is the minimum achievable humidity setpoint at 4 °C?
At the lower temperature limit (4 °C), the practical humidity range narrows due to dew point constraints; operation below ~55 %RH is not recommended without supplemental dehumidification.
Can the chamber maintain setpoints during power interruption?
Equipped with non-volatile memory, the unit retains all programmed parameters and resumes operation at the last valid setpoint upon power restoration—but does not retain runtime or alarm history unless external logging is active.
Is validation documentation available for GxP environments?
Yes—Boante provides IQ/OQ protocol templates, calibration certificates traceable to national metrology institutes, and sensor uncertainty budgets upon request for qualified users.
How frequently should preventive maintenance be performed?
We recommend quarterly inspection of condensate drainage pathways, annual verification of PT100 sensor accuracy, and biannual refrigerant charge assessment by certified HVAC-R technicians.
Does the chamber support ramp-and-soak temperature profiles?
No—the standard firmware supports only constant setpoint or timed ON/OFF cycles; multi-segment programmable profiles require optional upgrade firmware (BAT-PROG module).
