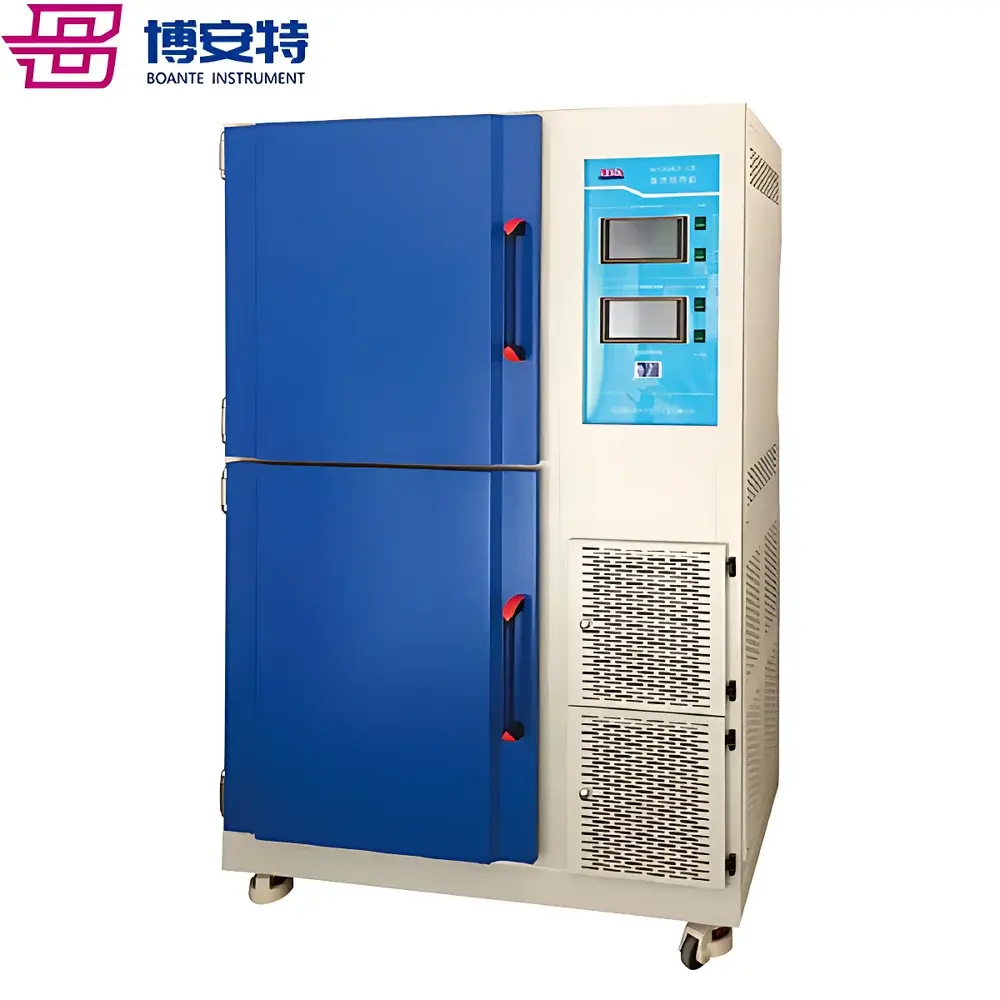

Boante BAT600/800-BC Algal Cultivation Incubator

Overview

The Boante BAT600/800-BC Algal Cultivation Incubator is a purpose-engineered environmental control system designed for reproducible, long-term cultivation of microalgae and photosynthetic organisms under tightly regulated temperature, light, and gas conditions. Unlike standard general-purpose incubators, this platform integrates photobioreactor-grade illumination control, mechanical agitation, and multi-point air sampling into a single robust architecture—enabling precise simulation of diurnal cycles, spectral tuning, and scalable culture monitoring. Its core operational principle combines PID-regulated thermoelectric and compressor-based cooling with adaptive fuzzy logic to maintain thermal stability across large internal volumes, while the top-mounted, layer-isolated LED lighting system delivers uniform photosynthetically active radiation (PAR) from 0 to 400 μmol/m²/s (extendable to 600–800 μmol/m²/s with optional high-output modules). The unit operates within a biologically relevant temperature envelope of 5–45 °C, supporting both mesophilic and psychrotolerant algal strains—including Chlamydomonas reinhardtii, Dunaliella salina, and Nannochloropsis oceanica—under GLP-aligned experimental conditions.

Key Features

• 24-segment programmable controller (BAT200PG OS) with real-time clock synchronization, enabling independent day/night temperature and light intensity profiles per shelf
• Independent per-shelf illumination control: no optical crosstalk between layers; PAR output adjustable 0–100% in continuous mode
• Integrated orbital shaker (0–200 rpm, Φ26 mm amplitude) on bottom tier—compatible with Erlenmeyer flasks, baffled bottles, and custom bioreactor vessels via spring clamps or adhesive mounting plates
• Three-channel programmable air sampling system with individually calibrated mass flow control (0.1–5 L/min range), supporting offline GC/MS or online dissolved O₂/CO₂ monitoring
• Hot-gas bypass refrigeration architecture ensures continuous cooling without compressor cycling—reducing thermal stress on cultures and extending system service life
• Frost-free solenoid-valve defrost eliminates temperature excursions during maintenance cycles, preserving culture viability during extended runs
• Four-level hierarchical access control (Factory Admin → Engineer → User Admin → Operator) enforces procedural integrity and audit readiness
• Onboard data logger retains timestamped temperature, light intensity, shake speed, and alarm history for ≥5 years without external storage

Sample Compatibility & Compliance

The BAT600/800-BC accommodates standard laboratory culture formats including 250–2000 mL glass and PETG vessels, stacked multiwell plates (6–24-well), and custom flat-panel photobioreactors up to 15 cm depth. Its dual-zone thermal design allows simultaneous comparative studies—for example, evaluating nitrogen limitation responses across identical Scenedesmus obliquus cultures held at 22 °C (control) vs. 30 °C (stress) with matched PAR exposure. From a regulatory standpoint, the system supports documentation workflows compliant with ISO 17025 (for accredited labs), ASTM D5540 (algal growth rate testing), and USP <1119> (environmental monitoring in pharmaceutical microbiology). Optional CO₂ feedback control and FDA 21 CFR Part 11–compliant software modules (with electronic signatures and audit trail) are available for GMP-aligned production-scale strain development.

Software & Data Management

The BAT200PG operating system provides native CSV export of all logged parameters via USB 2.0 interface. All configuration changes—including program edits, setpoint overrides, and user logins—are time-stamped and retained in non-volatile memory with immutable sequence numbering. Remote monitoring is achievable via optional Ethernet/Wi-Fi module (IEEE 802.3/802.11ac), enabling integration into centralized lab infrastructure management platforms (e.g., LabVantage, Thermo Fisher SampleManager). Audit trail functionality records operator ID, action type, timestamp, and pre-/post-value for every critical parameter modification—meeting GLP requirements for traceability in regulatory submissions. Firmware updates are delivered as signed binary packages verified against SHA-256 checksums to prevent unauthorized modifications.

Applications

• High-throughput screening of algal mutants under controlled photoperiods and thermal gradients
• Optimization of lipid accumulation in oleaginous species via staged light-intensity ramping
• Long-term stability testing of axenic cultures under simulated seasonal temperature shifts
• Co-culture experiments involving algae-bacteria consortia with differential aeration requirements per shelf
• Calibration and validation of handheld PAR meters using spatially mapped irradiance profiles
• Pre-acclimation protocols for outdoor photobioreactor inoculation

FAQ

Can the incubator maintain stable temperature during extended power interruptions?
Yes—the controller retains all program settings and runtime state in non-volatile memory. Upon power restoration, it resumes operation from the exact point of interruption, including active segment timing and setpoints.
Is the lighting spectrum customizable beyond white LEDs?
Standard units ship with full-spectrum white LEDs (400–700 nm); optional narrowband modules (450 nm blue, 660 nm red, 730 nm far-red) are available for phytochrome-mediated developmental studies.
How is airflow managed to prevent cross-contamination between shelves?
Each shelf operates as an isolated air volume. Recirculation is confined within individual zones, and the three independent sampling ports draw from designated shelf-level manifolds—eliminating inter-layer aerosol transfer.
What calibration certificates are provided with shipment?
Units include NIST-traceable factory calibration reports for temperature sensors (±0.1 °C accuracy at 25 °C) and PAR sensors (±3% deviation across 400–700 nm), valid for 12 months from date of manufacture.
Does the system support third-party automation integration?
Yes—RS-485 Modbus RTU and TCP/IP API interfaces are available for integration with LIMS, SCADA, or robotic liquid handling platforms. Custom protocol mapping services are offered under Boante’s OEM support program.
