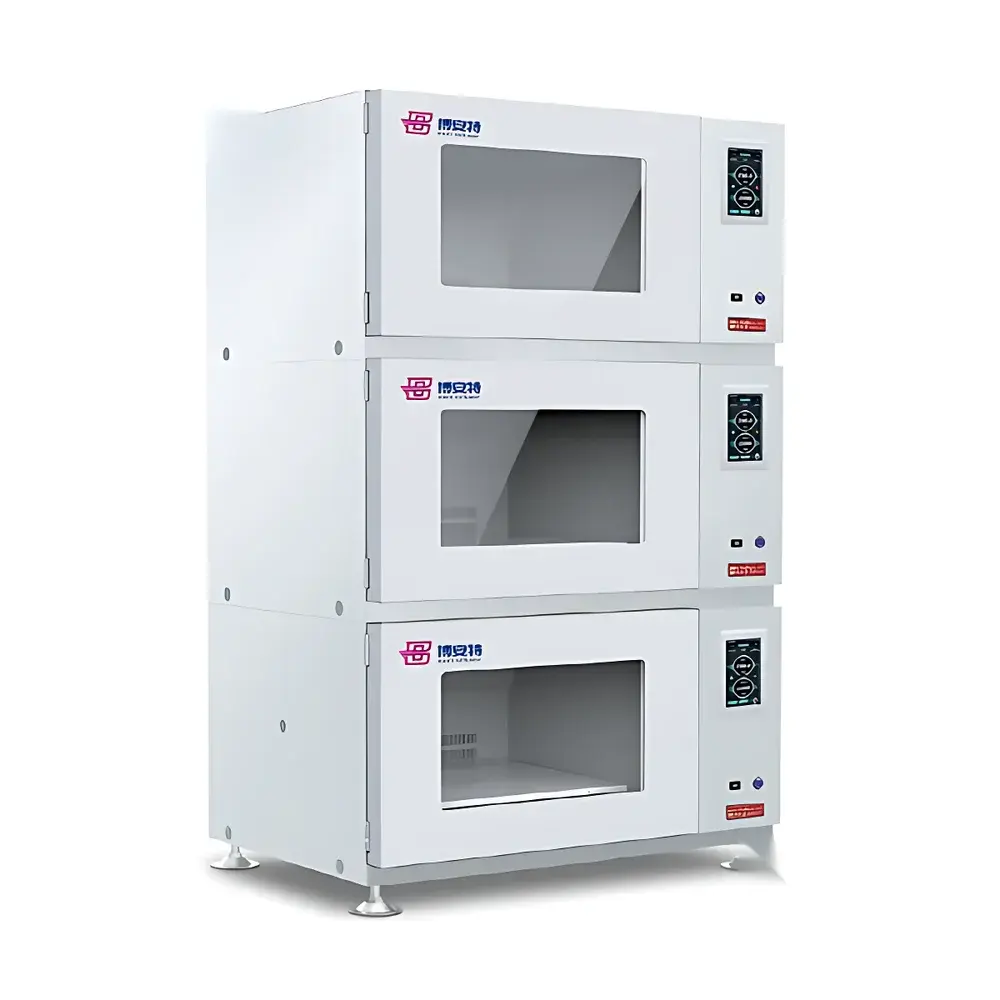

Boante IBS-830B Modular Intelligent Full-Range Shaking Incubator

Overview

The Boante IBS-830B Modular Intelligent Full-Range Shaking Incubator is an engineered platform for simultaneous temperature-controlled incubation and orbital shaking—designed specifically for aerobic microbial culture, cell suspension expansion, protein expression, and fermentation studies under controlled CO₂ environments. It operates on the principle of forced-air convection combined with precision orbital agitation (±50 mm amplitude), enabling uniform heat distribution and consistent oxygen transfer across heterogeneous liquid cultures. Unlike fixed-configuration units, its modular architecture allows independent stacking of up to three fully functional layers—each equipped with isolated thermal control, independent CO₂ regulation, and programmable shaking parameters—thereby optimizing laboratory floor space while maintaining experimental autonomy between tiers. The system meets fundamental requirements for GLP-compliant bioprocess development and adheres to ISO 13485-aligned manufacturing practices for medical device-related biological testing.

Key Features

• Modular three-tier design with per-layer independent control of temperature (4–60 °C), CO₂ concentration (0–20 %), shaking frequency (0–300 rpm), and timing—enabling parallel multi-condition experiments without cross-interference.
• High-efficiency DC motor drive coupled with a wear-resistant, thermally compensated transmission shaft—ensuring stable low-speed torque delivery (≥150 rpm at full load) and minimal thermal drift during extended operation.
• OLED touchscreen interface with PID microprocessor control, supporting both fixed-setpoint and advanced 5-program × 30-segment scheduling—including ramp/soak profiles for temperature, CO₂, speed, and illumination intensity.
• Integrated data logging system records temperature, CO₂ level, shaking speed, humidity (if equipped), and runtime at one-minute intervals; stores up to 90 days of timestamped values with automatic curve generation and USB-exportable CSV files.
• Intelligent frost management system with user-configurable defrost duration (1–89 min) and interval (30–600 min), preventing evaporator icing during prolonged sub-ambient operation (down to 4 °C).
• Enhanced safety architecture: automatic over-temperature cutoff, door-open pause function with adjustable deceleration profile, password-protected parameter lockout, and real-time fault diagnostics with retrievable alarm history.

Sample Compatibility & Compliance

The IBS-830B accommodates standard microbiological and cell culture vessels—including Erlenmeyer flasks (250–2000 mL), baffled bottles, and custom bioreactor bags—via interchangeable clamping systems (standard triple-jaw polymer fixtures; optional stainless-steel or autoclavable variants). Its mirror-polished 304 stainless-steel chamber with radiused corners minimizes microbial adhesion and supports routine cleaning with ethanol or hydrogen peroxide vapor. The unit complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and incorporates non-ozone-generating UV-C lamps (254 nm) for periodic chamber decontamination. While not certified for ISO Class 5 cleanroom integration, it satisfies core environmental controls required for USP validation of microbiological growth media and ASTM D2974-22 for aerobic biodegradation assays.

Software & Data Management

Data integrity is maintained through time-stamped internal logging compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). All recorded parameters—including setpoints, deviations, and operator-initiated events—are stored in non-volatile memory with tamper-evident timestamps. USB export functionality enables offline analysis in Excel or statistical platforms such as JMP or GraphPad Prism. Optional firmware updates support future regulatory alignment with FDA 21 CFR Part 11 requirements, including electronic signature capability and audit trail configuration (pending site-specific validation).

Applications

• Aerobic bacterial and yeast cultivation for antibiotic susceptibility testing (AST) and metabolic profiling.
• Suspension-adapted mammalian cell line expansion prior to transfection or bioreactor inoculation.
• Recombinant protein expression in E. coli BL21(DE3) using autoinduction media under controlled dissolved O₂ simulation.
• Environmental microbiology studies requiring long-term incubation with intermittent shaking (e.g., soil respiration assays per ISO 17402).
• Stability testing of biologics under accelerated conditions (ICH Q1A(R2)) when paired with humidity control modules.

FAQ

Can the IBS-830B operate continuously at 4 °C with CO₂ control enabled?
Yes—the system utilizes an environmentally compliant R134a refrigerant and adaptive defrost logic to sustain stable sub-ambient temperatures while maintaining CO₂ accuracy within ±0.1 % across the full 0–20 % range.
Is remote monitoring supported via Ethernet or Wi-Fi?
No native network interface is included; however, third-party RS-485-to-Ethernet gateways may be integrated for SCADA-level supervision, subject to local IT security policy approval.
What validation documentation is provided with the instrument?
Factory calibration certificates for temperature and CO₂ sensors are supplied, along with IQ/OQ templates aligned with ISO/IEC 17025 guidance for laboratory equipment qualification.
Are replacement parts—such as compressors or touchscreens—readily available outside China?
Boante maintains authorized service partners in Germany, Singapore, and Brazil; critical components carry minimum 24-month global warranty coverage and are stocked regionally for ≤72-hour dispatch.
Does the unit meet noise emission standards for open-lab environments?
Acoustic output is ≤58 dBA at 1 m distance under maximum load (300 rpm, 37 °C), conforming to ISO 7779 and EU Directive 2000/14/EC for laboratory-grade equipment.
