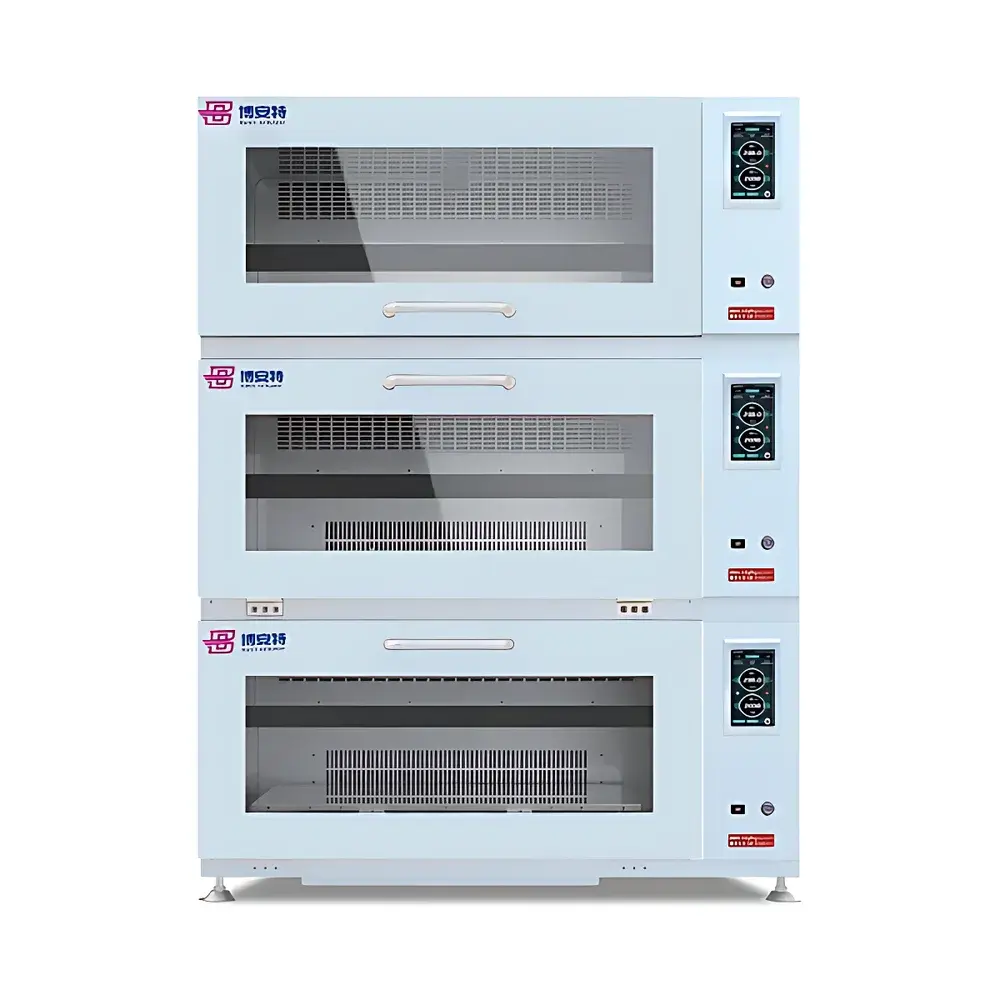

Boante IBS-930B Large Modular Intelligent Full-Temperature Shaking Incubator
| Brand | Boante |
|---|---|
| Origin | Hubei, China |
| Model | IBS-930B |
| Instrument Type | Temperature-Controlled Shaking Incubator |
| Drive System | DC Motor Drive |
| Orbit Diameter | φ50 mm (optional φ26 mm) |
| Temperature Range | 4–60 °C |
| Temperature Fluctuation | ±0.1 °C |
| Temperature Uniformity | ±1 °C |
| External Dimensions (3-Layer) | 1450 mm × 950 mm × 1800 mm |
| Shaking Frequency | 0–300 rpm |
| Frequency Accuracy | ±1 rpm |
| Temperature Resolution | 0.1 °C |
| Timer Range | 0–999.9 h |
| CO₂ Range | 0–20% |
| CO₂ Accuracy | ±0.1% |
| Max Capacity per Layer | 250 mL × 60 |
| Shelf Dimensions | 925 mm × 530 mm |
| Internal Dimensions per Layer | 1000 mm × 680 mm × 350 mm |
| Power Supply | AC 220 V, 50–60 Hz |
| Power Consumption | 1500 W |
| Weight (3-Layer) | 680 kg |
Overview
The Boante IBS-930B Large Modular Intelligent Full-Temperature Shaking Incubator is an engineered platform for scalable, reproducible microbial, cell, and fermentation culture under precisely controlled thermal, mechanical, and atmospheric conditions. Designed for high-throughput laboratories requiring flexible spatial configuration and long-term unattended operation, it integrates forced-air convection heating/cooling, DC-motor-driven orbital shaking, and optional CO₂ regulation within a modular three-layer architecture. Its core operational principle relies on PID-controlled thermal management coupled with low-inertia mechanical transmission to maintain stable temperature uniformity (±1 °C) and precise shaking frequency (0–300 rpm, ±1 rpm accuracy) across the full working range of 4–60 °C. The system supports both static incubation and dynamic suspension culture, making it suitable for applications ranging from aerobic bacterial growth and yeast propagation to mammalian suspension cell expansion and bioprocess optimization.
Key Features
- Modular three-layer stackable design with independent temperature control per layer—enables simultaneous multi-condition experiments while minimizing floor space occupancy.
- OLED touchscreen interface with user-configurable lock screen password, supporting both fixed-value operation and up to five programmable protocols—each comprising 30 editable segments for time-dependent ramping of temperature, shaking speed, CO₂ concentration, humidity, and illumination.
- High-efficiency refrigeration system using eco-friendly non-CFC compressors with intelligent defrost scheduling (defrost duration: 1–89 min; interval: 30–600 min), ensuring stable sub-ambient operation without ice accumulation or thermal shock.
- Orbital shaking mechanism featuring a self-aligning multi-axis drive train and thermally compensated shaft assembly—eliminates need for load balancing and delivers consistent motion profile across all vessel placements.
- Hygienic chamber construction: mirror-finish 304 stainless steel interior with radius-corner (R-corner) geometry, IPX4-rated wash-down capability at base, and electrostatically coated exterior for corrosion resistance and easy decontamination.
- Integrated data logging system records temperature, shaking speed, CO₂ level, humidity, and runtime at one-minute intervals for up to 90 days; exportable via USB in CSV format with auto-generated trend curves.
Sample Compatibility & Compliance
The IBS-930B accommodates standard laboratory vessels—including Erlenmeyer flasks (250–2800 mL), culture bottles, and custom bioreactor bags—via interchangeable clamping systems. Standard triple-jaw polymer fixtures ensure secure retention during high-speed agitation, while OEM夹具 customization is available for irregular or oversized containers. Chamber airflow is optimized for uniform gas exchange and minimal shear stress on sensitive cultures. The unit complies with general safety standards for laboratory equipment (IEC 61010-1) and supports GLP-aligned workflows through audit-trail-capable parameter logging, power-failure recovery, and configurable alarm thresholds for overtemperature, motor stall, CO₂ deviation, and door-open events. While not certified to ISO 13485 or FDA 21 CFR Part 11 out-of-the-box, its data integrity features—including timestamped, tamper-resistant logs and user-access controls—facilitate validation under GxP environments when deployed with appropriate SOPs.
Software & Data Management
The embedded microcontroller executes real-time closed-loop regulation using adaptive PID algorithms tuned for thermal inertia compensation and vibration damping. All operational parameters—including setpoints, ramp rates, dwell times, and alarm limits—are stored in non-volatile memory with battery-backed clock synchronization. Logged datasets include absolute timestamps, sensor readings, actuator states, and error codes, enabling retrospective analysis of environmental stability and process deviations. USB export functionality allows seamless integration into LIMS or ELN platforms. Optional Ethernet or RS-485 interfaces (available upon request) support remote monitoring and centralized fleet management in multi-unit installations.
Applications
- Aerobic cultivation of Escherichia coli, Bacillus subtilis, and other fast-growing prokaryotes under standardized shake-flask conditions (ASTM D5210, ISO 10707).
- Suspension culture of CHO and HEK293 cells for transient transfection and recombinant protein production.
- Fermentation process development and scale-down modeling for bioreactor qualification studies.
- Environmental microbiology assays requiring controlled oxygen transfer and temperature cycling (e.g., biodegradation kinetics per OECD 301 series).
- Pharmaceutical stability testing involving agitation-stressed formulations per ICH Q5C guidelines.
FAQ
Is the IBS-930B suitable for CO₂-sensitive mammalian cell culture?
Yes—the integrated infrared CO₂ sensor and proportional solenoid valve enable stable regulation between 0–20% with ±0.1% accuracy, meeting requirements for hybridoma and stem cell expansion.
Can individual layers be operated independently?
Yes—each layer has dedicated temperature, shaking, and CO₂ control circuits, allowing concurrent experiments at different setpoints without cross-interference.
What maintenance is required for long-term reliability?
Routine cleaning of air filters and chamber surfaces is recommended monthly; compressor oil and refrigerant levels are factory-sealed and require no scheduled servicing within the first 10,000 operating hours.
Does the system support 21 CFR Part 11 compliance?
The base configuration provides foundational elements (audit trail, electronic signatures via password protection, data immutability), but formal validation requires site-specific IQ/OQ/PQ documentation and third-party verification.
Are custom夹具 designs available for non-standard vessels?
Yes—Boante offers engineering consultation and rapid prototyping of application-specific clamping solutions, subject to minimum order quantities and NDA execution.
