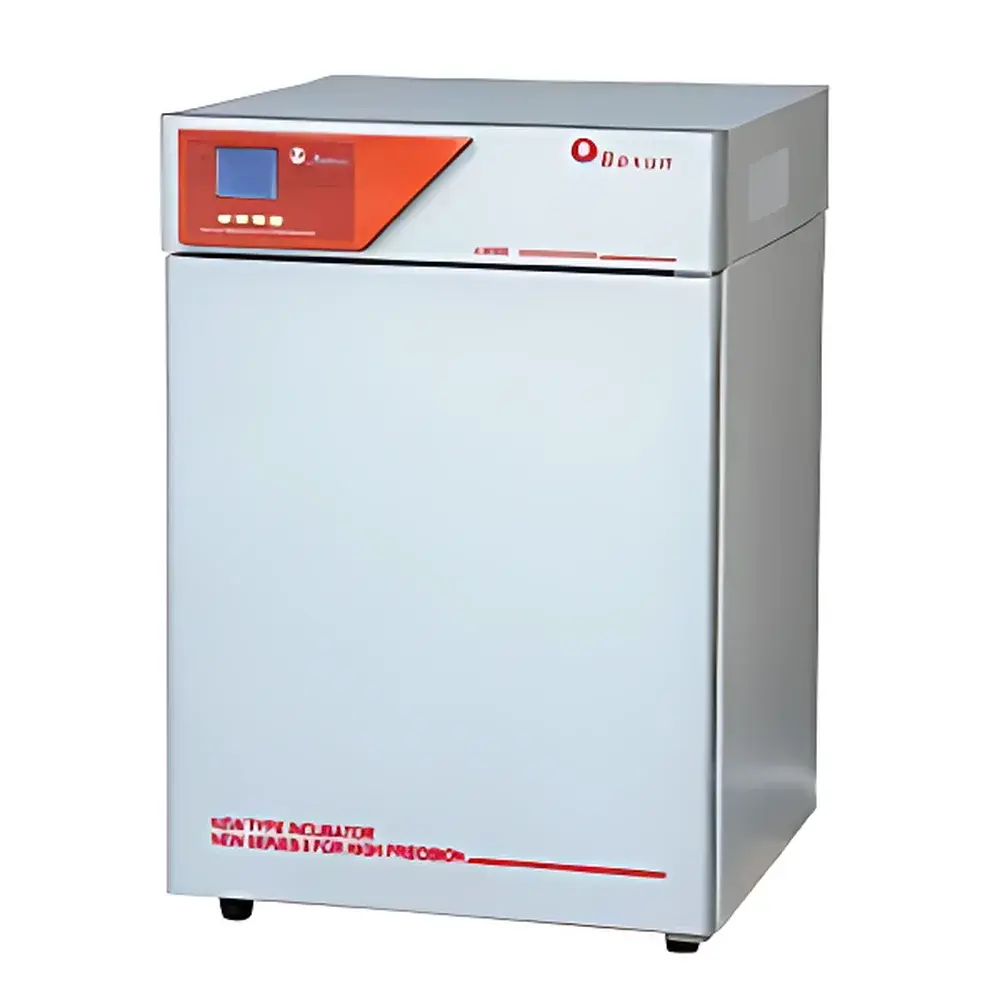

BOXUN BG-270 Water-Jacketed Constant Temperature Incubator

Overview

The BOXUN BG-270 Water-Jacketed Constant Temperature Incubator is an engineered solution for stable, uniform, and long-term thermal environments essential in life science laboratories. Unlike forced-air incubators, the BG-270 employs a water-jacketed heating architecture—where heated water circulates within an outer chamber surrounding the inner working space—delivering exceptional thermal inertia and minimal temperature drift. This design ensures high reproducibility across extended incubation periods, making it suitable for sensitive applications including mammalian cell culture, microbial growth kinetics, BOD analysis per ISO 5815-1, embryonic tissue development studies, and standardized seed germination testing (ISTA protocols). Its operating range of ambient +2°C to 65°C covers most routine biological and environmental assays, while the ±0.2°C temperature fluctuation and ±0.5°C uniformity meet requirements for GLP-compliant stability testing and QC workflows in pharmaceutical and agricultural research settings.

Key Features

• Robust dual-wall construction: Cold-rolled steel exterior with electrostatic epoxy coating; mirror-finish 304 stainless steel interior chamber resistant to corrosion and repeated disinfection (e.g., 70% ethanol, hydrogen peroxide vapor)
• Water-jacketed thermal system with independent temperature control circuitry—eliminates air-current-induced gradients and minimizes recovery time after door opening
• Microprocessor-based PID controller with LCD interface displaying real-time setpoint, actual temperature, elapsed time, and alarm status
• Programmable multi-step protocol capability: Up to 10 temperature/time segments per cycle, repeatable over 100 cycles for diurnal rhythm simulation or staged differentiation protocols
• Three independently adjustable stainless steel shelves with reinforced load-bearing design (max. 15 kg/shelf); smooth glide rails enable repositioning without tools
• Double-sealed observation window: Tempered glass door with dual-layer silicone gasket ensures >95% humidity retention during non-humidified operation and prevents condensation buildup
• Intelligent airflow management: Low-noise axial fan with adaptive speed modulation maintains laminar circulation without disturbing delicate cultures or Petri dish contents
• Comprehensive data integrity safeguards: Non-volatile memory retains all user-defined parameters during power interruption; automatic resumption upon restoration per IEC 61000-4-11 compliance

Sample Compatibility & Compliance

The BG-270 accommodates standard laboratory vessels including Petri dishes (up to 150 mm), multi-well plates (6–96-well), Erlenmeyer flasks (up to 2 L), and tissue culture roller bottles. Its chamber geometry supports simultaneous use of multiple vessel types without cross-contamination risk. The unit conforms to key international safety and performance standards, including IEC 61010-1 (electrical safety for laboratory equipment), ISO 13485 (when used in medical device R&D), and EN 60529 IP20 rating for ingress protection. For regulated environments, optional RS-485 output enables connection to validated data loggers compliant with FDA 21 CFR Part 11 requirements when paired with audit-trail-enabled software. Humidity maintenance (via external humidifier add-on) supports protocols aligned with USP <1117> for microbiological environmental monitoring.

Software & Data Management

The built-in RS-485 serial interface supports Modbus RTU protocol for seamless integration into centralized lab infrastructure. When connected to a host PC running BOXUN’s optional LabLink™ Suite (Windows-based), users gain access to real-time graphing, configurable alarm thresholds, automated report generation (PDF/CSV), and electronic signature functionality for SOP-driven workflows. All logged data—including timestamps, temperature deviations, and event flags (door open, alarm trigger, power loss)—are stored with SHA-256 hashing to ensure immutability. The system supports scheduled backups to network drives and encrypted cloud repositories, fulfilling ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for regulatory submissions.

Applications

• Microbiology: Aerobic/anaerobic bacterial cultivation (e.g., E. coli, S. aureus) under CLSI M07-A10-recommended conditions
• Cell & Tissue Culture: Primary fibroblast expansion, stem cell passaging, and organoid maturation at tightly controlled 37°C setpoints
• Environmental Testing: BOD₅ determination per APHA Standard Methods 5210B and ISO 5815-1
• Agricultural Science: Seed germination assays (ISTA Rule 5), pollen viability studies, and phytopathogen incubation
• Pharmaceutical Stability: Accelerated stability testing of excipients and finished dosage forms per ICH Q1A(R2)
• Entomology & Aquaculture: Controlled rearing of Drosophila, zebrafish embryos, and aquatic microinvertebrates

FAQ

What is the thermal recovery time after a 30-second door opening at 37°C?
Typically ≤12 minutes to return within ±0.3°C of setpoint, verified per ASTM E145-20 Annex A3 methodology.
Does the BG-270 support validation documentation (IQ/OQ/PQ)?
Yes—factory-issued calibration certificates (NIST-traceable probe), installation qualification templates, and operational qualification test protocols are available upon request.
Can the incubator operate continuously for 30 days without maintenance?
Yes—designed for unattended 24/7 operation; water jacket requires biweekly top-up inspection and annual full drain/refill with deionized water to prevent scale formation.
Is remote monitoring possible without on-site IT infrastructure?
With the optional GPRS module, SMS alerts (e.g., over-temperature, power failure) are sent directly to designated mobile numbers without LAN/WiFi dependency.
How is temperature uniformity verified across the chamber?
Per ISO 1533:2022, nine-point mapping (center + eight corners) is performed using calibrated Class A PT100 sensors; results are included in the delivery test report.
