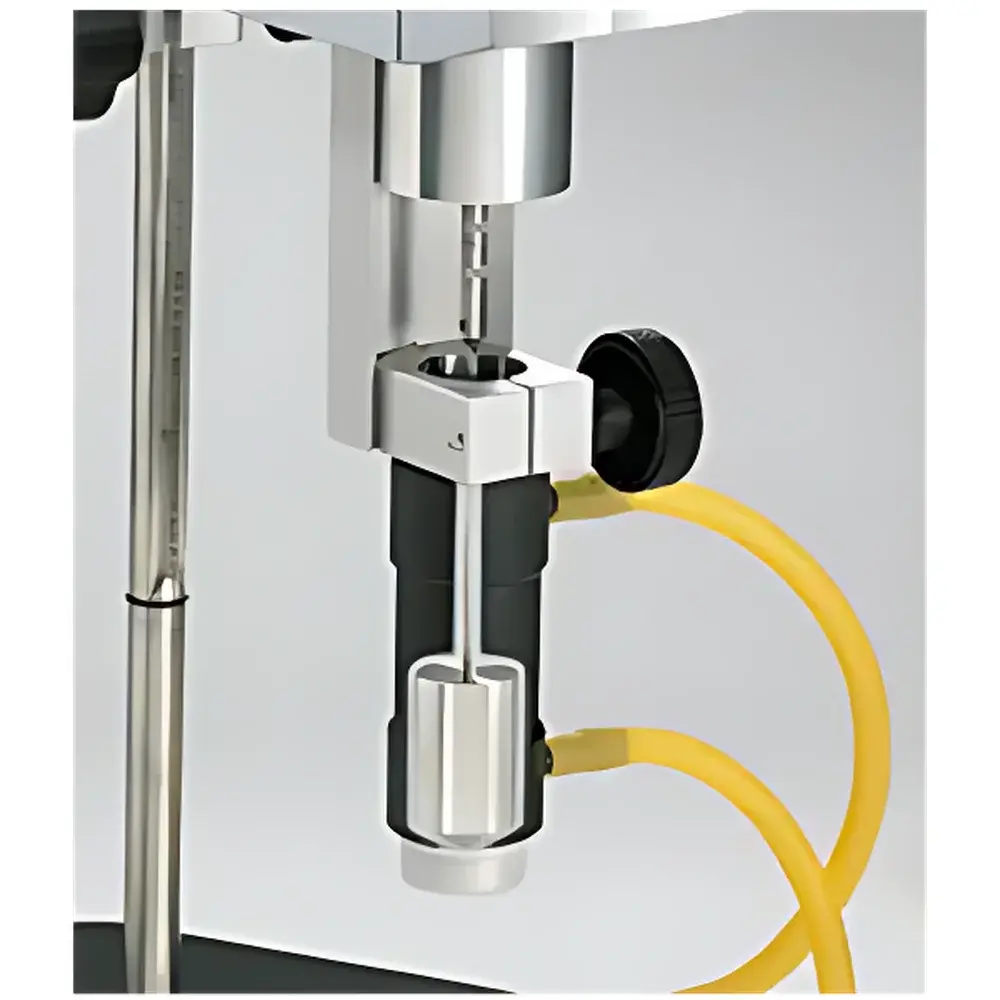

Brookfield DIN Adapter (DAA) for Rotational Viscometers and Rheometers
| Brand | Brookfield |
|---|---|
| Origin | USA |
| Model | DIN Adapter (DAA) |
| Compliance | DIN 53019, ASTM D2196 Equivalent |
| Sample Volume | 16–20 mL |
| Geometry | Cylindrical Couette |
| Shear Rate Calculability | Yes |
| Included Components | 3 rotors + 2 sample cups |
| Viscosity Range (LV/T series) | 1.9–50,000 mPa·s |
| Viscosity Range (RV/HA/HB series) | 10.0–50,000 mPa·s |
| Mounting Compatibility | All Brookfield standard laboratory viscometers and rheometers (DV1, DV2, DV3, RV, HA, HB series) |
Overview
The Brookfield DIN Adapter (DAA) is a precision-engineered cylindrical Couette geometry system designed to meet the dimensional, kinematic, and metrological requirements of DIN 53019-1 (2014) and its internationally harmonized counterpart, ASTM D2196. Unlike cone-and-plate or parallel-plate geometries, the DAA employs a fixed-gap concentric cylinder configuration—consisting of a rotating outer cup and a stationary inner spindle—to generate well-defined, calculable shear fields under steady-state rotational conditions. This geometry enables direct derivation of shear rate (γ̇ = 2πN·Ro / (Ro − Ri)) and shear stress (τ = M / (2π·Ri²·H)), where N is rotational speed (rpm), Ri and Ro are inner and outer radii, and H is the immersed height. The DAA is not a standalone instrument but a certified modular accessory engineered for seamless integration with Brookfield’s full line of torque-transduction-based rotational viscometers and rheometers—including DV1, DV2, DV3, RV, HA, and HB series—thereby extending their compliance capability to regulated quality control environments in coatings, adhesives, inks, and pharmaceutical suspensions.
Key Features
- Full conformance to DIN 53019-1:2014 and ASTM D2196 for standardized viscosity measurement in industrial QC laboratories
- Cylindrical Couette geometry enabling analytical calculation of shear rate and shear stress without calibration fluids
- Minimal sample requirement: only 16–20 mL per test—ideal for precious, hazardous, or low-yield formulations
- Three precision-machined stainless-steel rotors and two matched sample cups supplied as a complete kit
- Interchangeable across all Brookfield DV, RV, HA, and HB platform instruments via standard quick-coupling spindle mount
- No recalibration of instrument torque sensor required; maintains factory-certified accuracy traceable to NIST standards
Sample Compatibility & Compliance
The DAA is validated for Newtonian and mildly non-Newtonian liquids exhibiting moderate shear-thinning behavior (e.g., solvent-based paints, polymer solutions, silicone oils, and aqueous surfactant systems). Its fixed geometry eliminates edge effects common in small-volume plate-based systems and ensures reproducible meniscus correction. For regulatory submissions, data acquired using the DAA satisfy documentation requirements under ISO/IEC 17025-accredited testing, and support GLP-compliant reporting when paired with Brookfield’s compliant software (see Software & Data Management). While not intended for highly elastic or yield-stress materials (e.g., gels, pastes), it remains the preferred geometry for inter-laboratory comparison studies referenced in DIN, ASTM, and ISO 2555 protocols.
Software & Data Management
When used with Brookfield’s official PC-based software (Rheo3000 or ViscoQC 300), the DAA configuration is auto-recognized and preloaded with correct geometric constants, eliminating manual input errors. All measurements are timestamped, user-ID logged, and stored with full audit trail metadata—including spindle ID, cup ID, temperature (when used with optional TC-502 bath), and raw torque/speed values. Export formats include CSV, PDF reports, and XML for LIMS integration. The software supports 21 CFR Part 11 compliance packages (electronic signatures, role-based access, change history) upon license activation—ensuring suitability for FDA-regulated environments in pharmaceutical excipient or topical formulation development.
Applications
- Quality control of architectural coatings and automotive refinishes per DIN 53211 and ASTM D1200
- Batch release testing of ink vehicles and UV-curable resins where sample conservation is critical
- Viscosity benchmarking of lubricants and transformer oils under standardized shear conditions
- Stability assessment of suspension concentrates (e.g., agrochemical SC formulations) via time-sweep at fixed shear
- Method transfer between production sites operating under DIN vs. ASTM regulatory frameworks
FAQ
Is the DIN Adapter compatible with the Brookfield DVNext rheometer?
Yes—the DAA mounts directly to the DVNext via the standard ¼”-28 threaded spindle interface and is fully supported in Rheo3000 v4.2+.
Does the DAA require separate calibration certificates?
No—the adapter’s geometry is certified at manufacture; instrument-level calibration remains unchanged. A Certificate of Conformance (CoC) is included with each kit.
Can I use the DAA for yield stress estimation?
Not reliably. The fixed-gap cylinder geometry lacks controlled stress ramping capability; use a vane or serrated parallel-plate geometry for yield determination.
What temperature control options integrate with the DAA?
The TC-502 circulating bath system interfaces seamlessly with the DAA cup holder; temperature stability of ±0.1°C is achievable across 5–80°C.
Are replacement rotors and cups available separately?
Yes—Brookfield part numbers DAA-ROTOR-LV, DAA-ROTOR-RV, DAA-CUP-STD are stocked globally through authorized distributors.
